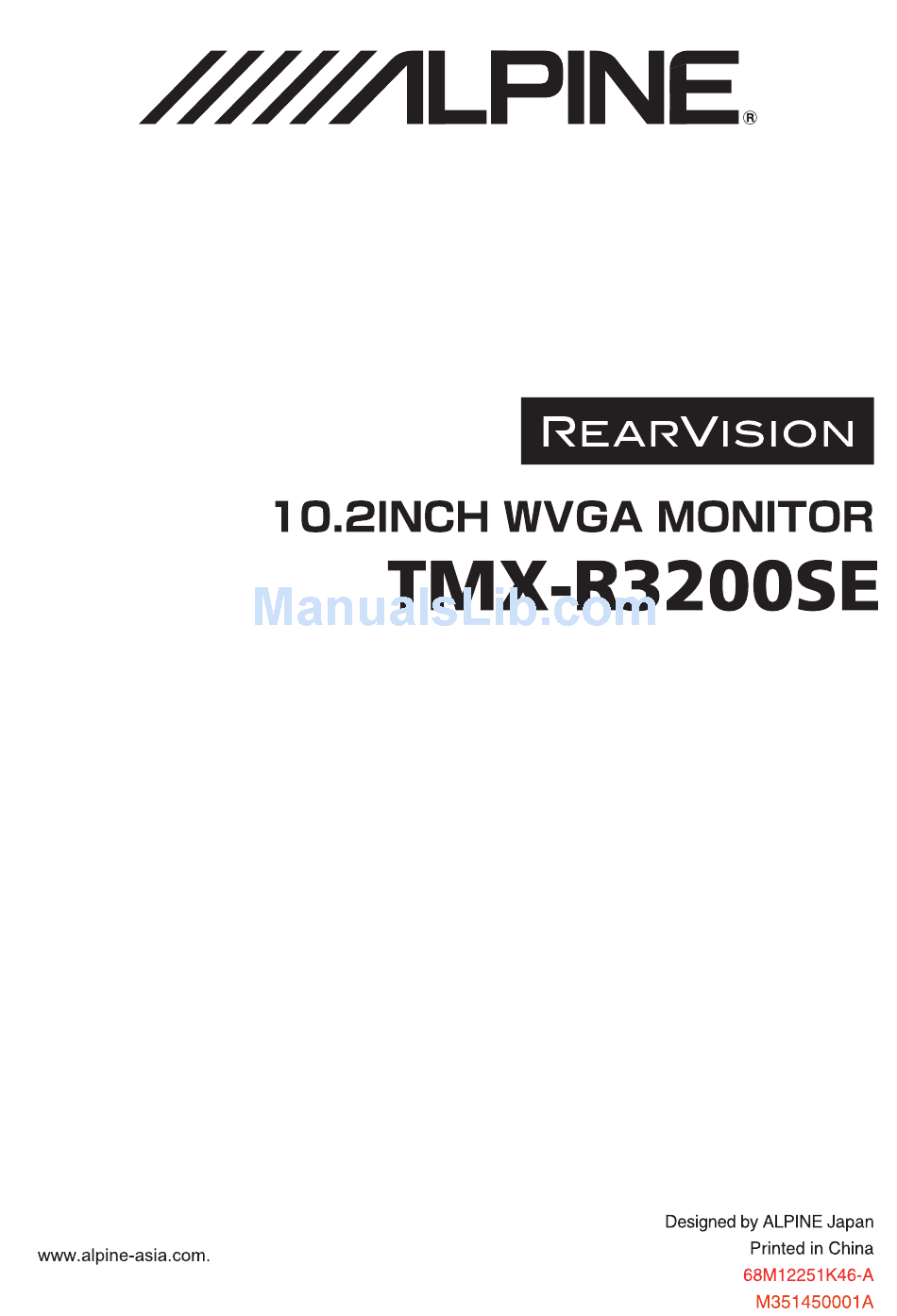

  • Page 1 OWNER’S MANUAL...

  • Page 2: Warning

    WARNING Please read this manual thoroughly for proper use and store it for later use when needed. The Company will not be In case of error, such as no sound or picture, foreign responsible for any damage due to misuse of the product. objects inside, smoke or strange smells, stop using This manual has been prepared to allow you to use the product the product immediately and contact your dealer.

  • Page 3: Cautions On Use (Common)

    Cautions on Usage (Common) Do not install in a wet or dusty place, or area of high humidity. Failure to observe this may result Do not use mobile phone or other wireless device close in electric shock. to this unit. This could cause noise or system malfunction.

  • Page 4: Table Of Contents

    CONTENTS Warning.…………………………………………... 2 Cautions on Use (Common)………………….... Overhead Monitor………………..………... Remote Control…………………………….……..Turning Power ON / OFF…………………....6 Monitor……………......….…..Remote Control……………………………..Dome Light Operation…………....…... Turning Dome Light ON / OFF…………... Visual EQ Setting………………………………... Picture Setting……….......….…....Display Mode Setting………........System Setting……………………......10 Rear Vision Operation...…..……..…….…..

  • Page 6: Turning Power On / Off

    MENU MENU SLICE SWITCH ENTER ENTER MUTE MUTE...

  • Page 9: Display Mode Setting

    SETTING Brightness: Display Mode Setting Adjust brightness of the screen. Setting range : MIN (-16) ～MAX (+16) Display mode can be adjusted to “Wide”, “Cinema”, “Zoom”, and (Factory setting : Flat 0) “Normal” modes. Color : Adjust color level of the screen. 1.

  • Page 12: Rear Vision Operation

    REMOTE CONTROL OPERATION Remote Control Operation Rear Vision Operation Note When you are working with rear vision, please switch to [Monitor] position for slide switch. SlLICE Switch the Monitor AV (Change to the monitor side) SWITCH MENU Rear vision power ON/OFF SlLICE POWER SWITCH...

  • Page 13: Dvd, Ipod, Cd/Mp3/Wma/Acc And Other Operation

    REMOTE CONTROL OPERATION Remote Control Operation DVD, iPod, CD/MP3/WMA/AAC, and Other Operations. SlLICE Switch the Monitor AV (Switch to AV side) SWITCH Switch the AV mode of Alpine Navigation System MODE Call to DVD disk menu MENU MENU BACK Return to top of menu on DVD chapter selection.

  • Page 14: Introduction

    Please mount it using the manual of the product to be Battery: CR2025 Screw (M4 × 16) combined. (for remote control) • If you have any questions, please contact retailers information center. Rubber cap Manual OWNER’S MANUAL TMX-R3200SE Silicon spacer www.alpine-asia.com...

  • Page 15: Installation Of Bracket

    INSTALLATION & CONNECTION Installation of Silicone Spacer Installation of Bracket Please complete the installation work while noting the following to the installation instructions of our rear vision mounting kit. Please attached double-stick tape (8pcs) on the edge of the The installation requires expertise and Caution rear side of monitor, then attached the silicone spacer later.

  • Page 18: Basic Connection Diagram

    Remote Control Signal output. This is a remote control output cord. DIN cable Connect to the input of Alpine Product Remote ※ Align △ and △ and connect the cable. AUX-IN 1 (yellow) ※ It is the TMX-R3200SE dedicated connector.
