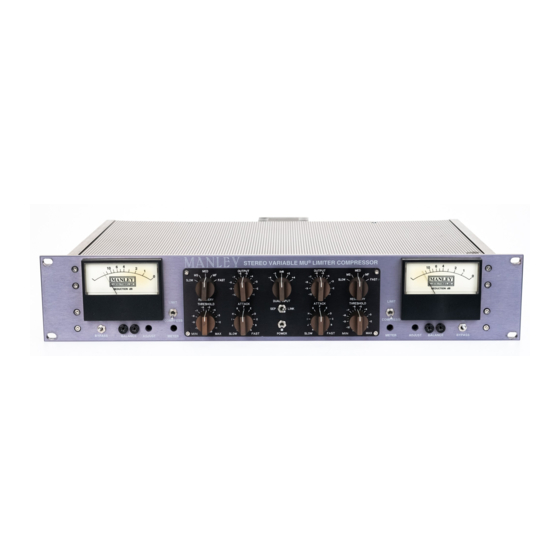

Manley Stereo Variable MU Owner's Manual

Limiter compressor
Hide thumbs Also See for Stereo Variable MU:
Table of Contents

Advertisement

Quick Links

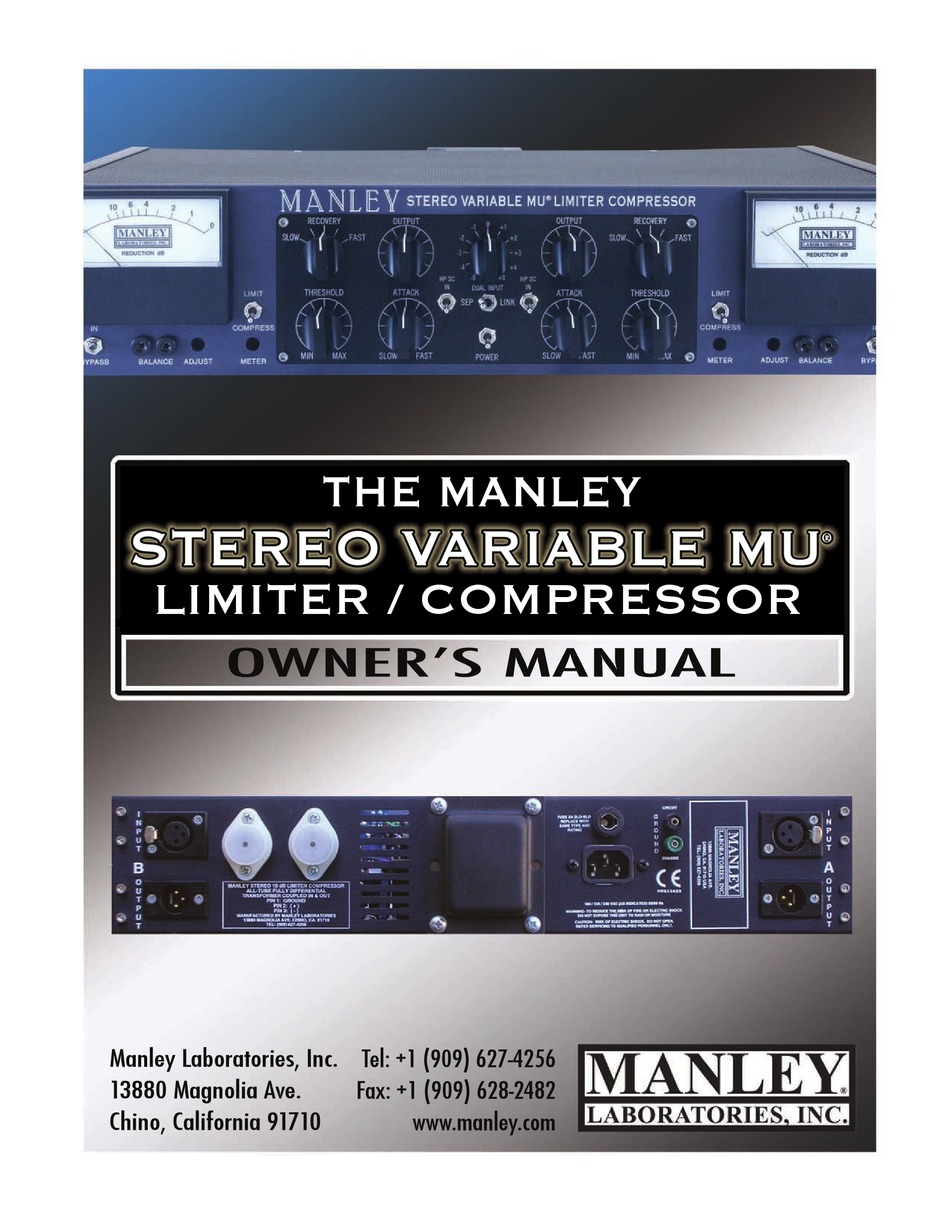

STEREO VARIABLE MU®
LIMITER COMPRESSOR
OWNER'S MANUAL
STEREO VARIABLE MU
LIMITER / COMPRESSOR
OWNERʼS MANUAL
TUBES
brought to you by the clever folks at:
MANLEY LABORATORIES, INC.
Manley Laboratories, Inc.
13880 Magnolia Ave.
Chino, California 91710
MANLEY
LABORATORIES, INC.
MANLEY
THE MANLEY
13880 MAGNOLIA AVE.
CHINO, CA. 91710 USA
TEL: (909) 627-4256
FAX: (909) 628-2482
email: emanley@manleylabs.com
Tel: +1 (909) 627-4256
website: www.manley.com
Fax: +1 (909) 628-2482
www.manley.com
RULE
®

Advertisement

Table of Contents
loading

Related Manuals for Manley Stereo Variable MU

Summary of Contents for Manley Stereo Variable MU

  • Page 1 MANLEY LABORATORIES, INC. MANLEY STEREO VARIABLE MU® LIMITER COMPRESSOR THE MANLEY OWNER’S MANUAL STEREO VARIABLE MU ® LIMITER / COMPRESSOR RULE OWNERʼS MANUAL TUBES brought to you by the clever folks at: MANLEY LABORATORIES, INC. 13880 MAGNOLIA AVE. CHINO, CA. 91710 USA...

  • Page 2: Table Of Contents

    CONTENTS SECTION PAGE INTRODUCTION MAINS CONNECTIONS INSTALLATION FRONT PANEL REAR PANEL EXAMPLE SETTINGS FRONT PANEL ADJUSTMENTS OPERATIONAL NOTES MASTERING AND M/S MODELS T-BAR MODIFICATION GAIN REDUCTION CURVES SPECIFICATIONS TECHNICAL NOTES SERVICE ADJUSTMENTS BLANK TEMPLATE TO STORE SETTINGS rev3.12...

  • Page 3: Introduction

    INTRODUCTION THANK YOU!... for choosing the Manley Laboratories Stereo Variable Mu Limiter Compressor. This unit has ® been our best selling product for many years. It is one of the very few compressors that has be- come a real standard in Mastering studios and contributed to most hit records over the last decade and probably the next.

  • Page 4: Mains Connections

    Collecting electrical and electronic equipment and waste prevents the potential contamination of nature with the hazardous substances which may be present in electrical and electronic products and equipment. Your MANLEY retailer will assist with and advise you of the correct way of disposal in your country.

  • Page 5: Installation

    ® flow up and away from it. If you wish to keep pizzas warm on top of the Manley Variable Mu , please use a plate ® so the cheese does not drip down through the top cover holes into the unit. Your Warranty does not cover damage arising from foreign (or domestic) dairy substances entering the unit.

  • Page 6: Front Panel

    FRONT PANEL BALANCE ADJUST METER METER ADJUST BALANCE A. IN / BYPASS Switched in bypass mode, (down position) all effects of the limiting circuitry are bypassed and will not affect the audio signal. In the bypass mode , the audio signal passes from the input directly to the output (hardwire).

  • Page 7: Rear Panel

    REAR PANEL FUSE 2A SLOBLO CIRCUIT CHASSIS IEC POWER CONNECTOR FUSE HOLDER Houses a standard 2 Amp SLO-BLO fuse. Replace only with the same type and size. IEC MAINS SOCKET Standard 3 pin AC mains socket. See the section MAINS CONNECTIONS for more details.

  • Page 9: Front Panel Adjustments

    FRONT PANEL ADJUSTMENTS Initial basic settings for line level use: -Begin with POWER ON, BYPASS, SEP and COMPRESS -Set all controls at 12:00 ( or THRESHOLD at min) (for calibration feed in a 1Khz oscillator at 0 VU and confirm the return from the unit is actually 0 VU. Switch from BYPASS to IN and adjust the individual OUTPUTs to also return 0 VU.) -Switch from BYPASS to IN and adjust the INPUT LEVEL to get 3 to 6 dB of gainreduction on the meter with either COMPRESS or LIMIT.

  • Page 10: Operation Notes

    OPERATION NOTES The “MANLEY STEREO VARIABLE MU LIMITER - COMPRESSOR” is designed for multiple purposes. The unit can be used stereo or as 2 individual channels of limiting or compression. It can be used as a balanced line amp capable of 24 dB! of gain and as a pre-amp for low level signals. . With higher input gain settings the unit can be used to create gentle tube distortion if desired.

  • Page 11: Mastering And M/S Models

    NOTES ON MASTERING MODIFICATIONS The Mastering Version of the Variable MU Limiter Compressor uses expensive Greyhill rotary switches with gold contacts where conductive plastic pots were used. The steps are determined with a large number of 1% precision metal film 1/2 watt resistors. The best conductive plastic pots only have 10% or 20% tolerance. The ten fold improvement in precision helps a great deal in left-right matching.

  • Page 12: T-Bar Modification

    (which may not have been issues for the tube’s original intended use). Manley decided in June of 1996 to begin using a type 5670 dual triode which were similar, importantly sharing the same pin-out as the 6386 and available in sufficient quantities to allow for testing and matching.

  • Page 14: Specifications

    SPECIFICATIONS - MANLEY input & output transformers with nickel laminations in mu-metal cases with flat fre- quency response from 20Hz-25kHz - BALANCED INPUTS & OUTPUTS (600 Ohms) - Fully differential ALL-TUBE circuitry using one each 5670, 5751, 7044 or 5687, & 12AL5 per channel (T-BAR mod replaced 5670’s with 2 pairs of 6BA6’s)

  • Page 15: Technical Notes

    TECHNICAL NOTES TUBE LIFE As with all tubes, their quality degrades with age. This is due to cathode emission, a natural process found in all tubes. We recommend that you have your unit checked every 4-5 years, depending on usage, usually the limiter will require re- tubing after this time has elapsed.
  • Page 16 *NOTE: As of 03/2012, units are shipping with hole plugs covering the ADJUST trimmers to discourage inadvertent un-calibrating of the triode-to-triode balance. ADJUSTMENT PROCEDURE: Turn the unit’s power on, and allow a minimum 45 minute warmup before attempting calibration. If new tubes have been installed, final calibration should be done after a minimum of 8 hours burn-in time in order to stabilize the tubes.

  • Page 18: Warranty Registration

    (just kidding). You MUST complete ONE of the above methods to validate your warranty and registration. Thank you, again, for choosing Manley gear and reading all the way through The Owner’s Manual. (We really mean that sincerely, the bit about thanking you for choosing our gear.
