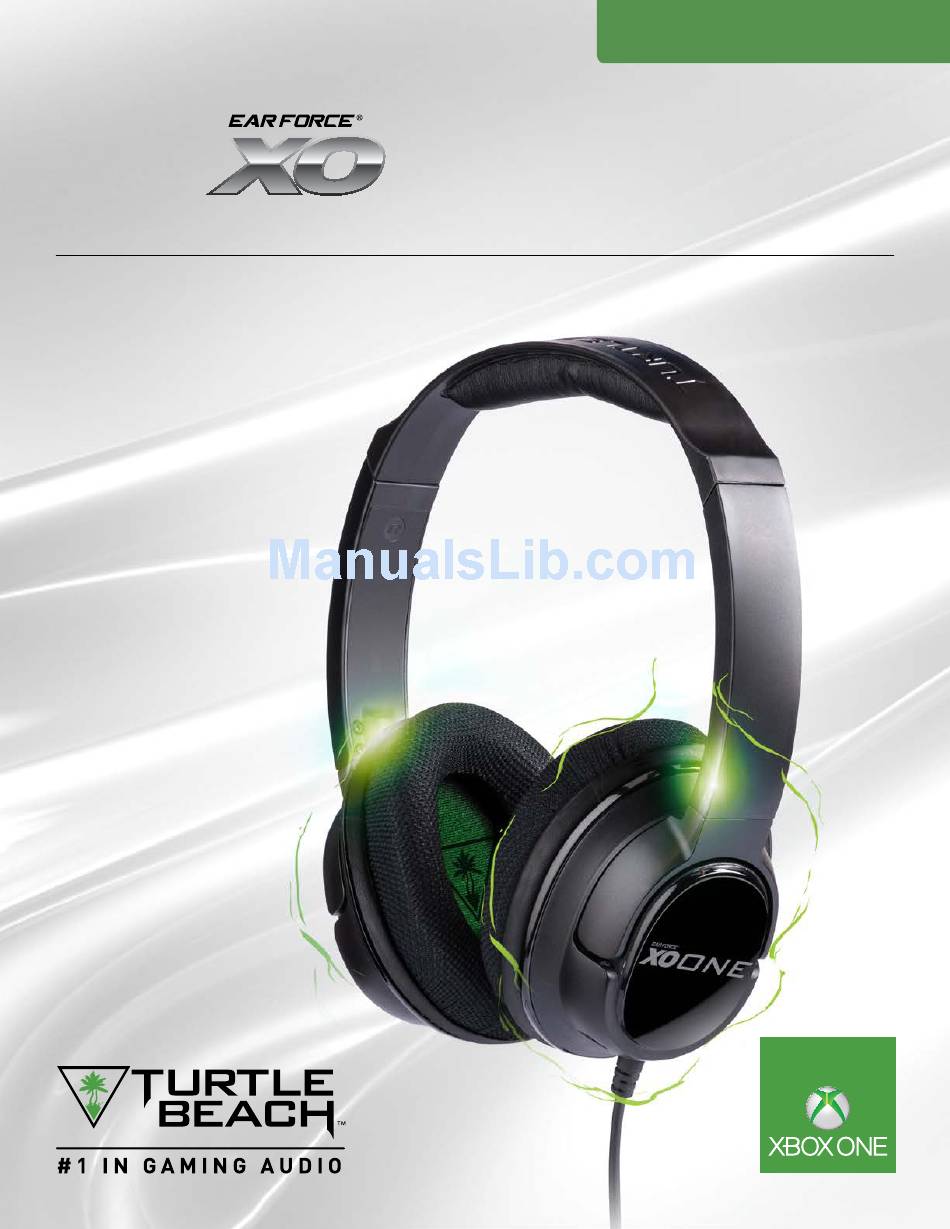

For: Xbox One I Mobile Gaming*
ONE
XBOX ONE STEREO GAMING HEADSET
USER GUIDE
Designed for

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ear Force XO One and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Turtle Beach Ear Force XO One

  • Page 1 For: Xbox One I Mobile Gaming* XBOX ONE STEREO GAMING HEADSET USER GUIDE Designed for...
  • Page 2 Congratulations on your purchase of the Turtle Beach Ear Force XO One Headset from Turtle Beach. You’ll enjoy powerful gaming audio and chat on the Xbox One as well as for mobile gaming. Turtle Beach brings over 35 years of...
  • Page 3: Table Of Contents

    Table of Contents Package Contents About the Ear Force XO One Headset Parts and Controls Setup and Connections: Xbox One Consoles Setup and Connections: Mobile Sources Specifications Troubleshooting Tips Important Safety Information Compliance / Conformity Warranty...
  • Page 4: Package Contents P4

    Package Contents For our Knowledgebase and Technical Support please visit turtlebeach.com/support XO ONE Headset Ear Force Headset Audio Controller Mobile Adapter Cable Removable Mic Boom Turtle Beach Sticker Go to Table of Contents...
  • Page 5: About The Ear Force Xo One Headset P5

    About the Ear Force XO ONE Headset Boost your gaming experience with the all-new Ear Force® XO ONE Stereo Gaming Headset from Turtle Beach. Designed to deliver high-quality Xbox One game and chat audio straight to your ears, you’ll hear every detail of your favorite games, movies and more through powerful, 50mm speakers. The included Ear Force Headset Audio...
  • Page 6: Parts And Controls P6

    Parts and Controls Ear Force® Headset Audio Controller Master Volume Control Bass Boost: Press up/down to increase/decrease Press = Off / Low / High overall game and chat volume. Game/Chat Balance Buttons Mic Button Short Press = Mute / Unmute Long Press = Toggle Mic Monitor Off / Low / High Go to Table of Contents...
  • Page 7: Setup And Connections: Xbox One Consoles P7

    Setup and Connections: Xbox One Consoles 1. Insert the microphone boom into the jack on the left earcup of the headset. Use the keyed plug to line up the Mic Boom in the correct orientation. Press the mic boom in until you hear a gentle click. 2. Insert the Ear Force Headset Audio Controller into the Xbox One Controller. The Headset Audio Controller was designed to fit tightly into the Xbox One controller.
  • Page 8 Setup and Connections: Xbox One Consoles 4. Connect the Xbox One Controller to the Xbox One Console using the Micro USB Update Cable 5. Follow the on-screen prompts to update your controller. Home FEATURED Your controller needs an update An update is available for a recently connected Xbox One controller. Would you like to update it? Update controller Cancel 6.
  • Page 9: Setup And Connections: Mobile Sources P9

    Setup and Connection: Mobile Sources Connecting to Mobile Devices Connect your headset directly into the Headset Jack on the Mobile Device NOTE: For reliable sound, confirm that all connections are firmly inserted. Go to Table of Contents...
  • Page 10: Specifications

    Specifications - Speakers: 50mm with Neodymium Magnets - Frequency Response: 20 Hz — 20 kHz - Earpad Material: Fabric (Black) with Foam Cushioning - Earcup Design: Over-Ear (Closed) - Microphone Design: Removable Omni-Directional Microphone - Headphone Cable Length: 3 feet (0.91 m) with 4-Pole 3.5mm Go to Table of Contents...
  • Page 11: Troubleshooting

    Troubleshooting Tips No sound/low sound Possible cause Solution Press the Volume Up button on the Ear Force Headset Audio Volume control turned down Controller If necessary, press the Game button of the Chat/ Game Mix. Loose connector Confirm that each plug is inserted firmly and fully. Microphone not working Possible cause Solution Press the Mic Mute button on the Ear Force Headset Audio...
  • Page 12: Important Safety Information P12

    Important Safety Information To avoid potential damage to the device, always disconnect all cables before transporting it. WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time, so it is important to keep the volume at a safe level. Over time, your ears adapt to loud volume levels, so a level that may not cause initial discomfort can still damage your hearing.
  • Page 13 Regulatory Compliance Statements for the Ear Force XO ONE. Ear Force Headset Audio Controller Federal Communications Commission (FCC) Compliance Notices Class B Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against...
  • Page 14: Declaration Of Conformity

    Declaration of Conformity Marking by this symbol: indicates compliance with the Essential Requirements of the EMC Directive of the European Union (2004/108/EC). This equipment meets the following conformance standards: Safety: EN 60950-1: 2006 + A11 + A1 + A12 (T-Mark License) Also Licensed for Standards: IEC 60950-1: 2005 + A1: 2009, (CB Scheme Report/Certificate), UL60950-1 (NRTL License), CSA22.2, 60950-1 ( SCC License) Additional licenses issued for specific countries available on request. Emissions: EN 55022: 2010, EN 50332-1: 2000, E N 50332-2: 2003 CISPR 22: 2008. Immunity: EN 61000-4-2: (2008-12), EN 61000-4-3: (2010-04), EN 61000-4-8: (2009-09). The products are licensed, as required, for additional country specific standards for the International Marketplace. Additional issued licenses available upon request. Environmental: Low Voltage Directive 2006/95/EC, RoHS 2011/65/EU, REACH 2006/1907/EC, WEEE 2002/96/EC, Packaging 94/62/EC Warning! This is a Class B product. In a domestic environment, this product may cause radio interference, in which case, the user may be required to take appropriate measures.
  • Page 15 Japan Compliance Statement この装置は、 クラスB情報技術装置です。 この装置は、 家庭環境で使用 することを目的としていますが、 この装置がラジオやテレビジョン受信機に 近接して使用されると、 受信障害を引き起こすことがあります。 取扱説明書に従って正しい取扱いをして下さい。 VCCI-B This is a Class B product based on the standard of the VCCI Council. If this is used near a radio or television receiver in a domestic environment, it may cause radio interference.
  • Page 16 LIMITED ONE YEAR WARRANTY FOR TURTLE BEACH PRODUCTS: Voyetra Turtle Beach, Inc. (“VTB”) warrants to the original end-user purchaser (“Purchaser”) that the retail Turtle Beach hardware product herein (“Prod- uct”) will be free of defects in materials and workmanship for a period of one year from the date of purchase by the Purchaser (“Warranty Period”). Any Extended Warranty or Service Plans purchased through a Retail store are not honored by VTB.
  • Page 17 EXCLUSIONS FROM LIMITED WARRANTY: This Limited Warranty shall not apply and VTB has no liability under this Limited Warranty if the Turtle Beach Product: - is used for commercial purposes such as “LAN, Call Centers” (including rental or lease); - i s modified or tampered with;...
  • Page 18 For: Xbox One I Mobile Gaming* Watch Turtle Beach product training videos at: Product support and warranty information: TurtleBeach.com/support youtube.com/TurtleBeachVideos *Ear Force® XO Headset Audio Controller features not available for mobile use. © 2014 Voyetra Turtle Beach, Inc. (VTB, Inc) All rights reserved. TURTLE BEACH, The Palm Tree, Voyetra and Ear Force are either trademarks or registered trademarks of VTB, Inc. Skype is a trademark owned by its respective company. This service may not be available in some countries where this product is sold.
