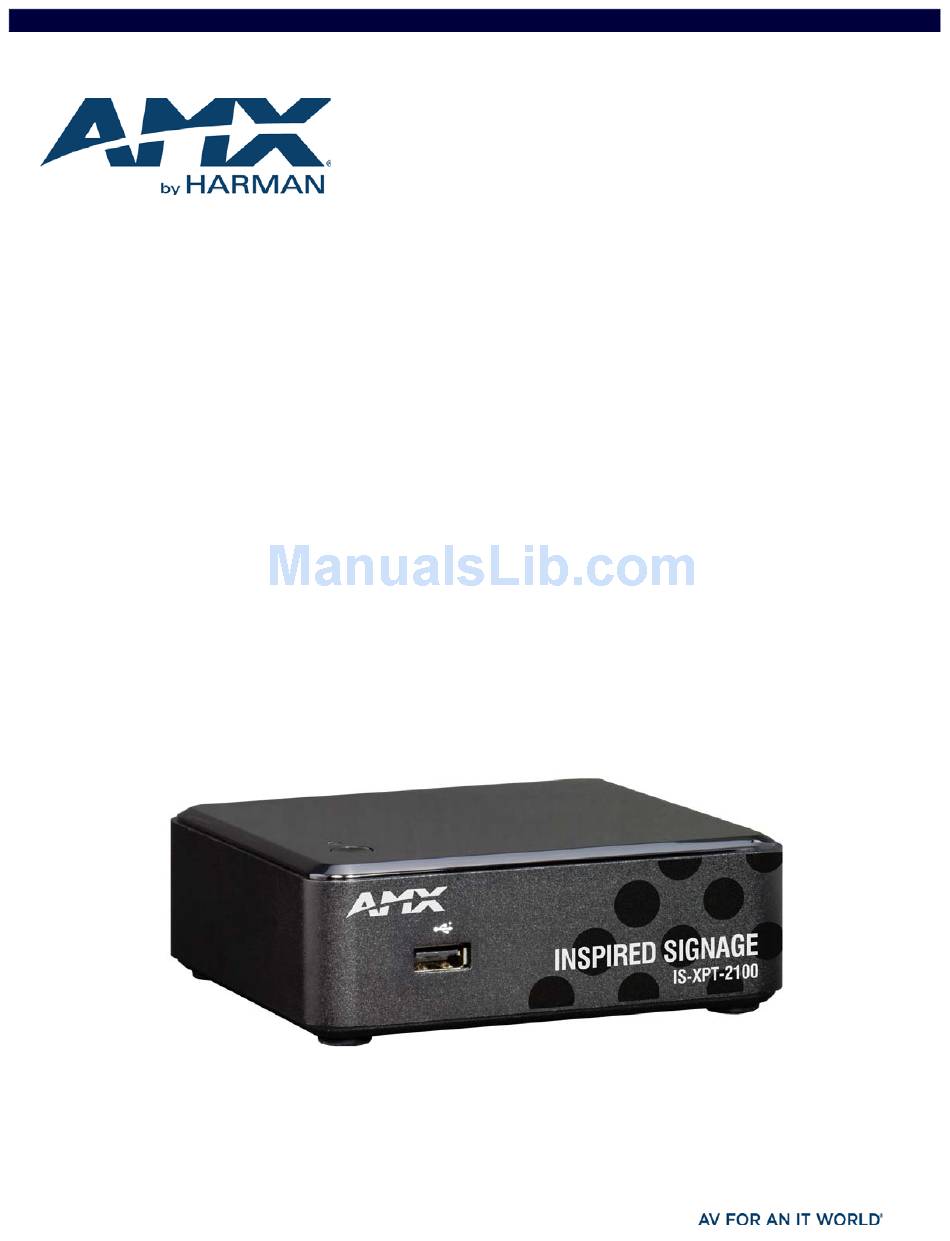

- Page 1 IN ST ALLATI O N G U I DE I N S P I RED E X PE R T P LA YE R IS-X PT-21 00...
-
Page 2: Important Safety Instructions
COPYRIGHT NOTICE AMX© 2016, all rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of AMX. Copyright protection claimed... -
Page 3: Table Of Contents
Connect the HDMI Display(s) to the IS-XPT-2100............6 Connecting to a Single Display ....................... 6 Connecting to Two Displays ........................6 Connect the IS-XPT-2100 to the Controller PC (via LAN) ..........6 Apply Power to the IS-XPT-2100 ..................6 IS-XPT-2100 Player Configuration ..............7 Overview ........................... -
Page 4: Is Xpert
It allows Managers/Administrators to approve content and playlist changes made by end users. Composer enables taking Templates created by AMX's Graphic Design team, and creating Messages from these Templates, with customized media and data. These Messages are then added to Playlists and published to the relevant Players, so that the new content can be displayed on screen. -
Page 5: Setting Up Inspired Composer
IS XPert Installing Inspired Composer Refer to the Composer Desktop Installation Guide or Composer Server Installation Guide as appropriate for installation instructions. Setting up Inspired Composer Composer needs to be setup in order to display content on the Player. Note that the operations described below must be carried out in the correct order to avoid problems. -
Page 6: Is-Xpt-2100 Inspired Xpert Player
Overview The IS-XPT-2100 Inspired XPert Player (FG1232-100) is a self-contained solution for Inspired Signage software that delivers content to a display. The Player runs the Babel and Player applications. FIG. 3 indicates the front and rear panel components of the... - Page 7 IS-XPT-2100 Inspired XPert Player IS-XPT-2100 Product Specif ications Certifications • UL/CSA 60950-1 / EN 60950-1 • IEC 60950-1 / NOM-019-SCFI-1998 • GOST-R / CISPR 22 • CISPR 24 / FCC 47 CFR Part 15, Subpart B • ICES-003 / EN 55022 •...
-
Page 8: Is-Xpt-2100 Installation
Use the supplied mounting screws to secure the mounting plate to the wall. Attach two of the larger screws to the two midpoint holes on the base of the IS-XPT-2100, and slot the unit into the mounting plate (FIG. 5):... -
Page 9: Connect A Usb Mouse And Keyboard To The Is-Xpt-2100
Once the IS-XPT-2100 is mounted, you can connect cables to the device. Connect a USB Mouse and Keyboard to the IS-XPT-2100 Two USB 2.0 ports on the rear panel of the IS-XPT-2100 can be used to connect a mouse/keyboard, which will be necessary to navigate and configure the player. -
Page 10: Is-Xpt-2100 Player Configuration
Player Web Conf iguration tool to configure the IS-XPT-2100. NOTE: The instructions in this section assume that the IS-XPT-2100 will be installed on a DHCP network. For instructions on installing on a non-DHCP network, refer the Appendix: Connecting the IS-XPT-2100 to a LAN via Link-Local Addressing on page 13. -
Page 11: Quick Wizard - Screen Configuration
Custom Height fields are enabled. Enter the desired resolution (width and height in pixels). The IS-XPT-2100 will attempt to select a suitable aspect ratio for the attached display using the EDID system Alternatively you can select an output aspect ratio from the standard aspect ratio options provided in the Aspect Ratio drop-down menu. -
Page 12: Quick Wizard - Network Configuration
Appendix: Connecting the IS-XPT-2100 to a LAN via Link-Local Addressing on page 13. IS-XPT-2100 Networking Overview The IS-XPT-2100 must be connected to a network to allow it to be configured and to provide the ability to update the content displayed on the Player. The IS-XPT-2100 requires the following permanent network connections: A connection from the PC on which the Inspired Composer application is installed, for content updates ... -
Page 13: Regional Configuration
Select the appropriate time zone from the Time zone drop-down menu (FIG. 11). Restarting the IS-XPT-2100 After setting the Time Zone, Date/Time, and Display settings, you will be prompted to restart the IS-XPT-2100 to apply the changes you have made in the three sections of the Player configuration wizard. -
Page 14: Using Two Monitors With The Is-Xpt-2100
Using Two Monitors with the IS-XPT-2100 The two HDMI output ports on the rear panel of the IS-XPT-2100 provide the ability to send HD video output to two displays. If connecting two displays, use two HDMI cables to connect each HDMI connector to a display device. Some basic configuration is... - Page 15 IS-XPT-2100 Player Configuration Select Display Mode > Clone ( FIG. 15): Select Clone Display Mode FIG. 15 IS Expert 2100 Installation Guide...
-
Page 16: Appendix: Connecting The Is-Xpt-2100 To A Lan Via Link-Local Addressing
Launch Internet Explorer and select the Bonjour Plug-in. Double-click the IS-XPT-2100 in the Bonjour Plug-in pane to start the Player Web Conf iguration Tool wizard. NOTE: The Web Conf iguration Tool requires the Microsoft Silverlight plugin. The f irst time you access the Web Conf iguration Tool a prompt will appear to install this plugin. - Page 17 © 2016 Harman. All rights reserved. Metreau, NetLinx, AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos are registered trademarks of Last Revised: HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies.
