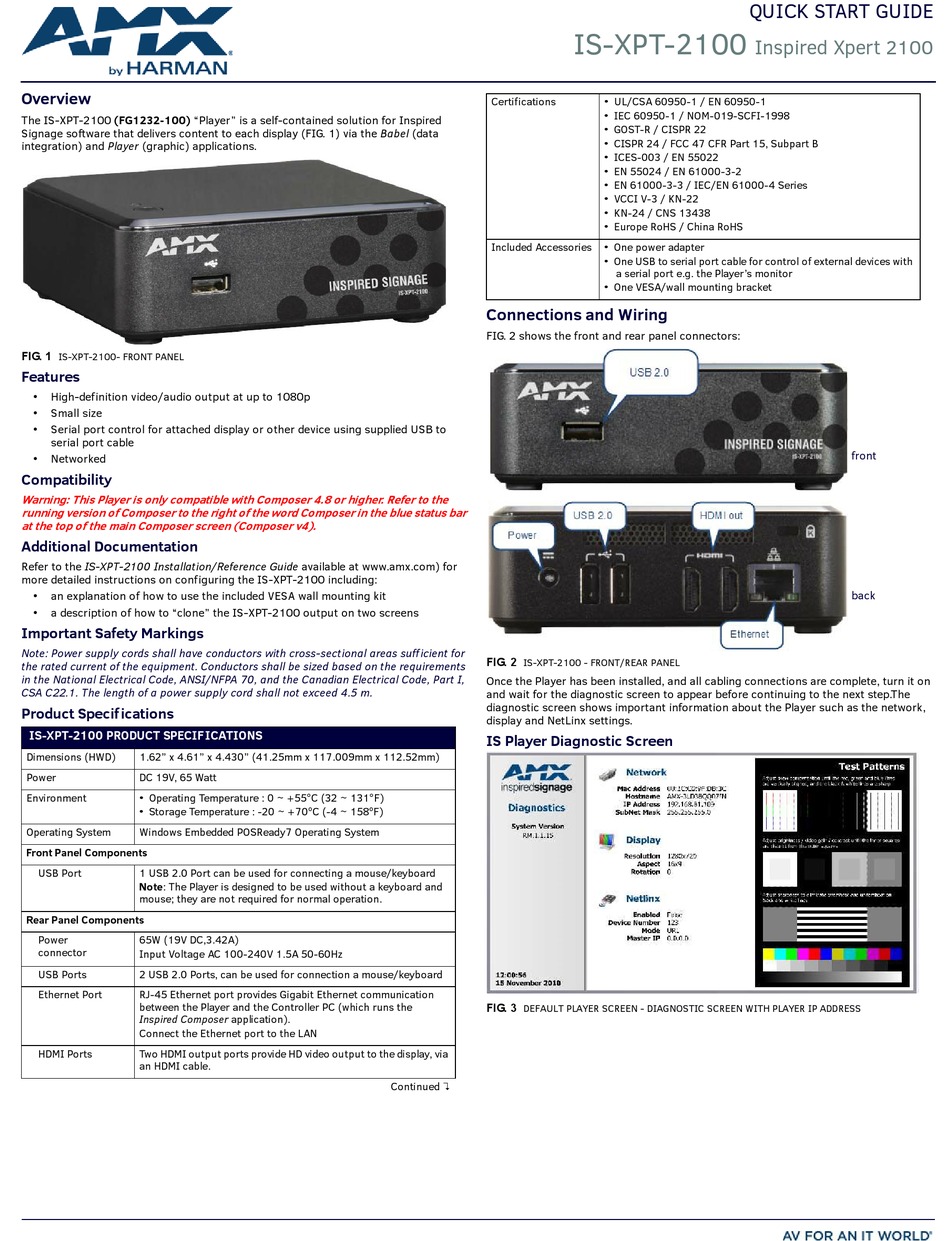

AMX Inspired Xpert 2100 Quick Start Manual

Overview

The IS-XPT-2100 (FG1232-100) "Player" is a self-contained solution for Inspired
Signage software that delivers content to each display (FIG. 1) via the Babel (data
integration) and Player (graphic) applications.
IS-XPT-2100- FRONT PANEL
FIG. 1

Features

• High-definition video/audio output at up to 1080p
• Small size
• Serial port control for attached display or other device using supplied USB to
serial port cable
• Networked

Compatibility

Warning: This Player is only compatible with Composer 4.8 or higher. Refer to the
running version of Composer to the right of the word Composer in the blue status bar
at the top of the main Composer screen (Composer v4).

Additional Documentation

Refer to the IS-XPT-2100 Installation/Reference Guide available at www.amx.com) for
more detailed instructions on configuring the IS-XPT-2100 including:
• an explanation of how to use the included VESA wall mounting kit
• a description of how to "clone" the IS-XPT-2100 output on two screens

Important Safety Markings

Note: Power supply cords shall have conductors with cross-sectional areas suff icient for
the rated current of the equipment. Conductors shall be sized based on the requirements
in the National Electrical Code, ANSI/NFPA 70, and the Canadian Electrical Code, Part I,
CSA C22.1. The length of a power supply cord shall not exceed 4.5 m.
Product Specif ications
IS-XPT-2100 PRODUCT SPECIF ICATIONS
Dimensions (HWD) 1.62" x 4.61" x 4.430" (41.25mm x 117.009mm x 112.52mm)
Power DC 19V, 65 Watt
Environment • Operating Temperature : 0 ~ +55°C (32 ~ 131°F)
• Storage Temperature : -20 ~ +70ºC (-4 ~ 158ºF)
Operating System Windows Embedded POSReady7 Operating System
Front Panel Components
USB Port 1 USB 2.0 Port can be used for connecting a mouse/keyboard
Note: The Player is designed to be used without a keyboard and
mouse; they are not required for normal operation.
Rear Panel Components
Power 65W (19V DC,3.42A)
connector
Input Voltage AC 100-240V 1.5A 50-60Hz
USB Ports 2 USB 2.0 Ports, can be used for connection a mouse/keyboard
Ethernet Port RJ-45 Ethernet port provides Gigabit Ethernet communication
between the Player and the Controller PC (which runs the
Inspired Composer application).
Connect the Ethernet port to the LAN
HDMI Ports Two HDMI output ports provide HD video output to the display, via
an HDMI cable.
Certifications
Included Accessories

Connections and Wiring

FIG. 2 shows the front and rear panel connectors:
FIG. 2 IS-XPT-2100 - FRONT/REAR PANEL
Once the Player has been installed, and all cabling connections are complete, turn it on
and wait for the diagnostic screen to appear before continuing to the next step.The
diagnostic screen shows important information about the Player such as the network,
display and NetLinx settings.

IS Player Diagnostic Screen

FIG. 3 DEFAULT PLAYER SCREEN - DIAGNOSTIC SCREEN WITH PLAYER IP ADDRESS
Continued 

QUICK START GUIDE

IS-XPT-2100
Inspired Xpert 2100
• UL/CSA 60950-1 / EN 60950-1
• IEC 60950-1 / NOM-019-SCFI-1998
• GOST-R / CISPR 22
• CISPR 24 / FCC 47 CFR Part 15, Subpart B
• ICES-003 / EN 55022
• EN 55024 / EN 61000-3-2
• EN 61000-3-3 / IEC/EN 61000-4 Series
• VCCI V-3 / KN-22
• KN-24 / CNS 13438
• Europe RoHS / China RoHS
• One power adapter
• One USB to serial port cable for control of external devices with
a serial port e.g. the Player's monitor
• One VESA/wall mounting bracket
front
back
