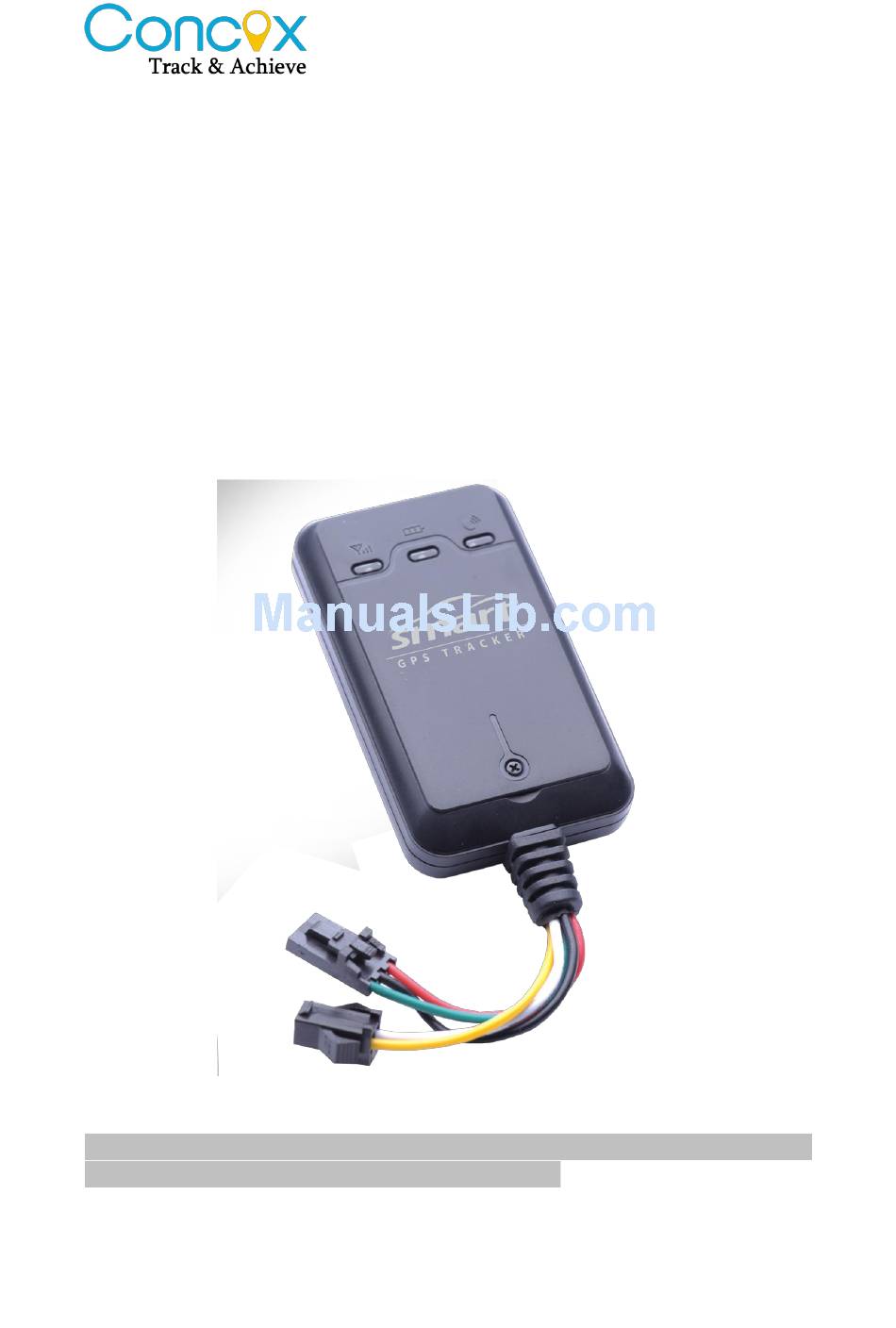

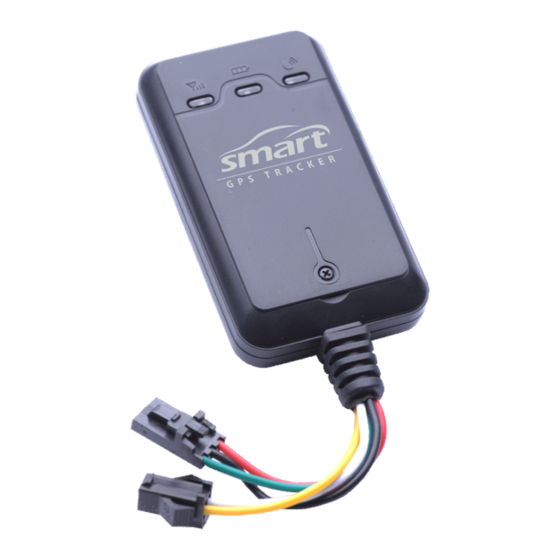

- Page 1 GPS Vehicle tracker (Anti-theft Tracking & Positioning) USER MANUAL (Version 2.3) Please read this manual carefully before attempting installation and online activation. Pictures are for indication and illustration purposes only.
-
Page 2: Interface Introduction
1. Accessories: 2. Features: Wide voltage input range: 9-36v DC GPS position upload via GPRS as preset interval Check location via SMS Built-in vibration sensor, intelligent theft proof ACC ignition detection Tele-cutoff (petrol/ electricity) function 3. -
Page 3: Method Of Installation
3.1 Red LED (Power/Working Status) LED Status Indication Continuously in dark state Power off Flash slowly Working normally 3.2 Green LED (GSM Status Indicator) LED Status Indication Flash Receive GSM signal normally Flash slowly Start GPRS Continuously in dark state No GSM signal 3.3Blue LED (GPS Status Indicator) LED Status... - Page 4 Note: Power off before installing or removing the SIM card. The SIM card used should be available for GPRS 4.2 Installation Notes Concealed installation, be aware of water drops Stay away from interference of electromagnetic signals ...
- Page 5 The device will power on automatically when connected to power. The power LED will light up. 5. Cautions 5.1 Power: The standard power supply voltage is 9V-36VDC. Please use the power line which provided by the manufacturer. The red line is for the positive and the black line is for the negative.
-
Page 6: Parameter Settings
and it will keep activating vibration alarms while the vehicle is moving. To disable vibration alarm and theft proof function, please connect the ACC line directly to the positive power supply and maintain a high level. 5.2.2 Tele-cutoff (petrol/ electricity) control line (yellow) is connected to pin 86 of the Tele-cutoff (petrol/ electricity) relay (equal to the yellow line of the relay socket). - Page 7 SOS,A,,13510905992# means to set the second number SOS,A,,,13510905993# means to set the third number “OK”. If the setting is successful, the terminal will reply 6.3 Delete SOS Numbers To delete a specific SOS number, you can send query command to check its corresponding serial number and then send command to delete it.
- Page 8 6.5 Set the interval of GPRS data-transmission The default interval is 20s which means device will send GPS positioning data to server every 20s. The command to set the interval is as follows; TIMER,time(seconds)# The range is from 10-18000s. e.g. TIMER,10# 6.6 Defense-activation timer setting ACC line keeps low for 10 minutes;...
- Page 9 7. Operations 7.1 Check Location 7.1.1 Query Coordinates by SMS To query coordinates of the terminal, you can send the query command to it. The terminal will reply the coordinates of last location. If it fails to get location information, it will reply the message as follows: “No data!” Command format: WHERE# Example:...
-
Page 10: Troubleshooting
2. Send SENSOR,0# to the terminal, you can turn off the vibration alarm. 3. Send ALM,OFF# to disable SMS alarm function. Send ALM,ON# to activate SMS alarm function. 7.3 Cut-off Petrol/Electricity In case the vehicle is stolen, the users can send command from the platform to cut off the Petrol/Electricity to stop the vehicle from moving. - Page 11 ③ Check whether SIM card balance is enough ④ Check SIM card GPRS service; ⑤ Check the parameter settings, to ensure whether IMEI number and GPRS transmission interval are right. 9.3 If the device can not get GPS signal for a long time, please check its location of installation: ①...
