Summary of Contents for SMART GT06

  • Page 1: User Manual

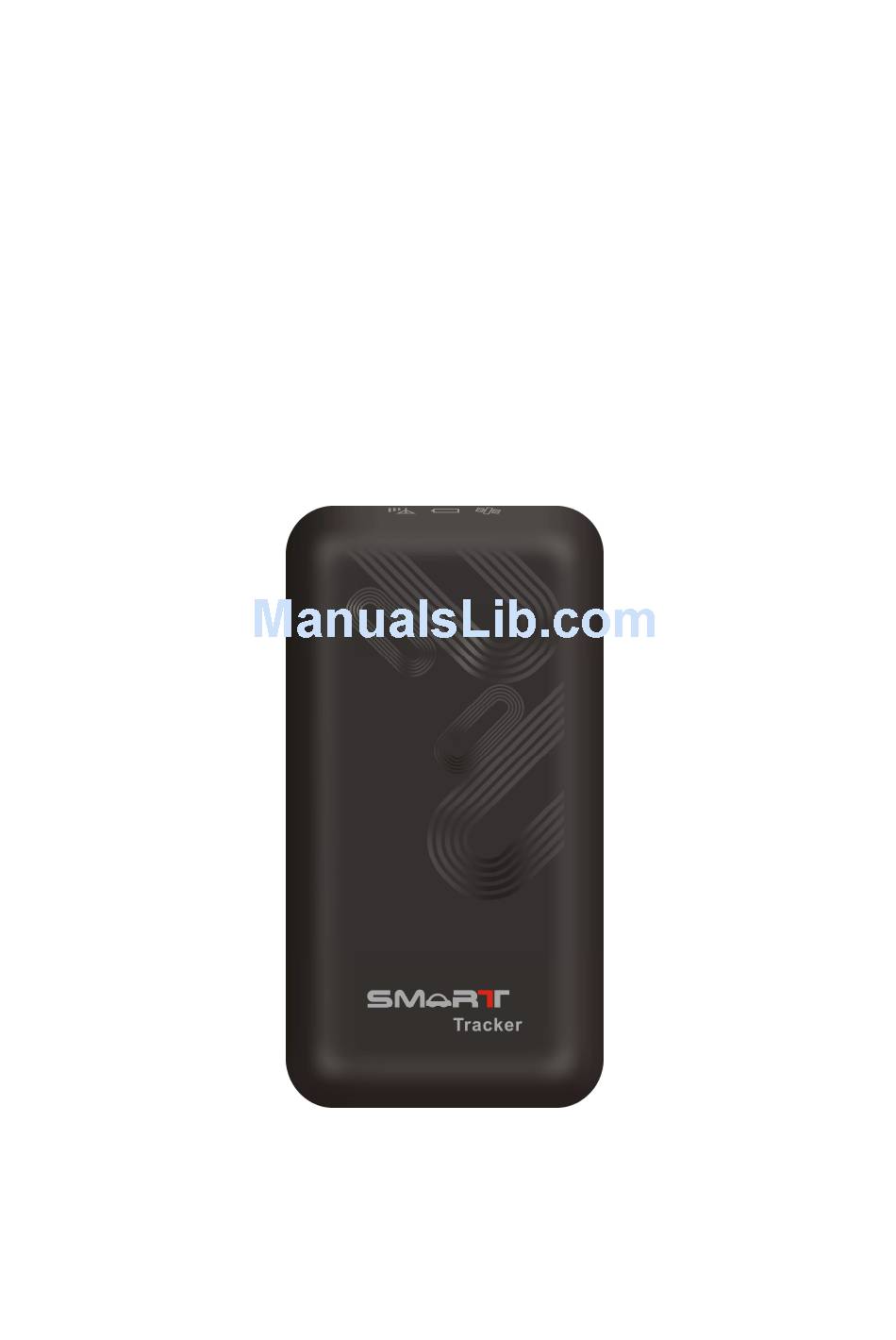

    GPS Vehicle Tracker (GPS+GSM+SMS/GPRS) GT06 User Manual (Version 1.0) Please read this manual carefully before attempting installation and online activation. Pictures are for indication and illustration purposes only.
  • Page 2 1. Accessories: Please check the accessories before using. Pictures are for indication and illustration purposes only.
  • Page 3 2. Features: ● GSM 850/900/1800/1900 Quad band ● Wide for voltage input range:9-36vDC ● GPS continuous positioning, GPRS timing interval ● Check location via SMS ● Built-in vibration sensor , theftproof ● ACC ignition detection ● Tele-cutoff (petrol/ electricity) function ●...
  • Page 4: Interface Introduction

    3. Interface introduction...
  • Page 5: Method Of Installation

    4. Method of installation 4.1. Preparation before installation 4.1.1 Open the packing box to check whether the type of device is correct and whether the accessories are included, or else please contact your distributor. 4.1.2 Choose SIM card: each device needs to insert a GSM SIM card. Please refer to the distributor’s suggestions to choose the SIM card.
  • Page 6: Device Outlet Specification

    Notice: if the windshield is pasted with metal thermal-protective coating or heating coating, It may affect the receiving signal. In this case, please change the installation place. 4.3 Device outlet specification Line No. Specification Color Instruction 1. 2 Keypod Orange/ orange Connect to SOS button 3.
  • Page 7: Cautions Of Device Wiring

    4.4 Device wiring diagram 5. Cautions of device wiring 5.1 Power/ACC/Tele-cutoff (petrol/electricity) control line(4 pin) 5.1.1 The standard voltage is 9V-36VDC. Please use the power line which provided by the manufacturer. The red line is the positive. The black line is the negative.
  • Page 8: Parameter Setting

    The device will reply the corresponding information after sending the SMS command. The default password is “000000”. 6.1 Set configuration of GT06 For example: When the device goes to Indonesia, and the customer put the sim card from the Indosat operator in it.
  • Page 9 device. 2) If you receive “Fail”, it means that the device can not identify the content of the SMS. In this case, please check the content of SMS, especially the format of Minuscule/ Majuscule. Find the problems and resend the SMS, you would get “success”.
  • Page 10 automatically with no skip code. Reply information: It will receive “Delete number 135XXXXXXXX success! specific number total 2” for successful deleting of the specific number. …… After delete the last group of specific number, it will receive: “Delete number 135XXXXXXXX success! specific number total 0” When there is no specific number, it will receive: “Notice: Specific phone book empty!”...
  • Page 11: Operation Of Device

    10 seconds. 7.2 View location method 7.2.1 By SMS 7.2.1.1 SMS “WHERE,password#”, to the SIM number of GT06. The terminal will send a location message automatically. This coordinate can be put into Google map directly and you can get the address.
  • Page 12 7.2.1.2 SMS “URL, password#”, to the SIM number of GT06. The device will send a location Google Map link. 7.2.2 By platform Go to the platform website offered by dealers to check your vehicle location. 7.3 SOS alarm In emergent case, press SOS for 3s to activate SOS alarm. Then the device will send SOS SMS to preset specific numbers and then dial the numbers in circles until the call is through.
  • Page 13 When vehicle power is off, ACC status is also low, and if the lead time of low ACC is more than 10 minutes (settable), device will activate security alarm. When the security alarm is on, once the vehicle vibrates for several times, the alarm will be activated, in the later 3 minutes, vehicle power is still off(ACC status is low, device will start alarm.
  • Page 14 9. . . . Trouble shooting 9.1. After installing it in the first time, if device can not get connected with platform server, at this time it is “logged off” status in platform. Please check the installation of device: 1) Check whether the connection of power-line is correct, please do not connect it with the car control line.
  • Page 15 9.5 If GSM can not receive the signals normally, please check whether SIM card is installed correctly or there is no GSM signal at the location you are, such as basement parking, please drive to a place covered by GSM signal reception.
  • Page 16 Warranty card of GPS Vehicle tracker Special statement: 1. Specifications of this product subject to change without further notice. 2. Any change about the appearance and color is subject to the real object. 3. Warranty card applies to the product with the IMEI number listed below. 4.
  • Page 17: Maintenance Records

    Maintenance records Record one Maintenance unit Date Fault description Maintenance status IMEI number Serviceman Record two Maintenance unit Date Fault description Maintenance status IMEI number IMEI number...
