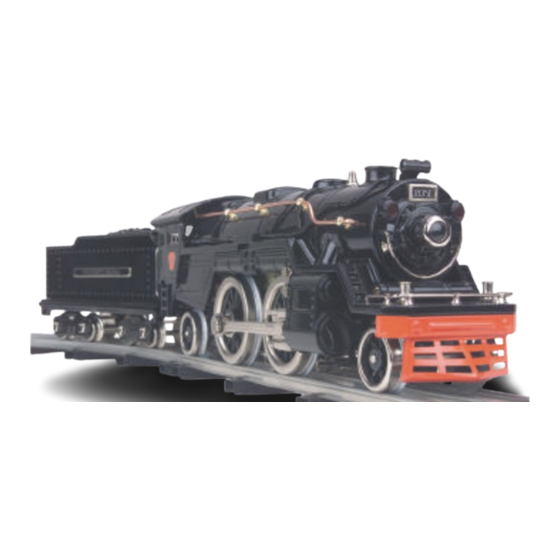

Tinplate 385/1835
Steam Locomotive
Compatibility
This set will operate on any traditional 42"
diameter STD. Gauge track system,
including M.T.H.'s traditional tubular track.
It is also compatible with most standard AC
transformers. (See page 7 for a complete list
of compatible transformers and wiring
instructions.)
PLEASE READ BEFORE USE AND SAVE
OPERATOR'S MANUAL
Traditional Version
By M.T.H. Electric Trains
®
®
Advertisement
Table of Contents
Related Manuals for M.T.H. Tinplate 385
Summary of Contents for M.T.H. Tinplate 385
- Page 1 ® By M.T.H. Electric Trains ® Tinplate 385/1835 Steam Locomotive OPERATOR’S MANUAL Traditional Version Compatibility This set will operate on any traditional 42” diameter STD. Gauge track system, including M.T.H.’s traditional tubular track. It is also compatible with most standard AC transformers.
-
Page 2: Table Of Contents
Table of Contents Set Up Checklist....................3 Lubrication.....................3 Basic Operation....................4 Activating Features................4 Maintenance ......................5 Lubricating and Greasing Instructions...........5 Cleaning The Wheels and Track............5 Headlight Replacement Instructions............6 Transformer Compatibility and Wiring Chart........7 Service & Warranty Information............8 Limited One-Year Warranty..............8 CAUTION: ELECTRICALLY OPERATED PRODUCT: Not recommended for children under 10 years of age. -
Page 3: Set Up Checklist
Set Up Checklist • Lubricate the locomotive • Apply power to run as described in the Basic Operating Section of this manual Lubrication DO NOT OVER OIL You should lubricate the engine to prevent it from squeaking. Use light household oil and follow the lubrication points marked in Figures 1 and 2. -
Page 4: Basic Operation
Basic Operation The Throttle knob controls how fast your train will travel. The locomotive is stopped, started and reversed by means of the reversing ‘E-Unit’ located inside the locomotive. The E-Unit is a three position sequence relay which cycles whenever current to the locomotive is interrupted. This can be done by operating the ‘direction’... -
Page 5: Maintenance
Maintenance Lubricating and Greasing Instructions The engine should be well oiled and greased in order to run properly. Regularly lubricate all axles and linkage components and pickup rollers to prevent squeaking. Use light household oil, such as that found in M.T.H.'s maintenance kit. -
Page 6: Headlight Replacement Instructions
Headlight Replacement Instructions The locomotive’s headlight is controlled by a constant voltage circuit in the engine. The headlight is easy to remove and replace when it burns out. The bulb screws into a bracket affixed to the inside of the boilet. Replacement bulbs are available directly from the M.T.H. -
Page 7: Transformer Compatibility And Wiring Chart
Transformer Compatibility and Wiring Chart Proto-Sound 2.0 is designed to work with most standard AC transformers. The chart below lists the many compatible transformers. Note that many of the operational commands described in these instructions require a bell button, so if your transformer does not have its own bell button, you should consider adding one to get the full benefit of the system. -
Page 8: Service & Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty For warranty repair, follow the instructions below to obtain warranty service. 1. First, e-mail, write, call or fax an Authorized M.T.H. Service Center in your area or M.T.H. Electric Trains to obtain Repair Authorization. - Page 9 AUTHORIZED SERVICE CENTER 7020 Columbia Gateway Dr. - Columbia, MD 21046 Information: 410-381-2580 Fax: 410-381-6122 www.mth-railking.com PARTICIPATING RETAILER LIST ALABAMA FLORIDA LOUISIANA SOUTHERLAND STATION DEPOT HOBBY SHOP AMERICA'S TRAIN YARD HUNTSVILLE LAKE WORTH BATON ROUGE 256-533-4720 561-585-1982 225-926-5592 railway@bellsouth.net jimmyt1982@aol.com www.depothobbies.com MAINE ARIZONA...
