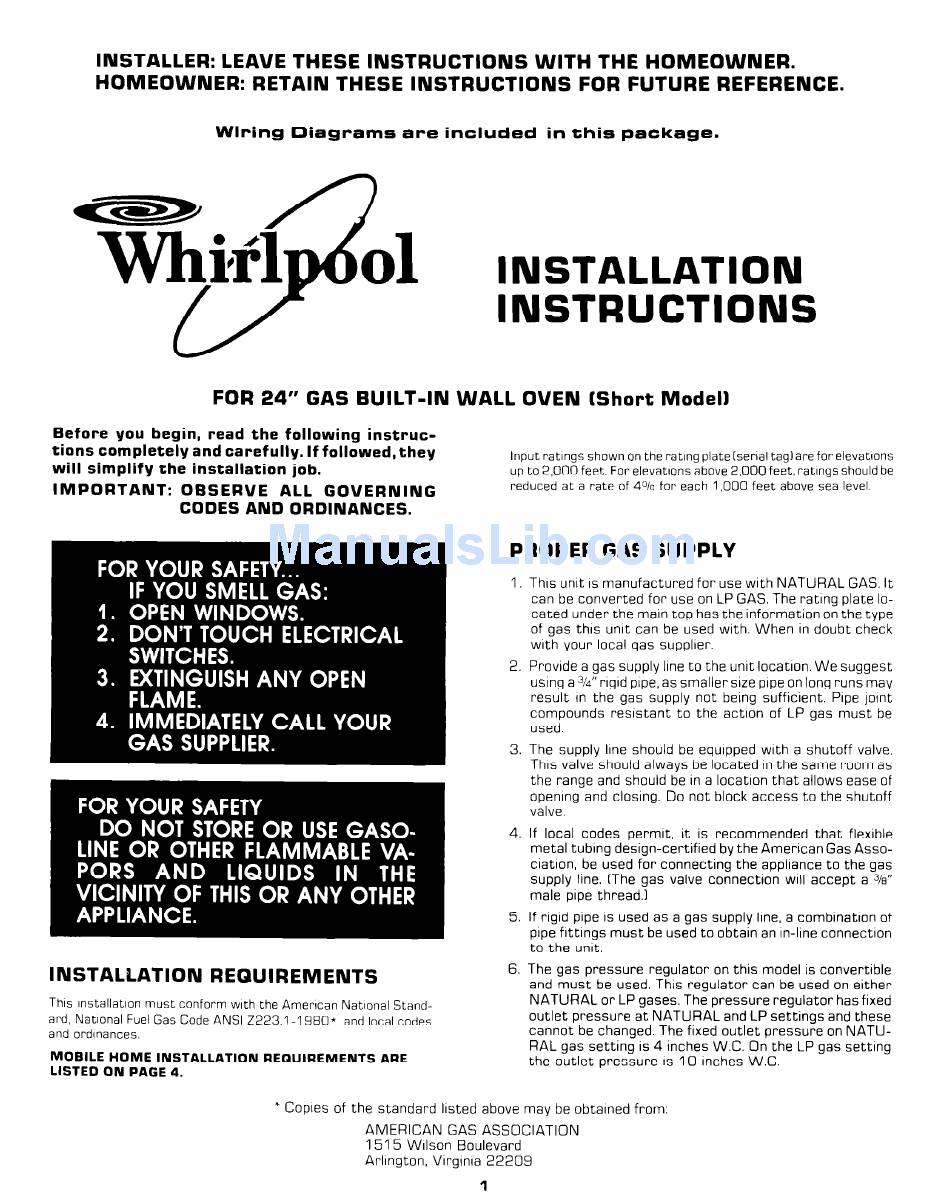

Whirlpool SB100PEK1 Installation Instructions

INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE HOMEOWNER.
HOMEOWNER: RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Wiring Diagrams are included in this package.
1 INSTALLATION
INSTRUCTIONS
FOR 24" GAS BUILT-IN WALL OVEN (Short Model1
Before you begin, read the following instruc-
tions completely and carefully. If followed, they
will simplify the installation job.
IMPORTANT: OBSERVE ALL GOVERNING
CODES AND ORDINANCES.
Input ratings shown on the rating plate [serial taglare for elevatrons
up to 2,OflCl feet. For elevatrons above 2,000 feet. ratings should be
reduced at a rate of 4% for each 1,000 feet above sea level.
PROPER GAS SUPPLY
INSTALLATION REQUIREMENTS
6
This lnstallatlon must conform with the American Natlonal Stand-
ard, Natlonal Fuel Gas Code ANSI 2223.1-l 980' and local codes
and ordinances.
MOBILE HOME INSTALLATION REDUIREMENTS ARE
LISTED ON PAGE 4.
Thus unit IS manufactured for use with NATURAL GAS. It
can be converted for use on LP GAS. The rating plate lo-
cated under the marn top has the information on the type
of gas this unit can be used with. When in doubt check
with your local gas supplier.
Provide a gas supply line to the unit location. We suggest
using a 74" rigid pipe, as smaller size pipe on long runs may
result In the gas supply not being sufficient. Pipe lolnt
compounds resistant to the action of LP gas must be
used.
The supply line should be equipped with a shutoff valve.
This valve should always be located
in
the same room as
the range and should be in a locatron that allows ease of
opening and closing. Do not block access to the shutoff
valve.
If local codes permit, It is recommended that flexible
metal tubing design-certified by the American Gas Asso-
ciation, be used for connecting the appliance to the gas
supply line. (The gas valve connection will accept a 3%"
male pipe thread.1
If rigid pipe is used as a gas supply line, a combination of
pipe fittings must be used to obtain an In-line connection
to the unit.
The gas pressure regulator on this model is convertible
and must be used. This regulator can be used on either
NATURAL or LP gases. The pressure regulator has fixed
outlet pressure at NATURAL and LP settings and these
cannot be changed. The fixed outlet pressure on NATU-
RAL gas setting is 4 Inches W.C. On the LP gas setting
the outlet pressure
IS
10 inches W.C.
* Copies of the standard listed above may be obtalned from:
AMERICAN GAS ASSOCIATION
151 5 Wilson Boulevard
Arlington, Vlrgrnia 22209
1
