Summary of Contents for Inline IN2020

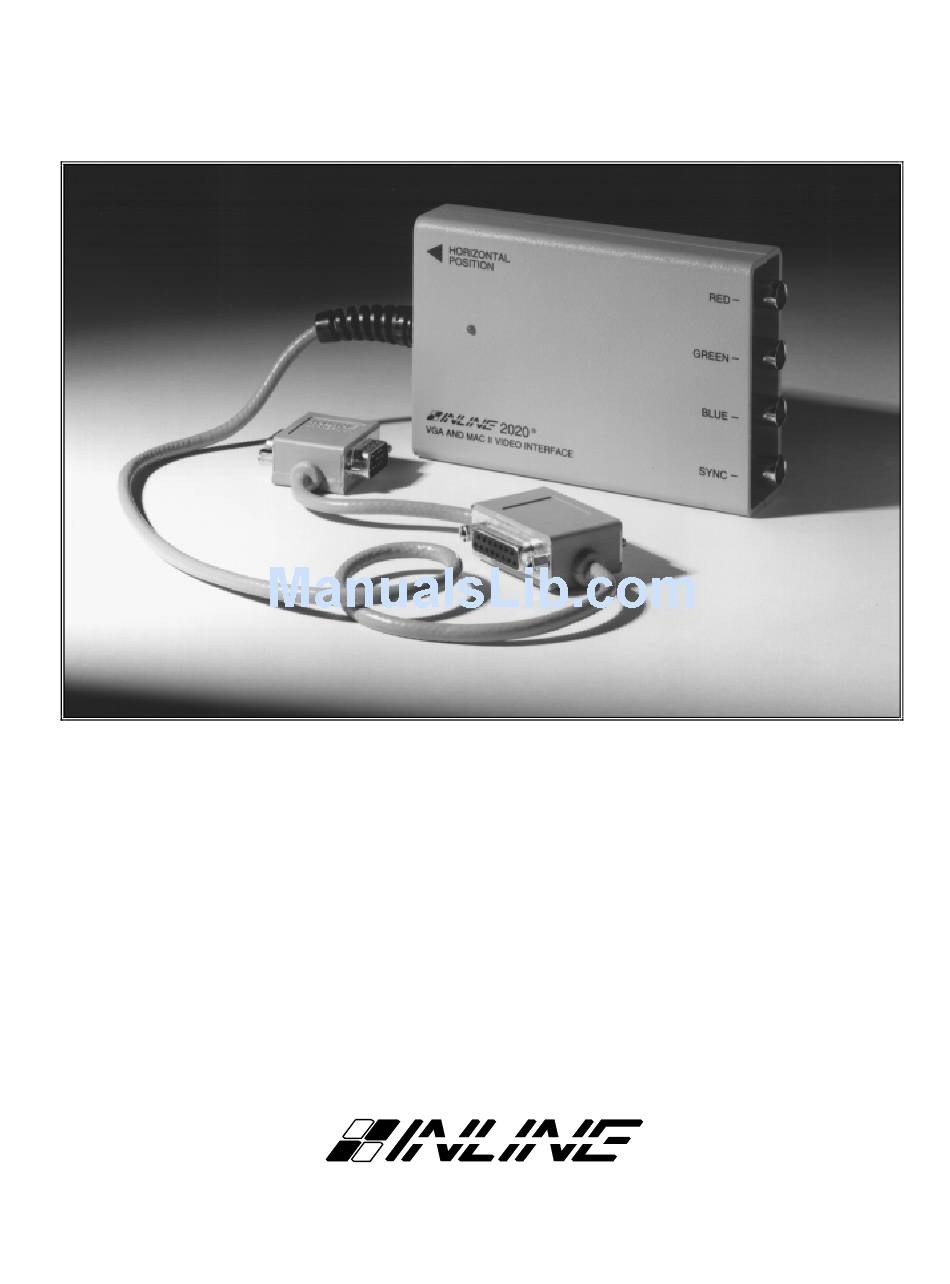

  • Page 1 Operation Manual IN2020 VGA / MAC II Video Interface ®...
  • Page 2: Installation And Safety Instructions

    Installation and Safety Instructions For Models without a Power Switch: The socket outlet shall be installed near the equipment and shall be accessible. For Models with 110 / 220V Power Selector: Caution: Before applying power to this unit, the voltage selector must be set to the appropriate setting to match local A/C line voltage.
  • Page 3: Installations Und Sicherheitshinweise

    Installations und Sicherheitshinweise Für Geräte ohne Netzschalter: Die Netzsteckdose soll in de Nähe des Gerätes installiert und frei zugänglich sein. Für Geräte mit 110 / 220V Spannungswähler: Achtung: Bevor Sie dem Gerät Spann ung zuführen, muß der Spannungswähler entsprechend der Spannung des lokalen Wechselspannungsnetzes eingestellt werden.
  • Page 4: Fcc Compliance

    CE COMPLIANCE All products exported to Europe by Inline, Inc. after January 1, 1997 have been tested and found to comply with EU Council Directive 89/336/EEC. These devices conform to the following standards: EN50081-1 (1991), EN55022 (1987) EN50082-1 (1992 and 1994), EN60950-92...
  • Page 5: Input Compatibility

    The second function is physical and electronic interfacing. The IN2020 takes in either a VGA or MAC II type video signal and provides an output signal in the most convenient format, RGBS on four BNC connectors. The IN2020 computer...
  • Page 6: Installation

    MAC computers - use the 15 pin D connector located in the middle of the input cable. NOTE: Only one computer at a time may be attached to the IN2020. The interface is designed to work with either VGA or MAC II type computers, but not if both are attached simultaneously.
  • Page 7: Local Monitor

    Application Diagram IN2020 Local Monitor Data Projector / Monitor RGBS Input VGA Connector IN2020 PC with VGA Card PICTURE CENTERING GREEN POWER MAC Connector IN7000-4 / IN7100-4 BLUE RGBS Cable ® 2020 SYNC VGA AND MAC II VIDEO INTERFACE Power Supply...
  • Page 8: Specifications

    The IN2020 looks for a ground on pin #10. If a ground is present, the unit knows that a local monitor is connected and does not terminate the signal. If there is no ground on pin #10, the unit internally terminates the RGB signals and grounds pin #11 (ID bit 0).
  • Page 9: Troubleshooting

    The display device connected to the RGBS output has a bad/scrambled image. Solution 1: The display device connected to the output of the IN2020 may not be compatible with the computer output. VGA runs at 31.5 KHz, but SVGA can be as high as 48 - 58 KHz! MACII/Quadra computers sense what monitor is connected and configure themselves accordingly, with horizontal scan rates ranging from 24.48 to 68.9 KHz.
  • Page 10: Warranty

    ♦ INLINE warrants the equipment it manufactures to be free from defects in materials and workmanship. ♦ If equipment fails because of such defects and INLINE is notified within two (2) years from the date of shipment, INLINE will, at its option, repair or replace the equipment at its plant, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
