- Page 1 Universal Battery Charger with USB Port MD 16704 INSTRUCTION MANUAL www.medion.com.au AFTER SALES SUPPORT Model: MD 16704 Product Code: 49276 05/2016 1300 884 987...
-
Page 2: Table Of Contents
Contents About these instructions Explanation of symbols ......5 Package contents Proper use Safety instructions General information ......... 10 Operating safety ........12 Cleaning and maintenance ...... 13 Use of rechargeable batteries ....13 Overview of the device Types of rechargeable batteries Designations for the types of batteries .. - Page 3 Charging via the USB connection ..... 24 Charging times ........25 End of operation Disposal Packaging ..........26 Correct disposal of this product ....26 Troubleshooting Technical data Legal notice Warranty Details Repair and Refurbished Goods or Parts Notice Warranty Certifi cate AFTER SALES SUPPORT www.medion.com.au 1300 884 987...
-
Page 4: About These Instructions
About these instructions Read through the safety information carefully before start-up. Note the warnings on the appliance and in the operating instructions. Always keep the operating instructions close to hand. If you sell the device or give it away, make sure you also hand over these instructions and the warranty card. - Page 5 CAUTION! This signal word indicates a hazard with a low level of risk which, if not avoided, could result in a minor or moderate injury. NOTICE! This signal word warns of possible damage to property or gives useful additional information on assembly or operation.
-
Page 6: Package Contents
Package contents − Remove all packaging materials. After unpacking, ensure that the following parts are included: • Battery charger • Operating instructions and guarantee documents Proper use You can use your device to simultaneously charge 1-6 NiMH/NiCd rechargeable batteries of size AAA/R03, 1-6 rechargeable batteries of size AA/R6, 1-4 rechargeable batteries of size C/R14 or D/R20, or 1-2 9 V transistor batteries. - Page 7 primary batteries. This device is intended for use in dry, indoor areas only. The device is intended for private use only and not for industrial/commercial use. Please note that we shall not be liable in cases of improper use: − Do not modify the appliance without our consent and do not use any auxiliary equipment which we have not approved or supplied.
- Page 8 − Do not expose the device to any extreme conditions. The following should be avoided: • High humidity or moisture • Extremely high or low temperatures • Direct sunlight • Open fi re AFTER SALES SUPPORT 1300 884 987 www.medion.com.au...
-
Page 9: Safety Instructions
Safety instructions General information WARNING! Risk of injury from electric shock. Please note the following advice: − Check the charger and mains cable for damage before using them for the fi rst time and after each use. − Do not use the device if the mains cable or charger show visible signs of damage. - Page 10 WARNING! Risk of injury from improper handling. Please note the following advice: − If swallowed, batteries may endanger life. For these reasons, keep the device and the batteries out of the reach of small children. If a battery is swallowed, please obtain immediate medical assistance.
-
Page 11: Operating Safety
not be carried out by children without supervision. Operating safety − To avoid the risk of tripping, avoid using extension cables. − Never expose your device to rain or moisture! Do not use the device outdoors! − Only connect the device to an easily accessible, properly installed 100–240 V~ power socket. -
Page 12: Cleaning And Maintenance
Cleaning and maintenance − Before cleaning, disconnect the device from the mains socket. Use a dry, soft cloth to clean the unit. Avoid the use of chemical solutions and cleaning products because these may damage the device surfaces and/or markings. −... - Page 13 − Rechargeable batteries must be properly disposed of. Retailers who stock batteries and local authority collection points have appropriate disposal containers for this purpose. − If a rechargeable battery has leaked, take great care to avoid the battery fl uid coming into contact with your skin! The battery fl...
- Page 14 − Caution! Hot surfaces! The rechargeable batteries become hot. There is a risk of burns. Disconnect the device from the mains network after charging and allow the rechargeable batteries to cool down. AFTER SALES SUPPORT 1300 884 987 www.medion.com.au...
-
Page 15: Overview Of The Device

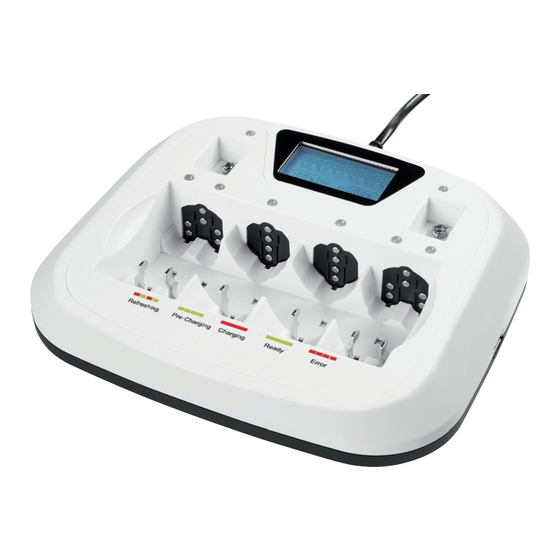

Overview of the device Control LED for 9 V batteries Display Operating LEDs AFTER SALES SUPPORT www.medion.com.au 1300 884 987... -
Page 16: Types Of Rechargeable Batteries
+ pole USB charging connection - pole +/- poles for 9V batteries Mains cable Display for 9 V batteries Display for rechargeable batteries of type AAA, AA, C, D Types of rechargeable batteries This device is designed to charge rechargeable batteries of type NiMH (nickel–metal hydride) and NiCd (nickel–cadmium). -
Page 17: Designations For The Types Of Batteries
Designations for the types of batteries Rechargeable batteries are designated according to the IEC standard in Europe. In addition, there are also designations that are taken from the American ANSI standard. Automatic end of charging detection This device controls the charging time for batteries of type NiMH separately. -
Page 18: Automatic Discharging
by the charging electronics and the charge is ended. Automatic discharging Your rechargeable batteries will fi rstly be discharged automatically and then recharged. The charging process is the same in the case of NiMH and NiCd batteries; but NiCd batteries must be discharged before recharging. -
Page 19: Operation
Operation − Only connect the mains plug to an easily accessible 100–240 V~ power socket. The device will now carry out a short self test whereby all of the LEDs will light up at the same time. Following display / LED combinations are possible Display Explanation... -
Page 20: Charging Nimh Batteries
Display Explanation Charging; charging The control LED lights status is up red given in Caution: Charging error, faulty battery; The control LED fl ashes Precharging / testing; The control LED fl ashes green The status on the display provides you with additional information on the charging status of the batteries. - Page 21 batteries, the device initially starts with the precharging/regeneration of the batteries. NOTICE! − Do not insert more than one battery into each charging slot! The testing of the batteries may take a few minutes to complete. After around two seconds, the charging status of the inserted batteries will have been ascertained and the charging process or discharging process will start.
-
Page 22: Charging 9 V Batteries
maximum charging time for round cell batteries is 10 hours. After this time the device switches to maintaining the charge. Guard pins on the contacts prevent batteries from being inserted incorrectly. If the device identifi es a faulty battery, the control LED for the corresponding charging slot will fl... -
Page 23: Charging Via The Usb Connection
The control LED for the 9 V battery will light up red during the charging process. Once the charging process has been completed, the device will switch to the mode for maintaining the charge and the control LED will light up in green. -
Page 24: Charging Times
Charging times NOTICE! The charging times stated in the table are approximate values. The actual charging time is dependent on the age and overall capacity of the batteries. The maximum charging time in the appliance is 10 hours for all battery sizes. After this time the device switches to maintaining the charge. -
Page 25: End Of Operation
End of operation If you are no longer using the device, pull the mains plug out of the socket. If necessary, remove the batteries from the device and store the device in a dry place. Disposal Packaging Keep the original packaging in the event the device needs to be sent in the post. -
Page 26: Troubleshooting
Troubleshooting If the device malfunctions, please fi rstly check if you can eliminate the error yourself with the help of the following overview. Never try to repair the device yourself. Contact our Service Centre or other qualifi ed personnel if a repair is necessary. - Page 27 Possible Error Solution cause Incorrect − Insert the charge polarity battery with the correct polarities. Incorrect − Remove the charge battery type battery. AFTER SALES SUPPORT www.medion.com.au 1300 884 987...
-
Page 28: Technical Data
Technical data Input 100 - 240 V~, 50/60 Hz, max. 30 W Safety class Charging current 6x AA 1.2 V max. 1000 mA 6x AAA 1.2 V max. 500 mA 4x C/D 1.2 V 1000 mA 2x 9 V 60 mA USB output: 5 V 1000 mA Float... -
Page 29: Legal Notice
Legal notice Copyright © 2016 Status: 2016-02-19 All rights reserved. This operating manual is protected by copyright. Mechanical, electronic and any other form of reproduction is prohibited without the written permission of the manufacturer Copyright is owned by the company: Medion AG Am Zehnthof 77 45307 Essen... -
Page 30: Warranty Details
UNIVERSAL BATTERY CHARGER WITH USB PORT Warranty Details The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. -
Page 31: Repair And Refurbished Goods Or Parts Notice
UNIVERSAL BATTERY CHARGER WITH USB PORT Repair and Refurbished Goods or Parts Notice Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as fi... -
Page 32: Warranty Certifi Cate
UNIVERSAL BATTERY CHARGER WITH USB PORT ® BRAND NAME BAUHN PRODUCT NUMBER 49276 MODEL NUMBER MD 16704 Name Address Email Daytime Tel No Date of Purchase Serial Number We recommend that you attach a photocopy of your receipt, showing the date of purchase, to this Warranty certifi... - Page 33 WARRANTY CERTIFICATE Congratulations! You have made an excellent choice of this quality product. Our commitment to quality also includes our service. Should you, contrary to expectations, experience defects due to manufacturing faults, ALDI will provide you with a warranty against defects as follows: Warranty The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase.
- Page 34 • Any product that has not been installed, operated or maintained in accordance with the manufacturer‘s operating instructions provided with the product. • Any product that has been used for purposes other than domestic use. • Any damage caused by improper power input or improper cable connection.
- Page 35 MEDION Australia Pty Ltd St Leonards, NSW 2065 Australia Hotline: 1 300 884 987 Opening hours: Mon - Fri 08:30AM to 06:00PM EST Internet www.medion.com.au Please use the contact form at: www.medion.com/contact...
