Air-Con ACZCI4H4R09 Owner's Manual

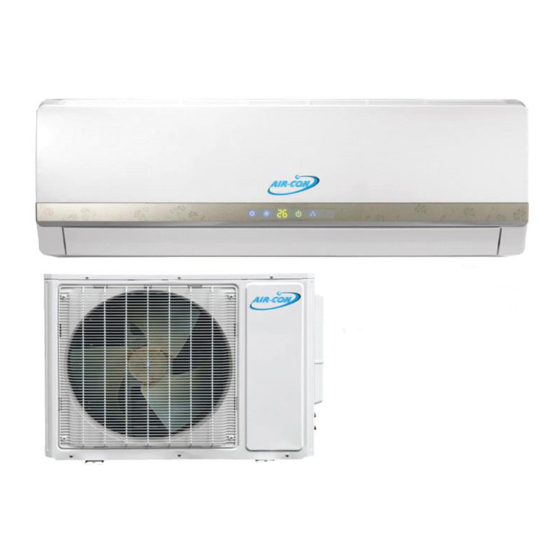

Split type wall-mounted air conditioner
Hide thumbs Also See for ACZCI4H4R09:

Advertisement

Table of Contents

See also: Service Manual
A C Z C I 4 H 4 R 0 9
A C Z C I 4 H 4 R 1 2
A C Z E M4 H 4 R 0 9
A C Z E M4 H 4 R 1 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACZCI4H4R09 and is the answer not in the manual?

Questions and answers

Related Manuals for Air-Con ACZCI4H4R09

Summary of Contents for Air-Con ACZCI4H4R09

  • Page 1 A C Z C I 4 H 4 R 0 9 A C Z E M4 H 4 R 0 9 A C Z C I 4 H 4 R 1 2 A C Z E M4 H 4 R 1 2...

  • Page 2: Table Of Contents

    Content Operation and Maintenance Operation Guide Operation Notices Precautions Names and functions of wireless remote control Parts name Guide for operation-General operation Guide for operation-Optional operation Maintenance Introduction for special function Clean and maintenance Changing batteries and notices Emergency operation Malfunction General phenomenon analysis...

  • Page 3: Operation Notices

    Operation Notices Precautions Warning ● Do not connect air conditioner to multi- ● Do not step on top panel of outdoor unit, or purpose socket.Otherwise, it may cause fire put heavy objects. It may cause damage or hazard. personal injury. ●...

  • Page 4: Parts Name

    Parts name air inlet Indoor unit panel aux.button horizontal louver air outlet display cooling power receiver indicator indicator window remote heating temp. drying control indicator indicator indicator (Display content or position may be different from above graphics, please refer to actual products) Outdoor unit air inlet handle...

  • Page 5: Names And Functions Of Wireless Remote Control

    OPERATION OF WIRELESS REMOTE CONTROL Notice: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status.

  • Page 6: Timer Button

    OPERATION OF WIRELESS REMOTE CONTROL TIMER TIMER button By pressing this key under switch-off state,you ● may set the time for auto switch-on. The range of setting is 0.5 ~ 24 hours. The characters "T-ON" and "H" will flash for 5 seconds. Within 5 seconds, you may make one press of this key to complete the sttingand send the message.If the setting is valid, the set time will be displayed for 2 seconds...

  • Page 7: Changing Batteries And Notices

    OPERATION OF WIRELESS REMOTE CONTROL Guide for operation-General operation 1. After powered on, press ON/OFF button, the unit will start to run. 2. Press MODE button, select desired running mode. 3. Pressing + or - button, to set the desired temperature. (It is unnecessary set the temp.
  • Page 8 Emergency operation panel If remote controller is lost or damaged, please use auxiliary button to turn on or turn off the air conditioner. The operation in details are as below: aux. As shown in the fig. Open panel, press aux. button button to turn on or turn off the air conditioner.

  • Page 9: Maintenance

    Maintenance Clean and maintenance Note: ● Turn off the air conditioner and disconnect the power before cleaning the air conditioner to avoid electric shock. ● Do not wash the air conditioner with water to avoid electric shock. ● Do not use volatile liquid to clean the air conditioner. Clean surface of indoor unit When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth or wet cloth to wipe it.
  • Page 10 Checking before use-season 1. Check whether air inlet and air outlet are blocked. 2. Check whether air switch is in good condition. 3. Check whether filter is clean. 4. Check whether mounting bracket for outdoor unit is damaged or corroded. If yes, please contact dealer. 5.

  • Page 11: Malfunction

    Malfunction General phenomenon analysis Please check below items before asking for maintenance. If the malfunction still can’t be eliminated, please contact local dealer or qualified professionals. Phenomenon Check items Solution Indoor unit can’t ● Whether it's interfered severely ● Cut off the power supply. receive remote (such as static electricity, stable Turn on the power after about...
  • Page 12 Phenomenon Check items Solution No air emitted ● Air inlet or air outlet of indoor unit ● Eliminate obstacles. from indoor unit is blocked? ● Under heating mode, indoor ● After reaching to set temperature is reached to set temperature, indoor unit will stop temperature? blowing out air.

  • Page 13: Error Code

    Error code ● When air conditioner status is abnormal, temperature indictor on indoor unit will blink to display corresponding error code. Please refer to below list for identification of error code. Error code Troubleshooting Means defrosting status. It’s the normal phenomenon. It can be eliminated after restarting the unit.
  • Page 14 Installation Notice Installation dimension diagram Space to the wall Space to the wall At least 15cm At least 15cm Space to the obstruction Air inlet side Space to the wall Space to the wall Drainage pipe Air outlet side...
  • Page 15 Tools for installation 4.Select a location which is out of reach for children. 1 Level meter 8 Inner hexagon 2 Screw driver spanner 5.The location should be able to withstand the 3 Impact drill 9 Leakage detector weight of indoor unit and won't increase 4 Drill head 10 Vacuum pump noise and vibration.
  • Page 16 Requirements for electric connection Safety precaution Grounding requirement 1.The air conditioner is first class electric 1.Must follow the electric safety regulations appliance. It must be properly grounding when installing the unit. with specialized grounding device by a 2.According to the local safety regulations, professional.
  • Page 17 Installation Installation of indoor unit Step one: choosing installation Piping hole Model location Cooling capacity ＜ Recommend the installation location to the φ55 6000W client and then confirm it with the client. Cooling φ70 Step two: install wall-mounting frame capacity ≥ 6000W 1.Hang the wall-mounting frame on the wall;...
  • Page 18 Step five: connect the pipe of indoor Step six: install drain hose unit 1.Connect the drain hose to the outlet pipe of 1.Aim the pipe joint at the corresponding indoor unit. bellmouth. pipe pipe joint union nut drain hose outlet pipe 2.Bind the joint with tape.
  • Page 19 2.Make the power connection wire go through ● For the air conditioner without plug, an air the cable-cross hole at the back of indoor switch must be installed in the line. The unit and then pull it out from the front side. air switch should be all-pole parting and the contact parting distance should be more than 3mm.
  • Page 20 Installation of outdoor unit Step nine: hang the indoor unit Step one: fix the support of outdoor 1.Put the bound pipes in the wall pipe and unit(select it according to the actual then make them pass through the wall hole. installation situation) 2.Hang the indoor unit on the wall-mounting frame.
  • Page 21 Step three: fix outdoor unit Step five: connect outdoor electric wire 1.Place the outdoor unit on the support. 2.Fix the foot holes of outdoor unit with bolts. 1. Remove the handle from right side plate for outdoor unit. foot holes 2.
  • Page 22 2.If the outdoor unit is higher than the wall Vacuum pumping hole, you must set a U-shaped curve in the pipe before pipe goes into the room, in Use vacuum pump order to prevent rain from getting into the room. 1.Remove the valve caps on the liquid valve and gas valve and the nut of refrigerant charging vent.
  • Page 23 Check after installation Leakage detection 1.With leakage detector: ● Check according to the following Check if there is leakage with leakage requirement after finishing installation. detector. Items to be checked Possible malfunction 2.With soap water: If leakage detector is not available, please Has the unit been The unit may drop, use soap water for leakage detection.
  • Page 24 Test operation 1.Preparation of test operation ● The client approves the air conditioner installation. ● Specify the important notes for air conditioner to the client. 2.Method of test operation ● Put through the power, press ON/OFF button on the remote controller to start operation.
  • Page 25 Attachmentpipe Configuration of connection pipe 1.Standard length of connection pipe ● 5m, 7.5m, 8m. 2.Min. length of connection pipe is 3m. 3.Max. length of connection pipe and max. high difference Max length of Max height Max length of Max height Cooling capacity Cooling capacity connection pipe...
  • Page 26 Pipe expanding method Note: E:Expand the port Improper pipe expanding is the main cause ● Expand the port with expander. of refrigerant leakage.Please expand the pipe according to the following steps: hard mold A:Cut the pip expander ● Confirm the pipe length according to the distance of indoor unit and outdoor unit.
  • Page 27 5 6 1 0 N W 1 2 A v e S u i t e 2 0 9 - 2 1 1 F o r t L a u d e r d a l e , F L 3 3 3 0 9 P h : 9 5 4 - 7 7 1 - 1 4 1 5 F x : 9 5 4 - 7 7 1 - 1 4 1 8 h t t p : / / w w w .
