Related Manuals for Samsung S19C170B

Summary of Contents for Samsung S19C170B

  • Page 1: User Manual

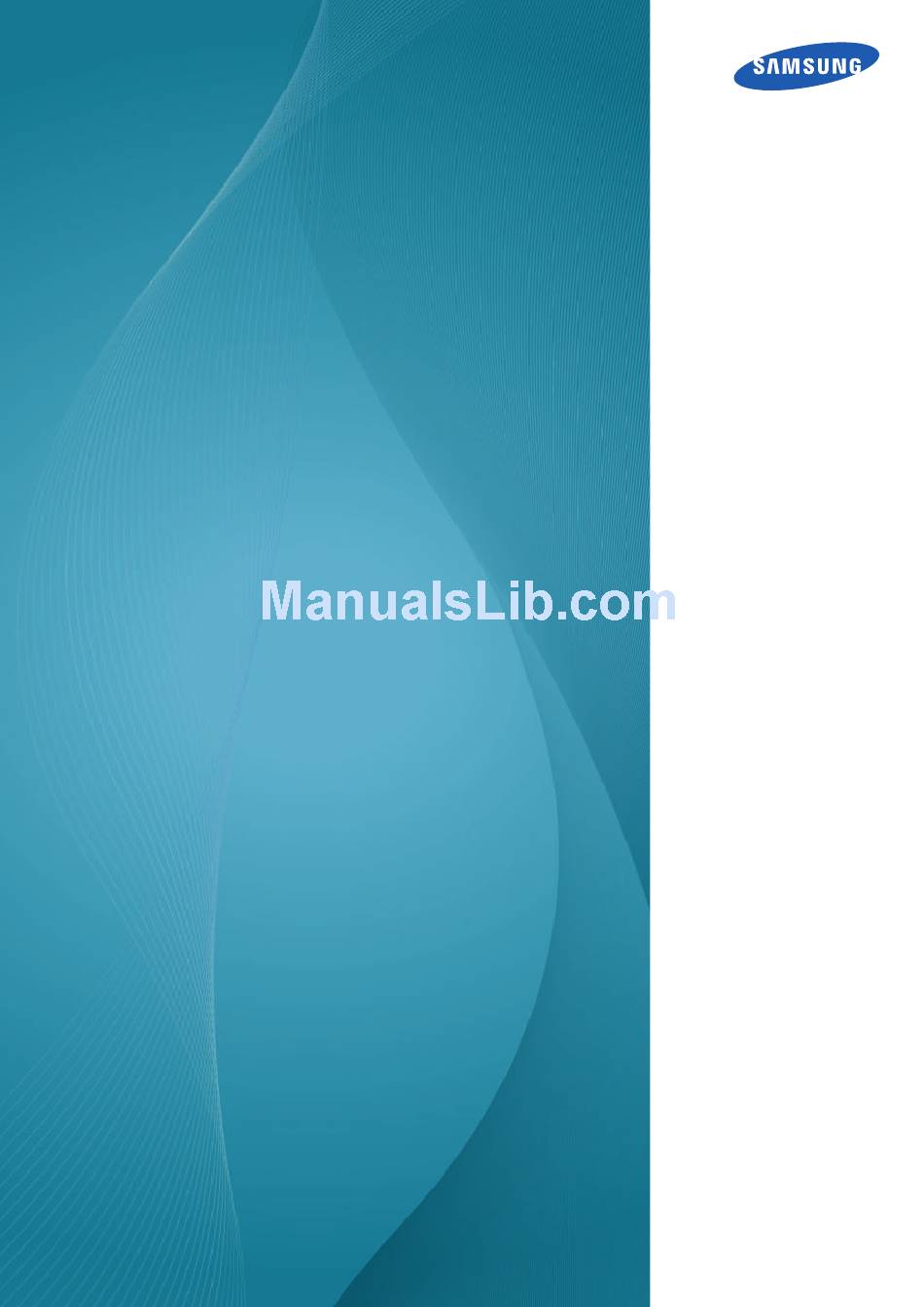

    User Manual S19C170B S22C170B The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.

  • Page 2: Table Of Contents

    Table Of Contents BEFORE USING THE Copyright PRODUCT Icons used in this manual Cleaning Securing the Installation Space Precautions for storage Safety Precautions Symbols for safety precautions Electricity and Safety Installation and Safety Operation Correct posture to use the product PREPARATIONS Checking the Contents Removing the Packaging...
  • Page 3 Configuring Brightness Contrast Configuring Contrast Sharpness Configuring Sharpness Game Mode Configuring Contrast SAMSUNG MAGIC Bright Configuring SAMSUNG MAGIC Bright SAMSUNG MAGIC Upscale Configuring SAMSUNG MAGIC Upscale Image Size Changing the Image Size H-Position & V-Position Configuring H-Position & V-Position Coarse...
  • Page 4 Table Of Contents Green Configuring Green Blue Configuring Blue Color Tone Configuring the Color Tone Settings Gamma Configuring Gamma COORDINATING OSD Language Configuring Language Menu H-Position & Menu V-Position Configuring Menu H-Position & Menu V- Position Display Time Configuring Display Time Transparency Changing Transparency SETUP AND RESET...
  • Page 5 Initial Screen INSTALLING THE MagicTune SOFTWARE What is "MagicTune"? Installing the Software Removing the Software TROUBLESHOOTING Requirements Before Contacting Samsung Customer Service Center GUIDE Testing the Product Checking the Resolution and Frequency Check the following. Q & A SPECIFICATIONS General PowerSaver...
  • Page 6 Table Of Contents Terminology INDEX Table Of Contents...

  • Page 7: Before Using The Product

    The contents of this manual are subject to change without notice to improve quality. 2013 Samsung Electronics Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Microsoft and Windows are registered trademarks of Microsoft Corporation.
  • Page 8 Before Using the Product Cleaning Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched. Take the following steps when cleaning. 1. Power off the monitor and computer. 2. Disconnect the power cord from the monitor. Hold the power cable by the plug and do not touch the cable with wet hands.

  • Page 9: Securing The Installation Space

    10 cm 10 cm 10 cm 10 cm 10 cm Precautions for storage Be sure to contact Samsung Customer Service Center (page 79) if the inside of the monitor needs cleaning. (Service fee will be charged.) Before Using the Product...

  • Page 10: Safety Precautions

    Before Using the Product Safety Precautions Caution RISK OF ELECTRIC SHOCK DO NOT OPEN Caution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL. This symbol indicates that high voltage is present inside.
  • Page 11 Before Using the Product Electricity and Safety The following images are for reference only. Real-life situations may differ from what is shown in the images. Warning Do not use a damaged power cord or plug, or a loose power socket. An electric shock or fire may result.
  • Page 12 The product may become damaged by an electric shock.  Do not use the power cord for products other than authorized products supplied by Samsung. An electric shock or fire may result.  Keep the power socket where the power cord is connected unobstructed.
  • Page 13 Before Using the Product Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.). The product may fall and break or cause a personal injury.  Using the product in an area with excess vibration may damage the product ...
  • Page 14 SAMSUNG time) may seriously affect its performance. Be sure to consult Samsung Customer Service Center (page 79) before  installation if you want to install the product at such a place.

  • Page 15: Product

    (paper, match, etc.) into the vent or ports of the product. If water or any foreign substance enters the product, be sure to power off the  product, remove the power cord, and contact Samsung Customer Service Center (page 79). Product failure, an electric shock or fire may result.
  • Page 16 Before Using the Product Caution Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels. If you are not going to use the product for an extended period of time, ...
  • Page 17 Before Using the Product Do not hold the monitor upside-down or move it by holding the stand. The product may fall and break or cause a personal injury.  Do not use humidifiers or stoves around the product. An electric shock or fire may result. ...

  • Page 18: Correct Posture To Use The Product

    Before Using the Product Correct posture to use the product Use the product in the correct posture as follows: Straighten your back.  Allow a distance of 45 to 50 cm between your eye and the screen, and look slightly ...

  • Page 19: Preparations

    Preparations Checking the Contents 1.1.1 Removing the Packaging Open the packaging box. Be careful not to damage the product when you open the packaging with a sharp instrument. Remove the styrofoam from the product. Check the components and remove the styrofoam and plastic bag. This image is for reference only.

  • Page 20: Checking The Components

    Preparations 1.1.2 Checking the Components Contact the dealer from whom you purchased the product if any item is missing.  The appearance of the components and items sold separately may differ from the image shown.  Components Quick setup guide Warranty card Power cable (Not available in some locations)

  • Page 21: Parts

    Preparations Parts 1.2.1 Frontal Button The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. When pressing a button, please press the bottom of a “ ” displayed below its button label. Icons Description Open or close the onscreen display (OSD) menu, or return to the parent menu.
  • Page 22 Preparations Icons Description Confirm a menu selection. Pressing the [ ] button when the OSD menu is not displayed will change the input source (Analog/DVI). If you power on the product or change the input source by pressing the [ ] button, a message that shows the changed input source will appear at the top left corner of the screen.

  • Page 23: Reverse Side

    Preparations 1.2.2 Reverse Side The color and shape of parts may differ from what is shown.  Specifications are subject to change without notice to improve quality. Provided ports may vary depending on the product.  Port Description DC 14V Connects to the DC power adapter.

  • Page 24: Installation

    Preparations Installation 1.3.1 Attaching the Stand Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards. Insert the stand neck into the Check that the stand neck is Tightly fasten the connecting stand base in the direction firmly connected.

  • Page 25: Removing The Stand

    Preparations 1.3.2 Removing the Stand Place a soft cloth over the table to protect the product and place the product onto the cloth so that the front of the product faces downwards. While holding the stand neck with one hand, pound the other fisted hand down onto the top of the stand base in the direction of the arrow to detach the stand base.

  • Page 26: Adjusting The Product Tilt

    Preparations 1.3.3 Adjusting the Product Tilt The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. You can adjust the tilt of your monitor.  Hold the lower part of the product and adjust the tilt carefully. ...

  • Page 27: Anti-Theft Lock

    Preparations 1.3.4 Anti-theft Lock An anti-theft lock allows you to use the product securely even in public places. The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details. The lock device is sold separately. The color and shape of parts may differ from what is shown.

  • Page 28: Before Connecting

    Connecting and Using a Source Device Before Connecting 2.1.1 Pre-connection Checkpoints Before connecting a source device, read the user manual provided with it.  The number and locations of ports on source devices may differ from device to device. Do not connect the power cable until all connections are completed. ...

  • Page 29: Connection Using The D-Sub Cable (Analogue Type)

    Connecting and Using a Source Device Connecting and Using a PC Select a connection method suitable for your PC. Connecting parts may differ in different products. 2.2.1 Connection Using the D-SUB Cable (Analogue Type) Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable.

  • Page 30: Connection Using The Dvi Cable

    Connecting and Using a Source Device 2.2.2 Connection Using the DVI Cable Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. DVI IN Connect the DVI cable to the [DVI IN] port on the back of the product and the DVI port on the PC. Connect the DC power adapter to the product and a power socket.

  • Page 31: Driver Installation

    An installation driver is contained on the CD supplied with the product.  If the file provided is faulty, visit the Samsung homepage (http://www.samsung.com/) and  download the file. Insert the user manual CD provided with the product into the CD-ROM drive.

  • Page 32: Setting Optimum Resolution

    Connecting and Using a Source Device 2.2.5 Setting Optimum Resolution An information message about setting optimum resolution will appear if you power on the product for the first time after purchase. Select a language on the product and change the resolution on your PC to the optimum setting. ****x**** **Hz Press [ ] to move to the language you want and press [...

  • Page 33: Changing The Resolution Using A Pc

    Connecting and Using a Source Device 2.2.6 Changing the Resolution Using a PC Adjust the resolution and refresh rate in Control Panel on your PC to obtain optimum picture  quality. The picture quality of TFT-LCDs may degrade if the optimum resolution is not selected. ...

  • Page 34: Connecting And Using A Source Device

    Connecting and Using a Source Device Changing the Resolution on Windows Vista Go to Control Panel Personalization Display Settings and change the resolution. *********** *********** 2 Connecting and Using a Source Device...
  • Page 35 Connecting and Using a Source Device Changing the Resolution on Windows 7 Go to Control Panel Display Screen Resolution and change the resolution. 2 Connecting and Using a Source Device...
  • Page 36 Connecting and Using a Source Device Changing the Resolution on Windows 8 Go to Settings Control Panel Display Screen Resolution and change the resolution. 2 Connecting and Using a Source Device...

  • Page 37: Screen Setup

    Screen Setup Configure the screen settings such as brightness. Brightness You can adjust the general brightness of the picture. (Range: 0~100) A higher value will make the picture appear brighter. This menu is not available when MagicBright is set to Dynamic Contrast mode.

  • Page 38: Contrast

    Screen Setup Contrast Adjust the contrast between the objects and background. (Range: 0~100) A higher value will increase the contrast to make the object appear clearer. This option is not available when MagicBright is in Cinema Dynamic Contrast mode.  This menu is not available when Game Mode is enabled.

  • Page 39: Sharpness

    Screen Setup Sharpness Make the outline of objects more clear or blurry. (Range: 0~100) A higher value will make the outline of objects clearer. This option is not available when MagicBright is in Cinema Dynamic Contrast mode.  This menu is not available when MagicUpscale is in Mode1...

  • Page 40: Game Mode

    Screen Setup Game Mode Configure the product screen settings for game mode. Use this feature when playing games on a PC or when a game console such as PlayStation™ or Xbox™ is connected. 3.4.1 Configuring Contrast Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen.

  • Page 41: Samsung Magic Bright

     You can customize the brightness to suit your preferences. 3.5.1 Configuring SAMSUNG MAGIC Bright Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen.

  • Page 42: Samsung Magic Upscale

    This menu is not available when Game Mode is enabled.  3.6.1 Configuring SAMSUNG MAGIC Upscale Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen.

  • Page 43: Image Size

    Screen Setup Image Size Change the picture size. 3.7.1 Changing the Image Size Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen. Press [ ] to move to PICTURE and press [...
  • Page 44 Screen Setup The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally  (Not every model can support all of these signals.). This can only be set when the external input is connected through DVI and PC/AV Mode ...

  • Page 45: Configuring H-Position & V-Position

    Screen Setup H-Position & V-Position H-Position: Move the screen to the left or right. V-Position: Move the screen up or down. This menu is available in Analog mode only.  This menu is only available when Image Size is set to Screen Fit Mode.
  • Page 46 Screen Setup PICTURE PICTURE Move the Move the displayed displayed H-Position H-Position screen to screen to the left or the up or d V-Position V-Position Coarse Coarse 1792 1792 Fine Fine AUTO AUTO Press [ ] to configure H-Position or V-Position. The selected option will be applied.

  • Page 47: Coarse

    Screen Setup Coarse Adjust the screen frequency. This menu is available in Analog mode only. 3.9.1 Adjusting Coarse Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen. Press [ ] to move to PICTURE...

  • Page 48: Fine

    Screen Setup 3.10 Fine Fine-adjust the screen to obtain a vivid picture. This menu is available in Analog mode only. 3.10.1 Adjusting Fine Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen.

  • Page 49: Configuring Tint

    Configuring Tint Adjust the tint of the screen. This menu is not available when MagicBright is set to Cinema Dynamic Contrast mode. This menu is not available when Game Mode is enabled Adjust the value of the color red in the picture. (Range: 0~100) A higher value will increase the intensity of the color.
  • Page 50 Configuring Tint Green Adjust the value of the color green in the picture. (Range: 0~100) A higher value will increase the intensity of the color. 4.2.1 Configuring Green Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen.
  • Page 51 Configuring Tint Blue Adjust the value of the color blue in the picture. (Range: 0~100) A higher value will increase the intensity of the color. 4.3.1 Configuring Blue Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen.

  • Page 52: Green

    Configuring Tint Color Tone Adjust the general color tone of the picture. This option is not available when MagicBright is in Cinema Dynamic Contrast mode.  This menu is not available when Game Mode is enabled.  4.4.1 Configuring the Color Tone Settings Press any button on the front of the product to display the Function Key Guide.

  • Page 53: Gamma

    Configuring Tint Gamma Adjust the mid-range brightness (Gamma) of the picture. This option is not available when MagicBright is in Cinema Dynamic Contrast mode.  This menu is not available when Game Mode is enabled.  4.5.1 Configuring Gamma Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen.

  • Page 54: Coordinating Osd

    Coordinating OSD Language Set the menu language. A change to the language setting will only be applied to the onscreen menu display.  It will not be applied to other functions on your PC.  5.1.1 Configuring Language Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen.

  • Page 55: Menu H-Position & Menu V-Position

    Coordinating OSD Menu H-Position & Menu V-Position Menu H-Position: Move the menu position to the left or right. Menu V-Position: Move the menu position up or down. 5.2.1 Configuring Menu H-Position & Menu V-Position Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen.

  • Page 56: Display Time

    Coordinating OSD Display Time Set the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified period of time. Display Time can be used to specify the time after which you want the OSD menu to disappear. 5.3.1 Configuring Display Time Press any button on the front of the product to display the Function Key Guide.

  • Page 57: Transparency

    Coordinating OSD Transparency Set the transparency for the menu windows: 5.4.1 Changing Transparency Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen. Press [ ] to move to MENU SETTINGS and press [...

  • Page 58: Setup And Reset

    Setup and Reset Reset All Return all the settings for the product to the default factory settings. 6.1.1 Initializing Settings (Reset All) Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen.

  • Page 59: Eco Saving

    Setup and Reset Eco Saving Eco Saving function reduces power consumption by controlling the electric current used by the monitor panel. Magic This menu is not available when Bright is in Dynamic Contrast mode.  6.2.1 Configuring Eco Saving Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen.

  • Page 60: Off Timer

    Setup and Reset Off Timer You can set the product to automatically turn off. 6.3.1 Configuring Off Timer Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen. Press [ ] to move to SETUP&RESET...

  • Page 61: Configuring Turn Off After

    Setup and Reset 6.3.2 Configuring Turn Off After Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen. Press [ ] to move to SETUP&RESET and press [ ] on the product.

  • Page 62: Pc/Av Mode

    Setup and Reset PC/AV Mode PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie. This function does not support Analog mode.  Supplied for the wide models only such as 16:9 or 16:10. ...

  • Page 63: Key Repeat Time

    Setup and Reset Key Repeat Time Control the response rate of a button when the button is pressed. 6.5.1 Configuring Key Repeat Time Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen.

  • Page 64: Source Detection

    Setup and Reset Source Detection You can activate Source Detection. 6.6.1 Configuring Source Detection Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen. Press [ ] to move to SETUP&RESET and press [...

  • Page 65: Information Menu And

    INFORMATION Menu and Others INFORMATION View the current input source, frequency and resolution. 7.1.1 Displaying INFORMATION Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to display the corresponding menu screen. Press [ ] to move to INFORMATION.

  • Page 66: Configuring Brightness And Contrast In The Initial Screen

    INFORMATION Menu and Others Configuring Brightness and Contrast in the Initial Screen Adjust the Brightness, Contrast using the [ ] buttons when the initial screen (that displays no menu screen) is displayed. Brightness This menu is not available when MagicBright is set to Dynamic Contrast mode.

  • Page 67: Installing The Software

    Installing the Software MagicTune 8.1.1 What is "MagicTune"? "MagicTune" is a software program that helps with monitor adjustments by providing comprehensive descriptions of monitor functions and easy-to-understand guidelines. You can adjust the product with the mouse and the keyboard without using the operating buttons of the product.

  • Page 68: Removing The Software

    Wait until a message box appears informing you that the software has been removed completely. For technical support, the FAQ (frequently asked questions) or information about the software upgrade for "MagicTune™", please visit our website (http://www.samsung.com/us/consumer/ learningresources/monitor/magetune/pop_intro.html). 8 Installing the Software...

  • Page 69: Troubleshooting Guide

    Requirements Before Contacting Samsung Customer Service Center 9.1.1 Testing the Product Before calling Samsung Customer Service Center, test your product as follows. If the problem persists, contact Samsung Customer Service Center. Check if your product is operating normally by using the product test function.
  • Page 70 Troubleshooting Guide Screen issue Issues Solutions The screen will not switch on. Check that the power cable is connected properly. (Refer to "2.2 Connecting and Using a PC") The message Check Signal Cable appears. Check that the cable is properly connected to the product.
  • Page 71 Troubleshooting Guide Issues Solutions The screen displays the <power saving mode> This icon will appear before the product goes to icon and goes black after five seconds. power-saving mode. To restore normal operation, click the mouse or press any key on the keyboard. When the product is in power-saving mode, the screen will display <power saving mode>...
  • Page 72 Troubleshooting Guide Q & A Question Answer How can I change the Set the frequency on your graphics card. frequency? Windows XP: Go to Control Panel Appearance and  Themes Display Settings Advanced Monitor, and adjust Refresh rate under Monitor settings. Windows ME/2000: Go to Control Panel Display ...
  • Page 73 Troubleshooting Guide Question Answer How can I change the Windows XP: Go to Control Panel Appearance and  resolution? Themes Display Settings, and adjust the resolution. Windows ME/2000: Go to Control Panel Display  Settings, and adjust the resolution. Windows Vista: Go to Control Panel Appearance and ...

  • Page 74: Specifications

    Specifications 10.1 General Model Name S19C170B S22C170B Panel Size 47.0 cm 54.6 cm Display area 409.8 mm (H) x 230.4 mm (V) 476.64 mm (H) x 268.11 mm (V) Pixel Pitch 0.300 mm (H) x 0.300 mm (V) 0.24825 mm (H) x 0.24825 mm (V)
  • Page 75 Specifications Model Name S19C170B S22C170B Plug-and-Play This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired.

  • Page 76: Powersaver

    (Power button) Power Consumption Typical 0.3 W Typical 0.3 W 15 W Max 0.45 W Max 0.45 W (S19C170B) Power Consumption Typical 0.3 W Typical 0.3 W 25 W Max 0.45 W Max 0.45 W (S22C170B) The power consumption level can vary in different operating conditions or when settings are ...

  • Page 77: Standard Signal Mode Table

    If the signal transmitted from the PC does not belong to the standard signal modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the following table by referring to the graphics card user manual. S19C170B Horizontal Vertical...
  • Page 78 Specifications S22C170B Horizontal Vertical Pixel Clock Sync Polarity Resolution Frequency Frequency (MHz) (H/V) (kHz) (Hz) IBM, 720 x 400 31.469 70.087 28.322 MAC, 640 x 480 35.000 66.667 30.240 MAC, 832 x 624 49.726 74.551 57.284 MAC, 1152 x 870 68.681 75.062 100.000...

  • Page 79: Appendix

    Appendix Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG re . customer care cent NORTH AMERICA U.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com/us CANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com/ca (English) http://www.samsung.com/ca_fr (French) LATIN AMERICA...
  • Page 80 0810 - SAMSUNG http://www.samsung.com (7267864, € 0.07/min) BELGIUM 02-201-24-18 http://www.samsung.com/be (Dutch) http://www.samsung.com/be_fr (French) BOSNIA 051 331 999 http://www.samsung.com BULGARIA 07001 33 11 , share cost tariff http://www.samsung.com/bg CROATIA 062 SAMSUNG (062 726 786) http://www.samsung.com/hr CYPRUS 8009 4000 only from landline http://www.samsung.com/gr Appendix...
  • Page 81 Appendix EUROPE CZECH 800 - SAMSUNG (800-726786) http://www.samsung.com Samsung Electronics Czech and Slovak, s.r.o. V Parku 2343/24, 148 00 - Praha 4 DENMARK 70 70 19 70 http://www.samsung.com EIRE 0818 717100 http://www.samsung.com ESTONIA 800-7267 http://www.samsung.com/ee FINLAND 030-6227 515 http://www.samsung.com FRANCE 01 48 63 00 00 http://www.samsung.com/fr...
  • Page 82 Appendix EUROPE SLOVAKIA 0800 - SAMSUNG (0800-726 786) http://www.samsung.com SPAIN 902172678 http://www.samsung.com SWEDEN 0771 726 7864 (SAMSUNG) http://www.samsung.com SWITZERLAND 0848-SAMSUNG http://www.samsung.com/ch (7267864, CHF 0.08/min) (German) http://www.samsung.com/ch_fr (French) 0330 SAMSUNG (7267864) http://www.samsung.com ARMENIA 0-800-05-555 http://www.samsung.com AZERBAIJAN 088-55-55-555 http://www.samsung.com BELARUS 810-800-500-55-500 http://www.samsung.com...
  • Page 83 1800 266 8282 INDONESIA 0800-112-8888 (Toll Free) http://www.samsung.com/id (021) 56997777 JAPAN 0120-327-527 http://www.samsung.com MALAYSIA 1800-88-9999 http://www.samsung.com/my NEW ZEALAND 0800 SAMSUNG (0800 726 786) http://www.samsung.com/nz PHILIPPINES 1-800-10-7267864 [PLDT] http://www.samsung.com/ph 1-800-8-7267864 [Globe landline and Mobile] 02-4222111 [Other landline] SINGAPORE 1800-SAMSUNG (726-7864) http://www.samsung.com/sg TAIWAN 0800-32-9999 http://www.samsung.com/tw...
  • Page 84 NIGERIA 0800-726-7864 http://www.samsung.com/africa_en MOZAMBIQUE 847267864 / 827267864 http://www.samsung.com RWANDA 9999 http://www.samsung.com SENEGAL 800-00-0077 http://www.samsung.com/africa_fr SOUTH AFRICA 0860 SAMSUNG (726 7864) http://www.samsung.com SUDAN 1969 http://www.samsung.com TANZANIA 0685 88 99 00 http://www.samsung.com UGANDA 0800 300 300 http://www.samsung.com ZAMBIA 0211 350370 http://www.samsung.com...

  • Page 85: Responsibility For The Pay Service (Cost To Customers)

     use of supplies or separately sold product unspecified by Samsung.  repair from a person besides an engineer of outsourcing service company or partner of Samsung  Electronics Co., Ltd. remodeling or repairing the product by customer.
  • Page 86 Appendix If customer requests a service in case the product has no defect, service fee may be charged. So please read User Manual first. Appendix...

  • Page 87: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment)

    This product and its electronic accessories should not be mixed with other commercial wastes for disposal. (India Only) For more information on safe disposal and recycling visit our website www.samsung.com/in or contact our Helpline numbers - 18002668282, 180030008282. Appendix...
  • Page 88 Appendix Terminology OSD (On Screen Display) On screen display (OSD) allows you to customize on-screen settings to optimize the picture quality as required. You can change the screen brightness, tint, size and many other settings using menus displayed on the screen. Gamma The Gamma menu adjusts the grey scale that represents middle tones on the screen.
  • Page 89 Appendix Resolution Resolution is the number of horizontal pixels and vertical pixels that form a screen. It represents the level of display detail. A higher resolution displays a greater amount of information on the screen and is suitable for performing multiple tasks at the same time. E.g.
  • Page 90 Brightness Key Repeat Time Checking the Contents Cleaning Language Coarse Color Tone Connecting and Using a PC MagicTune Contact SAMSUNG WORLD WIDE Contrast Copyright Correct Disposal Off Timer Correct posture to use the product Parts Display Time PC/AV Mode Eco Saving Q &...
  • Page 91 Index Sharpness Source Detection Standard Signal Mode Table Terminology Transparency Index...
