  • Page 1 User’s Manual Version 1.1 March 2003...
  • Page 2 EURORACK PRO RX1602 IMPORTANT SAFETY INSTRUCTIONS...

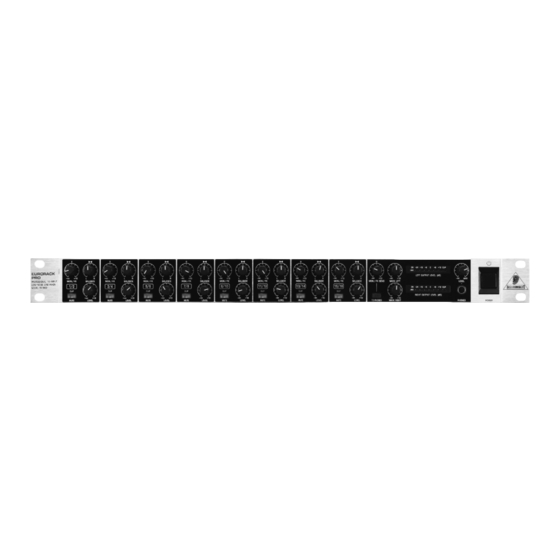

  • Page 3 EURORACK PRO RX1602 EURORACK PRO Professional multi-purpose 16-input ultra low-noise line mixer s Extremely flexible keyboard and multi-purpose sub-mixer, multi-track monitoring mixer, level translator, FX return sub-mixer etc. s 16 balanced high-headroom line inputs for individual stereo or mono use of each section s Ultra low-noise ULN design, highest possible headroom, ultra-transparent audio s Dedicated balance and level controls plus +4/-10 level selection per channel s Monitor/FX send control per section with global master send control for flexible monitoring, recording or...

  • Page 4: Table Of Contents

    EURORACK PRO RX1602 TABLE OF CONTENTS FOREWORD 1. INTRODUCTION ............4 2. CONTROL ELEMENTS AND CONNECTIONS ..... 5 3. APPLICATIONS ............7 4. INSTALLATION ............8 5. AUX CHANNEL MODIFICATION ........9 6. SPECIFICATIONS ............. 10 7. WARRANTY .............. 11 1.

  • Page 5: Control Elements And Connections

    EURORACK PRO RX1602 1.1 Before you get started 2. CONTROL ELEMENTS AND CONNECTIONS 1.1.1 Shipment 2.1 Channel section 1.1.2 Initial operation Fig. 2.1: Control elements of the channel section MON/FX 1.1.3 Warranty BALANCE 1.2 The user’s manual MUTE CLIP LEVEL 2.
  • Page 6 EURORACK PRO RX1602 OPERATING LEVEL LEVEL 2.2 Main section Fig. 2.3: POWER switch, LEVEL control and PHONES connector POWER Fig. 2.2: Main section MON/FX SEND MAIN LEFT MAIN RIGHT LEFT OUTPUT LEVEL RIGHT OUTPUT LEVEL Fig. 2.4: MAIN OUT and MON OUT SEND connectors MAIN OUT MON OUT SEND 2.3 Mains connection...

  • Page 7: Applications

    EURORACK PRO RX1602 FUSE COMPARTMENT/VOLTAGE SELECTION 3.2 Sub-mix with samplers SERIAL NUMBER 3. APPLICATIONS 3.1 Keyboards sub-mixer Fig. 3.2: Sampler/PC application Fig. 3.1: Keyboard sub-mix using the RX1602 3. APPLICATIONS...

  • Page 8: Installation

    EURORACK PRO RX1602 3.3 Monitoring multi-track recorders 3.4 Small live setup Fig. 3.3: Monitoring multi-track recorders or multi-channel sound cards Fig. 3.4: Expandable small live setup 4. INSTALLATION 4.1 Rack mounting 4. INSTALLATION...

  • Page 9: Aux Channel Modification

    EURORACK PRO RX1602 4.2 Audio connections 5. AUX CHANNEL MODIFICATION Fig. 4.1: 1/4" TS connector Fig. 4.2: 1/4" TRS connector Fig. 5.1: Modification MON/FX “post fader” > “pre fader” Fig. 4.3: 1/4" TRS connector for headphones operation 5. AUX CHANNEL MODIFICATION...

  • Page 10: Specifications

    Ω Ω BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.

  • Page 11: Warranty

    EURORACK PRO RX1602 7. WARRANTY 7. WARRANTY...
