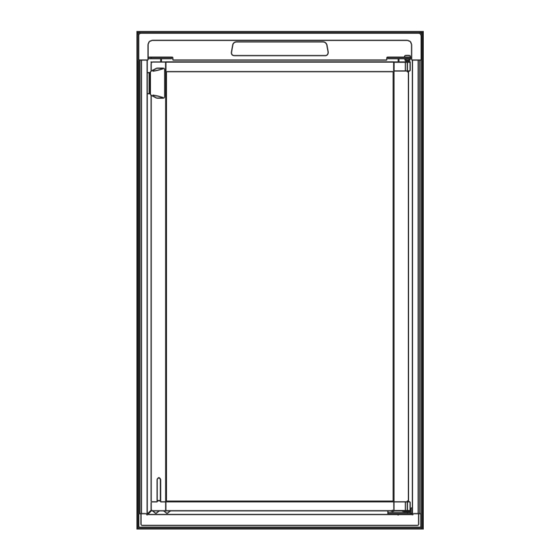

Dometic RM 2355 Installation And Operating Instructions Manual
Refrigerator for lp-gas and electric operation
Hide thumbs
Also See for RM 2355:
- Installation and operating instructions manual (24 pages) ,
- Installation & operating instructions manual (20 pages) ,
- Installation and operating instructions manual (24 pages)
Table of Contents
Advertisement
REFRIGERATOR FOR LP-GAS AND ELECTRIC OPERATION
RA/RM-1D
RA/RM-2D
FOR YOUR SAFETY
If you smell gas:
1. Open windows and door.
2. Don't touch electrical switches.
3. Extinguish any open flame.
4. Immediately call your gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WARnIng
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional infor-
mation consult a qualified installer, serv-
ice agency or the gas
supplier.
8251240-06
INSTALLATION AND
OPERATING INSTRUCTIONS
AES III
RM 2355
RM 2455
RM 2555
RM 4605
MO-M 0646
Advertisement
Table of Contents
Related Manuals for Dometic RM 2355
Summary of Contents for Dometic RM 2355
-
Page 1: Operating Instructions
INSTALLATION AND OPERATING INSTRUCTIONS REFRIGERATOR FOR LP-GAS AND ELECTRIC OPERATION RA/RM-1D RA/RM-2D AES III RM 2355 FOR YOUR SAFETY If you smell gas: 1. Open windows and door. 2. Don’t touch electrical switches. 3. Extinguish any open flame. 4. Immediately call your gas supplier. -
Page 3: Table Of Contents
OPERATING AND INSTALLATION INSTRUCTIONS FOR RM 2355, RM 2455, RM 2555 & RM 4605 INTRODUCTION CONTENTS We are pleased that you have chosen this refrigerator and hope OPERATING INSTRUCTIONS _______________________ 4 you will derive much satisfaction from using it. The refrigerator is designed for installation in motorhomes and CONTROL PANEL . -
Page 4: Operating Instructions
In case the appliance fails to operate correctly, contact an au- Press the ON/OFF button (1). The refrigerator starts in the thorised Dometic Service Centre. mode it was in when it was turned off. Press the AES/GAS button (2) and LED (A) or (B) comes 230-240V OPERATION on. -
Page 5: Switching Between Energy Sources
This normally does not need resetting Leave the drip tray under the finned evapo- RM 2355 rator. because the same thermostat controls the main compartment temperature for any of the three sources of energy. -
Page 6: Cleaning The Refrigerator
CLEANING THE REFRIGERATOR PRODUCT CARE - SOME USEFUL HINTS Clean the inside of the refrigerator regularly to keep it fresh Make sure that: and hygienic. Defrosting is carried out periodically. • The refrigerator is clean and dry with the door left open •... -
Page 7: Maintenance
The fl ue gases are dispersed from the ventilation passage using • Ensure that the gas safety shut-off valve is working properly. the Dometic fl ueing system. The top, bottom and sides of the • Make sure that the ventilation openings are unobstructed. - Page 8 CLEARANCES Minimum clearances (mm) to combustible materials are: RM 2355 RM 2455 - RM 2555 - RM 4605 (Fig. 5 & (Fig. 5 & Fig. 6) Fig. 7) Side Bottom Rear Fig. 5 The distance between the rearmost part of the refrigerator and the wall behind the refrigerator.
-
Page 9: Connecting Points
CONNECTING POINTS Dimensions to connecting points (mm). RM 2355 Electrical 166.1 connection connection point point Flue outlet pressure test point Electrical connection connection point point RM 2455 Electrical connection connection point point 327.4 Flue outlet pressure test point connection point... - Page 10 RM 2555 Electrical connection connection point point 327.4 Flue outlet pressure test point Electrical connection connection point point RM 4605 Electrical connection point connection point 325.4 Flue outlet pressure test point connection Electrical point connection point...
-
Page 11: Installation/Building-In
For this reason the re- • RM 2355 - the installer must block the space between the frigerator should be installed if possible not at the entrance side storage cabinet and the top of the refrigerator. -
Page 12: Drain Water Hose
Seal around the hose that Fig. 16 goes through the drilled RM 2355 hole. Fig. 13 If a longer hose than Secure the refrigerator and the lower supplied is required to... - Page 13 The wires connected to this terminal must have the following they cannot come into contact with hot or sharp parts of minimum cross section area: the refrigerator. RM 2355, RM 2455, RM 2555 • 230-240V AC The free length of the cord is 1 m. It is Maximum length of 8 metres from refrigerator to the battery.
-
Page 14: Mounting Instructions
Before starting the mounting work, read the instructions thor- oughly and check that the panel dimensions are in compliance with those given in the following table: Dimensions (mm) With screws Snap in Height Width Thickness max. RM 2355 666±1 497±1 RM 2455 826±1 526±1 RM 2555 982±1 526±1 RM 4605 402±1... - Page 15 POSITIONING OF SHELVES...
-
Page 16: Technical Data
TECHNICAL DATA RM 2355 RM 2455 RM 2555 RM 4605 Overall dimensions height (mm) 1104 1385 Width (mm) Depth incl. cooling unit (mm) Recess dimensions height (mm) 1083 1365 Width (mm) Depth (mm) Capacity Gross (litres) Weight without packaging (kg) -
Page 17: Rearview Equipment
REARVIEW EQUIPMENT RM 2355 Heaters Flue baffle Reigniter Relay Drain water hose Power module cover (PC board) Protection cover Inlet fitting Screw for protection cover Vehicle battery connection Burner jet 12V DC only Manual gas shutoff valve Flexible cord House battery... -
Page 18: Wiring Diagram
WIRING DIAGRAM RM 2355 RM 2455 - RM 2555... - Page 19 WIRING DIAGRAM RM 4605...
-
Page 20: Working Instructions For The Gas Safety System
WORkING INSTRUCTIONS FOR THE GAS SAFETY SYSTEM WORkING DIAGRAM Thermostat Spark Gas valve Flame detector device Lock out indication TW TS TS TWI TS TWI TS TECHNICAL SPECIFICATIONS Classification codes according to EN298 A-M-R-V-X-K Class of protection according to Low Voltage Directive IP-20 Waiting time / TW Safety time / TS... -
Page 21: Appendix A - Airing Position Card
APPENDIX A - AIRING POSITION CARD Use the Airing Position Card to keep the doors ajar if the refrigerator will not be in use for an extended period of time or put in storage. RM 2455 AND RM 2555... - Page 22 APPENDIX A - AIRING POSITION CARD RM 4605...
