Servicing
Instructions

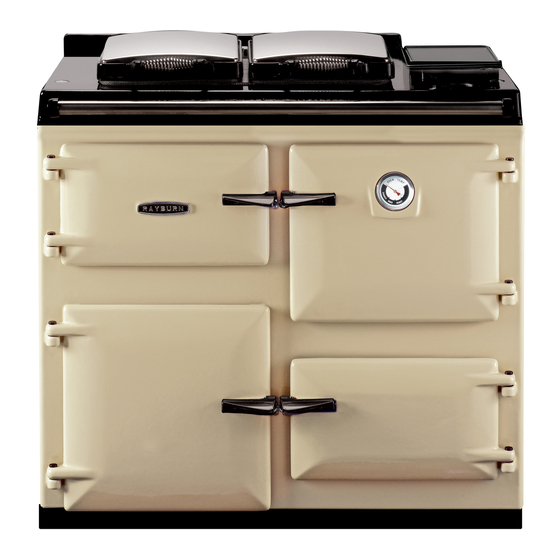

Heatranger 440/460/480/499K
For use in GB and IE
DESN 512012 A
REMEMBER, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety
and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly
authorised by AGA.
PLEASE READ THESE INSTRUCTIONS BEFORE SERVICING THIS APPLIANCE
05/14 EINS 511567-E
