HeadMouse Nano User Guide
Figure 3: HeadMouse Nano Mode Switch is in the middle and an M3
threaded insert is on the right (Max Fastener Depth is 4-mm).

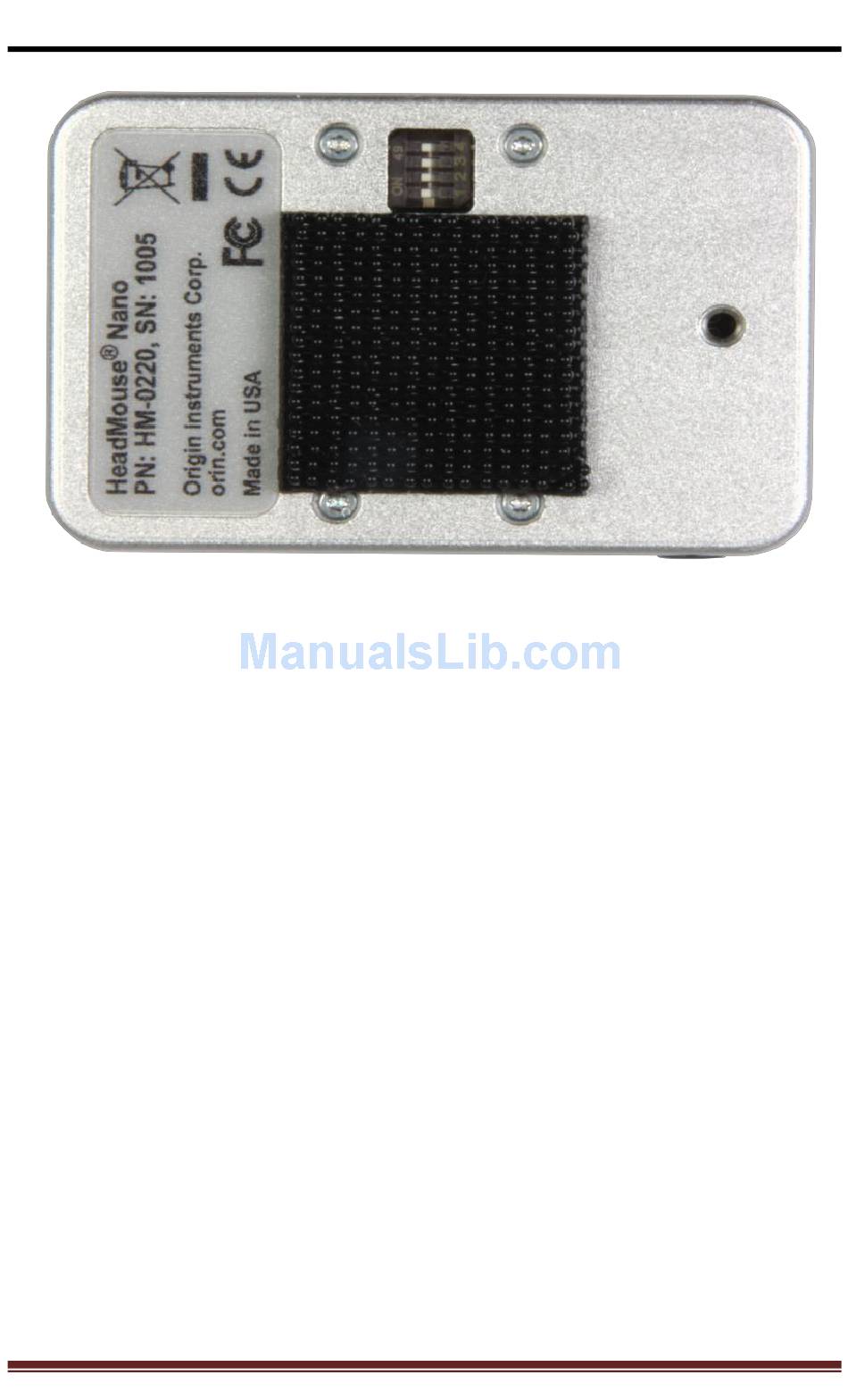

On the rear of the HeadMouse is an informational label and the
sensor serial number. This information is needed for
troubleshooting, repairs or warranty service.
A small piece of Dual Lock fastener is centrally located on the rear
panel of the HeadMouse Nano for use in mounting. The high-
density Dual Lock fastener is designed to mate with low-density
Dual Lock fasteners on mounts or directly on the bezel of your
computer's display. A kit of Dual Lock fasteners is included with
your HeadMouse Nano.
Four small DIP switches are accessible through an opening on the
rear panel of the HeadMouse Nano. These switches are factory
set and only rarely need to be changed by the user.
The default switch settings are all in the ON position.
