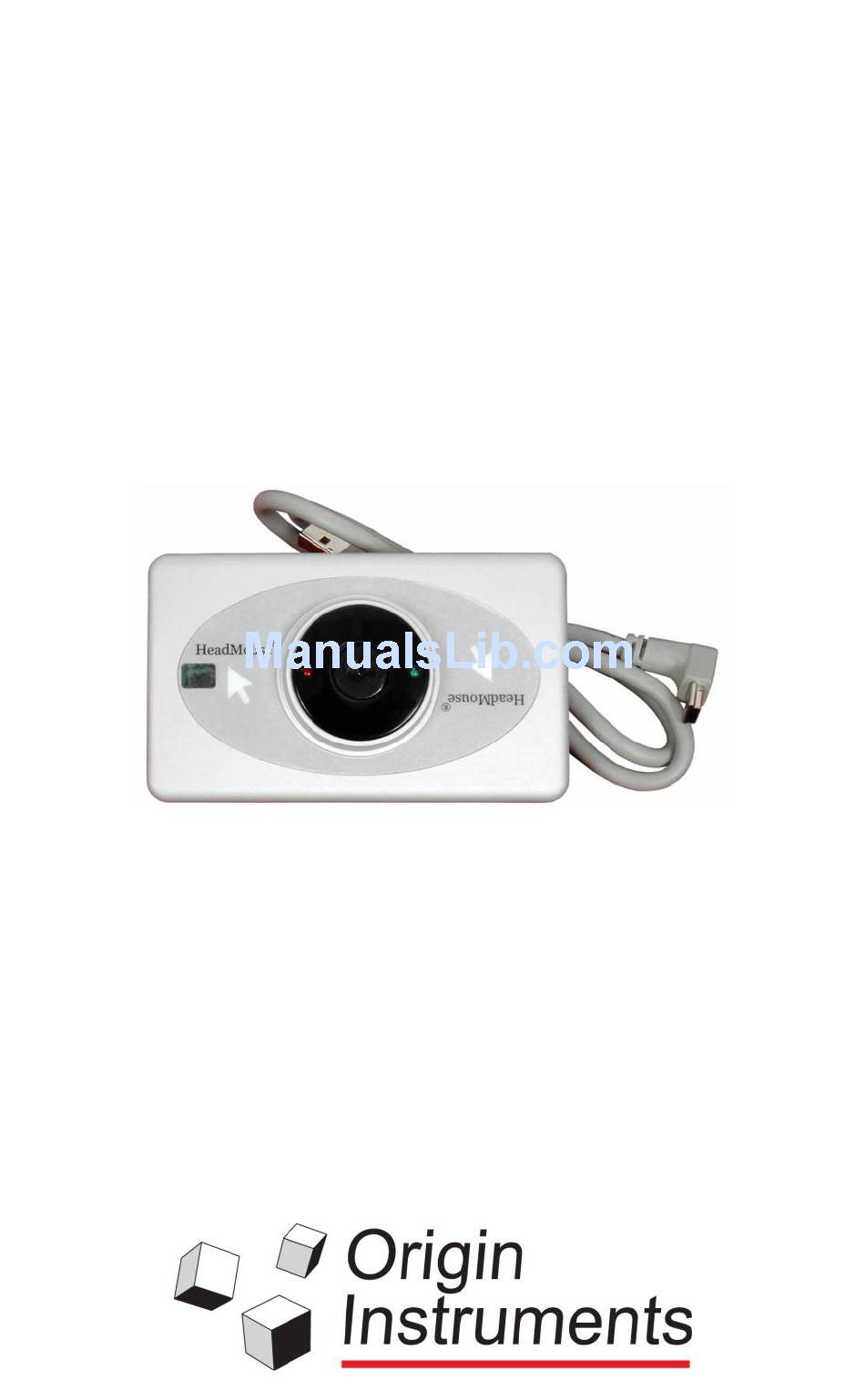

- Page 1 HeadMouse Extreme ® User Guide Wireless Head-controlled Mouse www.orin.com...
-
Page 2: Table Of Contents
Setup and Installation ..............10 Mounting ................. 10 Notebook Mounting Bracket ............ 12 Custom Brackets ..............13 Connection ................. 14 Using HeadMouse Extreme ............15 Tracking Status ..............15 General Use ................ 16 Pointer Position ..............16 Pointer Control ..............17 Mode Switch Settings .............. -
Page 3: Legal Notices
Information in this User Guide is provided “as is” by Origin Instruments, is subject to change without notice, does not represent a commitment on the part of Origin Instruments, and is provided without warranty of any kind, either expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. -
Page 4: Application Disclaimer
Origin Instruments Corporation. Application Disclaimer HeadMouse Extreme is designed for use by people who have limited or no motor capability enabling USB mouse operations. However, it should not be used in an application where personal injury or property loss could occur if the HeadMouse Extreme failed for some reason. -
Page 5: Introduction
HeadMouse Extreme User Guide Introduction Thank you for being a HeadMouse Extreme customer! This manual is a guide to the operation and use of this head- controlled computer access system. Additional documentation may be shipped with your HeadMouse Extreme. HeadMouse Extreme Key Features ... -
Page 6: Hardware Description
HeadMouse Extreme User Guide Hardware Description The HeadMouse Extreme is an infrared optical sensor that tracks side-to-side and up-and-down head movements. It then filters and transforms these movements to control the position of the mouse pointer on the computer screen. HeadMouse Extreme operates with very low input power (1 watt) that is usually supplied directly from the computer or hub through a standard USB cable. - Page 7 HeadMouse Extreme User Guide Figure 1: HeadMouse Extreme Front Panel The durable outer case of the HeadMouse Extreme measures 3.7x 2.2x 0.5 inches. The optical transceiver is located at the center of the front panel. For best results and reliable long-term sensor operation, do not touch the small lens at the center of the transceiver.
- Page 8 HeadMouse Extreme User Guide Figure 2: HeadMouse Extreme Top View Located on the top edge of the HeadMouse Extreme are a Mini-B USB connector and a 3.5mm (1/8”) stereo microphone connector. Connect a mono adaptive switch into the microphone connector to provide a LEFT mouse button click.
- Page 9 A small circle of Dual Lock fastener is centrally located on the rear panel of the HeadMouse Extreme for use in mounting. The high- density Dual Lock fastener on HeadMouse Extreme is designed to mate with low-density Dual Lock fasteners on mounts or directly on the bezel of your computer's display.
-
Page 10: Setup And Installation
Dual Lock from the kit and join it to the one on the HeadMouse Extreme so that the back of the Dual Lock is face up. Now peel the backing off of the Dual Lock to expose the adhesive. - Page 11 To remove Dual Lock, gently peel Dual Lock away to permanently remove from your monitor. Excess adhesive can be removed with an appropriate adhesive removing solvent. Figure 4: HeadMouse Extreme mounted to a desktop display Origin Instruments Corporation Page 11...
-
Page 12: Notebook Mounting Bracket
Attach the mounting bracket to the laptop screen and affix the HeadMouse to the bracket as described above. With the mounting bracket the connectors on the HeadMouse Extreme should be on the bottom; for most other applications, the connectors should be at the top. -
Page 13: Custom Brackets
HeadMouse Extreme User Guide Figure 6: HeadMouse Extreme in Notebook Mounting Bracket Figure 7: HeadMouse Extreme in Notebook Mounting Bracket (side view) Custom Brackets Custom brackets are available for several AAC devices. These brackets are made to match the contours and dimensions of each device. -
Page 14: Connection
HeadMouse connectors pointed up, use the 2-foot (60- centimeter) right angle cable. After the HeadMouse Extreme is mounted, connect one end of the USB cable to the USB on the HeadMouse Extreme then connect the other end of the cable to the USB port on the computer or communication device. -
Page 15: Using Headmouse Extreme
HeadMouse Extreme. 4. For best results use the USB cables that were delivered with your HeadMouse Extreme and do not use USB extender cables. Using HeadMouse Extreme Tracking Status The red and green LEDs on the front panel of the HeadMouse Extreme indicate the tracking status. -
Page 16: General Use
HeadMouse Extreme offers very precise pointer placement. Optimally the user should be 18- to 24-inches (45- to 60- centimeters) from the HeadMouse Extreme, but can be as far as 5-feet (1.5-meters). The greater the distance from the HeadMouse, the more head movement is required to move the pointer from one edge of the screen to the other. -
Page 17: Pointer Control
HeadMouse Extreme User Guide Exercise Example: Sit in a comfortable position and take note of where the pointer is on the screen. As an example, say the pointer is at the bottom of the screen. To move the pointer to the top of the screen attempt to move it past the bottom edge of the screen, or “push”... -
Page 18: Mode Switch Settings
HeadMouse Extreme User Guide Mode Switch Settings The mode switches adjust HeadMouse Extreme operation as described below: Default Setting: All switches in the ON position. Switch 1: On Switch 2: On Switch 3: On Switch 4: On Switch 1: Mouse Gain (1x or 2x Speed) This switch is useful when the range of available head motion is limited or when accessing a Macintosh computer. -
Page 19: Dual And Multiple Switches
If you change from a stereo switch to a mono switch after the HeadMouse Extreme is connected and operating, please allow 30 seconds for the HeadMouse Extreme to adapt to the new switch connection. Up to three switches can be connected to Beam Wireless Switch Transmitter, to emulate a 3-button mouse. -
Page 20: Technical Specifications
USB Interface: Full Speed General Care and Maintenance HeadMouse Extreme may be cleaned with a damp cloth, but it should never be soaked with any water or cleaning solution. Do not allow any kind of liquid in our around the connector panel. -
Page 21: Warranty Information
In order to obtain service under the foregoing warranties, the Customer must notify Origin Instruments of the defect prior to the expiration of the warranty period. The foregoing warranties will not apply to any defect, failure, or damage caused by improper use, or improper or inadequate maintenance and care. - Page 22 854 Greenview Drive Grand Prairie, TX 75050-2438 USA For repairs during the warranty period, Origin Instruments will pay for the return of the product to the Customer if the shipment is to a location within the United States. For non-warranty repairs and for...
-
Page 23: Replacement Targets
HeadMouse Extreme User Guide Replacement Targets Replacement reflective targets for use with the HeadMouse Extreme are available for purchase through Origin Instruments Authorized Channel Partners and directly from Origin Instruments. Origin Instruments Corporation Page 23... - Page 24 ©2013 Copyright by Origin Instruments Corporation. All rights reserved. HeadMouse is a registered trademark of Origin Instruments Corporation. Swifty, Beam, SofType and Dragger are trademarks of Origin Instruments Corporation. All other designated trademarks and brands are the property of their respective owners. 12192013...
