02

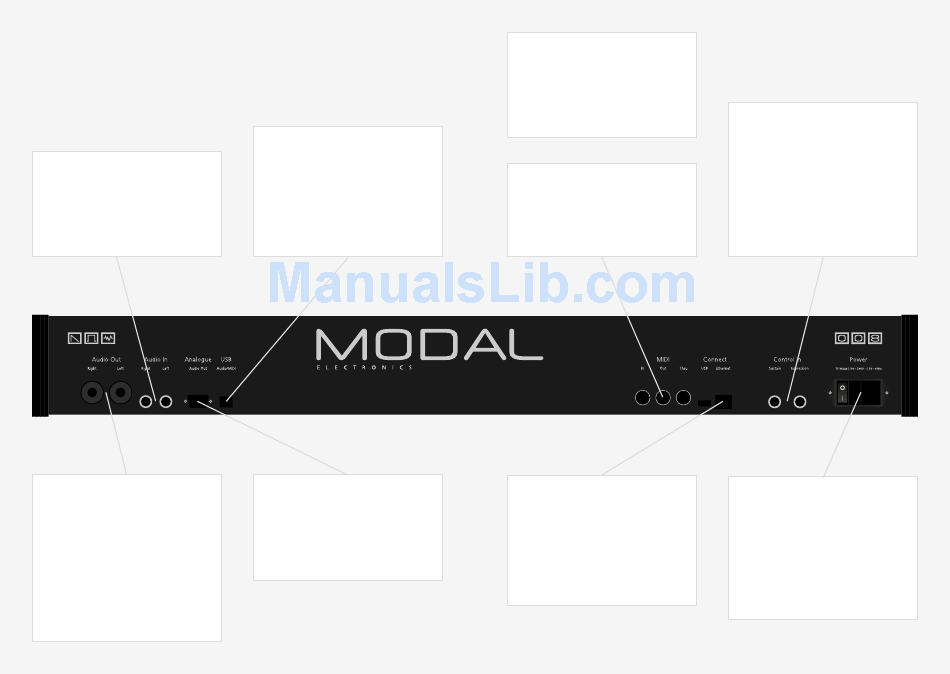

Connections
Audio In
Two mono TS audio inputs, to process
your audio source with 008's analogue
VCF and VCA.
Audio Out
008's main audio output, featuring a
stereo 'combo-socket' outputs with
balanced XLR or unbalanced TS plugs.
With the standard version of the Modal
008, four voices are hard-wired to the
left, four voices to the right. The option
digital output card will enable internal
mixing and panning.
16
USB (Audio, MIDI)
This is intended to be used with the
future Digital I/O card expansion.
Without the Digital I/O card installed,
the USB ports of your synthesiser are
not operational.
Analogue Out
D-Sub connector providing individual
pure analogue output for each of the 8
voices.
Headphones
(On the front) A 1/4" stereo jack socket.
We recommend using headphones with
a minimum impedence of 70 ohms.
MIDI (In, Out, Thru)
To receive/send/pass through MIDI data
from/to other devices.
Connect
Internet connection. Connect an
Ethernet cable directly to your router
to allow updates to the OS and other
internet features. The USB port is
currently not operational.
Control In
Sustain input works with any standard,
normally open momentary foot switch.
Expression input works with any Roland
/ Oberheim standard expression pedal
that has a variable resistor on a TRS
1/4" phone plug.
Power
AC power inlet, accepting standard
grounded IEC power cord. It operates
over a range of 90 to 260 volts and 50
to 60 Hz. Connect the cord included
with your 008, then press the power
switch to turn the synth on.
