Modulation Matrix

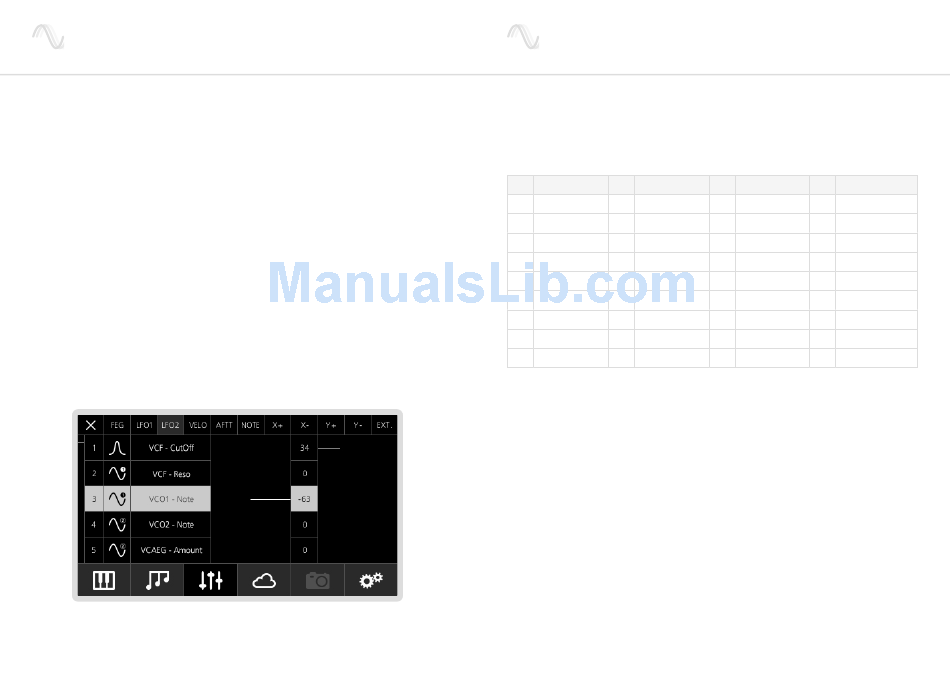

In order to quickly see what modulation is routed where, we have made a Modulation Matrix
page that allows you to quickly navigate, visualise and edit all the modulation for 008.
The Modulation Matrix page is split into two main sections. One that allows you to select a
modulation source and one that lets you select a modulation destination.
Select Source
Upon first navigating to the Modulation Matrix page you will be scrolling around the sources
across the top bar. Pressing select or pressing the data wheel will allow you to scroll down the
list of destinations for that source.
You can also select sources by pressing the modulation source assign buttons on the front
panel, without turning any destination knob. This will send you to the same page as selecting
a source across the top bar. However, this method has the benefit of not resetting the users
postion in the destinations list. This means that if you have navigated down the destination
list by pressing different modulation source assign buttons you can quickly see if there is any
modulation on the destination you have navigated to.
To return to the Select Source section when you are on the Select Destination section you can
either navigate to the top of the list until the source is highlighted in white or press 0 on the
keypad.
34
Modulation Matrix
Select Destination
Once you have selected a source you can scroll down a list desitinations. The available
destinations and their order are displayed in the table below. The final destination, PitchBend
Amount, is only available for the joystick axes:
Destination Destination
1 VCF - CutOff 10 VCO2 - Mod
2 VCF - Reso 11 VCO1 - PW
3 VCO1 - Note 12 VCO2 - PW
4 VCO2 - Note 13 VCO1 - Fine
5 VCA - Amount 14 VCO2 - Fine
6 LFO1 - Depth 15 FEG - Amount
7 LFO1 - Rate 16 FEG - Attack
8 LFO2 - Depth 17 FEG - Decay
9 LFO2 - Rate 18 FEG - Sustain
There is a scroll bar on the left hand side and each destination is numbered so that you know
how far down the list you have scrolled.
To change the depth of a destination navigate to and highlight the one required using the
+/- or data wheel then press select or press the data wheel. You can also type the destination
number displayed in the table using the keypad. Pressing select or pushing the data wheel
again will allow you to scroll the destination list again.
Reset Modulation
On the Modulation Matrix page you can reset the modulation for either a source or a
destination by holding down select or the data wheel.
If you are currently on the Select Source page holding down select will show a confirm page
to reset all modulation for the highlighted source.
If you are currently on the Select Destination page holding down select will show a confirm
page to reset all modulation for the highlighted destination.
Destination Destination
19 FEG - Release 28 MIX - Sub2
20 FEG - Delay 29 MIX - ExtIn L
21 AEG - Attack 30 MIX - ExtIn R
22 AEG - Decay 31 LFO1 - Delay
23 AEG - Sustain 32 LFO1 - Release
24 AEG - Release 33 LFO2 - Delay
25 MIX - VCO1 34 LFO2 - Release
26 MIX - VCO2 35 KEYB - Glide
27 MIX - Sub1 36 PBEND - Amount
