Summary of Contents for Max BC-TS-Sw2-WM

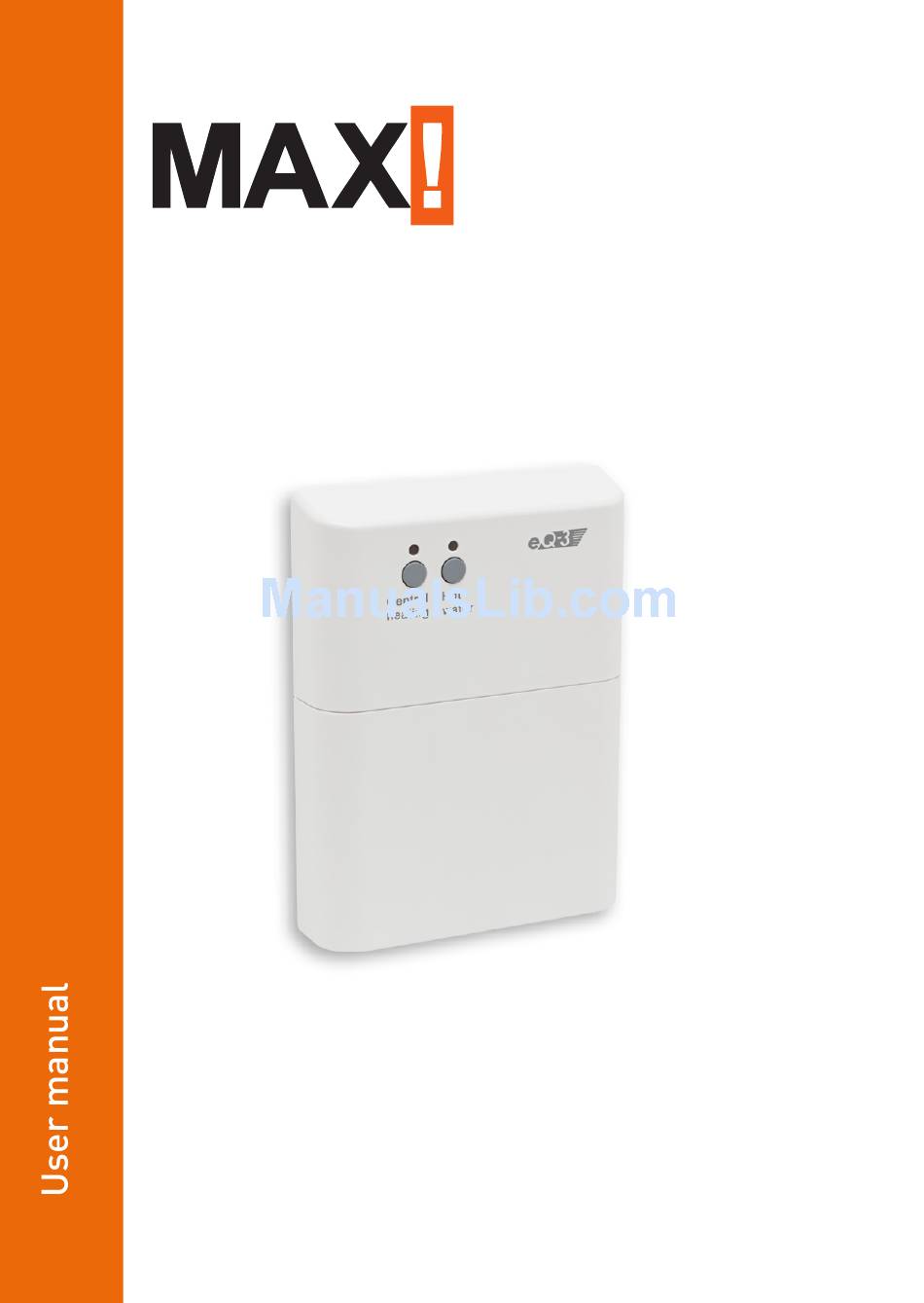

- Page 1 Boiler Controller BC-TS-Sw2-WM...
-
Page 2: P Ackage Contents
Quantity Item MAX! Boiler Controller Mounting material User manual Documentation © 2015 eQ-3 AG, Germany All rights reserved. Translation from the original version in German. This ma- nual may not be reproduced in any format, either in whole or in part, nor may it be duplicated or edited by electronic, mechanical or chemical means, without the written consent of the publisher. -
Page 3: Table Of Contents
Information about this manual ........4 Safety instructions ............4 Function ................6 Device overview ..............7 Installation ..............8 Mounting the MAX! Boiler Controller......8 5.1.1 Mounting on a pattress box ..........8 5.1.2 Mounting on the wall ............10 Wiring diagram .............12 Teaching-in ..............14 Manual operation ............15 Response to power recovery ........16... -
Page 4: Information About This Manual
Information about this manual nformatIon about thIs manual Please read this manual carefully before starting to use the device. Keep the manual so you can refer to it at a later date if you need to. If you hand over the device to other persons for use, please hand over the user manual as well. - Page 5 The circuit to the which the device and the load will be connected has to be secured by a cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16A rated current, min. 6kA interrupting rating, energy limiting class 3).
-
Page 6: Function
MAX! Hot water for controlling your warm water tank. Each channel can be controlled independently. The configuration of the device is done via the MAX! software. Therefore, simply connect the MAX! Boiler Controller to the MAX! Cube. Then set up your individual week programs with temperatures and times according to your personal needs. -
Page 7: Device Overview
Device overview evIce overvIew F GH I J K L Central Central heating water heating water Device LED channel 1 Channel button 1 (“Central heating”) Device LED channel 2 Channel button 2 (“Hot water”) Cover Neutral wire for power supply of the device Live wire for power supply of the device Life wire for central heating switch Call for heat to the boiler... -
Page 8: Installation
Contact an electrical installer! Specialist knowledge is required for installation! The MAX! Boiler Controller can be easily mounted to pattress boxes or simply on the wall. 5.1.1 m ountIng on a Pattress boX Before installation, disconnect the mains voltage! •... - Page 9 Installation • Remove the cut-out for cables (M) and pass the cables through the cut-out hole. Central heating water • Fix the MAX! Boiler Controller to the pattress box. • Connect the power supply.
-
Page 10: Mounting On The Wall
Remove the existing programmer device. • Remove the existing backplate (if present). • Remove the cover (E) from the MAX! Boiler Controller. • Mark the bore holes with a distance of 7.8 cm on the wall. • Drill the two marked bore holes with a 5 mm drill and in-... - Page 11 Installation sert the plugs supplied. • Turn the screws into the plugs so that they protrude from the wall by approx. 1.5 mm. • Mount the device on the wall. Hang it using the brackets on the back behind the screw heads. •...
-
Page 12: Wiring Diagram
Installation IrIng DIagram Permitted wire cross-section: Rigid wire [mm Flexible wire with end sleeve [mm 0.75 - 4.0 mm 0.75 - 2.5 mm Rigid wires must be in accordance with H05VV-F or H05RR-F. The following picture shows an installation example. Please consider your individual system setup. - Page 13 Installation Neutral wire for power supply Live wire for power supply L↑ Live wire for central heating switch Relay 1 1↓ Call for heat to the boiler (central heating) 2↓ Normally open hot water terminal Relay 2 1↓ Normally closed hot water terminal (hot water) L↑...
-
Page 14: Teaching-In
In order to integrate the MAX! Boiler Controller into a MAX! system it has to be connected to the MAX! Cube via the MAX! software first. All settings and programming (e.g. week pro- grams) can be done via the MAX! software afterwards. -
Page 15: Manual Operation
“Hot water”. The channel “Central heating” can also be used in rooms that include a MAX! Wall Thermo- stat+ already. If you want to use your system without a MAX! Cube, you can also directly teach-in the channel “Central heating” to the MAX! Wall Thermostat+. -
Page 16: Response To Power Recovery
AUTO mode as well. estore factory settIngs The factory settings of the MAX! Boiler Controller can be re- stored manually. Restoring the factory settings deletes all settings and information about taught-in devices. -
Page 17: Error Messages
Error messages rror messages Error code Meaning 1x long, 2x short flashing Device defective Fast flashing Teach-in mode active Permanent light The corresponding channel is switched on. aIntenance anD cleanIng The product does not require any maintenance. Enlist the help of an expert to carry out any repairs. -
Page 18: Technical Specifications
Device short name: BC-TS-Sw2-WM Supply voltage: 230 V/50 Hz Current consumption: Channel 1: 16 A max. Channel 2: 5 A max. Standby power consumption: < 0.2 W Degree of protection: IP20 Ambient temperature: 5 to 35°C... - Page 19 Technical specifications Max. switching capacity: Channel 1: ohmic load, max. 3680 W relay: NO contact Channel 2: ohmic load, max. 1150 W inductive load, max. 230 VA relay: CO Kind of cable and cross-section: rigid cable, 0.75 – 4 mm²...
- Page 20 Bevollmächtigter des Herstellers: Manufacturer’s authorised representative: eQ-3 AG Maiburger Straße 29 26789 Leer / GERMANY www.eQ-3.de...
