Summary of Contents for Oki PAGE 8p Plus

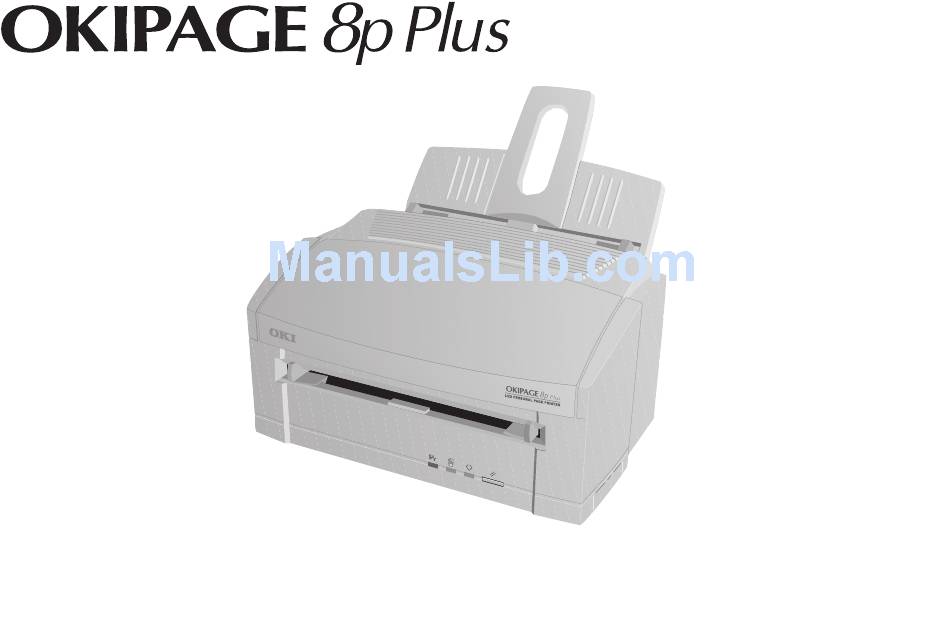

- Page 1 Setup Guide...
- Page 2 Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. Oki assumes no responsibility for the results of errors beyond its control. Oki also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it.
-
Page 3: Table Of Contents
Installing toner ... 11 Loading paper ... 12 Connecting the data cable ... 13 Connecting the USB cable ... 13 Connecting power to your printer ... 14 Setup Guide Installing a Windows™ printer driver ... 15 Windows 3.1x ... 15 Windows 95/98 and Windows NT4 ... -
Page 4: Safety Instructions
Safety instructions Your Oki printer has been carefully designed to give you years of safe, reliable performance. As with all electrical equipment, however, there are a few basic precautions you should take to avoid hurting yourself or damaging the printer: •... - Page 5 • Do not make any adjustments other than those outlined in the handbook. You may cause damage requiring extensive repair work. • It is recommended that the printer be switched off prior to opening or removing covers. If anything happens that indicates that your printer is not working properly or has been damaged, unplug it immediately and contact your dealer.
-
Page 6: Printer Features
• Outstanding print quality utilising a solid state LED array • Compatible with Windows™ applications • Bidirectional Centronics IEEE 1284 parallel interface • USB Serial Interface • Onscreen soft operator panel for printer setup and control, and status monitor for realtime printer status information • HP PCL ®... -
Page 7: Checking The Contents
Checking the contents Carefully remove all the contents from the box and unpack your printer. In addition to the printer manual(s) you should have the following items: • Printer • Toner cartridge • Paper input tray • Image drum cartridge... -
Page 8: Printer Components
Printer Components Paper feed/exit tray Printer cover Manual feed slot Control panel LED array USB interface connector Image drum cartridge Parallel interface connector Power cable receptacle Toner cartridge Power switch OKIPAGE 8p Plus... -
Page 9: Setting Up Your Printer
The area should be free of electromagnetic interference and not suffer from extremes or drastic changes in temperature or humidity. The printer should be placed on a surface which is not be subject to shock or vibration. -
Page 10: Removing The Image Drum Protection Sheet
Removing the image drum protection sheet 1 Open the cover. 2 Remove the image drum cartridge. Do not expose the image drum to strong light. Do not touch the image drum’s green surface. 3 Remove the protective sheet. Keep the image drum as level as possible to avoid toner spillage. -
Page 11: Installing Toner
1 Remove the tape and shipping insert from the image drum cartridge. 2 Shake the toner cartridge to evenly distribute toner. 3 Unwrap the toner cartridge. 4 Remove the tape. Setup Guide 5 Insert the toner cartridge. 6 Push the lock lever forward. 7 Close the printer cover. -
Page 12: Loading Paper
Loading paper For best results, use standard laser or copier paper with a Sheffield rating of 100–250 such as Xerox 4200 (75g/m² or 20lb). The paper input tray can stack up to 100 sheets of standard paper. 1 Set the left paper guide to the marker for the required paper size and move the right guide to a position slightly wider than your paper width. -
Page 13: Connecting The Data Cable
Setup Guide Connecting the USB cable The printer comes with a USB interface as standard. This requires a Type A to Type B cable, not more than 5m in length. 1 Connect the Type B (square) connector on the cable to the USB interface connector at the rear of the printer (1). -
Page 14: Connecting Power To Your Printer
Connecting power to your printer A suitable AC power cable is supplied with your printer, terminated with the appropriate plug for connection to a standard AC wall outlet. 1 Ensure the printer on/off switch (1) is off. 2 Connect the cable to the power socket (2) on the rear of the printer. -
Page 15: Installing A Windows™ Printer Driver
Installing a Windows™ printer driver A printer driver is a software program which runs on your PC. It passes data from your applications suitably formatted for the printer, and also controls a number of printer functions. Your printer comes with printer drivers for Windows 3.1x, Windows 95/98,Windows NT4. -
Page 16: Windows 95/98 And Windows Nt4
D:\SETUP.EXE 5 During the installation process, you will be prompted to choose a port to use with the printer. Select the USB port that the printer is connected to, for example “OP1USB1”. on the menu Run…... -
Page 17: Other Items On The Cd
Other Items on the CD 6 Follow the on-screen instructions to complete the The CD supplied with your printer also contains this manual installation. and the User’s Guide in Adobe Acrobat format. You may find this more convenient than having printed manuals to look after. -
Page 18: Index
Windows NT ... 16 Safety ... 4 Software CD-ROM ... 17 other drivers ... 15 Toner cartridge ... 11 installing ... 11 Oki Systems (UK) Ltd. 550 Dundee Road Slough SL1 4LE Tel: 44 (0) 1753 819819 Fax: 44 (0) 1753 819899 http://www.oki.co.uk...
