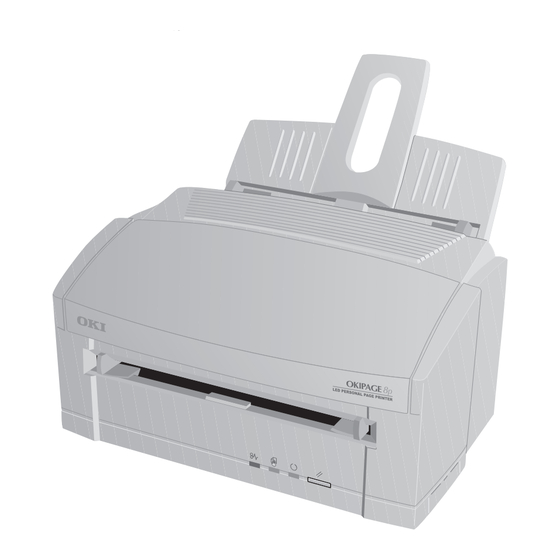

Oki Okipage 8p User Manual
Hide thumbs
Also See for Okipage 8p:
- User manual (28 pages) ,
- Setup manual (16 pages) ,
- Maintenance manual (190 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Oki Okipage 8p
Summary of Contents for Oki Okipage 8p

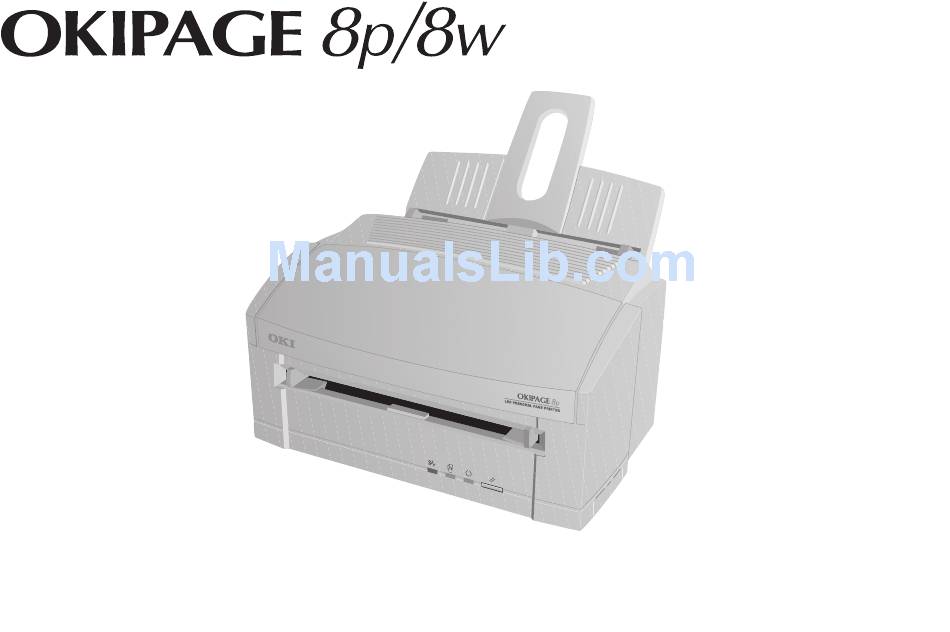

- Page 1 User’s Guide...
- Page 2 Oki is a registered trademark of document is complete, accurate, and up-to-date. Oki assumes no Oki Electric Industry Company, Ltd. responsibility for the results of errors beyond its control. Oki also is a trademark of the NERGY cannot guarantee that changes in software and equipment made by other...
-
Page 3: Table Of Contents
Using Fonts ..............14 Choosing Print Media ............. 7 OKIPAGE 8p Fonts ............14 Paper ................... 7 Front Panel Indication (OKIPAGE 8p) ........15 Transparencies/Adhesive Labels ........7 LED Indication ..............15 Envelopes ................7 Front Panel Switch Functions .......... 16 Paper Sizes ................ -
Page 4: Safety Instructions
Safety Instructions Your Oki printer has been carefully designed to give you years • Be certain that your power source matches the rating of safe, reliable performance. As with all electrical equipment, listed on the back of the printer. If you are not sure, check however, there are a few basic precautions you should take to with your dealer or with your local power company. - Page 5 Energy Star • The printer has been dropped, or the cabinet is damaged. As an E Partner, Oki has determined that this product NERGY • The printer does not function normally when you are meets the E guidelines for energy efficiency.
-
Page 6: Important Wiring Instructions
N or coloured blue or black. Brown Must be connected to the terminal marked with the letter L or coloured red. This printer must be earthed! If you are in any doubt regarding the wiring, please contact a qualified electrician. OKIPAGE 8p/8w... -
Page 7: Choosing Print Media
Choosing Print Media Paper Transparencies/Adhesive Labels • For best results, use paper that is smooth and of high quality, • Use manual feed. like copier type paper or paper with a Sheffield rating of • Should be specifically made for laser printers or 100-250. -
Page 8: Paper Sizes
Media Type (default) Minimum – Maximum – 66 g/m² Light (60) – 73 g/m² Medium light (68) – 88 g/m² Medium (75) Medium Heavy (90) – 104 g/m² – 120 g/m² Heavy (105) OKIPAGE 8p/8w... -
Page 9: Manual Feed
Manual feed 3 Adjust the right paper guide to fit against the edge of the Use manual feed for printing envelopes, transparencies, paper. Do not move the left guide again as this may cause heavyweight and odd size paper. the paper to skew as it is fed in. Insert envelopes with flap side down and to the left. -
Page 10: Toner Cartridge
However, you should 2 Shake the new toner cartridge gently to distribute toner replace the toner cartridge as soon as possible to maintain evenly. print quality and avoid possible damage to the imaging system. OKIPAGE 8p/8w... -
Page 11: Cleaning The Led Array
3 Unwrap the new cartridge. 6 Push the lock lever forward. 4 Remove the tape. 5 Insert the toner cartridge. 7 Close the printer cover. Cleaning the LED Array Clean the LED array… • Whenever you install a new toner cartridge. •... -
Page 12: Image Drum Cartridge
At this point, be sure you have a new 1 Open the cover and remove the used image drum cartridge. drum on hand. Replace the old one as soon as print quality becomes faint or starts to deteriorate. OKIPAGE 8p/8w... -
Page 13: Resetting The Drum Counter
2 Unwrap the new image drum cartridge and remove the 4 Remove the protective plastic cover from the toner well in protective sheet. the image drum unit. 5 Insert the toner cartridge. Resetting the Drum Counter 1 Enter the printer status monitor. 2 Click on the tab. -
Page 14: Fonts
OKIPAGE 8p Fonts are of a fixed size, and scaling makes them look ragged. These typefaces are resident in the OKIPAGE 8p: Scalable fonts are stored as a set of mathematical curves. At print time the printer uses the stored curves to make up a bitmap •... -
Page 15: Front Panel Indication (Okipage 8P)
Front Panel Indication (OKIPAGE 8p) LED Indication As well as error indication on the host PC, the OKIPAGE 8p has a set of LEDs that inform the user of certain conditions. State Comments Ready — © – cleared Cancelling data process Buffer contents ... -
Page 16: Front Panel Switch Functions
Demo page print Cleaning print. (menu, demo) Low toner — — — Ready Off-line — — The status monitor has a comprehensive on–line help system which provides explanations and advice on all features and settings that are available. OKIPAGE 8p/8w... -
Page 17: Printer Maintenance
Printer Maintenance Transporting Your Printer Cleaning the Printer If you need to transport your printer to another location, To obtain the best performance from your printer, it must be including return for service, be sure to take the following cleaned regularly. precautions: Disconnect your printer from mains power. -
Page 18: Basic Troubleshooting
Basic Troubleshooting Paper Jams 3 Remove the jammed paper. 4 Replace the image drum. 1 Open the cover. The fuser unit at the back of the printer is hot. 2 Lift out the image drum. 5 Close the cover. OKIPAGE 8p/8w... -
Page 19: Print Quality Problems
Print Quality Problems Problem Solution Printed page is blank. The toner cartridge is missing or empty. Install a new toner cartridge. Entire page prints faintly. The toner cartridge is installed incorrectly. Re–install the toner cartridge. Make sure the tape is removed from the bottom of the toner cartridge, the cartridge is seated correctly and the toner lock lever is pushed all the way forward. -
Page 20: Software Problems
Image drum problem; contact service. Software Problems It is essential to ensure that you have installed the correct Oki printer drivers. If printing from a DOS text box, your application should be set up for printing with an HP LaserJet™ II or compatible driver. -
Page 21: Hardware Problems
Hardware Problems Problem Solution When you try to print nothing happens. Configuration error. Check cable connection. If more than one printer is available, make sure your printer has been selected. Check printer status. If the printer light flashes slowly, the print job is progressing. If the light flashes rapidly, use the control panel software to examine printer status. - Page 22 This is perfectly normal. If the top cover becomes too hot to touch, switch the printer off and call your dealer for advice. Printed paper emerges wrinkled. Use the printer control panel to change the paper thickness setting to light. OKIPAGE 8p/8w...
-
Page 23: Specifications
CPU (8p, 8w) Core MIPS R3000, OKI nX8 Clock 28MHz, 16MHz RAM (8p, 8w) Resident 2MB, 512KB Option Additional 4MB (Okipage 8p only) ROM (8p, 8w) 6MB, 62KB Electrical Voltage 230VAC ±10% Frequency 50/60Hz ± 2% AC Cable Standard 1.8m cable fitted with appropriate power plug. - Page 24 1 month in fully packed state minus toner and image drum Transit – for up to 1 month in fully packed state minus toner and image drum Humidity (%) Operating – 25.0°C Non–operating – 26.8°C Wet bulb temperature. Storage – 35.0°C Transit – 40.0°C OKIPAGE 8p/8w...
- Page 25 1 500 pages (5% print density) Image Drum 10 000 pages – continuous print 8 000 pages – 3 pages/job (without power save) Emulation Standard HP LaserJet5 PCL5e, PCLXL (Okipage 8p only) IBM Proprinter EPSON FX Optional None Acoustic noise Operating...
-
Page 26: Index
Index Button Manual feed ..........9 Problems front panel (Okipage 8p) ..... 15 Media Type hardware ..........21 setting ............ 8 print quality ......... 19 Menus software ..........20 Cleaning the LED array ......11 using ............ 16 Safety ............4 Drum cartridge. - Page 27 User Notes User’s Guide...
- Page 28 Oki Systems (UK) Ltd. 550 Dundee Road Slough SL1 4LE Tel: 44 (0) 1753 819819 Fax: 44 (0) 1753 819899 http://www.oki.co.uk Oki Systems (Ireland) Ltd. The Square Industrial Complex Tallaght Dublin 24 Tel: 01 459 8666 Fax: 01 459 8840 http://www.oki.ie...
