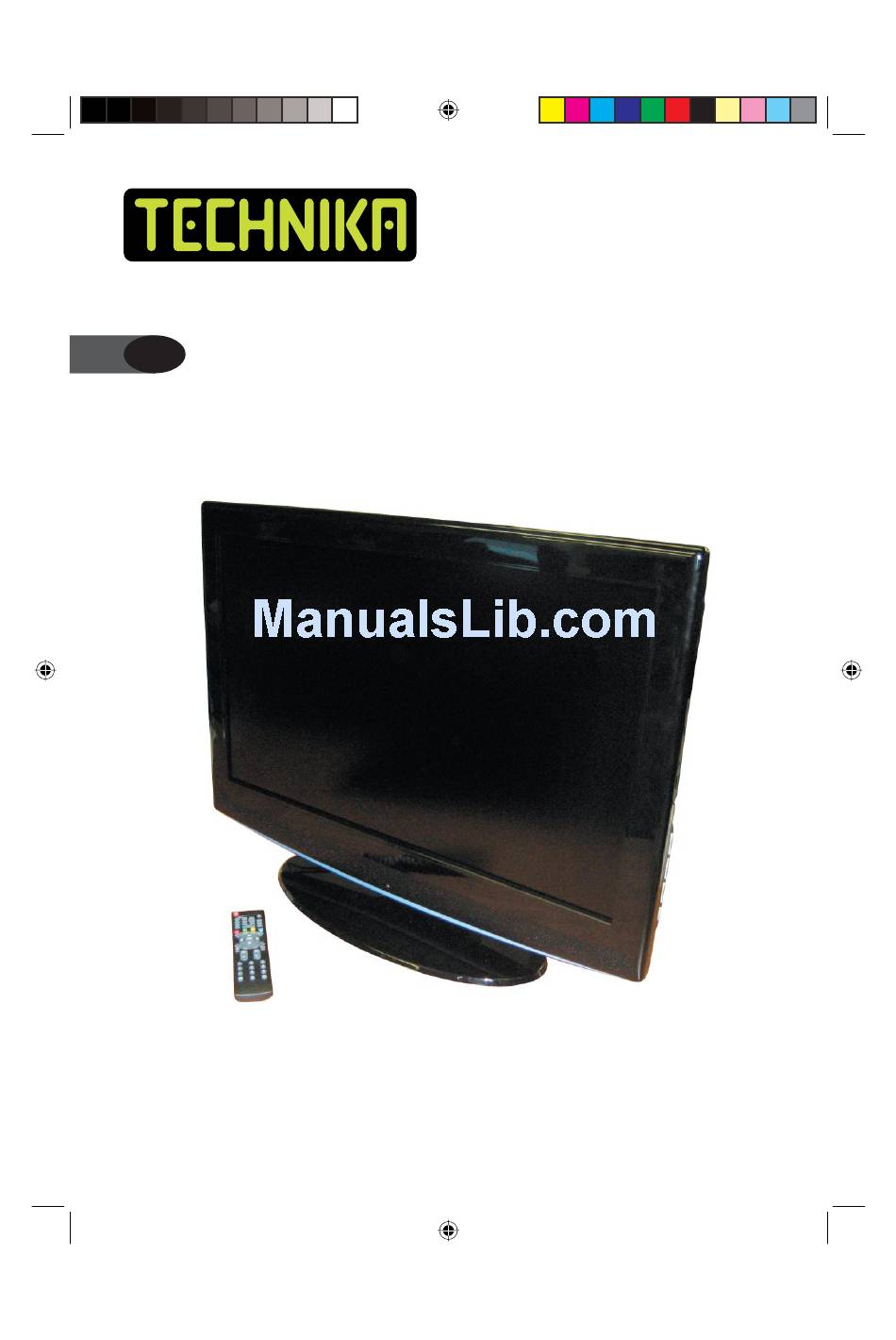

- Page 1 LCD TV Receiver User Guide LCD32-407B LCD32-407B.indd 1 LCD32-407B.indd 1 14/11/2007 16:01:40 14/11/2007 16:01:40...
-
Page 2: Table Of Contents
Mono/Stereo ........12 The List Schedule EPG ......24 Select the TV channel ......12 The Timeline Schedule EPG ....24 Picture Mode ........12 Changing Channel ....... 25 Channel List ......... 25 LCD32-407B.indd Sec1:1 LCD32-407B.indd Sec1:1 14/11/2007 16:02:18 14/11/2007 16:02:18... - Page 3 LCD TV Receiver LCD32-407B Channel Information ....27 Text..........27 RECALL button ......27 Favourite Channel Lists ....27 To Add a Channel to a Favourites List ... 28 To Select a Favourites List ...... 28 Settings ......... 28 Confi guration ........28 Language Settings ........
-
Page 4: Introduction
You may already be familiar with using a similar product but please take time to read these instructions which have been written to ensure you get the very best from your purchase. Throughout the remainder of this user guide the Technika LCD TV Receiver will be referred to as the ‘TV’. -
Page 5: Safety Information
LCD TV Receiver LCD32-407B SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY BEFORE USE Take note of the following safety information which appears on the back of this TV. CAUTION! RISK OF ELECTRIC SHOCK DO NOT OPEN TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) -
Page 6: Electrical Information
If there is no alternative to cutting off the mains plug, dispose of it immediately, having fi rst removed the fuse, to avoid a possible shock hazard by inadvertent connection to the mains supply. LCD32-407B.indd Sec1:5 LCD32-407B.indd Sec1:5 14/11/2007 16:02:18... -
Page 7: Parts Identification
LCD TV Receiver LCD32-407B PARTS IDENTIFICATION Front and side views 1. SOURCE Selects the input source 2. MENU Accesses the TV menus 3. VOL+ Increases the volume 4. VOL- Decreases the volume 5. CH+ Selects the next channel up 6. CH- Selects the next channel down 7. -
Page 8: Connection Options
3. Component Video Input Connections 4. S-Video 1 Input Connection 5. SCART Sockets 6. VGA Socket 7. Component Audio Input Connections 8. Headphone Connection 9. S-Video 2 Input Connection 10. RCA Input Connections 11. Antenna Socket LCD32-407B.indd Sec1:7 LCD32-407B.indd Sec1:7 14/11/2007 16:02:19 14/11/2007 16:02:19... -
Page 9: Remote Control
LCD TV Receiver LCD32-407B REMOTE CONTROL When using the remote control, aim it towards the remote control sensor on the TV. The function of some buttons will vary depending on the source being used (e.g. TV, DTV). 1. STANDBY Switches the TV to standby or on 2. -
Page 10: Installing Batteries In The Remote Control
WARNING! EXHAUSTED BATTERIES MUST BE TREATED WITH CARE AND DISPOSED OF ACCORDING TO ANY SAFETY OR RECYCLING REGULATIONS IN FORCE IN YOUR LOCAL AREA. NEVER DISPOSE OF BATTERIES INTO GENERAL WASTE, OR FIRE. LCD32-407B.indd Sec1:9 LCD32-407B.indd Sec1:9 14/11/2007 16:02:19 14/11/2007 16:02:19... -
Page 11: Connecting The Tv
LCD TV Receiver LCD32-407B CONNECTING THE TV WARNING! ENSURE THE TV AND ALL ANCILLARY EQUIPMENT IS UNPLUGGED FROM THE MAINS BEFORE MAKING ANY CONNECTIONS! Connecting the TV antenna Connect the TV antenna to the aerial socket with a 75 ohm co-axial plug. For best results use a high gain TV aerial, preferably roof or loft mounted. -
Page 12: Wall Mounting
1. Press the MUTE button to mute the sound temporarily. A MUTE icon appears on the screen. 2. Press the MUTE button again or the VOL+/- buttons to restore the sound. The MUTE icon disappears. LCD32-407B.indd Sec1:11 LCD32-407B.indd Sec1:11 14/11/2007 16:02:19 14/11/2007 16:02:19... -
Page 13: Source Selection
LCD TV Receiver LCD32-407B Source Selection To switch between the available sources, press the SOURCE button. The selected source name is highlighted in a list on the left of the screen. The following sources are available: • TV • SCART 1 •... -
Page 14: Program Swap
4. Whenever someone attempts to view that source they will be asked to input the password. If the password is entered correctly the CHILD LOCK menu will be shown where they will be able to turn off the lock. LCD32-407B.indd Sec1:13 LCD32-407B.indd Sec1:13 14/11/2007 16:02:20 14/11/2007 16:02:20... - Page 15 LCD TV Receiver LCD32-407B Lock channel This option allows you to lock TV channels. 1. Press the button to highlight each of the channel digits individually. 2. When a digit is highlighted it can be changed by pressing the buttons. For example, to select channel 4, change the channel number to 004.
-
Page 16: Menu Operations
5. Press the EXIT button to exit the menu. Note: Some options are only available for specifi c sources. LCD32-407B.indd Sec1:15 LCD32-407B.indd Sec1:15 14/11/2007 16:02:20 14/11/2007 16:02:20... -
Page 17: Picture Menu
LCD TV Receiver LCD32-407B Picture Menu This menu gives options for adjusting the appearance of the TV picture. The following options are available with the ‘TV’ source selected. VIDEO MODE – Allows you to select preset levels of contrast, brightness and colour. Choose between: •... -
Page 18: Function Menu
• PHASE – Allows you to remove any horizontal distortion and sharpen the image by adjusting the phase. • CLOCK – Allows you to adjust the clock speed to match the PC input source. • AUTO – Automatically adjusts the picture positioning frequency and phase parameters. LCD32-407B.indd Sec1:17 LCD32-407B.indd Sec1:17 14/11/2007 16:02:20 14/11/2007 16:02:20... -
Page 19: Tuning
LCD TV Receiver LCD32-407B ADVANCE • AAA - This function can improve the brightness and contrast of the image. The options are: - ON - SPLIT - MOVE - ZOOM. • CTI – This function reduces cross over and interference between different colours. - Page 20 When selected the channel will be skipped whenever using the CH+ or CH- buttons. The channel can only be selected by pressing the number buttons. 1. Press the green FASTTEXT button. 2. Press the red FASTTEXT button to confi rm. LCD32-407B.indd Sec1:19 LCD32-407B.indd Sec1:19 14/11/2007 16:02:21 14/11/2007 16:02:21...
-
Page 21: Timer
LCD TV Receiver LCD32-407B COPY 1. Press the yellow FASTTEXT button. 2. Use the buttons to select the position you wish to copy the channel to. 3. Press the red FASTTEXT button to confi rm the position. COUNTRY – Allows you to specify the country you are in. -
Page 22: Using Teletext
2. Press the button again to return to Western symbols. TV/TEXT Mix 1. Press the button. The text will be superimposed over the TV program. 2. Press button again to return to normal Teletext. LCD32-407B.indd Sec1:21 LCD32-407B.indd Sec1:21 14/11/2007 16:02:22 14/11/2007 16:02:22... -
Page 23: Page Stop
LCD TV Receiver LCD32-407B Page Stop If the page of text you have selected contains sub-pages, these will automatically be displayed in order with a delay to allow you to read the page. 1. Press the button to stop the next sub-page being displayed. The hold symbol will appear in the top left hand corner of the screen. -
Page 24: Using Dtv For The First Time
3. Press the OK button. The EPG list will be shown. 4. Use the button to highlight the EPG you wish to view. 5. Press the OK button to select the EPG. LCD32-407B.indd Sec1:23 LCD32-407B.indd Sec1:23 14/11/2007 16:02:22 14/11/2007 16:02:22... -
Page 25: The Now/Next Epg
LCD TV Receiver LCD32-407B The Now/Next EPG The Now/Next EPG displays information about the current Now/Next EPG Wed 24/10 15:12 and next events (programs) for the highlighted channel. Channels Current Event Next Event 105. BBCi BBCi BBCi 1. To display the EPG, press the GUIDE button. An 301. -
Page 26: Changing Channel
2. Use the buttons to navigate through the CHANNEL Select Delete Edit Name Lock Favourites LIST until you reach the channel you want to edit. More Cancel Enter Name Update MENU Select LCD32-407B.indd Sec1:25 LCD32-407B.indd Sec1:25 14/11/2007 16:02:23 14/11/2007 16:02:23... - Page 27 LCD TV Receiver LCD32-407B 3. Use the buttons to step along the options until you reach EDIT NAME. 4. Press the OK button to edit the channel name. 5. The selected channel name appears in a text box that opens below the picture window as shown.
-
Page 28: Channel Information
To view a channel not in your favourite list you have to enter the number of the channel using the numeric buttons. With fi ve lists available, each family member can have their own list. LCD32-407B.indd Sec1:27 LCD32-407B.indd Sec1:27 14/11/2007 16:02:24... -
Page 29: To Add A Channel To A Favourites List
LCD TV Receiver LCD32-407B To Add a Channel to a Favourites List 1. Press the DTV MENU button to display the MAIN Edit Favourite Lists 4. Channel 4 menu. 5. five 6. ITV2 2. Use the buttons to highlight FAVOURITES. - Page 30 2. Press the OK button. You will be asked for the lock key. 3. Enter the lock key - the default is set to ‘0000’. The Exit More Menu following window is displayed: LCD32-407B.indd Sec1:29 LCD32-407B.indd Sec1:29 14/11/2007 16:02:25 14/11/2007 16:02:25...
-
Page 31: Language Settings
LCD TV Receiver LCD32-407B To Change the Lock Key Number: 1. Use the buttons to highlight SET LOCK KEY. 2. Press the OK button. A second sub-window is displayed. 3. Enter your new four-digit lock key number in the entry box using the numeric buttons (0-9). -
Page 32: Installation
3. Press the OK button. You will be asked to confi rm the action and warned that this will delete all channels and settings. 4. Use the buttons to highlight YES, and press the OK button. The installation commences as described previously on page 23. LCD32-407B.indd Sec1:31 LCD32-407B.indd Sec1:31 14/11/2007 16:02:26 14/11/2007 16:02:26... -
Page 33: Troubleshooting Guide
LCD TV Receiver LCD32-407B TROUBLESHOOTING GUIDE To assist in locating possible faults use the help guide below. TROUBLESHOOTING No picture, no sound Check that TV is correctly plugged in. Verify the television is connected to a suitable power source. Verify the electrical supply is turned on. -
Page 34: Specifi Cations
