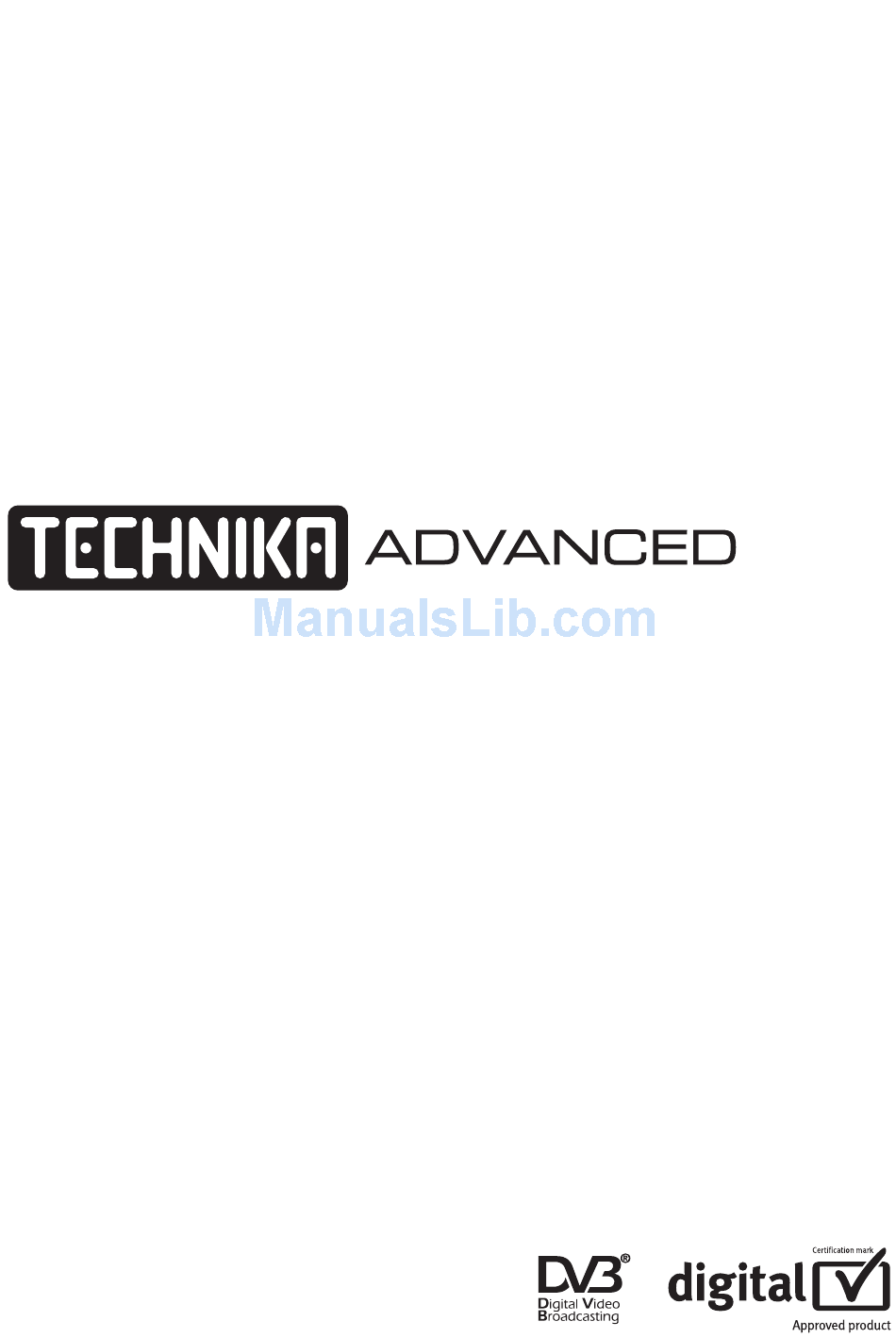

Page 1: User Guide
User Guide Digital TV Receiver Energy Saving STB9007LE... - Page 2 Thank you for choosing this Technika Digital TV Receiver Before using your new Digital TV Receiver, please take a minute to read the following safety information: • Only use the supplied power supply. • Do not cut off the supplied power supply’s plug.
-
Page 3: Table Of Contents
Contents Package contents ....................4 Preparing the remote control ................5 Attaching the supplied rubber feet ..............6 Connecting to your TV and VCR/DVD Recorder .........7 Automatically tuning ...................8 The remote control .....................10 The Help pages ....................12 Common symbols ....................13 The Channel List ....................14 The Info display ....................15 The Electronic Programme Guide .......................16 The Main Menu ....................18... -
Page 4: Package Contents
Package contents Digital TV Receiver Remote Control User Guide Power Supply Rubber Feet (2) -
Page 5: Preparing The Remote Control
Preparing the remote control Remove the remote control from the plastic bag. Remove the insulation sheet before using the remote control. • When replacing the battery, use battery type CR2025. • Always check the positive/negative symbols on the battery to ensure it is inserted correctly. -
Page 6: Attaching The Supplied Rubber Feet
Attaching the supplied rubber feet... -
Page 7: Connecting To Your Tv And Vcr/Dvd Recorder
Connecting to your TV and VCR/DVD Recorder To your TV (SCART cable not supplied). To your TV or VCR/DVD Recorder (RF cable not supplied). From your aerial. To your VCR or DVD Recorder (SCART cable not supplied). To the mains power outlet (supplied power supply). (Do not cut off the supplied power supply’s plug.) -
Page 8: Automatically Tuning
Automatically tuning The fi rst time you switch on your Digital TV Receiver you will see a screen like the one below: Start up screen Press the [OK] button on the remote control to begin automatic tuning. During automatic tuning, a progress bar, like the one below, is displayed. - Page 9 When the automatic tuning has fi nished, a summary screen, like the one below, is displayed. Automatic tuning summary screen Press the [OK] button to remove the summary screen and start watching digital TV.
-
Page 10: The Remote Control
The remote control When replacing the battery, use battery type CR2025. - Page 11 Switches the Digital TV Receiver on/into standby. Selects channels, enter PIN, use Help pages. DTV/RADIO Switches between Digital TV channels and Digital Radio channels. Returns to the previous channel watched. Switches between 4 and 24 hours advance in EPG. VOL. +/− Adjusts the volume.
-
Page 12: The Help Pages
The Help pages The Help pages give advice and information for many of the features of this Digital TV Receiver. Press Access the Help pages... [HELP] button. Select a help topic... [1]-[9] buttons. Return to the index page... [0] button. Exit the Help pages... -
Page 13: Common Symbols
Common symbols The following symbols may be visible in the EPG, Channel List and Info display: Locked channel. Encrypted/scrambled channel. Multilanguage option available (audio and subtitle). Timer has been set. Radio channel. Teletext available. Swap channel. Hide channel. -
Page 14: The Channel List
The Channel List The Channel List The Channel List displays all the available channels. Press Access the Channel List... [OK] button while watching TV. Select channels... [M] and [m] buttons. Display the previous nine [RED] button. channels in the list... Display the next nine channels in [GREEN] button. -
Page 15: The Info Display
The Info display The Info Display The Info display gives brief information on the current and future programmes. Press Access the Info display... [INFO] button. View information for future/ [M], [m], [<] and [,] buttons. previous programmes... Set a reminder for future [OK] button while highlighting a programmes... -
Page 16: The Electronic Programme Guide
The Electronic Programme Guide The Electronic Programme Guide (EPG) displays programme information for the next 8 days (when transmitted by broadcasters). You can also set timers that will display a chosen programme when it starts. The EPG Setting a timer... - Page 17 Press Access the EPG... [EPG] button. Move around the EPG... [M], [m], [<] and [,] buttons. Display the previous nine [RED] button. channels in the list... Display the next nine channels in [GREEN] button. the list... Move forward 4 or 24 hours... [BLUE] button.
-
Page 18: The Main Menu
The Main Menu Press Access the Main menu... [MENU] button. Move around the Main menu... [M] and [m] buttons. Select a setting... [<] and [,] buttons. Move back to the previous level... [BACK] button. Make a selection... [OK] button. Exit the Main menu... [MENU] or [BACK] button. -
Page 19: Main Menu Options
Main Menu options Timers Allows you to set, view, edit and delete timers. Refer to the Timers Screen on page 22. Edit Channel List Hide Channels: Allows you to hide unwanted channels. Press [OK] to select a channel to hide. Sort Channels: Allows you to rearrange the channel order. - Page 20 Settings Menu Language: Allows you to change the language setting (if available). Country: Allows you to change the country setting. Subtitle: Allows you to set your preferred subtitle setting (if available). Audio: Allows you to set your preferred audio setting (if available). TV Out: Allows you to switch the picture output between RGB, Y/C and Composite video.
- Page 21 Parental Controls Allows you to set your PIN and lock channels. Locked channels can only be viewed once the correct PIN is entered. The default PIN is 0000. Tuning Allows you to automatically or manually tune channels. You will be asked to enter your PIN.
-
Page 22: The Timers Screen
The Timers screen The Timers screen Editing a timer/Manually setting a timer event *Use ‘Mode’ to set the timer event to occur ‘Once’ , ‘Daily’ or ‘Weekly’ . **When a timer event is set to display a programme on a locked channel, you will need to enter the PIN before the programme is displayed. - Page 23 Press Move around the Timers screen... [M] and [m] buttons. Manually set a timer... [OK] button (while highlighting the required timer event). See below for further information. Edit a timer event... [RED] button (while highlighting the required timer event). See below for further information.
-
Page 24: Specifi Cations
Specifi cations Physical Specifi cations Size (W)196mm x (H)89mm x (D)31mm Weight 0.23kg Power Requirements Input Voltage 5.3V DC (with supplied power supply) Power Consumption (On) 3.9W Power Consumption (STBY) 1.6W Power Consumption (Low Power STBY) 1.0W Operating Temperature +10°C to +40°C Storage Temperature -20°C to +60°C Tuner... - Page 25 Supplied Accessories • Remote Control (with battery) • User Guide • Power Supply (5.3V 1Amp) • Rubber Feet (2) Specifi cations and designs are subject to change without notice.
-
Page 26: Troubleshooting
Troubleshooting Should you experience any problem with your Digital TV Receiver, completely unplug the unit from the mains. Leave unplugged for at least one minute before re-connecting. Power No power • Check that the (supplied) power supply is correctly connected. •... - Page 27 Sound No Sound • The unit is muted. (Press [MUTE] on the remote control) • The unit volume is turned down. (Press [VOL+] on the TV remote control). • The TV is muted. (Press [VOL+] on the TV remote control). •...
- Page 28 Wrong date is displayed in the EPG • Put the unit into Standby mode, then unplug completely from the mains. Leave the unit unplugged for at least one minute before re- connecting to the mains. • If the date is still wrong after unplugging the unit, this issue may be due to transmitter maintenance.
-
Page 29: Notes
Notes... - Page 30 Notes...
- Page 32 U-MAN-001-19 71-800-012-10 Printed on 100% recycled paper. ©2007 Technika. Printed in UK...
