Congratulations on purchasing
your new Hunter® ceiling fan! It will
provide comfort and performance
in your home or office for many
years. This installation and operation
manual contains complete
instructions for installing and
operating your fan.
We are proud of our work and
appreciate the opportunity to
supply you with the best ceiling fan
available anywhere in the world.
To register your fan, please visit:
www.HunterFan.com/register
Save your receipt for proof of purchase.

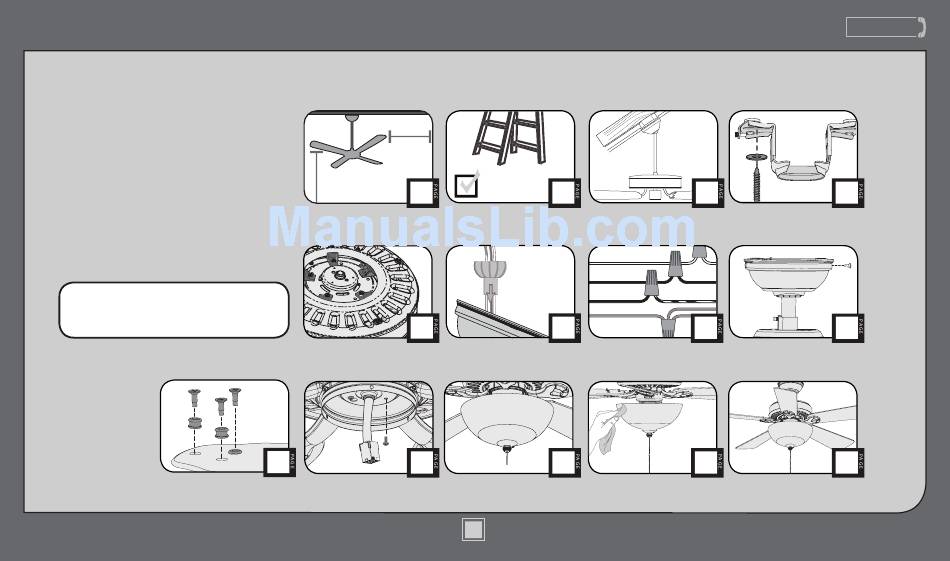

What to Expect with
Your Installation
7 feet
Preparation
Blades
Switch Housing
12
M0094-01 • 02/09/16 • © Hunter Fan Company
Tools Needed
30 inches
2
Ladder
3
Downrod
6
7
Light Kit
13
14
1
www.HunterFan.com
Mounting Options
Ceiling Bracket
4
Wiring
Canopy
10
Maintenance
& Cleaning
Troubleshooting
?
?
16
1.888.830.1326
5
11
?
17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M0094-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hunter M0094-01

Summary of Contents for Hunter M0094-01

  • Page 1 To register your fan, please visit: www.HunterFan.com/register Save your receipt for proof of purchase. Maintenance Blades Switch Housing Light Kit & Cleaning Troubleshooting M0094-01 • 02/09/16 • © Hunter Fan Company...

  • Page 2: What To Expect With Your Installation

    10 feet or higher with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. Check box to see fan weight Assess ceiling angle Select a downrod length M0094-01 • 02/09/16 • © Hunter Fan Company...

  • Page 3: Tools Needed

    Tools Needed www.HunterFan.com 1.888.830.1326 Pliers Wire Strippers Screwdrivers Ladder Power Drill 9/64” Drill Bit (optional) (optional) If mounting to a support structure, you will also need these tools. M0094-01 • 02/09/16 • © Hunter Fan Company...

  • Page 4: Mounting Options

    You need BOTH You need ONLY a Longer a Longer Downrod & Downrod an Angled Mounting Kit *most common M0094-01 • 02/09/16 • © Hunter Fan Company...

  • Page 5: Ceiling Bracket

    To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet Refer to warning w.1 on pg. 2 box associated with the wall switch location. M0094-01 • 02/09/16 • © Hunter Fan Company...
  • Page 6 Save the screws. They will be next couple of steps. needed for blade iron installation. Note: Some fans will have a shipping ring instead of shipping blocks. Please remove the ring and save the screws. M0094-01 • 02/09/16 • © Hunter Fan Company...
  • Page 7 If you need a different downrod length follow these steps: Steps 1-5 to remove standard downrod pipe Longer Downrod for angled ceilings or ceilings 10’ or higher Shorter Downrod for fans installed close to ceiling Steps 6-10 to reassemble with new pipe M0094-01 •02/09/16 • © Hunter Fan Company...
  • Page 8 4-5 full turns) until it stops. with pliers. DO NOT can be inserted. from the top of the downrod. HAND TIGHTEN. 8” 3/8” If the setscrew is not tightened securely, the fan may fall. M0094-01 •02/09/16 • © Hunter Fan Company...
  • Page 9 Put the wires and downrod through the canopy. Let the canopy sit loosely on top CANOPY OR WIRES. Place the downrod of the fan. ball into the slot in the ceiling bracket. M0094-01 • 02/09/16 • © Hunter Fan Company...
  • Page 10 Spread the wires apart, with the grounded wires on one side of Refer to CAUTION c.1 on pg. 2 the outlet box and the ungrounded wires on the other side of the outlet box. M0094-01 • 02/09/16 • © Hunter Fan Company...
  • Page 11 Insert the two canopy screws lifted into place, the canopy fits into the screw holes are aligned. found in the hardware bag. the hanging bracket as shown. Note: Fan style may vary. M0094-01 • 02/09/16 • © Hunter Fan Company...
  • Page 12 M0094-01 • 02/09/16 • © Hunter Fan Company...

  • Page 13: Switch Housing

    Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch housing fixture falling. M0094-01 • 02/09/16 • © Hunter Fan Company...

  • Page 14: Light Kit

    Go to www.HunterFan.com/FAQs and click the upper switch housing. Failure to properly secure all three switch housing screws could result in the light fixture falling. “How do I install my fan without the light kit?” M0094-01 •02/09/16 • © Hunter Fan Company...
  • Page 15 The light pull chain controls operation instructions. operation instructions. light pull chain through the hole in the light fixture: on and off. the finial and screw the finial onto the threaded rod. M0094-01 • 02/09/16 • © Hunter Fan Company...

  • Page 16: Maintenance And Cleaning

    Carefully remove the globe. Unscrew bulbs and replace with bulbs of same type and wattage. Reinstall the globe assembly. For questions regarding removing a light kit, call customer service 1-888-830-1326. M0094-01 • 02/09/16 • © Hunter Fan Company...

  • Page 17: Troubleshooting

    • Make sure power switch is on. • Tighten all of the blade and blade iron screws until they • Pull the pull chain to make sure Hunter fans have the power to cut your cooling costs up are snug. to 40%. it is on.
