Connecting the Phone Cables

This section is optional. If you do not wish to use PowerKey Pro's
phone ring detection feature, you may skip this section.

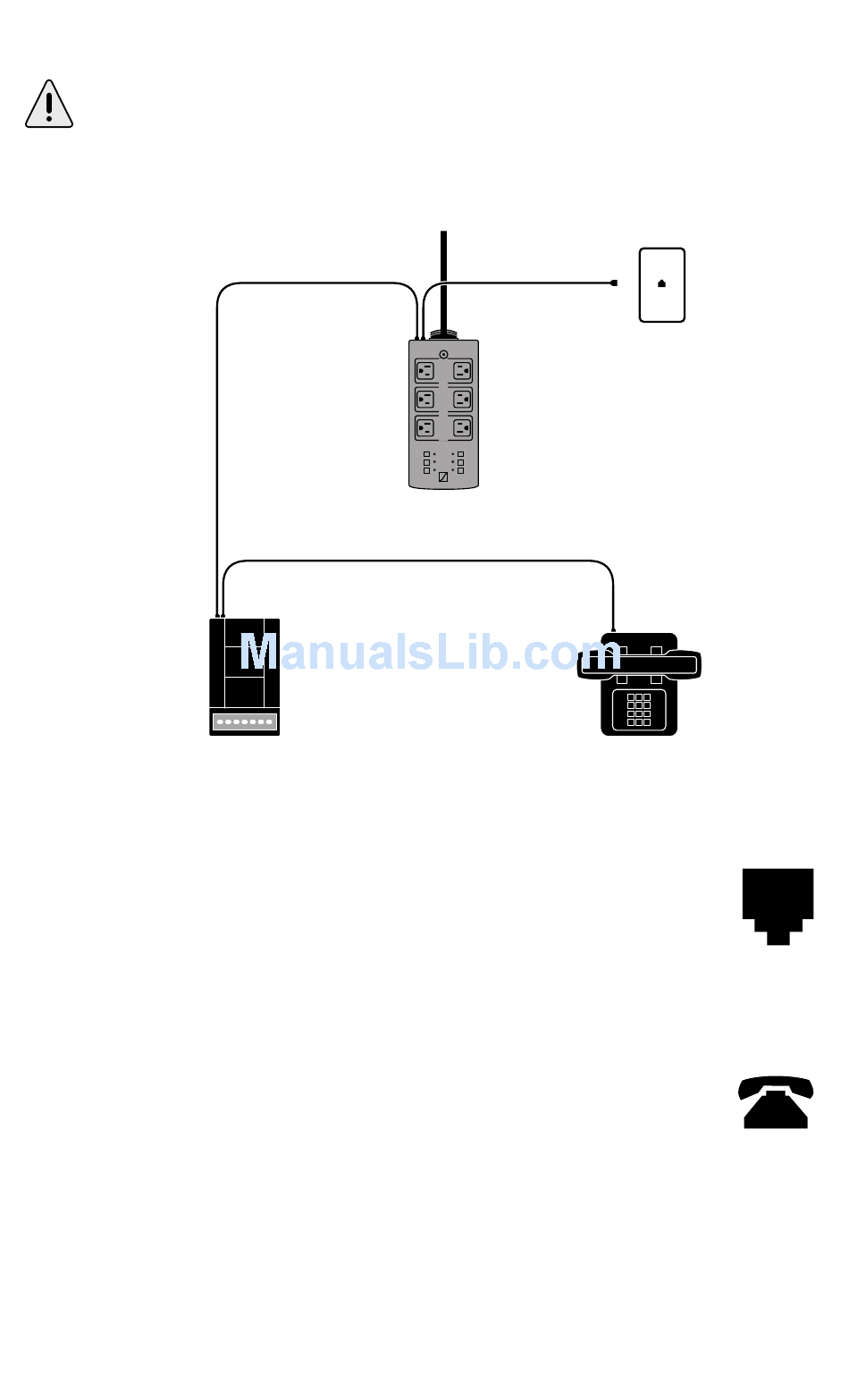

The diagram below shows an example setup:
Connect PowerKey Pro to the phone line
1. Plug the cable running from your phone outlet
into the Line Port on the back of PowerKey Pro
(labelled with the symbol at the right).
Connect the modem to PowerKey Pro
2. Plug the supplied phone cable into the Phone
Port on the back of PowerKey Pro (labelled with
the symbol at the right), and into the line port on
your modem or phone.
3. If you have both a phone and modem, you can chain them
together as shown in the diagram above.
