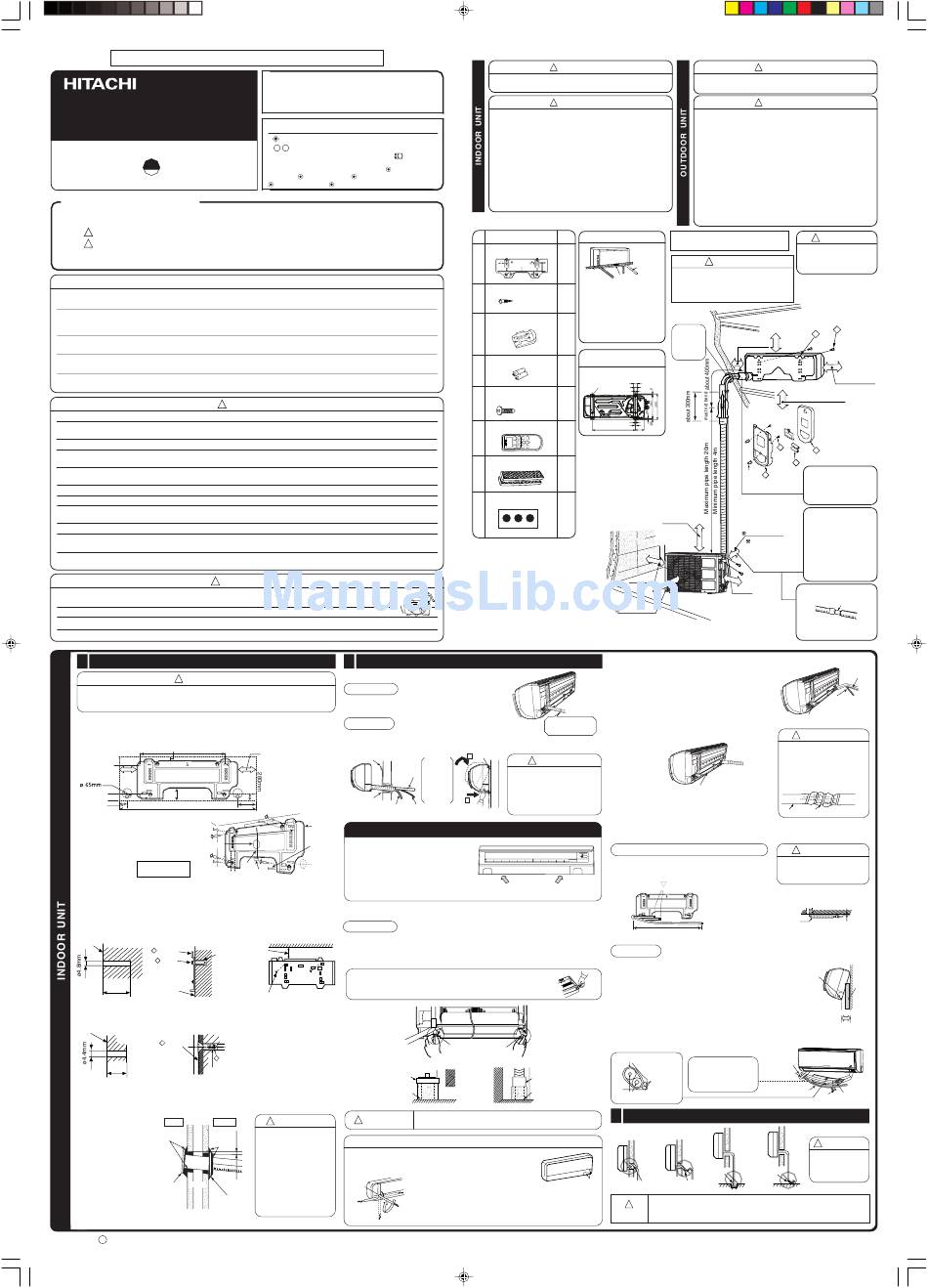

Hitachi RAS-X10CZ Installation Manual

FOR SERVICE PERSONNEL ONLY
SPLIT UNIT AIR CONDITIONER

INSTALLATION MANUAL

Indoor Unit Outdoor Unit
HFC
RAS-X10CZ R410A RAC-X10CZ

SAFETY PRECAUTION

G Read the safety precautions carefully before operating the unit.
G The contents of this section are vital to ensure safety. Please pay special attention to the following sign.
!
WARNING ........ Incorrect methods of installation may cause death or serious injury.
CAUTION ......... Improper installation may result in serious consequence.
!
Be sure that the unit operates in proper condition after installation. Explain to customer the proper way of operating
the unit as described in the user's guide.
This air conditioner uses new refrigerant HFC (R410A).
The basic installation work procedures are the same as conventional refrigerant (R22) models.
However, pay careful attention to the following points:
(1) Since the working pressure is 1.6 times higher than that of conventional refrigerant (R22) models, some of the piping and installation and service tools are special.
Especially, when replacing a conventional refrigerant (R22) model with a new refrigerant R410A model, always replace the conventional piping and flare nuts with the
R410A piping and flare nuts.
(2) Models that use refrigerant R410A have a different charging port thread diameter to prevent erroneous charging with conventional refrigerant (R22) and for safety. Therefore,
check beforehand. [The charging port thread diameter for R410A is 1/2 UNF 20 threads per inch.]
(3) Be more careful that foreign matter (oil, water, etc.) does not enter the piping than with refrigerant (R22) models. Also, when storing the piping, securely seal the
openings by pinching, taping, etc.
(4) When charging the refrigerant, take into account the slight change in the composition of the gas and liquid phases, and always charge from the liquid phase side whose
composition is stable.
G Please request your sales agent or qualified technician to install your unit. Water leakage, short circuit or fire may occur if you do the installation work yourself.
G
Please observe the instructions stated in the installation manual during the process of installation. Improper installation may cause water leakage, electric shock and
fire.
G
Make sure that the units are mounted at locations which are able to provide full support to the weight of the units. If not, the units may collapse and impose danger.
G Observe the rules and regulations of the electrical installation and the methods described in the installation manual when dealing with the electrical work. Use power
cables approved by the authorities of your country.
G
Be sure to use the specified wire for connecting the indoor and outdoor units. Please ensure that the connections are tight after the conductors of the wire are inserted
into the terminals. Improper insertion and loose contact may cause over-heating and fire.
G
Please use the specified components for installation work. Otherwise, the units may collapse or water leakage, electric shock and fire may occur.
G Be sure to use the specified piping set for R-410A. Otherwise, this may result in broken copper pipes or faults.
G
When installing or removing an air conditioner, only specified refrigerant (R410A) shall be allowed, do not allow air or moisture to remain in the refrigeration cycle.
Otherwise, pressure in the refrigeration cycle may become abnormally high so that a rupture may be caused.
G Be sure to ventilate fully if a refrigerant gas leak while at work. If the refrigerant gas comes into contact with fire, a poisonous gas may occur.
G
After completion of installation work, check to make sure that there is no refrigeration gas leakage. If the refrigerant gas leaks into the room, coming into contact with
fire in the fan-driven heater, space heater, etc., a poisonous gas may occur.
G
Unauthorized modifications to the air conditioner may be dangerous. If a breakdown occurs please call a qualified air conditioner technician or electrician. Improper
repairs may result in water leakage, electric shock and fire, etc.
!
G
A circuit breaker or fuse (16A time delay) must be installed. Without a circuit breaker or fuse the danger of electric shock exists.
A main switch with a contact gap of more than 3mm has to be installed in the power supply line to the outdoor unit.
G
Do not install the unit near a location where there is flammable gas. The outdoor unit may catch fire if flammable gas leaks around it.
G
Please ensure smooth flow of water when installing the drain hose.
G
Piping shall be suitable supported with a maximum spacing of 1m between the supports.
1 Installation of Hanger, Wall Penetration and Installation of Protection Pipe
CAUTION
!
G The draining of the water container inside the indoor unit can be done from the left.
Therefore the hanger must be fixed horizontally or slightly tilted towards the side of
drain hose. Otherwise, condensed water may overflow the water container.
Direct Mounting On The Wall
G Please use hidden beams in the wall to hold the hanger.
200mm
125mm
80mm
45mm
60mm
780mm
Mark
Screw for Hanger
Please use more
than 4 screws.
Procedures of Installation and Precautions
G Procedures to fix the hanger.
1. Drill holes on wall. 2. Push plug into the holes.
(As shown below) (As shown below)
Wall
1 Hanger
Plug
2 Screw
32mm
Wall
G Procedures to fix the holder of remote control.
1. Drill holes on wall. 2. Push plug into the holes.
(As shown below) (As shown below)
Wall
3 Remote
Control
Holder
5 Screw
20mm
Plug
Wall Penetration and Installation of Protection Pipe
G Drill a ø 65mm hole on
wall which is slightly tilted
Indoor Outdoor
towards the outdoor side.
Seal with
Drill the wall at a small
putty
Seal with
angle.
putty
Cut the protection pipe
G
according to the wall
thickness.
G Empty gap in the sleeve
of protection pipe should
WALL
Protection
be completely sealed
pipe
with putty to avoid Sleeve of
protection
dripping of rain water into
pipe
the room.
< >
IA619: A
(EN1) INS RAS-X10CZ 1
G Carefully read through the procedures of proper
installation before starting installation work.
G The sales agent should inform customers regarding
the correct operation of installation.
Tools Needed For Installation Work
( mark is tool exclusive use for R410A)
+ –
G Screwdriver G Measuring Tape G
G G
Pipe Cutter Hexagonal Wrench Key (
G Power Drill (ø 65mm ~ ø 80mm) G Vacuum Pump
G G
Pliers or Wrench Torque Wrench Vacuum Pump
Adaptor Flare Tool Gas Leakage Detector
Manifold Valve Charge Hose
WARNING
!
CAUTION
2 Installation of the Indoor Unit
VERTICALLY DOWNWARD PIPING
Preparation
G Connect connecting cord.
G Pull out the pipe, connecting cord and drain hose.
Installation
G The upper part of the Indoor unit is hanged on the hanger.
G The projection at the lower part of the Indoor unit is hooked onto the hanger.
125mm
Hanger
Refrigerating
Pipe
45mm
Protection
115mm
Pipe
Drain Hose
Level
Hanger
450mm
Push up the (PUSH) sections at the
G
bottom of the indoor unit and pull the
bottom plate towards you. Then the
Line
claws are released from the stationary
Weight
Hole for pipe plate.
(The (PUSH) sections are indicated by
2 arrows in the right figure)
HORIZONTAL PIPING
3. Fix the hanger on wall
with 4.1 x 32 screw
Preparation
(As shown in figure below)
Change of Drain Hose and Installation Procedures.
Ceiling
G Exchange the location of drain hose and drain cap during horizontal piping as shown in
above 50mm
figure below. Be sure to plug in the drain hose until the insulating material folds upon itself.
G Please use pliers to pull out the drain cap.
(This is an easier way to remove the drain cap).
4.1 x 32 Screw
Drain cap
Please insert
until here
! CAUTION
! WARNING
2 ~ 5mm
Be sure that the wire is not
in contact with any metal HORIZONTAL & DOWNWARD PIPING – MAKING OPENINGS
in the wall. Please use the
G During horizontal or downward piping, use a knife to cut
protection pipe as wire
passing through the hollow openings as shown in figure. Then smoothen the edges of
part of the wall so as to
openings with a file.
prevent the possibility of
Pipe
damaged by mouse.
support
Unless it seals completely,
any air with high humidity
flows from outdoor and
any dew may drop.
Pull up the pipe after
bending downward
THE CHOICE OF MOUNTING SITE
WARNING
!
G
The unit should be mounted at stable, non-vibratory location which
can provide full support to the unit.
! CAUTION
G
No nearby heat source and no obstruction near the air outlet is
allowed.
G
The clearance distances from top, right and left are specified in
figure below.
G
The location must be convenient for water drainage and pipe
Knife G Saw
connection with the Outdoor unit.
4mm)
G
To avoid interference from noise please place the unit and its
remote controller at least 1m from the radio, television and inverter
type fluorescent lamp.
G
To avoid any error in signal transmission from the remote controller,
please put the controller far away from high-frequency machines
and high-power wireless systems.
G
The installation height of indoor unit must be 2.3m or more.
Names of Indoor Components
No. Item Qty
Hanger
1
1
Screw for Hanger
2
6
( 4 . 1 x 3 2 )
Holder for Remote
3
Controller
1
AAA Size Battery
4
2
Screw for holder of
5
Remote Controller
2
( 3 . 1 x 1 6 )
Remote Controller
6
1
Purifying Filter
7
1
Hole cover sticker
8
1
Connecting cords, pipe and
drain hose must be laid
together with Vinyl tape.
Hanger
1
! CAUTION
Lift the body
Please pull the lower part of
of the unit
upwards and the Indoor unit outwards to
then force it
check if the unit is hooked
downwards.
onto the hanger. Improper
2
installation may
Connecting
vibration and noise.
Projection
Cord
HOW TO REMOVE INDOOR UNIT
[Push] mark positions
Drain cap Drain hose
Drain hose
Please insert
until here
Condensed water may leak out if not inserted properly.
G Turn the piping while holding down the lower
portion of pipe-support by hand.
18/12/09, 9:29
(Please note the following matters and obtain permission from customer before installation).
G
The Outdoor unit must be mounted at a location which can sup-
port heavy weight. Otherwise, noise and vibration will increase.
G
Do not expose the unit under direct sunshine or rain. Besides,
ventilation must be good and clear of obstruction.
G
The air blown out of the unit should not point directly to animals
or plants.
G
The clearances of the unit from top, left, right and front are specified
in figure below. At least 3 of the above sides must be open air.
G
Be sure that the hot air blown out of the unit and noise do not
disturb the neighbourhood.
G
Do not install at a location where there is flammable gas, steam,
oil and smoke.
G
The location must be convenient for water drainage.
G
Place the Outdoor unit and its connecting cord at least 1m away
from the antenna or signal line of television, radio or telephone.
This is to avoid noise interference.
G
Do not install outdoor unit facing strong wind direction. It may
damage the fan motor.
Figure showing the Installation
Direction of Piping
of Indoor and Outdoor Unit.
Horizontally
CAUTION
perpendicular !
to the unit
In case the pipe length is more than
Connection
8m, add refrigerant R410A at 15 gram
per every meter exceeds. However,
There are 4 directions
allowed, namely, horizontally pipe length shall not exceed 20m.
perpendicular to the unit,
vertically down from right,
horizontally out from right and
horizontally out to left.
Don't form the piping Be sure to
downward at the left of the unit. completely
seal any above 100mm
gap with
putty.
Dimension of Mounting Stand
of the Outdoor unit
(unit : mm)
45
mounting stand
30
16
12
30
102
500
Plug
above 200mm
)
( above 50mm when above 100mm
installed on the
ceiling of balcony
above 100mm
above 200mm
above 700mm
INSTALLATION OF REFRIGERATING PIPES AFTER CONNECTION
G The refrigerating pipes should be adjusted to fit into
the hole on the wall and then ready for further
connection.
The terminals of 2 connected pipes must be covered
G
with insulator used for terminal connection. Then the
pipes are wrapped with insulation pipe.
G Connect the connecting cord after removing electrical
cover. (Refer to "CONNECTION OF POWER CORD")
G After adjustment, fit the connecting cord and pipes
into the space available under the indoor unit. Use
holder to hold them tight.
Insulation pipe (must be wrapped with
vinyl tape at every 120mm).
cause
Holder can be attached at the either of 2 places.
G
Please select the easier position.
THE CONNECTION OF REFRIGERATING PIPE DURING THE
INSTALLATION OF INDOOR UNIT
Preparation To Install Refrigerating Pipes
The refrigerating pipes and connecting cord
G
transform and are attached.
The end of the refrigerating pipes are at locations
G
marked with " " symbol.
0.85m
Installation
Hang the Indoor unit onto the hanger. Use the temporary stand
at the back of the Indoor unit to push its lower part 15cm
forwards.
G Place the drain hose through the hole on the wall.
Wrap the refrigerating pipes with insulation pipe after
G
connecting refrigerating pipe.
Connect the connecting cord after removing electrical cover.
G
(Refer to "Connection of Power Cord")
After adjustment, the connecting cord and refrigerating pipes
G
are placed into the space available under the Indoor unit.
G The projection of Indoor unit must hook to the hanger.
Heat insulation pipe
Pull this to the front
during the connection
Connecting
of refrigerating pipes
cord
to ease task.
Refrigerating pipe
3 Installation of Drain Hose
Ditch
Openings
Bending Condensed
upwards water pond
You are free to choose the side (left or right) for the installation of drain
!
hose. Please ensure the smooth flow of condensed water of the Indoor
CAUTION
unit during installation. (Carelessness may result in water leakage.)
WARNING
!
CAUTION
!
! CAUTION
•
The installation height
of indoor unit must be
2.3m or more.
above 50mm
2
1
above 100mm
2,300mm or more
5
6
4
The indoor piping should be
3
insulated with the enclosed
insulation pipe. (If the
insulator is insufficient,
please use commersial
products).
G
The difference in height
between the indoor and
outdoor unit should be
kept max 10m.
G The connecting pipe, no
give clearance as
matter big or small,
wide as possible should all be insulated
with insulation pipe and
then wrapped with vinyl
tape. (The insulator will
deteriorate if it is not
wrapped with tape).
The connection of insulated
drain hose.
inner diameter ø 16mm
Please use insulated drain
hose for the indoor piping
(commercial product).
Drain hose
Connecting
cord
Pipe
! CAUTION
The rubber strap used for
G
fixing the insulator should
not be tied with great force.
Otherwise, this will damage
heat insulation and causes
water condensation.
Pipe Rubber strap tied with great force
CAUTION
!
G Please fix in the plastic core
after flaring to avoid plastic
chips entering the pipes.
below
5mm
Please bend at a small
radius to form an arc
Projection
Hook
about 15cm
Protection pipe
Drain hose
Connecting cord
Connected
section
Holder
CAUTION
!
Be sure that the
drain hose is not
loosely connected
Condensed
water pond or bend.
