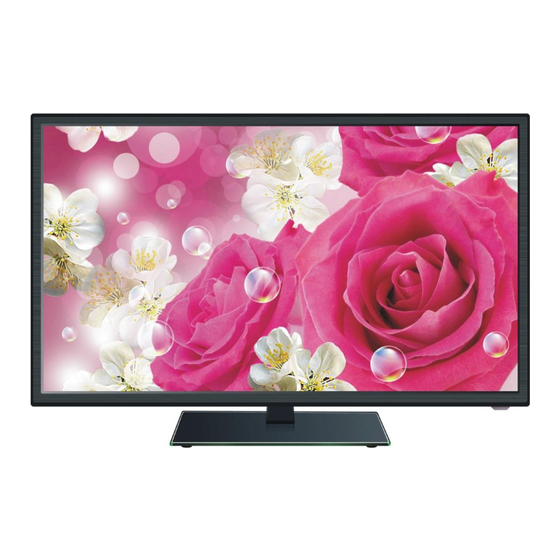

Lenovo LED-3214 User Manual

31.5” (80 cm) hd led tv with dvb-t/t2/s2

Hide thumbs

Table Of Contents

Quick Links

Download this manual

31.5" (80 cm) HD LED TV with

DVB-T/T2/S2

MODEL NO.: LED-3214

USER MANUAL

Table of Contents

2
Important Instructions
5
Accessories
6
Table of Contents
7
Features
8
General Parts
10
Remote Control
12
Remote Control Preparation
13
Basic Connection
14
Hdmi Connection
18
Operations
19
Basic Operations
24
Main Menu
- 24
  First Time Installation
- 25
  Dtv Mode
  - 28
    Auto Volume
  - 32
    Hearing Impaired
- 33
  Atv and Other Modes
- 33
  Satellite Mode
  - 34
    Auto Tuning
  - 34
    Dish Setup
- 38
  Pc/Vga Mode
39
Maintenance
39
Wall Mounting
40
Stand Installation
41
Specifications
42
Troubleshooting

Related Manuals for Lenovo LED-3214

No related manuals

Summary of Contents for Lenovo LED-3214

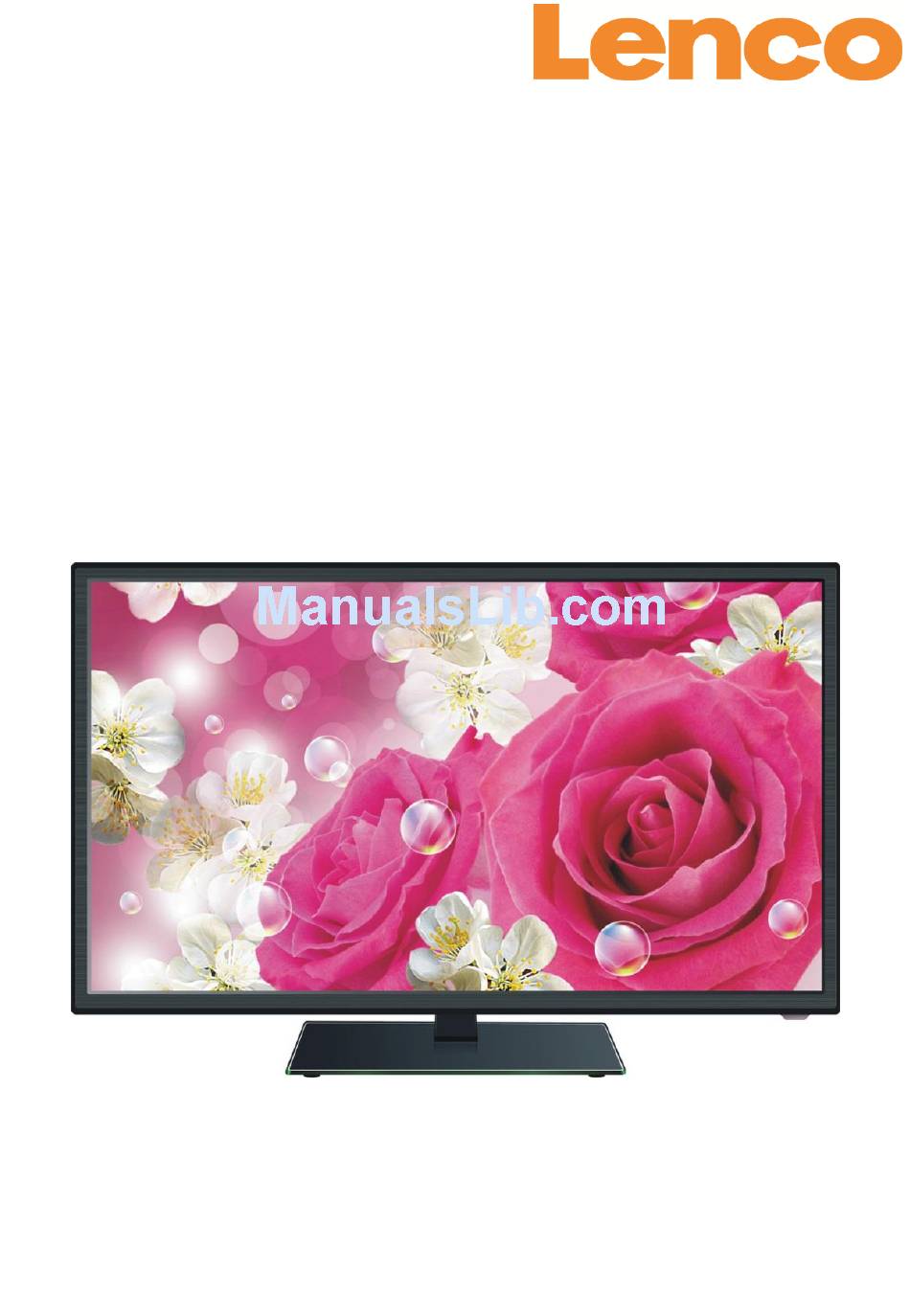

Page 1 31.5” (80 cm) HD LED TV with DVB-T/T2/S2 MODEL NO.: LED-3214 USER MANUAL...
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The exclamation point within the triangle is a The lightning flash and CAUTION: TO REDUCE THE RISK OF warning sign alerting arrow head within the ELECTRIC SHOCK. DO NOT REMOVE you of important triangle is a warning sign COVER (OR BACK).
Page 3 flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product. ● Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools. ●...
Page 4 ● Never remove the casing of this apparatus. ● Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. ● Do not operate this product under the following conditions. When the power-supply cord or plug is damaged.
Page 5: Accessories
● If the battery is worn, it must be removed from the product. ● The battery must be disposed of safely. Always use the collection bins provided (check with your dealer) to protect the environment. ● Keep batteries away from children and pets. Only adults should handle batteries. ●...
Page 6: Table Of Contents
TABLE OF CONTENTS GETTING STARTED IMPORTANT INSTRUCTIONS…………………………………………………………………………………………………………….1 ACCESSORIES…………………………………………………………………………………………………………………………………..4 FEATURES………………………………………………………………………………………………………………………………………..6 GENERAL PARTS………………………………………………………………………………………………………………………………7 REMOTE CONTROL………………………………………………………………………………………………………………………….9 REMOTE CONTROL PREPARATION…………………………………………………………………………………………………11 BASIC CONNECTION………………………………………………………………………………………………………………………12 OPERATIONS BASIC OPERATIONS……………………………………………………………………………………………………………………….18 MAIN MENU………………………………………………………………………………………………………………………………….23 FIRST TIME INSTALLATION………………………………………………………………………………………………………….23 DTV MODE………………………………………………………………………………………………………………………………..24 ATV AND OTHER MODES……………………………………………………………………………………………………………32 SATELLITE MODE……………………………………………………………………………………………………………………….32 PC/VGA MODE…………………………………………………………………………………………………………………………..37 FOR REFERENCE MAINTENANCE……………………………………………………………………………………………………………………………..38 WALL MOUNTING…………………………………………………………………………………………………………………………38 STAND INSTALLATION…………………………………………………………………………………………………………………….39 SPECIFICATIONS…………………………………………………………………………………………………………………………….40 TROUBLESHOOTING………………………………………………………………………………………………………………………41...
Page 7: Features
FEATURES 32" LED Display This unit has a built-in 32” LED display window to provide clear vision and low radiation. Support Auto TV Scanning Support Digital Broadcasting Reception Support USB Multimedia Playback Support Multi-languages On Screen Display Support Full Function Remote Control Support HDMI, SCART, YPBPR, AV, VGA, PC AUDIO and CI Input Support EARPHONE and COAXIAL Output With Detachable Stand Holder...
Page 8: General Parts
GENERAL PARTS MAIN UNIT LED display screen Remote control sensor/Power indicator- In standby mode the indicator light will show a red light; when switching on the unit the indicator light will show a blue light. Stand holder VOL +/- button- To increase/decrease the volume level or move left/right. CH +/- button- To select next/previous channel or moving up/down.
Page 9 GENERAL PARTS Back View Power input EARPHONE output terminal PC AUDIO input terminal VGA input terminal HDMI 2/3 input terminal SCART input terminal USB input terminal CI+ input terminal Mini AV input terminal Mini YPbPr input terminal COAXIAL output terminal RF input terminal- To connect the external TV antenna (DVB-T/DVB-T2/DVB-C).
Page 10: Remote Control
REMOTE CONTROL POWER\STANDBY: Set the unit in standby mode; press it again to switch it on. MEDIA: Select USB mode. : PLAY/PAUSE in TIMESHIFT and USB mode. D.SETUP: Display the main disc menu. : Stop playing. AUDIO/LANG: Switch available soundtrack (TV); Switch available soundtrack language (DVD).
Page 11 REMOTE CONTROL 21 A-B: Repeat DVD scenes of your preference. 22 CH +/-: Press to play the next or previous channel. : Return to the previous channel. 24 P.MODE: Select the picture mode. 25 SUBTITLE: Enable/disable subtitles. /FAV: Play the previous file; Display the favorite channels list.
Page 12: Remote Control Preparation
REMOTE CONTROL PREPARATION BATTERY INSTALLATION Install the batteries as the following pictures. Be sure + and – terminals are positioned as indicated in the battery compartment (Fig1). SERVICE LIFE OF BATTERIES The batteries normally last for one year although this depends on how often the remote control is used.
Page 13: Basic Connection
BASIC CONNECTION  Ensure all the cables are disconnected from the main unit before connecting to AC power source.  Read through the instructions before connecting other equipment. CONNECTING TO AC POWER SOURCE To power outlet CONNECT EXTERNAL ANTENNA TO UNIT Install external antenna into antenna jack for the best reproduction.
Page 14: Hdmi Connection
HDMI CONNECTION HDMI cable Use HDMI cable to connect the unit with (Not included) other devices to receive high-definition multimedia signals. Back of DVD/VCR PC/VGA CONNECTION Audio cable VGA cable (Not included) (Not included) Use VGA cable and Audio cable to Back of PC connect the unit with TV or PC, and use this product as a monitor.
Page 15 SCART CONNECTION SCART cable (Not included) Back of DVD/VCR AV (COMPOSITE VIDEO) CONNECTION For basic connection, use the composite Audio AV cable L/R (white/red) and CVBS (yellow) cable to (Not included) connect the unit with other devices. Back of DVD/VCR...
Page 16 YPBPR CONNECTION AUDIO cable YPbPr cable (Not included) (Not included) Adaptor cable (Included) Back of DVD/VCR NOTE: As your TV contains a mini YPbPr terminal, you may need to use the special adaptor cable (supplied), with a 3.5mm head on one end and 3 female RCA terminals on the other end, to connect this TV with external devices.
Page 17 COAXIAL CONNECTION Use the coaxial cable (not included) to connect the unit with amplifier or other audio decoding devices for coaxial audio signal output. USB CONNECTION USB Memory Device (Not included) INSERT A CI CARD Insert your CI card (Conditional (Not included) Access Module) to watch special digital channels in your area.
Page 18: Operations
EARPHONE CONNECTION Earphone cable (Not included) MAKE SURE ALL THE EQUIPMENTS AND POWER CORDS ARE CONNECTED PROPERLY AND THE UNIT IS SET IN THE CORRECT MODE BEFORE ANY KIND OF OPERATIONS ARE DONE.
Page 19: Basic Operations
BASIC OPERATIONS Press the POWER button on the unit or remote control to power ON the unit (indicator will glow blue); press it again to power OFF (standby mode) the unit (indicator will glow red). Press the SOURCE button on the unit or remote control to switch the unit to DTV or ATV mode.
Page 20 FAVORITE LIST When viewing an available channel, press the FAV button on the remote control to enter the Favorite List menu page. Press the UP or DOWN navigation button to select a preferred channel. Press the OK button to confirm the selection. Note: To add a favorite channel, please refer to the operations of “Channel>Programme Edit”.
Page 21 MEDIA PLAYBACK Press the SOURCE button on the unit or the remote control to switch the unit to USB mode. Insert a USB memory device into the USB slot before the following operations. Press the UP/DOWN/LEFT/RIGHT navigation button to move the cursor. Press the EXIT button to return to the previous menu page.
Page 22 Press the button to start playback. Use the navigation buttons to select your desired option and press OK to confirm it. Press EXIT to return. MOVIE Press the LEFT/RIGHT navigation button to select Movie in the main menu and press OK to enter it.
Page 23 When selecting files, press the RED button to enter the submenu and you can delete a file accordingly. Use the navigation buttons to select a file and press OK to add to play list. Press button to start playback. Press DISPLAY button to call out the tool bar. Use navigation buttons to select desired option and press OK to confirm it.
Page 24: Main Menu
MAIN MENU  The unit contains different setting menus. Once the initial programming is entered, it will remain in the memory until changed, and the unit can always be operated under the same conditions.  The settings will remain in the memory until the settings are changed, even after setting the player to the standby mode.
Page 25: Dtv Mode
DTV MODE Press the SOURCE button on the unit or remote control to select DTV input source. CHANNEL 1.1. Antenna Press the OK or RIGHT navigation button to enter it. Use the navigation buttons to select DVB-T or DVB-C. 1.2. Auto Tuning Press the OK or RIGHT navigation button to enter it.
Page 26 Sound System: select the available sound system. Fine Tune: fine tune the frequency. AFC: turn on/off Automatic Frequency Control. Search: search available programs. 1.4. DTV Manual Tuning Press the OK or RIGHT navigation button to enter it. Use the LEFT/RIGHT navigation button to select the channel.
Page 27 PICTURE 2.1. Picture Mode Press the UP/DOWN/LEFT/RIGHT navigation buttons to select an option. Picture Mode: available options: Standard, Mild, Personal, Dynamic. Contrast/Brightness/Colour/Tint/Sharpness: adjustable value: 0-100. NOTE: Contrast, Brightness, Colour and Sharpness are adjustable only when Picture Mode is “User”. Tint is adjustable only for NTSC system. 2.2.
Page 28: Auto Volume
SOUND 3.1. Sound Mode Press the UP/DOWN/LEFT/RIGHT navigation buttons to select an option. Sound Mode: available options: Standard, Music, Movie, Sports, Personal. Treble/Bass: adjustable value: 0-100. NOTE: Treble and Bass are adjustable only when the Sound Mode is “User”. 3.2. Balance This item is used to adjust the audio output between the left and right speaker from -50 to 50.
Page 29 TIME 4.1. Clock It displays the current system time when an available channel was saved. 4.2. Time Zone This item is used to select a desired time zone. 4.3. Off Time Off Time: available options: Off/Once/Every Day/Mon.~Fri/Mon.~Sat/Sat.~Sun/Sun. Hour/Minute: use the navigation buttons to adjust the Hour/Minute when the Off Time is not “Off”.
Page 30 4.7. OSD Timer This item is used to select the desired OSD menu duration. Available options: Off, 5/10/15/20/25/30/35 seconds. LOCK Press the RIGHT navigation button and input the factory default password “0000” using the numbered buttons on the remote control. Press the UP/DOWN navigation button to select your preferred item.
Page 31 5.5. Key Lock This item is used to lock/unlock TV buttons. Available options: On, Off. 5.6. Hotel Model Press the RIGHT navigation button to enter it. Press the UP/DOWN navigation button to move the cursor. Press the LEFT/RIGHT navigation button to select an option. Hotel Mode: turn on/off Hotel Mode.
Page 32: Hearing Impaired
SETUP 6.1. Language This item is used to select the desired on-screen display language. 6.2. TT Language This item is used to select the desired teletext language. 6.3. Audio Language Press the RIGHT navigation button to enter it. Then you can select the desired primary audio language and secondary audio Language. 6.4.
Page 33: Atv And Other Modes
6.7. Blue Screen This item is used to turn on/off the Blue Screen. The screen background will turn blue at a very weak or no signal condition, if the Blue Screen is ON. 6.8. First Time Installation This item is used to recall the First Time installation menu. 6.9.
Page 34: Auto Tuning
Auto Tuning Press the MENU button to call out the main menu. Highlight “Channel” using the navigation buttons and press OK to enter it. Then highlight “Auto Tuning” and press OK to enter it. Country: select your country. Satellite: select an available satellite. Scan Mode: select your scan mode.
Page 35 Satellite Name Press the RIGHT navigation button to enter the rename page. Use the navigation buttons to complete a new name. Longitude Direction Press the LEFT/RIGHT navigation button to select your desired option. Longitude Angle Press the LEFT/RIGHT navigation button to move the cursor and press the numbered buttons on the remote control to input the desired value.
Page 36 remote control to input the desired value. Polarity Press the LEFT/RIGHT navigation button to select the desired option. Press the GREEN button on the remote control to enter the Edit menu. The operations of the Edit menu are the same with the Add menu.
Page 37 When the “Ku_ASTRA…” (Right) column is highlighted: LNB (Low Noise Block) Type Press the LEFT/RIGHT navigation button to enter the submenu. Then use the UP/DOWN navigation button to select the desired option. LNB Power Press the LEFT/RIGHT navigation button to select the desired option. 22KHz Press the LEFT/RIGHT navigation button to select the desired option.
Page 38: Pc/Vga Mode
PC/VGA MODE Connect a personal computer to this unit. Power on your computer and this unit. Press SOURCE on the unit or remote control to select the PC-RGB (VGA) input source. Press MENU to display the main menu and select “PICTURE” using the LEFT/RIGHT navigation button.
Page 39: Maintenance
MAINTENANCE  Be sure to press the POWER button to set the player to the standby mode and disconnect the power plug before maintaining the player.  Wipe the player with a dry, soft cloth.  If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.
Page 40: Stand Installation
STAND INSTALLATION Your TV is packaged with the Stand and the Cabinet separated. Before enjoying this TV, please carry out the Stand Installation according to the instructions below. Step 1 Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged.
Page 41: Specifications
SPECIFICATIONS Display Device 32 inch LED TV Resolution 1366×768 Display Colors 16.7M Contrast Ratio 1400:1 Aspect Ratio 16:9 30,000 Hrs Life Time Movie: AVI, MPEG, MPEG-4, MKV, RMVB Music: MP3, WAV, AAC USB Multimedia Playback Format Photo: JPG/JPEG Text: TXT Power Source AC 100-240V, 50/60Hz Power Consumption...
Page 42: Troubleshooting
GENERAL TROUBLESHOOTING Check the following points before assuming malfunctions of this unit: Symptom [COMMON] Remedy No power. Insert the power plug securely into the power outlet. No picture. Ensure that the equipment is connected properly.  Ensure that the equipment is connected properly. ...
Page 43 Guarantee Lenco offers service and warranty in accordance with the European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Lenco directly. Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.
