Summary of Contents for Lacanche L2HM 900

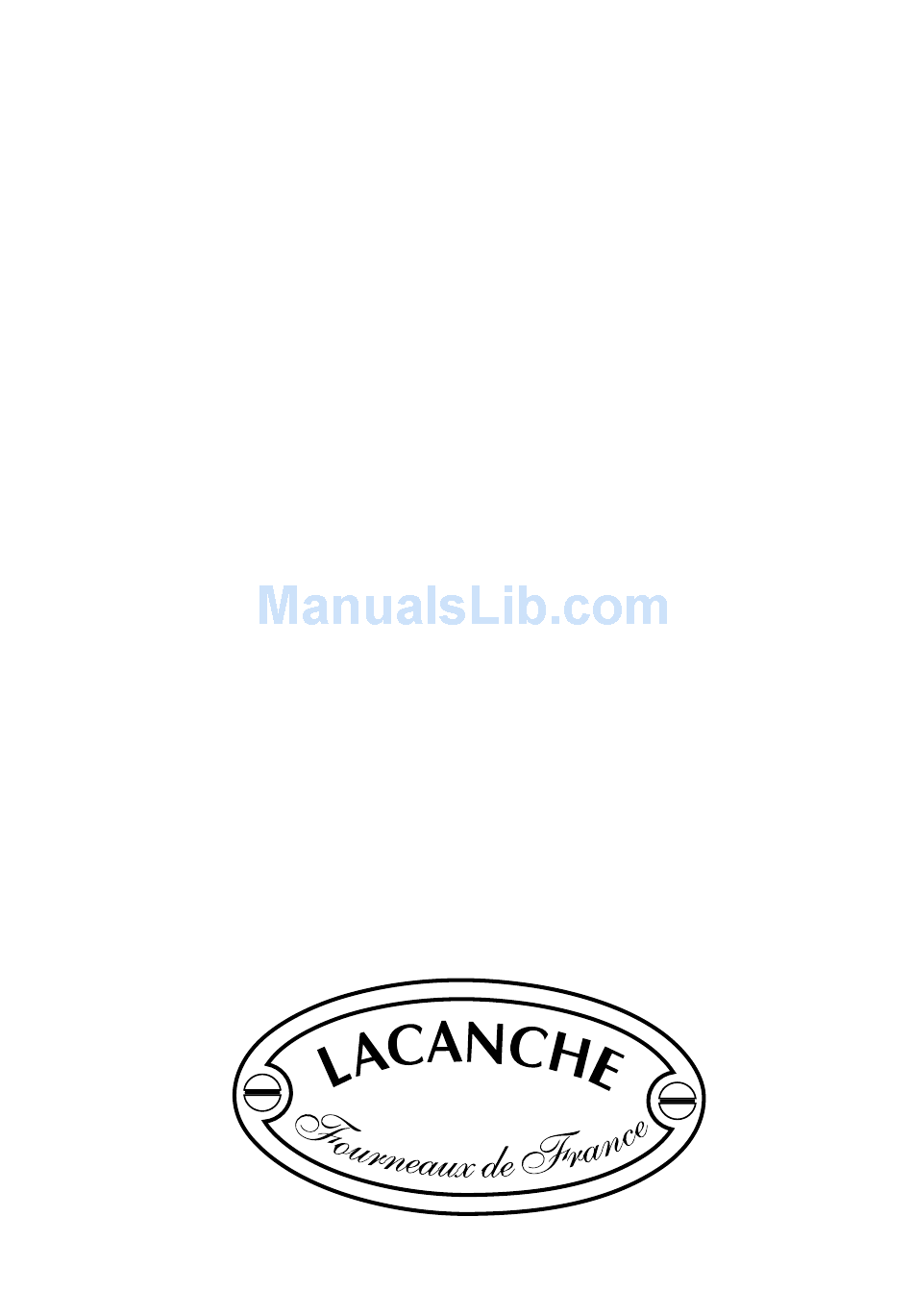

- Page 1 LACANCHE KITCHEN RANGE HOODS L2HM 900 - L2HM 1000 - L2HM 1100 - L2HM 1200 L2HM 1300 - L2HM 1500 - L2HM 1600 - L2HM 1700 L2HM 1700 - L2HM 1800 - L2HM 2000 - L2HM 2100 - L2HM 2200 - L2HM 2400 Hottes - Ft 118a - GB - Rév 08 - Modifié...
-
Page 2: Table Of Contents
TECHNICAL DATA SHEETS, MEASUREMENTS AND DIMENSIONS —————————————————————————————————————————3 INSTALLER’S MANUAL SITTING —————————————————————————————————————————9 SETTING UP THE HOOD —————————————————————————————————————————13 SETTING UP OF GROUPS —————————————————————————————————————————17 INSTALLING THE EXTRACTOR HOOD EXTENSION —————————————————————————————————————————20 INSTALLING MOUNTING CHANNEL COVERS —————————————————————————————————————————22 USER’S MANUAL —————————————————————————————————————————25 CLEANING AND MAINTENANCE —————————————————————————————————————————26 Note concerning the disposal of waste electrical and electronic equipment —————————————————————————————————————————28 Hottes - Ft 118a - GB - Rév 08 - Modifié... - Page 3 225 - Axe de sortie centrale Hotte LHME Axe de sortie murale Hotte LHM Axe de sortie murale Hotte LHME Raccordement électrique Hotte LHM - LHME L2HM 900 L2HM 1000 1000 L2HM 1100 1100 L2HM 1200 1200 L2HM 1300 1300...
- Page 4 TECHNICAL DATA SHEETS, MEASUREMENTS AND DIMENSIONS LACANCHE KITCHEN RANGE HOODS - Decorative single and double blower unit kitchen range hoods in canopy widths from 900 to 2 000 mm. CAUTION Under no circumstances shall the distance between the exhaust hood and the wall or ceiling exhaust opening exceed 9 metres.
- Page 5 Finish cable with an earthed 2-pole plug suitable for 230V/1N~/50Hz. Hood must be earthed. Power input : - L2HM 900 - 1100 : 120 Watt when lit. - L2HM 1101 à 1601 : 235 Watt when lit. - L2HM 1701 à 2002 : 240 Watt when lit.
-
Page 7: Installer's Manual
L2HM 900 - L2HM 1000 - L2HM 1100 - L2HM 1200 L2HM 1300 - L2HM 1500 - L2HM 1600 - L2HM 1700 L2HM 1700 - L2HM 1800 - L2HM 2000 - L2HM 2100 - L2HM 2200 - L2HM 2400 INSTALLER’S MANUAL Appliances must be installed in a workmanlike manner in accordance with the instructions in this manual and locally applicable regulations. -
Page 9: Sitting
SITTING Cautions : The purchaser undertakes to install or arrange for his/her equipment to be installed in a workmanlike manner and in accordance with the applicable regulations and standards. Shipment-Packaging : Carton packing crate on wooden palette Unpack and check the appliance is in good condition. In case of damage, note any reservations on the delivery note and confirm them within 48 hours by registered letter with confirmation of delivery to the carrier. - Page 10 SITTING LACANCHE range hoods install horizontally at a minimum distance of : - 65 cm over electrical range. - 80 cm over gas range. Make sure hood is installed perfectly horizontal and cannot dip forward. Use aluminum duct and choose shortest and straightest pathway. Do not connect to smaller diameter duct, use no roof caps or exhaust screens.
- Page 11 INSTALLATION Preparing the extractor hood : 2 - Loosen the screws holding the front of the hood (Item INSTALLER’S MANUAL Hottes - Ft 118a - GB - Rév 08 - Modifié le : 06/07/2015 11/28...
- Page 12 INSTALLATION 3 - Stand the extractor hood upright. INSTALLER’S MANUAL Hottes - Ft 118a - GB - Rév 08 - Modifié le : 06/07/2015 12/28...
-
Page 13: Setting Up The Hood
SETTING UP THE HOOD Installing hood : 2 - Positioning and securing the two brackets to hood (screw-type M5). to position if back panel INSTALLER’S MANUAL Hottes - Ft 118a - GB - Rév 08 - Modifié le : 06/07/2015 13/28... - Page 14 SETTING UP THE HOOD NOTE: If a back cover is used, install the back cover before mounting the hood. Axis of the hood Attach the trim back the hood before INSTALLER’S MANUAL Hottes - Ft 118a - GB - Rév 08 - Modifié le : 06/07/2015 14/28...
- Page 15 SETTING UP THE HOOD 6 - To level by tightening or loosening the 2 screws 6532570 and 6535377. 7 - End of the hood to the wall plate by tightening the screws 6535377. 6535377 6532570 INSTALLER’S MANUAL Hottes - Ft 118a - GB - Rév 08 - Modifié le : 06/07/2015 15/28...
- Page 16 SETTING UP THE HOOD INSTALLER’S MANUAL Hottes - Ft 118a - GB - Rév 08 - Modifié le : 06/07/2015 16/28...
-
Page 17: Setting Up Of Groups
SETTING UP OF GROUPS Remove glass center intake panel Loosen black side cover screws . Loosen 8 screws Push blower unit(s) into cutout until they bottom with rotary switch facing forward and to the right. Make sure locking lugs hold blower unit(s) securely in place. Tighten screws item , and . - Page 18 SETTING UP OF GROUPS Setting up in the hood Remove the 4 screws on media panels and drop media panels Media panel Prepare the extractor unit and use the locking brackets to position it/ item (see «assembling the unit(s)» section) INSTALLER’S MANUAL Hottes - Ft 118a - GB - Rév 08 - Modifié...
- Page 19 SETTING UP OF GROUPS Fasten the extractor unit(s) to the hood by tightening the 4 screws on either side of the (see «assembling the unit(s)» section). INSTALLER’S MANUAL Hottes - Ft 118a - GB - Rév 08 - Modifié le : 06/07/2015 19/28...
-
Page 20: Installing The Extractor Hood Extension
INSTALLING THE EXTRACTOR HOOD EXTENSION See rating of 250 from your ceiling and adjust the media hides sheath in boutonnièress provided for this INSTALLER’S MANUAL Hottes - Ft 118a - GB - Rév 08 - Modifié le : 06/07/2015 20/28... - Page 21 INSTALLING THE EXTRACTOR HOOD EXTENSION Caution : Do not force the jacks when tightening. Replace the media cover and secure. Replace the front facing of the extractor hood by performing the above operations in reverse order. media Front panel façade caches beams Right and Left Cache front beam...
-
Page 22: Installing Mounting Channel Covers
INSTALLING MOUNTING CHANNEL COVERS Hold cover in place and fasten back of cover using a stainless steel M5 screw. and . INSTALLER’S MANUAL Hottes - Ft 118a - GB - Rév 08 - Modifié le : 06/07/2015 22/28... -
Page 23: User's Manual
"HOTTES" USER’S MANUAL IMPORTANT in accordance with the applicable regulations and standards in an adequately ventilated room. installer. Any changeover to a voltage other than that for which the appliance is set up must be carried out by a WARRANTY The warranty is stated on the sales contract. - Page 24 USER’S MANUAL —————————————————————————————————————25 CLEANING AND MAINTENANCE —————————————————————————————————————26 Note concerning the disposal of waste electrical and electronic equipment —————————————————————————————————————28 This range has the marking, i.e. it meets the essential requirements of the Euro- pean safety directives to which it is subject. Hottes - Ft 118a - GB - Rév 08 - Modifié...
-
Page 25: Use
Operating principle : LACANCHE range hoods are available with a single (LHM 900) or two 600 m /h blower units (other For normal operation : Place pans on range so hood catches all vapor and smoke. Avoid cross-drafts. Match fresh air intake to exhaust volume to avoid loss of performance. -
Page 26: Cleaning And Maintenance
CLEANING AND MAINTENANCE BEFORE ANY CLEANING OPERATION CHECK THAT THE APPLIANCE IS DISCONNECTED FROM THE SUPPLY CAUTION Do not use a steam cleaner to clean the appliance. Carefully read the precautions and recommendations for applying the products you use to clean and maintain the range. Follow the instructions for use. Unclip bottom Stainless steel casing : Use special stainless steel cleaners (ZIP INOX®, JOHNSON INOX®, PPZ INOX®, for instance). - Page 27 Fluorescent tube replacement Pull to unclip diffuser and replace tube. Push diffuser back in place. 1600), PL 11 W tubes for range hood models L2HM 900, L2HM 1700 to 2200. USER’S MANUAL Hottes - Ft 118a - GB - Rév 08 - Modifié le : 06/07/2015...
-
Page 28: Note Concerning The Disposal Of Waste Electrical And Electronic Equipment
Appropriate systems of separate collection are available to users. To meet these regulations as a manufacturer of electrical equipment, Lacanche has joined and participates in the green scheme operated by ÉCO-SYSTÈMES FRANCE. It is by observing these regulations that users of electrical and electronic equipment avoid the potentially harmful effects on the environment and human health, whilst contributing also to the preservation of natural resources.
