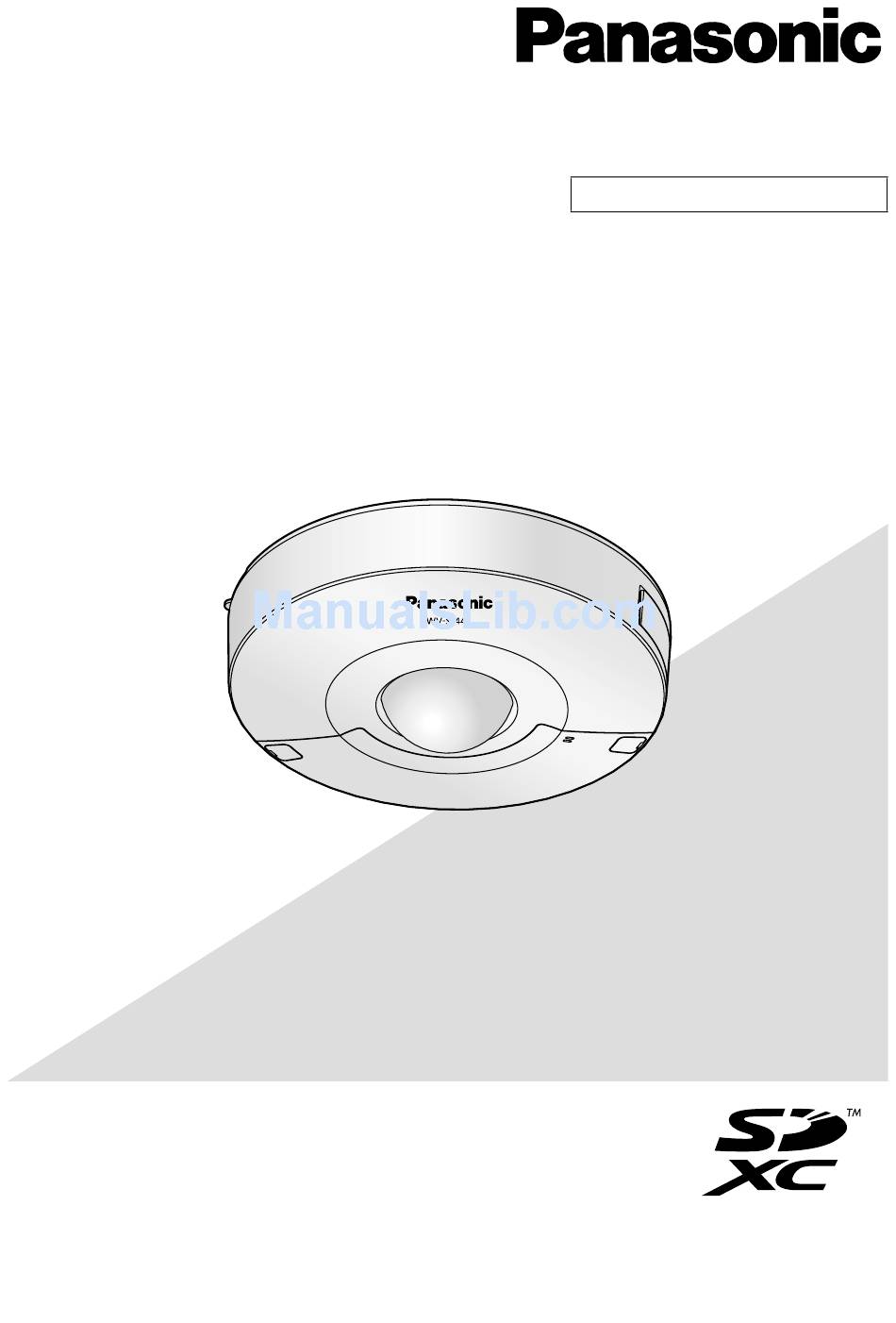

Panasonic WV-SF448 Installation Manual
Hide thumbs Also See for WV-SF448:

Advertisement

Quick Links

Installation Guide

Included Installation Instructions

Network Camera

WV-SF448/WV-SF448E
Model No.
Before attempting to connect or operate this product, please read these
instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WV-SF448 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Panasonic WV-SF448

  • Page 1: Installation Guide

    Installation Guide Included Installation Instructions Network Camera WV-SF448/WV-SF448E Model No. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual.
  • Page 2 á la norme spécifiée ou à tout autre document normatif conformément aux dispositions de la directive For U.S.: 2004/108/CE. WV-SF448 For Europe and other countries: Nosotros declaramos bajo nuestra única responsabilidad que el producto a que hace referencia esta declaración WV-SF448E está...
  • Page 3: Table Of Contents

    Contents Important safety instructions ......................4 Limitation of liability ........................5 Disclaimer of warranty ........................5 Preface ............................5 Main functions ..........................6 About the user manuals ........................ 6 System requirements for a PC ...................... 7 Trademarks and registered trademarks..................8 Copyright ............................
  • Page 4: Important Safety Instructions

    Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not install near any heat sources such as radiators, heat registers, stoves, or other appara- tus (including amplifiers) that produce heat.
  • Page 5: Limitation Of Liability

    IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:...
  • Page 6: Main Functions

    About the user manuals There are 2 sets of operating instructions for the WV-SF448 (P model), WV-SF448E (E model) as follows. • Installation Guide: Explains how to install and connect devices. • Operating Instructions (included in the CD-ROM): Explains how to perform the settings and how to operate this camera.
  • Page 7: System Requirements For A Pc

    • If using Microsoft Windows XP, screen tearing* may occur when the shooting scene drastically changes (for example, while shooting fast-moving subjects) due to the GDI restrictions of the * A phenomenon in which portions of the screen are displayed out of alignment • F or information on the operation verification of the supported operating systems and web brows- ers, refer to our website at http://security.panasonic.com/pss/security/support/index.html.
  • Page 8: Trademarks And Registered Trademarks

    Trademarks and registered trademarks • Adobe, Acrobat Reader, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. • Microsoft, Windows, Windows Vista, Internet Explorer, ActiveX, and DirectX are either regis- tered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
  • Page 9: Precautions

    Precautions Refer installation work to the dealer. The screws and bolts must be tightened to Installation work requires technique and experi- the specified torque. ences. Failure to observe this may cause fire, Failure to observe this may cause a drop result- electric shock, injury, or damage to the product.
  • Page 10 Do not damage the power cable. About the PC monitor Do not damage, fabricate, twist, stretch, bundle, Displaying the same image on a monitor for a or forcibly bend the power cable. Do not place long time may damage the monitor. It is recom- heavy objects.
  • Page 11: Code Label

    About SD memory card Indication label • Before removing the SD memory card from Refer to the indication label on the back of this the camera, it is necessary to select “Not product for the equipment classification and use” for “SD memory card” first. The power source, etc. recorded data may be corrupted if the SD memory card is removed when “Use”...
  • Page 12: Precautions For Installation

    Precautions for Installation Panasonic assumes no responsibility for injuries or property damage resulting from fail- ures arising out of improper installation or operation inconsistent with this documentation. This camera is designed to be used indoors. • Locations subject to condensation as the This product is not operable outdoors.
  • Page 13 Screw tightening Time & date setting • The screws and bolts must be tightened It is necessary to set the time & date before put- ting this product into operation. Refer to the with an appropriate tightening torque Operating Instructions on the provided CD-ROM according to the material and strength of for descriptions of how to perform the settings.
  • Page 14: Major Operating Controls

    Major operating controls Link indicator SD memory card slot (lit when linking) SD memory card Access indicator Dome cover INITIAL SET button error indicator (blinks when accessing) * Do not touch the dome cover with your bare hands. Enclosure Screw cover <Inside view of the SD memory Sub cover SD memory card slot cover...
  • Page 15: Camera Attachment

    <Inside view of the sub cover (with sub cover removed)> Network connector Built-in microphone External I/O terminals 12 V DC power supply terminal Audio cable connector Camera fixing screw • When the privacy mode is off • When the privacy mode is on <Rear view>...
  • Page 16 Direction marker for installation Camera attachment position marker Camera attachment (accessory)
  • Page 17: Preparations

    Preparations When installing the camera, there are 4 methods as specified below. • Using the two-gang junction box (☞ pages 19) • Installing the camera directly on the ceiling or wall (☞ page 20) • Using the optional ceiling mount bracket WV-Q105* (for direct mounting on a ceiling) (☞ page 21) IMPORTANT: • Procure 4 screws (M4) to secure the camera attachment (accessory) to a ceiling or a wall according to the material of the installation area.
  • Page 18 Using the side cable access hole When installing the camera directly on the ceiling or wall with cables exposed, cut out a portion of the enclosure to open a cable access hole. Side cable access hole IMPORTANT: • To prevent injury and protect cables, smooth opened cable access holes of the enclosure with a file or other tool.
  • Page 19 Method of camera installation Using a two-gang junction box Secure the camera attachment (accessory) to the two-gang junction box built in a ceiling or wall using the fixing screws (locally procured). [Mounting hole pattern] 46 mm {1-13/16 inches} 83.5 mm {3-9/32 inches} Two-gang junction box Camera attachment (accessory) Direction marker for installation...
  • Page 20 Installing the camera directly on the ceiling or wall Place the installation template label (accessory) on the ceiling or wall, and make a hole to pass the cable. Remove the template label, and mount the camera attachment (accessory) by fixing 4 screws (locally procured).
  • Page 21 Using the optional ceiling mount bracket WV-Q105 (E model only) When using the optional ceiling mount bracket to mount the camera, first place the installation tem- plate (WV-Q105 accessory) on the ceiling, and then make a hole in ceiling and mount the WV-Q105.
  • Page 22: Insert/Remove An Sd Memory Card

    Insert/remove an SD memory card IMPORTANT: • When inserting an SD memory card, make sure the direction. • Before removing the SD memory card, select “Not use” for “SD memory card” on the [SD memory card] tab of the “Basic” page first. Turn off the power after “Not use” selection, and then unload the SD memory card.
  • Page 23: Connection

    Connection Caution: • ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY (UL 1310/CSA 223) or LIMITED POWER SOURCE (IEC/EN/UL/CSA 60950-1). • A READILY ACCESSIBLE DISCONNECT DEVICE SHALL BE INCORPORATED TO THE EQUIPMENT POWERED BY 12 V DC POWER SUPPLY. Before starting the connection, turn off the power of this camera and the devices to be connected.
  • Page 24: Audio Cable

    Connecting an external microphone and an external speaker Connect the audio cable (accessory) to the audio cable connector, then connect the micro- phone to Microphone/line input connector. When disconnecting the audio cable (accessory), pull out the audio cable (accessory) while holding down the hook of the connector.
  • Page 25: External I/O Terminal Plug

    Strip range Connecting an External I/O terminal Connect the cables of external devices to the External I/O terminal plug (accessory). 8 mm - 9 mm q When connecting an external device, remove {5/16 inches - 11/32 inches} 8 mm - 9 mm {5/16 inches - 11/32 inches} of the outer jacket of the cable and twist the cable core to prevent the short circuit first.
  • Page 26 IMPORTANT: • Do not connect 2 wires or more directly to a terminal. When it is necessary to connect 2 wires or more, split the wire and connect the split wires to the terminal. • Input and output of the External I/O terminal 2 and 3 can be switched by configuring the set- ting. “Off” is selected by default. It is possible to determine whether or not to receive input from External I/O terminal 2 and 3 (ALARM IN2, 3) by selecting “Off”, “Alarm input”, “Alarm output” or “AUX output” for “Terminal 2” or “Terminal 3” on the [Alarm] tab of the “Alarm”...
  • Page 27 IMPORTANT: • Be sure to use the power cord plug provided with this product. • Be sure to fully insert the power cord plug (accessory) into the 12 V DC power supply terminal. Otherwise, it may damage the camera or cause malfunction. • When installing the camera, make sure that excessive force is not applied to the power cable. • Be sure to use an AC adaptor compliant with the Specifications regarding power source and power consumption. (☞ Page 34) When using PoE (IEEE802.3af compliant) Connect a LAN cable (category 5 or better, straight, STP*) between a PoE device (such as a hub) and the network connector of the camera.
  • Page 28: Installation

    Installation Camera mounting Mount the camera with the camera attachment (accessary) Installation shall be conducted after turning off each device. Determine the mounting position and mounting method for the camera. <Using a two-gang junction box> Secure the camera attachment (accessory) to the two-gang junction box (locally procured). (☞...
  • Page 29 Using the camera attachment position marker as a guide, match the “OPEN” position of the camera to the projection of the camera attachment (accessory). Engage the camera attachment fixing screws in the rear of the camera with the camera mounting holes of the camera attachment (accessory) and rotate the camera in the direction of the arrow shown below to secure the camera.
  • Page 30 Tighten the camera fixing screw. IMPORTANT: • S ecurely tighten the camera fixing screw. Failure to do so may cause damage or the camera to drop. (Recommended tightening torque: 0.78 N·m {0.58 lbf·ft}) Camera fixing screw Attach the sub cover. (The illustration is an example of using a two-gang junction box.) Attach the sub cover to the camera, then fix it to the camera with the sub cover fixing screws x2.
  • Page 31: Configure The Network Settings

    [OK]. • T he launcher window will be displayed. If the launcher window is not displayed, double click the “CDLauncher.exe” file on the CD-ROM. Note: • R efer to “Using the CD-ROM” in the Operating Instructions on the provided CD-ROM for further information about CDLauncher. Click the [Run] button next to [IP Setting Software]. [Panasonic IP Setting] screen will be displayed. Click the [Network Settings] button after select- ing the MAC address/IP address of the camera to be configured.
  • Page 32 Select the camera you want to configure, and click [Access Camera]. Note: • W hen cameras are displayed in [Panasonic IP Setting] screen, click the camera with same MAC address as the MAC address printed on the camera that you want to configure. If the installation screen of the viewer software “Network Camera View 4S” is displayed, follow the instructions of the wizard to start the installation. (The viewer software is installed from the camera.) • The “Live” page will be displayed. • P erform the [Time & date] settings in the “Setup” - “Basic” page before using the camera.
  • Page 33: Troubleshooting

    Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using DC power supply...
  • Page 34: Specifications

    Specifications Basic • Power source: 12 V DC, PoE (IEEE802.3af compliant) Power consumption: 12 V DC*: 610 mA/ 7.3 W PoE 48 V: 140 mA/ 6.7 W (Class 0 devices) * ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY or LIMITED POWER SOURCE.
  • Page 35 • With Super Dynamic On (Maximum exposure time): ELC (1/30 s) • With Super Dynamic Off ELC (1/30 s), ELC (3/100 s), ELC (3/120 s), ELC (2/100 s), ELC (2/120 s), ELC (1/100 s), ELC (1/120 s), ELC (1/250 s), ELC (1/500 s), ELC (1/1000 s), ELC (1/2000 s), ELC (1/4000 s), ELC (1/10000 s) Auto slow shutter: Off (1/30 s), max.
  • Page 36 • Network Network: 10BASE-T/100BASE-TX, RJ-45 connector Resolution: 2M Panorama [16:9]/ 2M Double Panorama [16:9]: H.264(1) 1920x1080/640x360/320x180 max.30 fps H.264(2) 640x360/320x180 max.30 fps JPEG 1920x1080/640x360/320x180 max.30 fps 1M Panorama [16:9]/ 1M Double Panorama [16:9]: H.264(1) 1280x720/640x360/320x180 max.30 fps H.264(2) 640x360/320x180 max.30 fps JPEG 1280x720/640x360/320x180 max.30 fps 1.3M Fisheye [4:3]/ 1.3M Quad PTZ [4:3]/ 1.3M Single PTZ [4:3]: H.264(1) 1280x960/640x480/320x240 max.30 fps H.264(2) 640x480/320x240 max.30 fps JPEG 1280x960/640x480/320x240 max.30 fps...
  • Page 37 Up to 16 camera images can be displayed simultaneously on a multi-screen. (Including the camera itself) Compatible SDXC/SDHC/ Manufactured by Panasonic (SD speed class 4 or higher) SD memory card (option): SDXC memory card: 64 GB SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB...
  • Page 38: Standard Accessories

    Standard accessories Installation Guide (this document) ..........1 pc. Warranty card (P model only) ............. 1 pc. CD-ROM* ................1 pc. Code label* ................1 pc. The following parts are used during installation procedures. Camera attachment ..............1 pc. Audio cable ................1 pc. Power cord plug ................
  • Page 40 For customer support, call 1.800.528.6747 Three Panasonic Way, Secaucus, Authorised Representative in EU: New Jersey 07094 U.S.A. Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany © Panasonic System Networks Co., Ltd. 2013 Cs0613-0 PGQX1390ZA Printed in China...
