Philips CEM2300BT User Manual

Hide thumbs

Advertisement

Always there to help you
Register your product and get support at
www.philips.com/support
CEM2300BT
Question?
Contact
Philips

User manual

Advertisement

Table of Contents
loading

  Also See for Philips CEM2300BT

  Related Manuals for Philips CEM2300BT

  Summary of Contents for Philips CEM2300BT

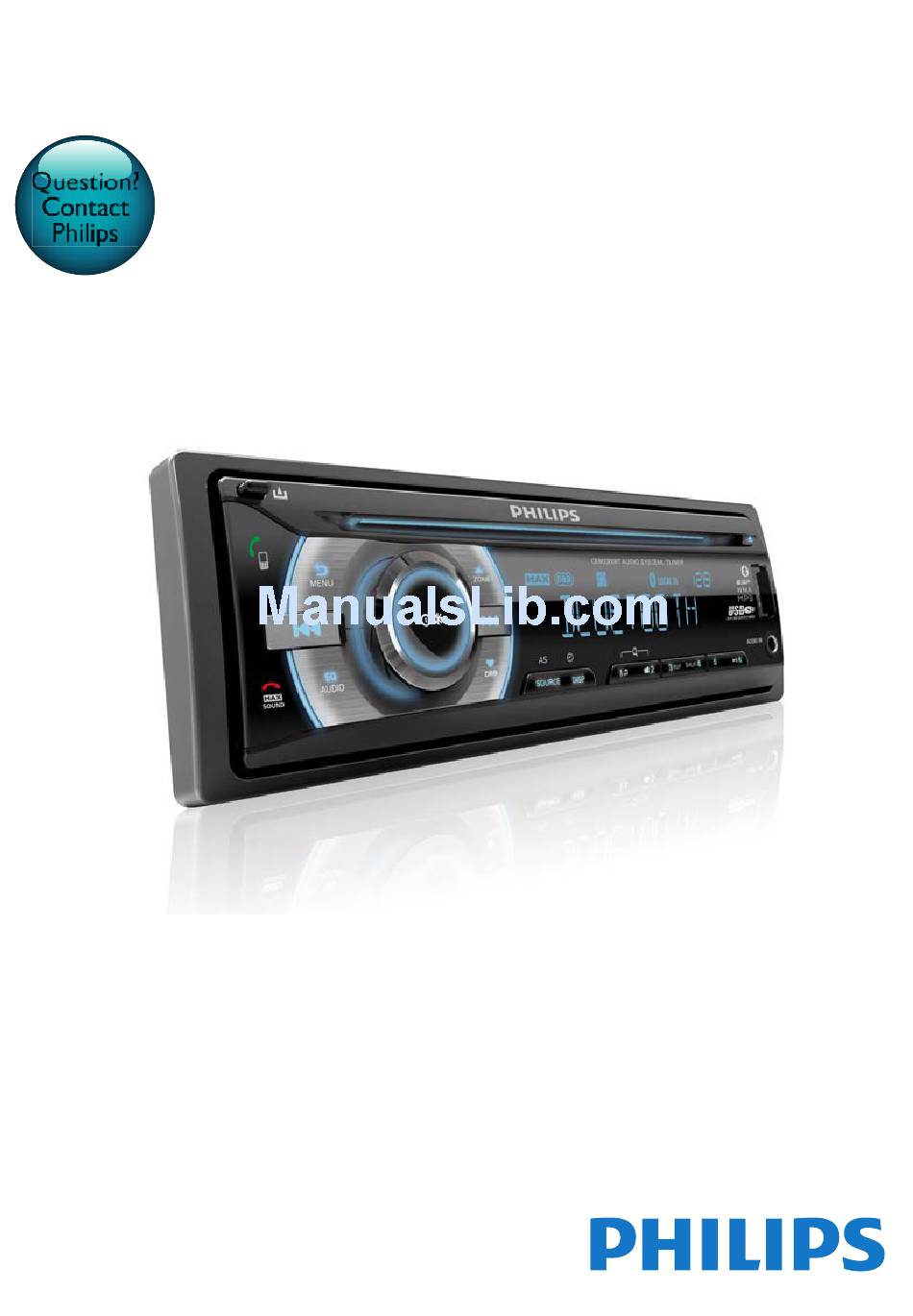

  • Page 1: User Manual

    Always there to help you Register your product and get support at www.philips.com/support CEM2300BT Question? Contact Philips User manual...
  • Page 3: Table Of Contents

    Contents 1 Safety 10 Adjust sound 2 Your car audio system 11 Adjust system settings Introduction What's in the box 12 Others Overview of the system Reset Replace fuse 3 Install the car audio system Connect wires 13 Product information Mount into the dashboard Attach the front panel 14 Troubleshooting...
  • Page 4: Safety

    1 Safety Read and understand all instructions before you use your apparatus. If damage is caused by failure to follow instructions, the warranty does not apply. • This apparatus is designed for negative ground (earth) 12 V DC operation only. •...
  • Page 5: Your Car Audio System

    DRM protected WMA files (.wav, .m4a, .m4p, .mp4, and .aac) WMA files in lossless format Congratulations on your purchase, and welcome to Philips! To fully benefit from the What's in the box support that Philips offers, register your product at www.philips.com/welcome.
  • Page 6: Overview Of The System

    Overview of the system n m l k j i d Disc slot • Unlock the front panel. e LCD screen • Press to return to the previous menu. • Press and hold to access the system • Eject the disc from the disc menu.
  • Page 7 • For .wma and .mp3 tracks, press to • Start, pause, or resume the play of access the folder list. tracks. • In radio mode, press to select the • In radio mode, press to select the preset radio station of No. 6. preset radio station of No.
  • Page 8: Install The Car Audio System

    3 Install the car • Tune to a radio station. audio system • Press to skip to the previous or next track. • Press and hold to rewind a track or search fast forward. Caution • Use the controls only as stated in this user manual. •...
  • Page 9: Connect Wires

    Connect the antenna and amplifier as Connect wires illustrated, if applicable. Note • Consult a professional to connect CEM2300BT as instructed below. Check the car's wiring carefully and connect them to the the male connector. Connector Connect to ANTENNA Antenna...
  • Page 10 • If you disconnect the car battery in a car that has an on-board drive or navigation computer, the computer may lose its memory. • If the car battery is not disconnected, to avoid short-circuit, ensure that the bare wires do not touch each other. Ensure that car dashboard opening is within these measurements: Place the supplied rubber cushion over the...
  • Page 11: Attach The Front Panel

    Reconnect the negative terminal of the car battery. Attach the front panel Insert the notch on the front panel to the chassis on the main unit. Press the left end of the front panel inwards until it is securely locked with a "click".
  • Page 12: Get Started

    Switch music listening zone [LATIN] (Latin America) • • [EUROPE] (Western Europe) [RUSSIA] (Russia) • Philips’ innovative Zone technology enables [MID-EAST] (Middle East) • driver or passengers to enjoy music with the [ASIA] (Pacific) • best speakers balance and experience more •...
  • Page 13: Listen To Radio

    5 Listen to radio Press and hold . repeatedly until [LOCAL] is Press displayed. Rotate to select a setting. • [LOCAL ON] (local on): only stations with strong signal can be broadcast. Tune to a radio station [LOCAL OFF] (local off): stations •...
  • Page 14: Select Alternate Frequencies

    LIGHT M Turn on RDS Light classical music CLASSICS Classical music OTHER M Special music programs Note WEATHER Weather • The default setting for RDS is on. FINANCE Finance CHILDREN Children’s programs Press and hold . SOCIAL Social Affairs repeatedly until [RDS] is Press RELIGION Religion...
  • Page 15: Play From Hard Media

    6 Play from hard Receive traffic announcement media If you do not want to miss traffic announcement when enjoying music, turn on the TA (Traffic Announcement) function. Press and hold . You can use this system to listen to audios that Press repeatedly until [TA] is are stored on a compatible disc or USB storage...
  • Page 16: Play From A Usb Storage Device

    Press repeatedly to select a Play from a USB storage repeat mode: device • [REP TRK] (repeat one track): play current track This system can play .mp3 and .wma files that repeatedly. are copied onto a compatible storage device. • [REP FLD] (repeat a folder): play all tracks in the current folder repeatedly.
  • Page 17: Use Bluetooth Devices

    On your device, follow the steps below. Press Search for Bluetooth devices. » [WAIT] is displayed with -, --, and --- blinking alternately until In the device list, select CEM2300BT. [CONNECTED] scrolls or [FAILED] Enter the default password "0000", and appears. then confirm the password entry.
  • Page 18: Play Audio From A Bluetooth Device

    Pick up an incoming call Play audio from a Bluetooth device When the system receives an incoming call, the phone number or [PHONE IN] is displayed. Press to answer the call. If the connected Bluetooth device supports Advanced Audio Distribution Profile (A2DP), you can listen to tracks that are stored on the Reject an incoming call device through the system.
  • Page 19: Listen To An External Player

    8 Listen to an 9 Charge your external player USB device You can use the system to amplify the audio You can charge your USB device, for example, input from an external player, for example, MP3 smart phone, with this product. player.
  • Page 20: Adjust Sound

    10 Adjust sound 11 Adjust system settings The following operations are applicable to all supported media. Press to access system settings. Button Function Press repeatedly until one of the Rotate to increase or decrease the following settings scrolls. volume level. •...
  • Page 21: Others

    12 Others [BLACK [BKO 10 S] Turn off OUT] the screen automatically 10 seconds after last operation. Reset [BKO 20 S] Turn off the screen You can reset the unit to its default setting. automatically 20 seconds Detach the front panel. after last Press the reset button by using a ball-point operation.
  • Page 22: Product Information

    13 Product information Note • Product information is subject to change without prior notice. General Power supply 12 V DC (11 V - 16 V), negative ground Note Fuse 15 A • If the new fuse gets damaged again, there may be an Suitable speaker 4 - 8 internal malfunction.
  • Page 23: Troubleshooting

    Preset stations lost. requesting service. If the problem remains • Battery cable is not correctly connected. unsolved, go to the Philips Web page (www. Connect the battery cable to the terminal philips.com/support). When you contact the that is always live.
  • Page 24: Notice

    15 Notice The paired mobile phone connects and disconnects constantly. • The Bluetooth reception is poor. Move the mobile phone closer to the system or Any changes or modifications made to this remove any obstacle between the mobile device that are not expressly approved by phone and the system.
  • Page 25: Trademark Notice

    Copyright 2015 © Gibson Innovations Limited. All rights reserved. Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by Gibson Innovations Limited under license from Koninklijke Philips N.V. ”...
  • Page 26 2015 © Gibson Innovations Limited. All rights reserved. Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by Gibson Innovations Limited under license from Koninklijke Philips N.V. CEM2300BT_12_UM_Online_V2.0...
