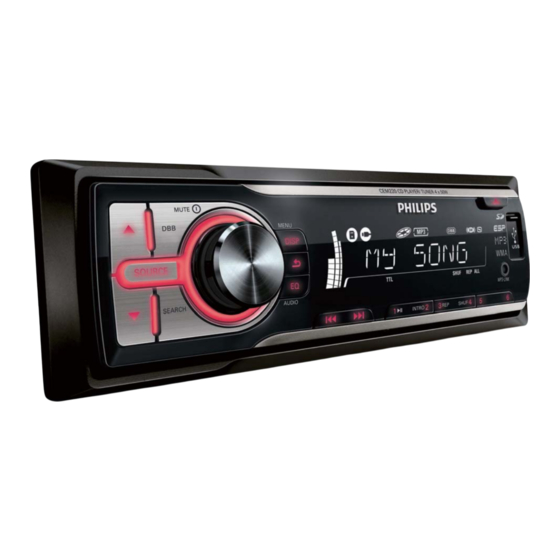

Philips CEM220 User Manual
Car entertainment system
Hide thumbs
Also See for CEM220:
- Specifications (2 pages) ,
- User manual (27 pages) ,
- Quick start manual (4 pages)
Related Manuals for Philips CEM220
Summary of Contents for Philips CEM220
- Page 1 Register your product and get support at: Car Entertainment System CEM220 User manual ZH-HK ZH-CN...
-
Page 2: Table Of Contents
Contents 1 Important Safety Notice 2 Your car audio system Introduction What’s in the box Overview of the main unit 3 Get started Install the car audio Turn on Set clock 4 Listen to radio Tune to a radio station Store radio stations in memory Tune to a preset station 5 Play audio fi... -
Page 3: Important
1 Important Safety • Read and understand all instructions before you use your apparatus. If damage is caused by failure to follow instructions, the warranty does not apply. • This apparatus is designed for negative ground (earth) 12 V DC operation only. •... - Page 4 Any changes or modifi cations made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. 2009 © Koninklijke Philips Electronics N.V. All rights reserved.
-
Page 5: Your Car Audio System
2 Your car audio system Congratulations on your purchase, and welcome to Philips! To fully benefi t from the support that Philips offers, register your product at www.philips.com/welcome. Introduction With the in-car audio system, you can enjoy your drive while you listen to: •... -
Page 6: Overview Of The Main Unit
Overview of the main unit • Select tuner band. • Select MP3/WMA folder. • Scroll up or down menu. b DBB • Turn on or off Dynamic Bass Boost (DBB) sound. c SOURCE • Select audio source. /MUTE • Turn the unit on or off. •... - Page 7 • Unlock the panel i USB socket j External device socket • Select preset station no. 6 • Select preset station no. 5 m SHUF, 4 • Activate or deactivate shuffl e mode. • Select preset station no. 4 n 3, REP •...
-
Page 8: Get Started
Use the controls only as stated in this user manual. Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of your apparatus. The model number and serial number are on the bottom of your apparatus. - Page 9 Connection: for cars with ISO connectors Caution • Ensure that all loose leads are insulated with electrical tape. Pull out the ISO connectors from car dashboard and connect them to the bigger end of the supplied standard connector. Connect the other end of the supplied standard connector to the unit.
- Page 10 Connect the antenna and amplifi er as illustrated, if applicable. Connector Connect to REAR LINE OUT R Rear right speaker REAR LINE OUT L Rear left speaker SUB OUT Subwoofer ANTENNA Antenna Cut off the bigger end of the supplied standard connector.
-
Page 11: Mount In The Dashboard
Connect the supplied standard connector to the unit. Mount in the dashboard If the car does not have an on-board drive or navigation computer, disconnect the negative terminal of the car battery. • If you disconnect the car battery in a car that has an on-board drive or navigation computer, the computer may lose its memory. -
Page 12: Turn On
Install the sleeve into the dashboard and bend the tabs outward to fi x the sleeve. Note • Skip this step if the unit is not fi xed by sleeve but by supplied screws. Place the supplied rubber cushion over the end of the mounting bolt. - Page 13 View clock Press MENU/DISP repeatedly until the clock is displayed.
-
Page 14: Listen To Radio
4 Listen to radio Tune to a radio station Press SOURCE repeatedly to select Tuner. Press to select band: [FM1], [FM2], [FM3], [AM1], or [AM2] . Press to tune to a radio station manually. » The radio station is broadcast. »... -
Page 15: Play Audio Fi Les
5 Play audio files Note • Ensure that the disc or device contains playable fi les. Play a disc Note • You cannot play CDs encoded with copyright protection technologies. You can play commercially available audio CDs and these discs: •... -
Page 16: Control Play
Insert a card Note • This unit supports SD, SDHC, and MMC cards. Press to release the panel. Insert the card into the card slot. » The unit starts playing from the card automatically. Remove the card Press to turn off the unit. Press the card until you hear a click sound. -
Page 17: Shuffl E Play
Shuffl e play You can play the tracks in random order. During play, press SHUF, 4 to select: • [SHUF ON]: start shuffl e play for all tracks. • [SHUF OFF]: cancel shuffl e play. Repeat play During play, press 3, REP repeatedly to select: •... -
Page 18: Adjust Sound
6 Adjust sound Adjust volume Turn clockwise/anticlockwise to increase/decrease volume. Mute You can turn off the sound of your audio. During play, press MUTE . • To turn the sound back on, press MUTE again. Turn Dynamic Bass Boost (DBB) on/off Press DBB for 3 seconds, the current setting is displayed: »... -
Page 19: Adjust System Settings
7 Adjust system settings Select blackout setting You can set the screen to turn off automatically after the unit is idle for 10 or 20 seconds. Press MENU/DISP for 3 seconds. Turn to select a setting: • [BKO 10 S] : Turn off the screen automatically 10 seconds after last operation. -
Page 20: Turn Beep Sound On/Off
Turn beep sound on/off Each time you press a button, the unit beeps. You can turn off/on this beep sound. Press MENU/DISP for3 seconds. Press repeatedly to until [BEEP ON] or [BEEP OFF] is displayed. Rotate to select a setting: •... -
Page 21: Additional Information
Replace the fuse. Note • If the new fuse gets damaged again, there may be an internal malfunction. Consult your Philips dealer. Remove the unit You can remove the unit from the dashboard. Detach the front panel. Pull out the unit by using the removal keys. -
Page 22: Product Information
9 Product information Note • Product information is subject to change without prior notice. Power supply 12 V DC (11 V - 16 V), negative ground Fuse 15 A Suitable speaker 4 - 8 impedance Maximum power output 50 W x 4 channels Continuous power 24 W x 4 channels output... -
Page 23: Troubleshooting
If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www. philips.com/support). When you contact Philips, ensure that your apparatus is nearby and the model number and serial number are available. -
Page 24: Glossary
11 Glossary MultimediaCard. A type of memory card with a fl ash memory. A fi le format with a sound data compression system. MP3 is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. With the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD. - Page 26 © 2009 Koninklijke Philips Electronics N.V. All rights reserved. Document order number:...
