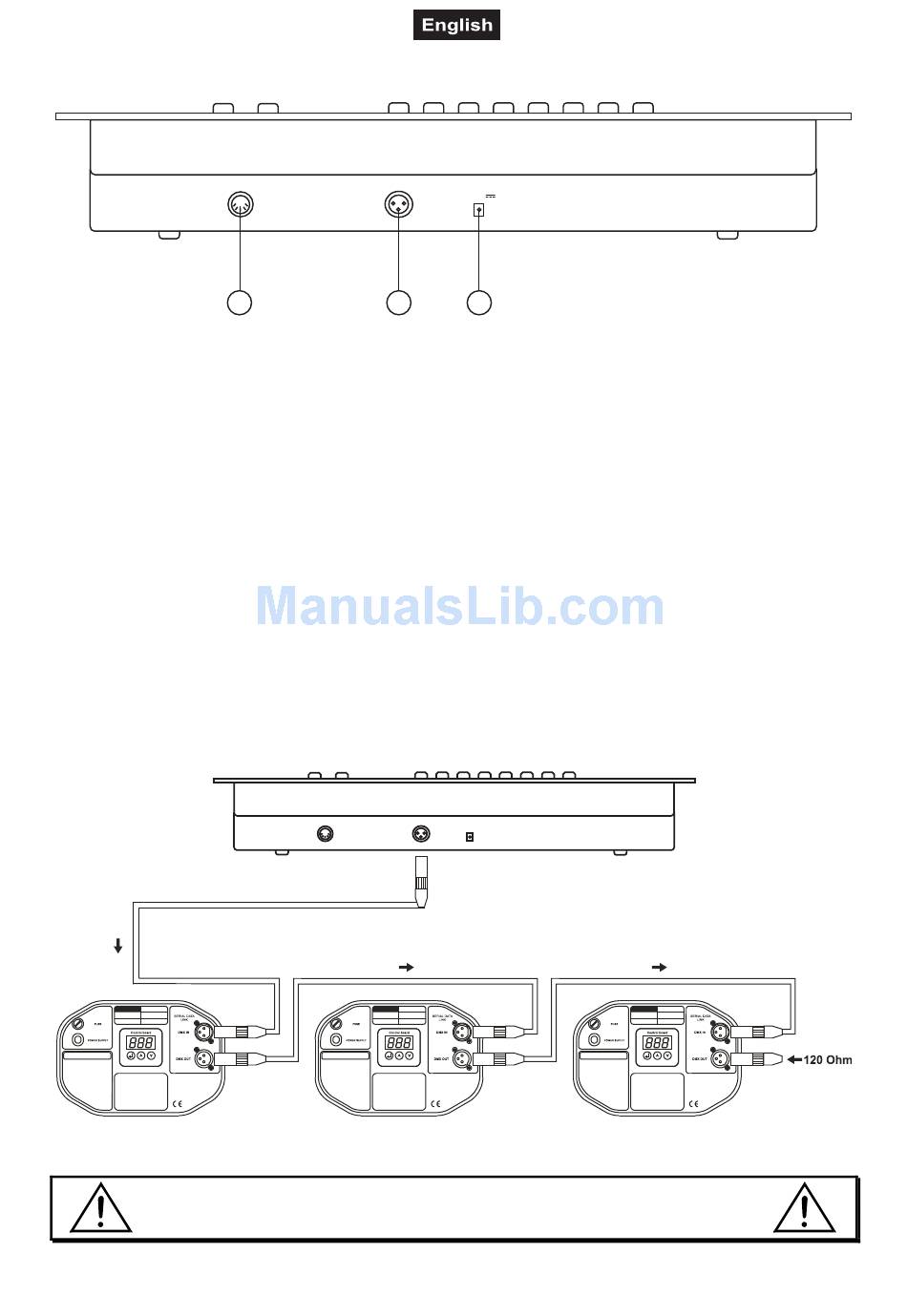

Rear panel:
9-12 V DC,
0.3 A
MIDI IN DMX OUT POWER
16 17 18
16) MIDI input socket
17) DMX output socket
18) Power supply socket

5. SETUP

5.1 Installation

Install the device on a plane surface or install it in rack.
Rack-installation: This device is built for 19" racks (483 mm). The rack you use should be a Double-Door-
Rack where you can open the frontpanel and the rear panel. The rack should be provided with a cooling fan.
When mounting the controller into the rack, please make sure that there is enough space around the device
so that the heated air can be passed on. Steady overheating will damage your device.
You can fix the controller with four screws M6 in the rack.
Connect the connection cable of the power-unit with the DC IN-socket. Plug the power unit into your outlet.

5.2 Sound-control

The sound-control works via the built-in microphone.

5.3 DMX-512 connection with the projector

Projector 1 Projector 2 Projector 3
Starting address 1 Starting address 17 Starting address 33
The wires must not come into contact with each other, otherwise
the fixtures will not work at all, or will not work properly.
16/36 00026741.DOC, Version 2.3
