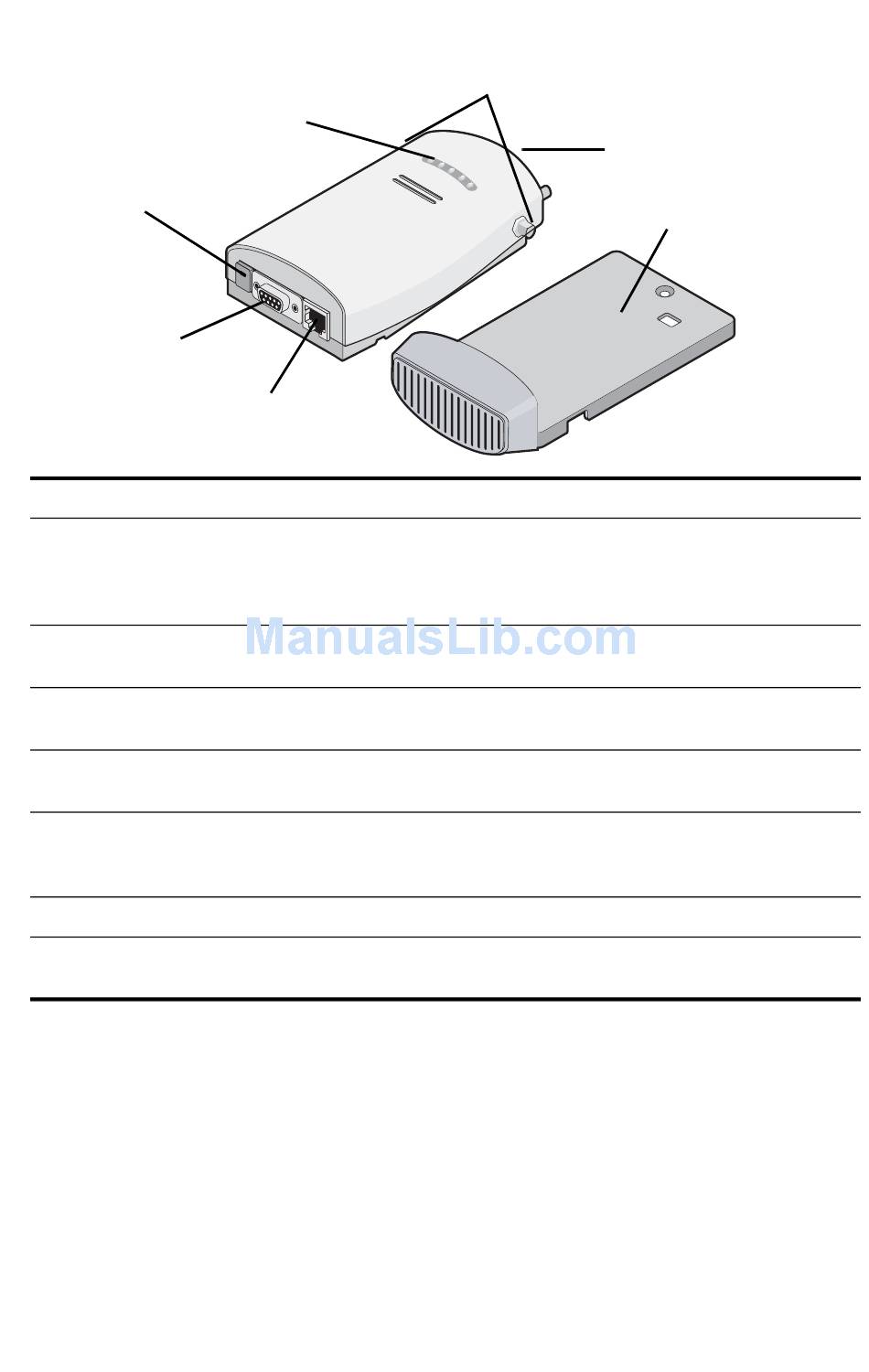

3Com Wireless 7760 Access Point Features
Power Port
Serial Port
Feature
Ethernet Port
Power Port
LEDs
Antenna Connectors
Reset Button
Serial Port
Mounting Bracket
LEDs
Ethernet Port
Description
The Ethernet port provides a 10/100BASE-TX Ethernet connection to a
3Com switch. Use a suitable Category 5 cable with straight-through
signaling and standard RJ-45 connectors to connect your Access Point
to the switch on the network.
Not supported. The Access Point is powered using Power Over
Ethernet (PoE). See "Connecting Power" on page 7.
The LEDs indicate power and activity. See "Checking the LED
Indicators" on page 9 for details.
Two RSMA type antenna connectors allow you to connect antennas
that operate in 2.4 GHz and 5.3 GHz bands.
To restore factory settings, press the reset button during power-up by
inserting a pointed object into the reset hole on the back of the
Access Point and holding for five seconds.
Provides a serial interface to the Access Point for diagnostic use.
The mounting bracket comes attached to the Access Point and allows
the unit to be mounted on a wall or ceiling.
Antenna Connectors
2
Reset Button
Mounting Bracket
