Summary of Contents for Devilink CC
- Page 1 Devilink™ CC – Central Controller System Overview and Installation Manual...
- Page 2 Devi Warranty ......................Devilink™ is a wireless control system for electrical floor heating. The central brain in the system is the Devilink™ CC (Central Controller) equipped with a colour touch screen. From this you can control the entire installation. The Devilink™ CC communicates wirelessly with all other Devilink™...

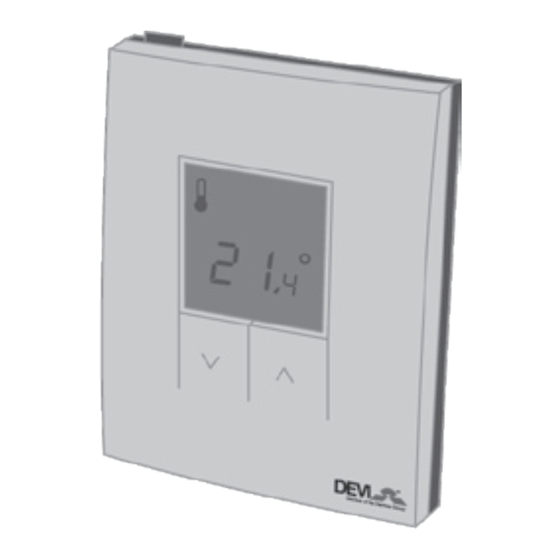

- Page 3 With the Devilink™ RS you can also adjust the temperature. Devilink™ HR is to be mounted in to a build in box in the wall. Devilink™ FT (Floor Thermostat) or FTS (FT with sensor) is one device supporting 3 types of operation modes, for controlling of heating elements or other electrical equipments ON/OFF manually or by schedule.
- Page 4 Devilink™ System Overview Installation scenario: Devilink™ RS 2 2 . v i r ™ Devilink™ HR or PR Devilink™ CC Devilink™ FT...
- Page 5 1. Placement of Devilink™ CC Limitations – Devilink wireless controls The Devilink wireless system’s transmission range is sufficient for most appli- cations; however each building has different obstacles affecting communi- cation and maximum transmission distance. If communication trouble exists DEVI suggests that accessories would be required to support the system, such as repeaters.
- Page 6 Devilink™ PSU (in-wall Power Supply) Devilink™ NSU (Net supply) Do not power the Devilink™ CC until the manual tells you to do so. Do not remove the protective film on the touch screen, the end user should do this.
- Page 7 Adding devices to the system: When you want to attach devices like FT, RS, HR, PR to your system the CC must be within 1.5 meter from the device. To enable this, a battery pack, Devilink™ BSU, is offered as an installer tool.
- Page 8 When the system is powered for the first time you will be asked to set Country, Language and Date/Time. c. Remove the front cover from the CC by gently pulling it off. Press and hold the setup pin with a pen for 3 seconds to start the installer menu.
- Page 9 3. Configuration of Devilink™ d. Now create the rooms where the local units are installed. Add New Room: The Configure Room menu now appears. Press Room Devices and then Add a Device...
- Page 10 Devilink™ automatically selects the regulation principle according to the types of devices in the room. If you want to change regulation, first read section 4.3 and then choose Heating control.
- Page 11 Now go back to the section 3.d. and repeat this for all rooms in the installa- tion. Now turn off the battery pack and place the Devilink™ CC on the mounting plate that you installed earlier. It will now power up again and show you a screen like this.
- Page 12 At the end of the network test you will be informed that the test is waiting for the Devilink™ RS units. You have to go to all the Devilink™ RS units only and press the ON/OFF button for 5 sec.
- Page 13 4. Modifying an existing Installation 4. Modifying an existing Installation. Create new room and add device(s). Go to section 3.d. b. Add devices to an existing room. Go to section 4.1 Add a service device for ON/OFF function. Go to section 4.2 d.
- Page 14 Service devices can be a PR, HR or FT used as a simple ON/OFF function. You should do a network test now. See section 3.e. NB! Heating elements which is connected to Devilink™ PR have to be self protective against overheating.
- Page 15 4. Modifying an existing Installation 4.3 Changing parameters for Heat Regulation Devilink™ offers 3 types of regulation, which can be set individually for each room: Floor heating Comfort heating: Constant temperature on the floor in bathrooms and other rooms where a comfortable warm surface is required. Install the floor sensor with the Devilink™...
- Page 16 4. Modifying an existing Installation To change the type of regulation, go to the service menu.
- Page 17 4. Modifying an existing Installation In Heat Regulation you can change: • Forecasting method • Regulation type • Maximum floor temperature. The default setting is 35°C. To change this setting you will need to enter the pin code: 0044. Notice: The floor temperature is measured where the sensor is placed. The temperature at the floor sensor can differ many degrees from that measured on the top of e.g.
- Page 18 You can remove any local device from your Devilink™ system by resetting it. Resetting a device: Devilink™ FT: Turn off power on the safety switch on the front. Hold the install button in while pushing ON the safety switch and keep the install button pressed until the LED gives a red flash (approx.
- Page 19 4. Modifying an existing Installation Removing a device: If you want to remove a dead device from your Devilink™ system, go to the service menu by pressing the setup pin behind the front cover. Go to Room and Devices and select Manage Devices. Select remove any device and do a reset on the actual device.
-
Page 20: Trouble Shooting
5. Trouble shooting 5.1 Warnings: If an alert or warning occurs a yellow alert icon will be shown on the Standby screen. Now press the red button, and then the View Alerts, to find more information on the issue. - Page 21 5. Trouble shooting 5.2 FAQ: Regulation type: Q: Why can I not choose the regulation type that I want? A: Make sure the device configuration is correct, see Heat Regulation section If you need to add a floor sensor to your FT, you must uninstall the FT.
- Page 22 5. Trouble shooting Installer tool battery warning Battery level Critical on device Battery level low on device Device not responding Too many dead devices Heating turned off in a room Min. floor temperature limit Tamper proof / Restrictions enabled Manual operation Icon for Floor Temperature Icon for Room temperature...
-
Page 23: Technical Specifications
Devilink™ NSU (Net Adapter) Operation Voltage 100-240 VAC 50/60Hz Output Voltage 15 VDC ±10% Standby power consumption Max. 0.75W Cable length. 2.5m Max load Devilink™ BSU (Battery Supply Unit) Output Voltage 15 VDC ±10% Number of batteries 10 x AA... - Page 24 6. Technical specifications 6. Disposal Instruction...
- Page 26 The 2 Year DEVI Warranty You have purchased a DEVI heating This warranty shall only be valid on system which we are sure will serve to production of proof of purchase and improve the comfort and economy of must be submitted to the installer or your application.
- Page 27 The DEVI™ Warranty Warranty Certificate The DEVI™ Warranty is granted to: Name: Address City: Country: Telephone: Attention: The Warranty Certificate must be completed correctly for the Warranty to be valid. Please read the Warranty conditions above. Type of thermostat: Electrical installation by: Article number: Date: Suppliers Stamp:...
- Page 28 Article no: 08095908 Version: 02.01 DEVI A/S DK • 7100 Vejle Phone +45 7488 8500 +45 7488 8501...
