OPERATING INSTRUCTIONS
CINE STUDIO
HMS Cinema Surround Loudspeaker (IntelligentDC)
HMS-5, HMS-10, HMS-12, and HMS-15
Keep these important operating instructions.
Check www.meyersound.com for updates.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMS-5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Meyer Sound HMS-5

Summary of Contents for Meyer Sound HMS-5

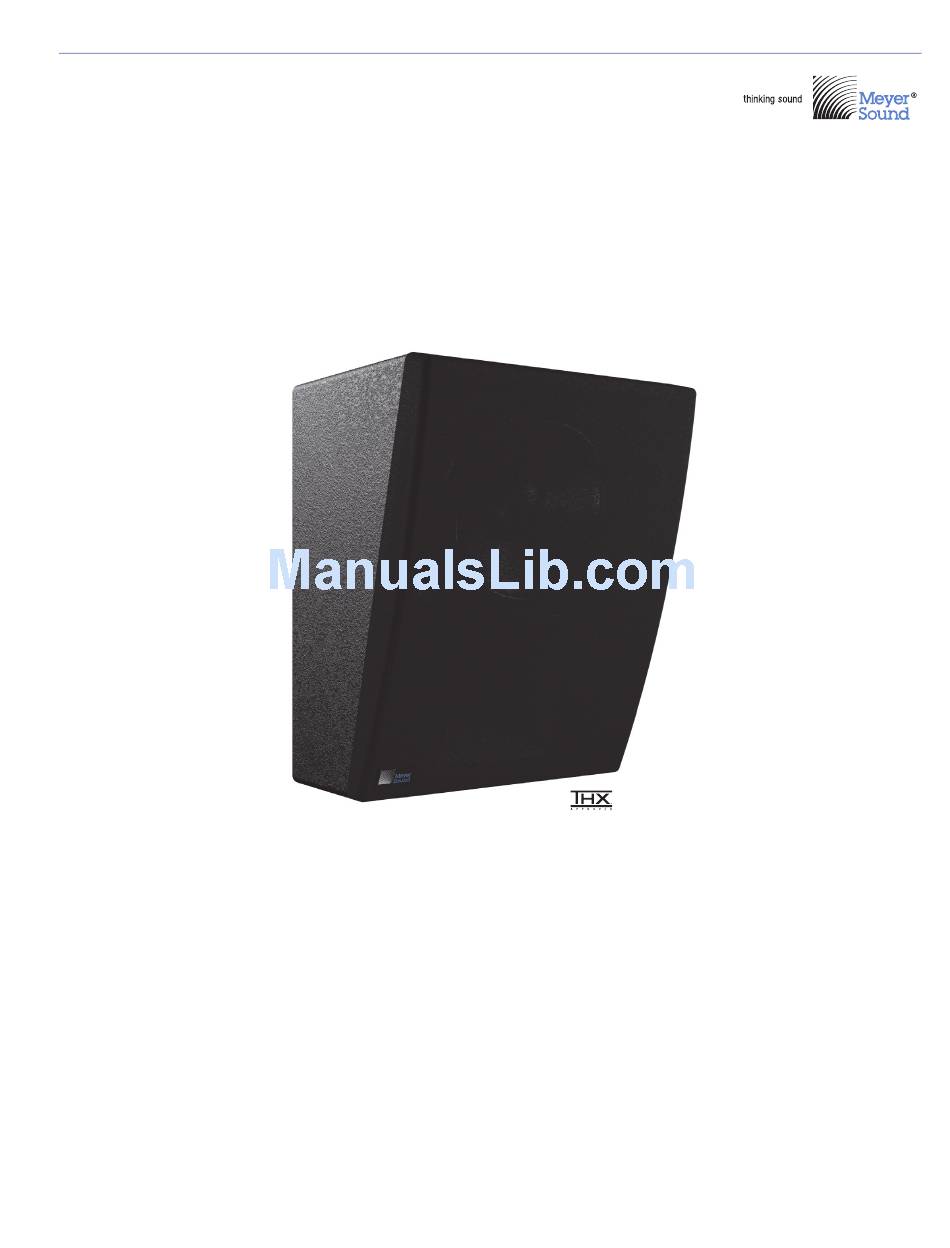

  • Page 1 OPERATING INSTRUCTIONS CINE STUDIO HMS Cinema Surround Loudspeaker (IntelligentDC) HMS-5, HMS-10, HMS-12, and HMS-15 Keep these important operating instructions. Check www.meyersound.com for updates.
  • Page 2 The contents of this manual are furnished for informational purposes only, are subject to change without notice, and should not be con- strued as a commitment by Meyer Sound Laboratories Inc. Meyer Sound assumes no responsibility or liability for any errors or inaccura- cies that may appear in this manual.

  • Page 3: Table Of Contents

    How to Use This Manual HMS Cinema Surround Loudspeaker MPS-488HP IntelligentDC High-Power Eight-Channel power Supply Chapter 2: HMS Loudspeakers Single-Channel Input Connector (HMS-5, HMS-10, and HMS-12) Dual-Channel Input Connectors (HMS-15) Current Draw and Cable Requirements for HMS Loudspeakers Belden 1502 Cable (or Equivalent)

  • Page 5: Chapter 1: Introduction

    AC conduits while preserving the advan- tages of self-powered systems. IntelligentDC loudspeakers require an MPS-488HP external power supply. The single- space 19-inch rack unit distributes DC power and balanced audio to up to eight HMS-5, HMS-10, or HMS-12 loudspeak-...
  • Page 6 1502 or equivalent, can deliver both DC power and balanced audio to loudspeakers The HMS-5 compact cinema loudspeaker includes two at cable lengths up to 150 feet with just 1 dB of loss in peak 5-inch low-frequency, long-excursion cone drivers, and one SPL using 18 AWG wire.
  • Page 7 HMS OPERATING INSTRUCTIONS HMS-12 High-Power Cinema Surround HMS-15 High-Power Cinema Surround Loudspeaker Loudspeaker The HMS-12 high-power cinema loudspeaker includes one The HMS-15 high-power cinema loudspeaker includes one 12-inch low-frequency, long-excursion cone driver, and one 15-inch low-frequency, long-excursion cone driver, and one 3-inch diaphragm high-frequency compression driver on a 3-inch diaphragm high-frequency compression driver on a symmetrical, constant-directivity 100-degree horn.

  • Page 8: Mps-488Hp Intelligentdc High-Power Eight-Channel Power Supply

    IntelligentDC power supply. The single-space 19-inch rack unit distributes DC power and balanced audio to up to eight HMS-5, HMS-10, or HMS-12 loudspeakers, or up to four HMS-15 loudspeakers. Composite multiconductor cables, such as Belden 1502 or equivalent, can deliver both DC...

  • Page 9: Chapter 2: Hms Loudspeakers

    DUAL-CHANNEL INPUT CONNECTORS (HMS-5, HMS-10, AND HMS-12) (HMS-15) The HMS-5, HMS-10, and HMS-12 loudspeakers receive DC The HMS-15 loudspeaker receives DC power and balanced power and balanced audio from a single Phoenix 5-pin male audio from two Phoenix 5-pin male Input connectors. Each Input connector.

  • Page 10: Current Draw And Cable Requirements For Hms Loudspeakers

    CHAPTER 2: HMS LOUDSPEAKERS CAUTION: When wiring HMS loudspeaker NOTE: For long cable runs, you can use a large cables, it is extremely important that each pin cable gauge for DC power and a separate bal- be wired correctly. Make sure the 48 V DC from the anced audio cable for audio.

  • Page 11: Long Cable Runs With Separate Cable For Dc Power And Audio

    3. The LED remains green but is dimmed to eliminate any NOTE: For a complete list of available cables undesired glow in darkened theatres. and cable accessories from Meyer Sound, refer to Appendix A, “HMS Accessories.” CAUTION: If after the power-on sequence the...

  • Page 12: Pad Switch (Hms-10 Only)

    CHAPTER 2: HMS LOUDSPEAKERS CAUTION: Continuous limiting indicates that a PAD SWITCH (HMS-10 ONLY) safe, optimum level has been exceeded. If the The HMS-10 user panel includes a Pad switch that, when HMS loudspeakers in a cinema installation begin to enabled, reduces the loudspeaker’s internal gain by 7.5 dB, limit before reaching the desired SPL, consider adding thereby lowering the loudspeaker’s noise floor.

  • Page 13: Chapter 3: Powering Hms Loudspeakers

    DC power and balanced audio to up to eight equivalent) wired for both DC power and balanced audio HMS-5, HMS-10, or HMS-12 loudspeakers, or up to four and outfitted with the appropriate connectors. HMS-15 loudspeakers. Composite multiconductor cables, ■...

  • Page 14: Configuring The Mps-488Hp In Compass Rms

    RMS option). Up to eight single-channel to deliver power to the HMS-15’s two Input connec- HMS loudspeakers (HMS-5, HMS-10, and HMS-12) or up to tors. Never, in any manner, combine the signals from four dual-channel HMS-15 loudspeakers can be connected...
  • Page 15 4. In the Edit Loudspeaker Inventory dialog box, click in the Product column and select the HMS loudspeaker model connected to each MPS-488HP channel output. ■ Single-channel HMS loudspeakers (HMS-5, HMS-10, and HMS-12) occupy a single channel output. ■ Dual-channel HMS-15 loudspeakers automatically occupy two channel outputs.
  • Page 16 CHAPTER 3: POWERING HMS LOUDSPEAKERS...

  • Page 17: Chapter 4: Hms Mounting Options

    CHAPTER 4: HMS MOUNTING OPTIONS IMPORTANT SAFETY CONSIDERATIONS! When mounting Meyer Sound loudspeakers, the following precautions should always be observed: ■ All Meyer Sound products must be used in accordance wall surface. Verify that the building’s structure and the with local, state, federal, and industry regulations. It is the anchors used for the installation will safely support the owner’s and user’s responsibility to evaluate the reliability...
  • Page 18 Note: Wider downtilt may be from the wall. possible depending on the building’s structural compo- nents and mounting surface. HY-HMS Half Yoke Suspends HMS-5, HMS-10, and HMS-5: 360° 12.4 lbs ■ (PN 40.227.031.01) HMS-12 loudspeakers with a full HMS-10: 360°...
  • Page 19 (360°). The yoke can attach directly to ceilings or can accept “C” or “G” hanging clamps with standard 1/2-inch or 12 mm bolts. MUB-HMS U-Bracket Mounts HMS-5, HMS-10, and HMS-5: +60°/–43° 13.5 lbs ■ (PN 40.227.032.01) HMS-12 loudspeakers on walls HMS-10: +32°/–25°...
  • Page 20 The available tilt is deter- mounting surface. mined by how close the loudspeaker is placed to the mounting surface. WH-HMS Wall Hinge Bracket Mounts HMS-5, HMS-10, and HMS-5: 0° 10.4 lbs ■ (PN 40.227.030.01) HMS-12 loudspeakers on walls HMS-10: 0°...

  • Page 21: Chapter 5: Removing Hms Grille Frames

    CHAPTER 5: REMOVING HMS GRILLE FRAMES If a cinema installation requires it, HMS grille frames can be easily removed. Grille frames for the HMS-5 and HMS-10 are removed by simply unsnapping the corner treeloks and removing the grille. Grille frames for the HMS-12 and HMS-15 include an L-bracket securing them to the bottom of the cabinet, for safety reasons, that must be removed before the grille can be detached.
  • Page 22 CHAPTER 5: REMOVING HMS GRILLE FRAMES...

  • Page 23: Appendix A: Hms Accessories

    APPENDIX A: HMS ACCESSORIES The following HMS accessories are available from Meyer Sound. HMS Accessories Part Number Accessory Notes 09.205.001.01 MPS-488HPp external power supply Channel outputs equipped with Phoenix 5-pin male con- (with US power cord) nectors 09.205.001.02 MPS-488HPp external power supply...
  • Page 24 APPENDIX A: HMS ACCESSORIES...

  • Page 25: Appendix B: Assembling Loudspeaker Cables

    APPENDIX B: ASSEMBLING LOUDSPEAKER CABLES CAUTION: When wiring loudspeaker cables, it is extremely important that each pin be wired correctly. Make sure the 48 V DC from the external power supply is wired directly (and only) to the 48 V DC pins on the loudspeaker connector, and that the polarity is observed (negative to negative, positive to positive) to avoid damage to the loud- speaker.
  • Page 26 APPENDIX B: ASSEMBLING LOUDSPEAKER CABLES 3. Secure the conductors by tightening the five screws in the Phoenix cable mount connector. Screws should be torqued to 5–6 Nm (4.4–5.3 in-lbs). Tighten screws CAUTION: Screws should not be inserted into the Phoenix connector while the connector rests in a mating plug. Doing so will damage the contacts.

  • Page 27: Appendix C: Hms Specifications

    APPENDIX C: HMS SPECIFICATIONS HMS Specifications ACOUSTICAL HMS-5 HMS-10 HMS-12 HMS-15 Operating Frequency 55 Hz – 18 kHz 55 Hz – 18 kHz 59 Hz – 18 kHz 50 Hz – 18 kHz Range Note: Recommended maximum operating frequency range. Response depends on loading conditions and room acous- tics.
  • Page 28 Voltage Requirement 48 V DC 48 V DC 48 V DC 48 V DC Note: Requires MPS-488HP IntelligentDC power supply. The MPS-488HP can power up to eight HMS-5, HMS-10, or HMS-12 loudspeakers, or up to four HMS-15 loudspeakers. HMS-5 HMS-10 HMS-12 HMS-15 Requires RMS option for the MPS-488HP IntelligentDC power supply.
  • Page 29 5.67 [144 mm] Fixed Bracket 10.53 [267 mm] 15.00 [381 mm] 3.70 9.66 [94 mm] [245 mm] 4.75 15° [121 mm] 12.45 [316 mm] 3.00 4.25 [76 mm] [108 mm] 6.61 [168 mm] HMS-5 Dimensions with FMB-HMS Fixed Mount Bracket...
  • Page 30 5.26 [134 mm] Adjustable Bracket 11.90 [299 mm] 15.00 [381 mm] 3.70 9.66 [94 mm] [245 mm] 4.75 15° [121 mm] 12.45 [316 mm] 3.00 4.25 [76 mm] [108 mm] 6.61 [168 mm] HMS-5 Dimensions with AMB-HMS Adjustable Mount Bracket...
  • Page 31 HMS OPERATING INSTRUCTIONS HMS-10 Dimensions with FMB-HMS 5.26 [134 mm] Adjustable Bracket 14.72 [374 mm] 15.50 [394 mm] 7.39 12.48 [188 mm] [317 mm] 7.80 [198 mm] 19.50 [495 mm] 3.00 [76 mm] 5.00 [127 mm] 6.87 [174 mm] HMS-10 Dimensions with FMB-HMS Fixed Mount Bracket...
  • Page 32 APPENDIX C: HMS SPECIFICATIONS HMS-10 Dimensions with AMB-HMS 5.26 [134 mm] Adjustable Bracket 14.72 [374 mm] 15.50 [394 mm] 7.39 12.48 [188 mm] [317 mm] 7.80 [198 mm] 19.50 [495 mm] 3.00 [76 mm] 5.00 [127 mm] 6.87 [174 mm] HMS-10 Dimensions with AMB-HMS Adjustable Mount Bracket...
  • Page 33 HMS OPERATING INSTRUCTIONS HMS-12 Dimensions with FMB-HMS 5.67 [144 mm] Fixed Bracket 10.65 [272 mm] 16.80 [427 mm] 9.78 10.57 [248 mm] [268 mm] 15° 11.67 [296 mm] 25.12 [638 mm] 3.00 2.25 [76 mm] [57 mm] 6.20 [158 mm] HMS-12 Dimensions with FMB-HMS Fixed Mount Bracket...
  • Page 34 APPENDIX C: HMS SPECIFICATIONS HMS-12 Dimensions with AMB-HMS 5.26 [134 mm] Adjustable Bracket 12.02 [305 mm] 16.80 [427 mm] 9.78 10.57 [248 mm] [268 mm] 15° 11.67 [296 mm] 25.12 [638 mm] 3.00 2.25 [76 mm] [57 mm] 6.20 [158 mm] HMS-12 Dimensions with AMB-HMS Adjustable Mount Bracket...
  • Page 35 HMS OPERATING INSTRUCTIONS HMS-15 Dimensions with FMB-HMS 15.07 [383 mm] 5.26 [134 mm] Adjustable Bracket 14.74 [374 mm] 19.00 [483 mm] 12.50 12.67 [318 mm] [322 mm] 13.35 [339 mm] 29.10 [739 mm] 4.34 3.00 [110 mm] [76 mm] 8.20 [208 mm] HMS-15 Dimensions with FMB-HMS Fixed Mount Bracket...
  • Page 36 APPENDIX C: HMS SPECIFICATIONS HMS-15 Dimensions with AMB-HMS 15.07 [383 mm] 5.26 [134 mm] Adjustable Bracket 14.74 [374 mm] 19.00 [483 mm] 12.50 12.67 [318 mm] [322 mm] 13.35 [339 mm] 29.10 [739 mm] 4.34 3.00 [110 mm] [76 mm] 8.20 [208 mm] HMS-15 Dimensions with AMB-HMS Adjustable Mount Bracket...
  • Page 37 HMS OPERATING INSTRUCTIONS FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 38 APPENDIX C: HMS SPECIFICATIONS...
  • Page 40 Meyer Sound Laboratories Inc. © 2016 2832 San Pablo Avenue Meyer Sound. All rights reserved. Berkeley, CA 94702 HMS Operating Instructions +1 510 486.1166 PN 05.198.005.01 A www.meyersound.com...
