Related Manuals for Meyer Sound Self-Powered Studio Monitor HM-1S
Summary of Contents for Meyer Sound Self-Powered Studio Monitor HM-1S

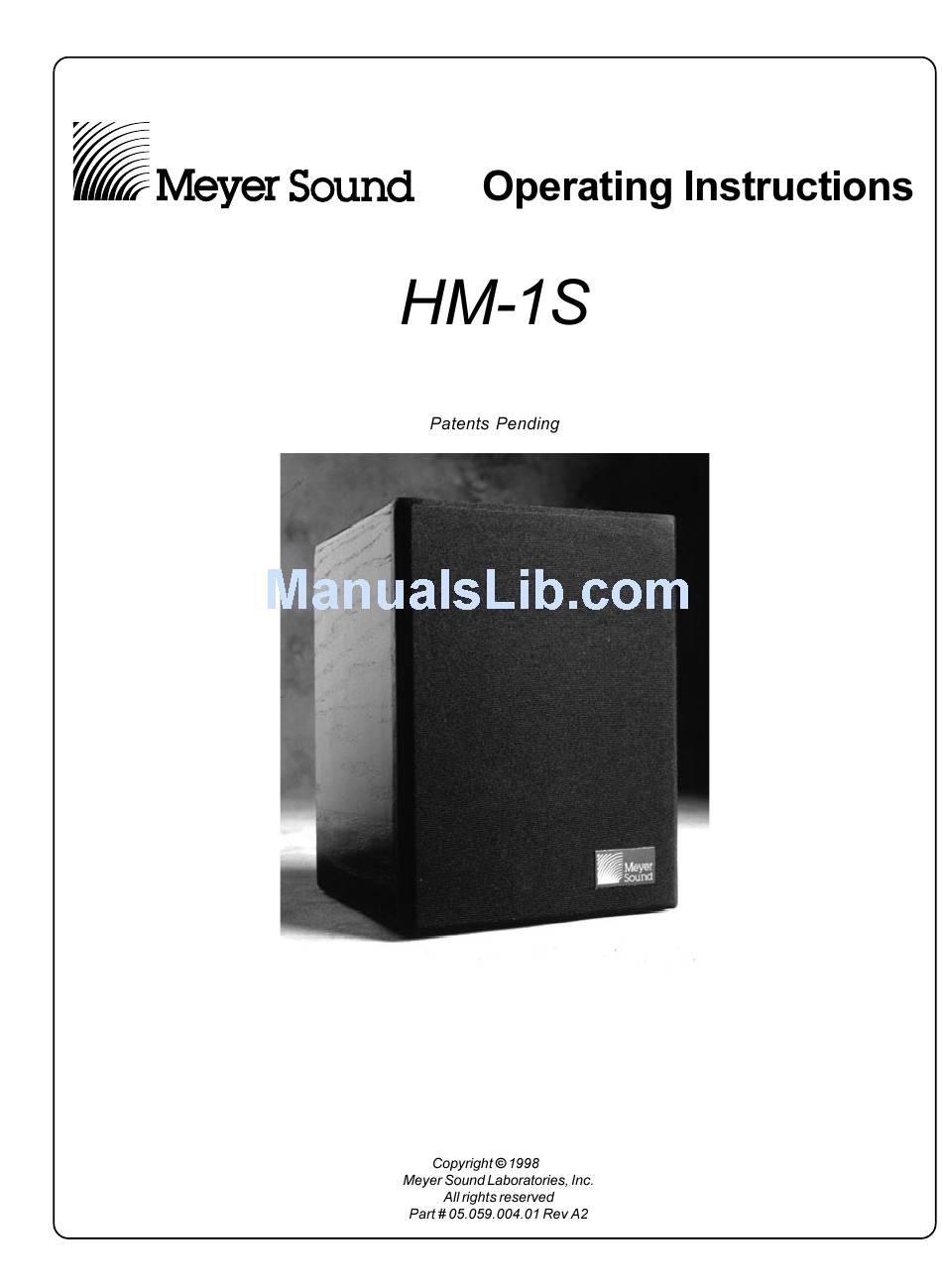

- Page 1 Self-Powered Studio Monitor...
- Page 6 Connections: Gray wire to pin 1, pin 2 no connection, pin 3 no connection. Connections: pin 1 no connection, pin 2 no connection. White wire to pin 3. GRAY WHITE Connections: Gray wire to pin 1, pin 2 no connection, White wire to pin 3.
- Page 7 Boot Cable Cable Clamp Housing Step 1: Feed the end of the cable through the boot, cable clamp housing, and coupling ring in the order and position shown. Cable 3/8" Max. 7/32" Step 2: FOR STEREO CABLES: Strip cable as shown and begin soldering conductors to pins starting with the Gray wire to pin 1, pin 2 no connection, and the White wire to pin 3.
- Page 16 Installed fans blow air over the heatsink...
