Panasonic NA-FS16G2 Service Manual

Hide thumbs

Advertisement

Table of Contents

CONTENTS
1.Specifications.......................................................................................
2.Technical Descriptions...........................................................................
3.How to Install.......................................................................................
4.Operation Instruction..............................................................................
5.Test Mode.......................................................................................
6.Troubleshooting Guide...........................................................................
7.Disassembly Instructions..................................................................
8.Wiring Diagram.......................................................................................
9.Parts Location & Replacement Parts List...................................................
ORDER NO. TAM1202001CE
NA-FS16G2/NA-FS14G2
‧Product Color
‧Destination
© 2012 Panasonic Taiwan Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.
: Sliver / White
: Panama
Page
1
2
3
4
6
8
10
15
16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NA-FS16G2 and is the answer not in the manual?

Questions and answers

Cristian
March 1, 2025

Cuando la lavadora termina el ciclo de lavado y va expulsar el agua se queda hay como haciendo fuerza la bomba y después de un buen rato como q coje y expulsa el agua normal

0
1 comments:
Mr. Anderson
March 1, 2025

The Panasonic NA-FS16G2 washing machine may struggle to drain water due to a malfunction of the motorized drain valve. Possible causes include:

1. Abnormal condition of connectors for the motorized drain valve.
2. Failure of the motorized drain valve to operate within 20 seconds after the drain mode starts.
3. Issues with the output voltage of the PCB (Power side).

To resolve this, check the condition of the connectors, replace the motorized drain valve if necessary, and verify the PCB's output voltage.

This answer is automatically generated

0
Maria Isabel Monge
February 27, 2025

como receter mi lavadora al modo inicial

0
1 comments:
Mr. Anderson
February 27, 2025

The manual does not explicitly mention a factory reset procedure for the Panasonic NA-FS16G2 washing machine. However, you can try the following general reset steps:

1. Turn off the machine and unplug it from the power source.
2. Wait for a few minutes (about 5-10 minutes) to allow the internal components to reset.
3. Plug the machine back in and turn it on.

If the issue persists, check the troubleshooting guide for error codes and follow the recommended steps.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Panasonic NA-FS16G2

Summary of Contents for Panasonic NA-FS16G2

  • Page 1: Table Of Contents

    1.Specifications…………………………………………………………………………… 2.Technical Descriptions………………………………………………………………… 3.How to Install…………………………………………………………………………… 4.Operation Instruction…………………………………………………………………… 5.Test Mode…………………………………………………………………………… 6.Troubleshooting Guide………………………………………………………………… 7.Disassembly Instructions………………………………………………………… 8.Wiring Diagram…………………………………………………………………………… 9.Parts Location & Replacement Parts List…………………………………………… © 2012 Panasonic Taiwan Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.

  • Page 2: Specifications

    1.Specifications Model NA-FS16G2 NA-FS14G2 Events Power source AC 110-120 V , 60 Hz AC 110-120 V , 60 Hz Power consumption 430 W 420 W (Motor) Output 200 W 185 W Laundry amount 16 kg 14 kg Spin (Clothes load)

  • Page 3: Technical Descriptions

    2.Technical Explanation 2.1 The water flow of pulsator Beat Screw A powerful motor rotates the Big Beat (BB) Flapper to create a vortex. Rotating fins on the bottom suck in water Bottom which is pumped to the upper nozzle and Beat Flash released as a high-pressure splash.

  • Page 4: How To Install

    3.How to install nut. To connect the drain hose 1.Connect the drain hose securely to the drain hose connection of the washing machine . And move the hose band next to the body. 2. Follow the limits of maximum height (1.10m) and minimum (0.70m) for installation of drain hose.
  • Page 6 4.2 Wash cycle Process WATER WASH RINSE SPIN COURSE SOAK LEVEL TIME CYCLE TIME 6~15 min. 1~9 min. ○ NORMAL *１ 1~3 times *１ *１ (Refill) 6~15 min. 1~9 min. ○ MY FAVORITE *１ 1~3 times *１ *１ (Refill) 3 min. 2 times ─...

  • Page 7: Test Mode

    5. Test Mode 1.Set the power switch to "off". 2.Press and hold both the "Water lever" and "Wash" buttons with one hand. 3.Press the power switch to "on". 4.Release your fingers from the buttons and power switch which you pressed in steps (2) and (3) . (Check A can be carried out in this state with your fingers released) 5.Within three seconds press the "Water lever "...
  • Page 8 Number of times Check the "Water lever" Lamp illumination condition Check Contents Operation condition Procedure button is pressed • Adjust the • Press the "WASH" button to adjust L0 (initial water amount mode) to L1 (1-rank higher water level). against laundry •...

  • Page 9: Troubleshooting Guide

    6.Troubleshooting Guide 6.1 "U--" Error indication *If there is an operation error, or if there is a problem with the washing machine, such as faulty draining, spinning etc; operation will stop, the warning buzzer will sound, and an error indication will be displayed Indication Check point Content...
  • Page 10 6.2 "H--" Error indication ‧If there is an operation error, or if there is a problem with the washing machine, (1)All the switchs can not be operated. (2)An error indication will be displayed. Content Check point Indication Method to clear *Check if you condition of the connectors.

  • Page 11: Disassembly Instructions

    7.Disassembly Instructions 7.1 Warning 　 Before attempting to servics or adjust any part of the machine, 　 disconnect the electrical power suppy from the outlet. 7.2 Caution Electronic components of the print circuit board is MOS TYPE FET. When replace and trouble shooting of the print circuit board, make sure body is grounded before beginning repair work.
  • Page 12 7.4 The POWER PCB, NOISE PCB, PS SWITCH, SF SWITCH and FEED VALVE replacement 1. Remove the window and 2 screws mounting the PANEL A, then remove the PANEL A. 2. The POWER PCB replacement. a. Remove 1 screws mounting the PCB. Pull b.
  • Page 13 5. FEED VALVE replacement. a. Take DETERGENT CASE B out. b. Remove LEAD WIRE CONNECTOR. c. Remove 4 screws mounting the DETERGENT CASE AU and FEED VALVE SUPPORT . d. Pull DETERGENT CASE AU out. e. Remove 2 screws mounting the FEED VALVE (for clod water).
  • Page 14 7.5 The MECHANISM U replacement 1. Remove 4 screws mounting the Body B, then raise the Body B. 2. Remove 8 screws mounting the OUTER TUB COVER. 3. Remove the special screw mounting the PULSATOR. ‧Do not remove the special screw from PULSATOR completely then hold the screw head to pull the PULSATOR upward to remove.
  • Page 15 7.6 The MOTOR replacement 1. Lay down the washing machine on it right side. 2. Remove both lead wire connectors from the MOTOR and the ROTARY SENSOR. 3. Loosen four bolts (M13) mounting the motor by using HW-18, and remove V-belt. 4.

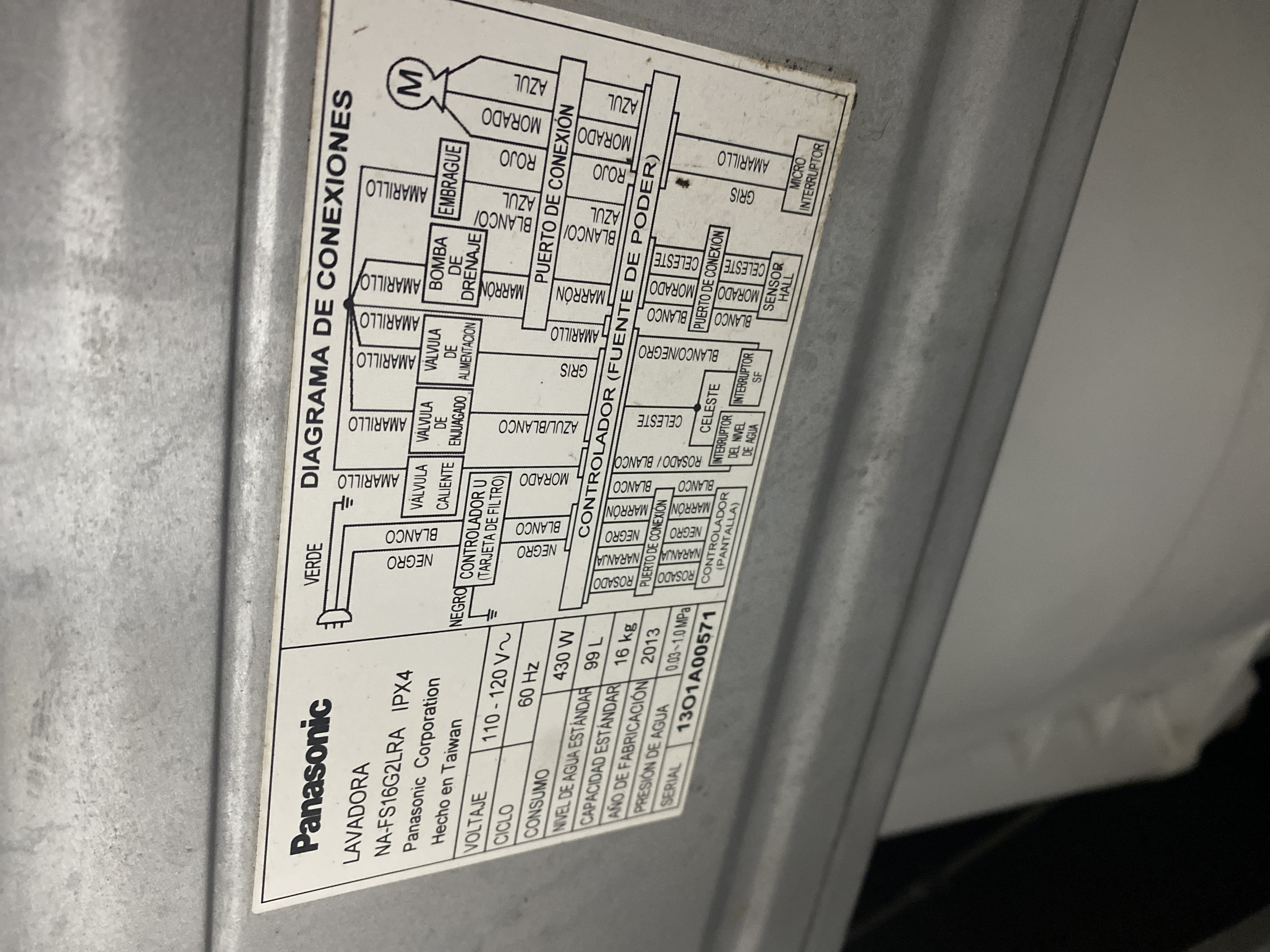

  • Page 16: Wiring Diagram

    8. Wiring Diagram -15-...

  • Page 17: Parts Location & Replacement Parts List

    9. Parts Location & Replacement Parts List 9.1 Small standardized metal parts Part Name Part No. Q'ty Remarks 1 BIND TAPPING SCREW XTB3+10BFJ 10 AXW24S+AXW145 2 BIND TAPPING SCREW X-T0405 4 AXW145+AXW102 3 BIND TAPPING SCREW XTB4+12CFJ 2 AXW1661+AXW102 4 BIND TAPPING SCREW XTB4+12CFJ 1 AXW24C+AXW102 5 BIND TAPPING SCREW...
  • Page 18 9.2.1 Location of Parts-A -17-...
  • Page 19 9.2.2 Replacement parts list-A Part Name Part No. Q'ty FS14G2 FS16G2 ○ A1 BODY B W0102-F6G50SW ○ BODY B(P) W0102-F6G50P ○ A2 PANEL FACE A W0145-B5S51SW ○ W0145-B5T00P ○ A3 PANEL FACE B W0146-F4G00 ○ W0146-F6G00 A4 CONTROLLER U W024S-F4G00 ○...
  • Page 20 9.3.1 Location of Parts-B -19-...
  • Page 21 9.3.2 Replacement parts list-B Model No. Ref. Description Part No. Q'ty FS14G2 FS16G2 ○ B1 BODY AU W001A-F6G00SW ○ W001A-F6G00MH ○ B2 GRIP W0110-11A01SW ○ W0110-11A01HA ○ ○ B3 BODY SPONGE A W3254-B6S00 ○ ○ B4 BODY SPONGE W3254-14T00 ○ ○...
  • Page 22 9.4.1 Location of Parts-C C3,C35 To B19 -21-...
  • Page 23 9.4.2 Replacement parts list-C Ref. Model No. Description Part No. Q'ty FS14G2 FS16G2 ○ ○ C1 SUSPENSION AU W034I-V16N ○ ○ C2 OUTER TUB A W1201-11A05 ○ ○ C3 OF COVER W0297-B4G01 ○ ○ C4 OUTER TUB B W1202-15HA5 ○ ○...
  • Page 24 9.5.1 Location of Parts-D 9.5.2 Replacement parts list-D Model No. Ref. Description Part No. Q'ty Remark FS14G2 FS16G2 ○ ○ CASE BU W090B-13X00 ○ ○ W012C-F6G00 PRESSURE HOSE U(1.0M-HOT) ○ ○ PRESSURE HOSE U(1.0M) W012C-5VV50 ○ ○ W002E-B4GN0 FLEXIBLE HOSE B ○...
