Thank you for purchasing this product.
- Read these instructions carefully for optimum
performance and safety before use.
- Keep this manual for future reference.
Operating & Installation
Fully Automatic Washing Machine
NA-FS10X7 NA-FS95X7
Model No.
Contents
Instructions
(Household Use)
NA-FS85X7
AWW9901C1E00
A0918-0(V)
Printed in Vietnam
2
6
7
8
9
10
12
14
18
19
20
24
28
30
32
09-2018
Advertisement
Table of Contents
Related Manuals for Panasonic NA-FS10X7
Summary of Contents for Panasonic NA-FS10X7
-
Page 1: Table Of Contents
Operating & Installation Instructions Fully Automatic Washing Machine (Household Use) NA-FS10X7 NA-FS95X7 Model No. NA-FS85X7 Contents Safety Precautions Part Names / Accessories Before Washing Operation Panel Washing Variety of Programs Detergent / Softener / Bleach Washing Options • Preset • Wash / Rinse / Spin •... -
Page 2: Safety Precautions
Safety Precautions WARNING May cause serious injury or death. Children must not use it alone. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 3 In case of failure or damaged power cord, Accumulated dust stop use and ask the service centre. may cause fire. Securely insert the ground prong. Wipe the power plug periodically. Call your local dealer for a new socket. Use a socket appropriate for this Keep away from appliance.
- Page 4 Safety Precautions (continued) CAUTION May cause injury. Be careful not to get your fingers caught. Do not climb or put objects on the appliance. If the lid is broken, immediately stop using. Be careful of your hands and feet. May cause water leakage. Turn off the water faucet.
- Page 5 May cause failure. Keep away from heat and direct For Machine-washable sunlight. items only. Do not wash waterproof items. Do not use hot water. Raincoats, wet suits, etc. Over 50 ºC Do not obstruct. Do not obstruct the openings of the bottom face with carpet, etc.
-
Page 6: Part Names / Accessories
Part Names / Accessories Part names Operation panel Water supply valve (P. 8) (P. 26) Leveller (P. 27) Detergent and softener drawer (P. 12) Detergent/ Bleach inlet (P. 12) Lint filter Power cord and plug* (P. 20) (P. 3) * The plug shape varies with the region. -
Page 7: Before Washing
Before Washing Laundry preparation and check Pre-laundry check Use laundry nets for delicates Overpack For “Stain Master” (P. 16) Pretreatments for heavily stains Reverse Observe the clothes' care labels. Clothes likely to pill Paper diapers To prevent colour staining... -

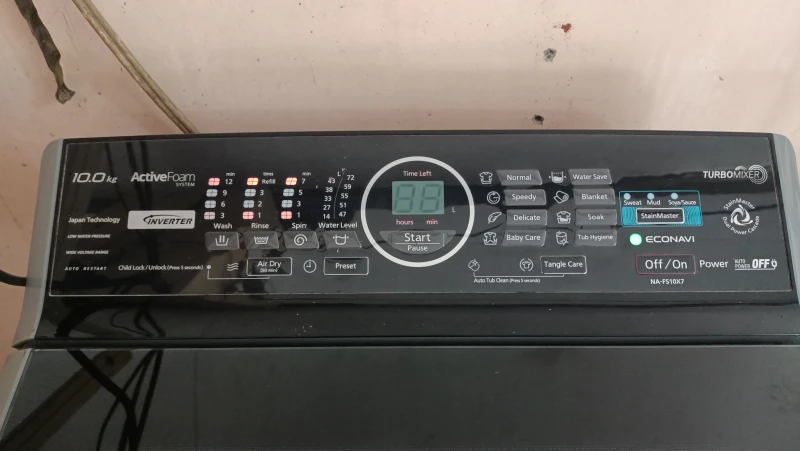

Page 8: Operation Panel
Water level (L) Detergent * 72 * Flashing Approx. (in progress) 5 sec Lighting Remaining time *1 NA-FS10X7: 72 L NA-FS95X7: 71 L NA-FS85X7: 66 L : 1 scoop of detergent Stain Master For NA-FS10X7 (P. 16) Start/Pause Air Dry... -
Page 9: Washing
Washing „ Preset timer (P. 14) (P. 10) Measures the amount of laundry. 10 sec 5 sec 20 sec (P. 8) (P. 12) „After pressing “Start” To change each operation (while washing). Start Pause To check or change the water level (while washing). You cannot change the program. -
Page 10: Variety Of Programs
Variety of Programs Max. Program Purpose capacity * (kg) Everyday clothes Normal (P. 9) 10.0 Anti-tangling Tangle • Washing more gently than “Normal” to Care (P. 9) reduce tangle. • Disentangling clothes after spin: 6 kg or less. For light soil 10.0 Speedy (P. - Page 11 * Top: NA-FS10X7 / Middle: NA-FS95X7 / Bottom: NA-FS85X7 Max. Program Purpose capacity * (kg) 10.0 For heavy soil Soak (P. 9) Presoaking to wash (P. 16) For the following stains Light Sweat Soya/Sauce Heavy Drying synthetic fibre clothes Air Dry (90 min) (P.
-
Page 12: Detergent / Softener / Bleach
Detergent / Softener / Bleach Follow the instructions on each package. For cleaning (P. 21) Bleach Whiten bleach (chlorine bleach) - Page 13 Liquid Powder Softener detergent detergent Max. 100 ml Detergent If powder detergent does not dissolve well, put it in the bleach inlet. The level of foaming depends on the load size, soil, detergent, and water hardness. Softener During operation Water Pause Concentrated softener...
-
Page 14: Washing Options
Washing Options Preset Wash / Rinse / Spin Set how many hours later to finish operation. 2 min All other indications turn off. 2 - 24 h 1 - 24 h 2 - 24 h 2 - 24 h 3 - 24 h 2 - 24 h „... -
Page 15: Delicate
4.2 kg Max. 47 L 3.0 kg • 100 % synthetic fibre water amount* • 100 % cotton NOTE * NA-FS10X7: 72 L / NA-FS95X7: 71 L / Liquid delicate NA-FS85X7: 66 L Bleach detergent Zipper Zipper „ After operation ends Take out immediately. -
Page 16: Stain Master
Washing Options (continued) Stain Master Preparation: For NA-FS10X7 (P. 7) NOTE Max. 4.0 kg „ Timer preset: (P. 14) Max. water amount: 59 L You cannot change the wash process setting of this program. -
Page 17: Air Dry (90 Min)
Air Dry ECONAVI (90 min) The air blown from the tub rotation “Normal” program only removes water from clothes. Water and time Weight / Temperature Dryable clothes: Synthetic fibre saving (Max. 2.0 kg) „ Lamp indications Detecting ECONAVI enabled ECONAVI disabled „... -
Page 18: Convenient Functions
Convenient Functions Setting Auto Tub Clean Setting Child Lock Preventing black mould (Normal, Baby Care, Soak) Forcible 10 sec Hold 5 sec drainage * This function does not lock the lid and button operations. „ To cancel: same procedure Cancelling end buzzer Hold 5 sec &... -
Page 19: Contents Of Programs
Contents of Programs Total time Wash Spin Program Rinse (min) (min) (min) 2 times Normal Speedy Refill 2 times 2 times Delicate Baby Care Refill 2 times 3 times Water Save Refill 2 times Blanket 2 times Soak (Soak 60) + Sweat 2 times 2 times... -
Page 20: Maintenance
Maintenance Lint filter After each operation Water Click NOTE If it is difficult to If the filter is broken Without the filter remove the filter Local dealer (P. 18) - Page 21 Detergent and softener drawer If stained with detergent or softener Remove Thin Thick Click Attach Main unit, lid For heavy soil Neutral kitchen detergent...
- Page 22 Maintenance (continued) Water supply filter If water does not flow smoothly Water supply filter Start Approx. 40 sec Loosen Tighten...
- Page 23 Once a week <Air Dry> (P. 17) Empty Once a month <Tub Hygiene> Whiten bleach (chlorine bleach) 200 ml Start Empty Approx. 2.5 hours Start Pause Full...
-
Page 24: Installation
Make sure to ask a service person for installation. Check the location. „ Do not install by yourself. „ Follow this installation method. If you do not, Panasonic will not be liable for any accident or damage. Bottom cover External drain water hose... - Page 25 Attach the bottom cover Attach the external drain water hose NOTE Over 10 cm Over 3 m...
- Page 26 Installation (continued) Connect the water supply hose Thread: Approx. 4 mm Check that the Loosen elbow is not loose. Tighten CAUTION Tighten the nut firmly. Tighten securely Do not twist, squash, modify or cut (To prevent water the hose. leakage).
- Page 27 Connect the power plug and grounding Check that the washing machine is level „ If the bubble is out of the mark Mark Bubble Loosen Adjust Inside the mark Tighten Trial operation Abnormal sounds (P. 28)
-
Page 28: Error Display
Error Display „ Preparation Cancel Child Lock (P. 18) it is set. Error Display Points to be checked Check Lint Water cannot drain. Over 10 cm Over 3 m The lid is open. Uneven Even Spin or “Air Unstable or incline Dry”... - Page 29 Error Display Points to be checked Water outage Turned off Water cannot be supplied. Water supply filter (P. 22) With Child Lock set Forcible drainage 10 sec Water has been forcibly drained. 5 sec Inspection is required.
-
Page 30: Troubleshooting
Troubleshooting Symptoms Points to be checked Time indication is approximate. Indication increases or Remaining time is corrected during operation. does not decrease. Longer than the indication. When the water When clothes When the water are uneven. drainage is not good. supply is not good. - Page 31 Symptoms Points to be checked Water is supplied while When water When amount of washing. level drops. laundry is large. Water is added automatically. The water level When there is water When laundry is wet. in the tub before operation. too high The water level may be higher.
-
Page 32: Specifications
1070 mm (H) Product weight 38 kg Pressure of tap water 0.01 - 1 MPa * Operation is guaranteed with the voltage fluctuation from 195 V to 245 V, but not for performance. http://www.panasonic.com © Panasonic Appliances (Vietnam) Co., Ltd. 2018...
