Zone Edit - Studio Logic SL88IGRAND Operation Manual

To enter in Zone Edit, press the IN button when one of the
Zones is selected; you can still select another Zone by using
the left/right Encoder's controls. From the list of parameters,
you can either press IN, rotate the Encoder or move the cursor
to the right to enable the parameter's modification.
ENABLE
MIDI PORT
CHANNEL
PROGRAM
MSB - LSB
VOLUME
KEY RANGE 1
VELOCITY RANGE 2
VELOCITY CURVE 3
AFTERTOUCH
TRANSPOSE 4
OCTAVE
PEDAL 1
PEDAL 2
PEDAL 3
PEDAL 4*
STICK 1 X
STICK 1 Y
STICK 2 X
STICK 2 Y
STICK 3 X
STICK 3 Y
INSTRUMENT NAME
SOUND NAME
*Pedal 4 can be programmed to control all available para-
meters (switch and continuous) but it can also be set to be
connected with special multi-pedals (SLP3 GRAND, NTP, etc.)
allowing to have up to three pedals in one plug. A typical ap-
plication is a triple piano pedal, where two pedals can control
the Soft and Sostenuto functions, while the third pedal can
control a half-pedaling Damper function.
to enable or disable the selected zone
to select the related OUT port within the
avaible ones (USB, MIDI 1, MIDI 2)
001 - 016
001 - 128
000 - 127 (for both)
000 - 127
A0 - C8
000 - 127
SOFT/NORMAL/HARD, USER(1-6),
FIXED (VALUE 001-127)
OFF/ON
-12 / +12 SEMITONES
-3 / +3
(selectable functions)
(selectable functions)
(selectable functions)
(special functions)
(selectable functions)
(selectable functions)
(selectable functions)
(selectable functions)
(selectable functions)
(selectable functions)
Setup parameters

Zone Edit

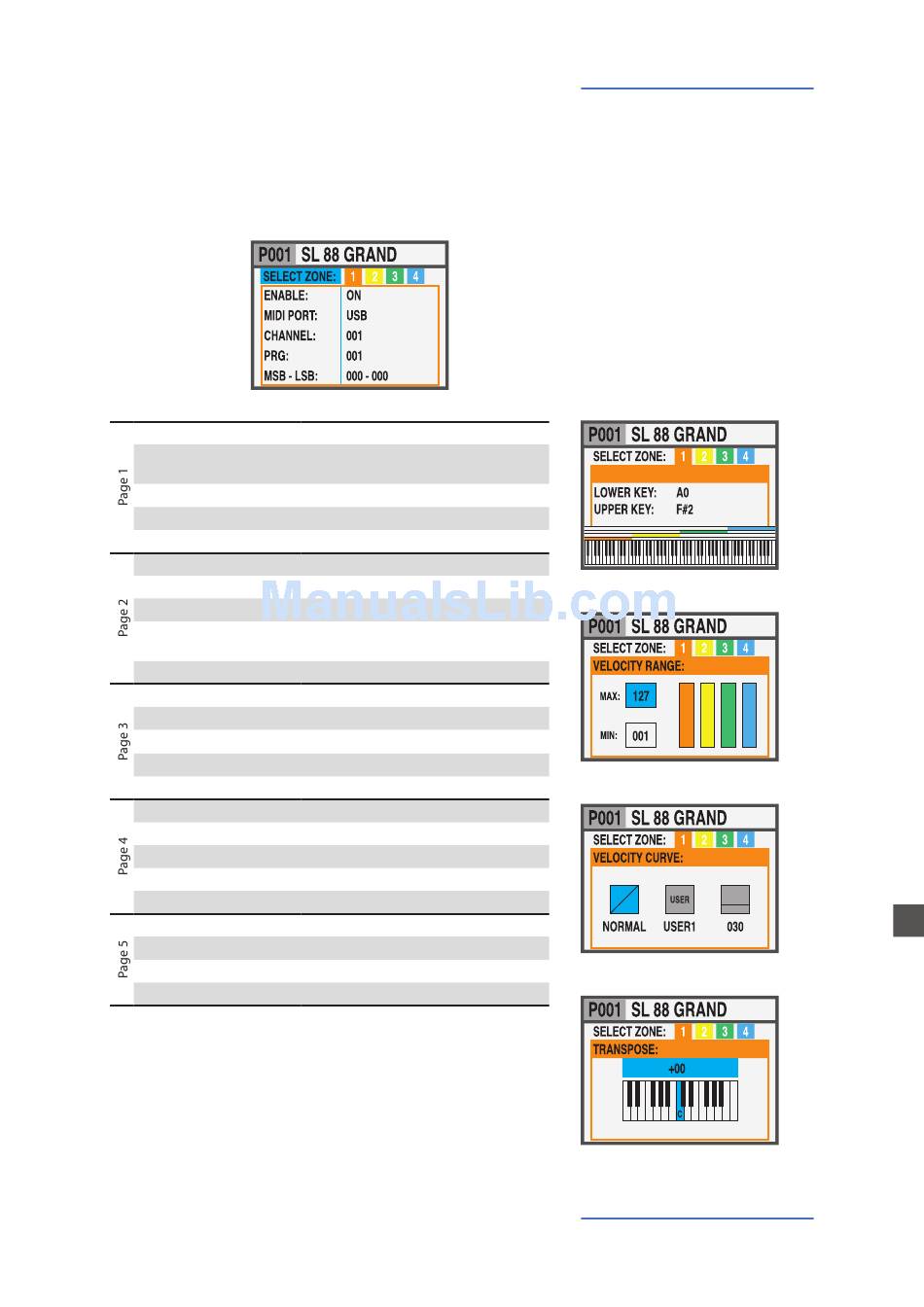

KEYRANGE:
1 KEY RANGE
2 VELOCITY RANGE
3 VELOCITY CURVE
4 TRANSPOSE
