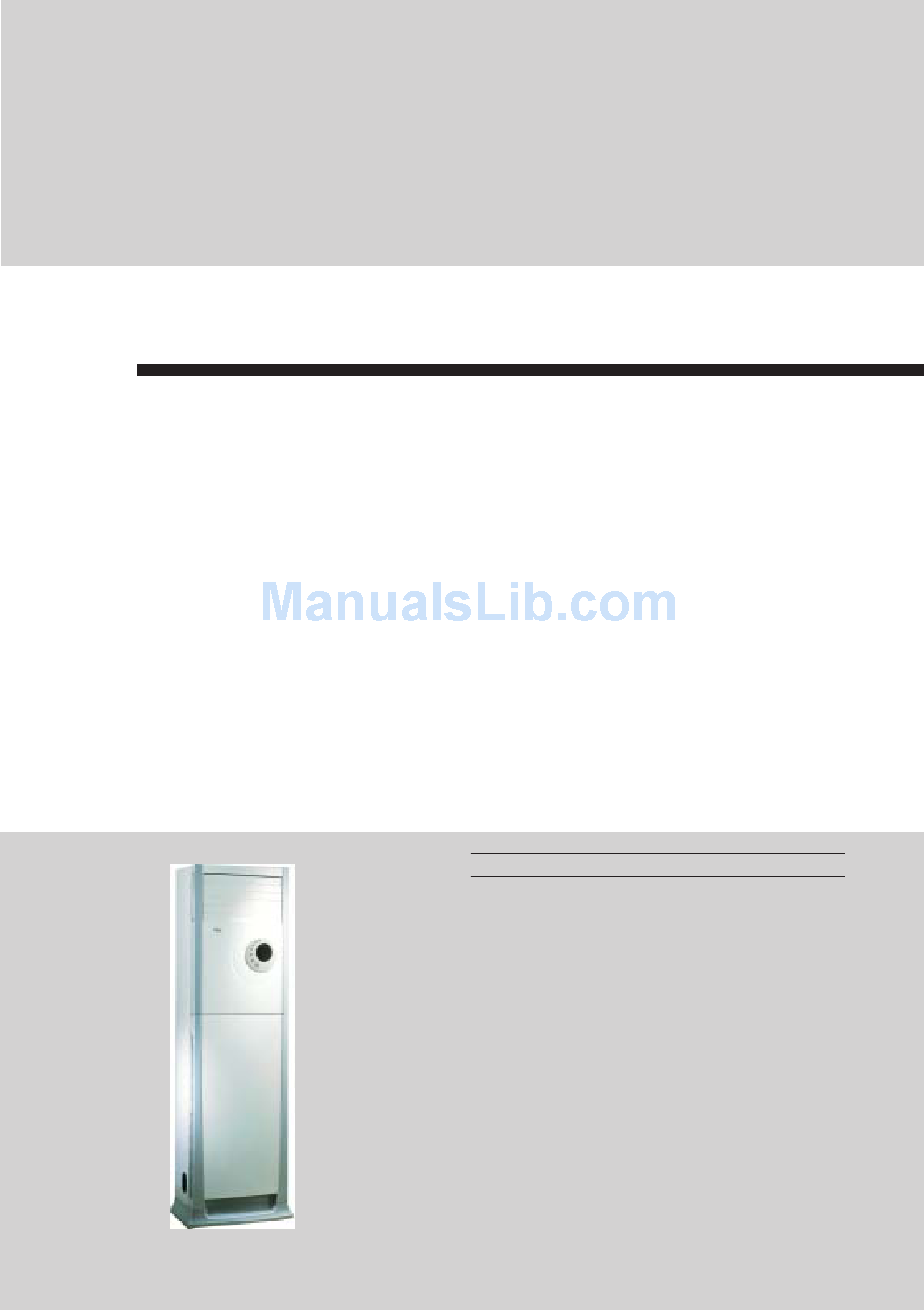

TCL
FLOOR-STANDING AIR CONDITIONERS
SERVICE MANUAL
No.TE040610
Models
TAC-24CF/E
TAC-24CHF/E
CONTENTS
···································2
2. TECHNICAL SPECIFICATION
·····················3
···································4
4. WIRING DIAGRAM
············· 5
···························· 12
·············18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TCL TAC-24CF/E
Summary of Contents for TCL TAC-24CF/E
- Page 1 FLOOR-STANDING AIR CONDITIONERS SERVICE MANUAL No.TE040610 Models TAC-24CF/E TAC-24CHF/E CONTENTS 1. IMPORTANT NOTICE ···································2 2. TECHNICAL SPECIFICATION ·····················3 3. OPERATION DETAILS ···································4 4. WIRING DIAGRAM ············· 5 5. EXPLOSION VIEW ···························· 12 6. PARTS LIST ·············18...
- Page 2 TCL Air Conditioner Service Manual IMPORTANT NOTICE This service manual is intended for use by individuals possessing adequate backgrounds of electrical, electronic and mechanical experience. Any attempt to repair the appliance may result in personal injury and property damage. The manufacturer or seller cannot be responsible for the interpretation of this information, nor can it assume any liability in connection with its use.
- Page 3 TCL Air Conditioner Service Manual Technical Specifications Model No. TAC-24CS/F TAC-24CHS/F Type Cooling Only Heating Pump Control type Remote Remote Rated cooling capacity Btu/h 24000 24000 Rated heating capacity Btu/h 25000 EER for cooling Btu/h.w 10.3 COP for heating Moisture removal...
- Page 4 TCL Air Conditioner Service Manual Operation Details Remote controller Remote controller The remote controller transmits signals to the system. ON/OFF button Used to start and stop operation when pressed. TIMER button SLEEP TIMER ON TMIER OFF FEEL AUTO HIGH COOL Used to select TIMER operation.
- Page 5 TCL Air Conditioner Service Manual Elctronic Controller 1. Safety Control (1) Time Delay Safety Control 3 minutes delay for compressor---The compressor is ceased for 3minutes to balance the pressure in the refrigeration cycle in order to protect the compressor. 2 minutes delay for 4-way valve---The 4-way valve is ceased for 2 minutes to prevent the refrigerant-gas abnormal noise when the HEATING operation is OFF or switch to the other operation mode.
- Page 6 TCL Air Conditioner Service Manual Room Temp. Set TEMP. ＋1 ℃ Set TEMP. －1 ℃ Time More than 2 min More than 2 min More than 2 min More than 2 min More than 2 min Indoor Fan Set Speed...
- Page 7 TCL Air Conditioner Service Manual (5) Defrost Defrosting of the outdoor heat exchange is controlled by the microprocessor with detection by the defrost sensor. Defrost starting conditions When the conditions of a) or b) is satisfy, the defrosting operation starts.
- Page 8 TCL Air Conditioner Service Manual The indoor fan motor always turns on at the set speed and the vane motor turns on at the set fattle. 7. 4-way Valve contro HEATING COOLING/DRY The 4-way valve reverses for 5 seconds right before start-up of the compressor as following chart:...
- Page 9 TCL Air Conditioner Service Manual 11. Auto Vane Operation control (1) Vane motor drive The unit is equipped with a stepping motor for the vane. The rotating direction, speed, and angle of the motor are controlled by pulse signal transmitted from indoor microprocessor.
- Page 10 TCL Air Conditioner Service Manual the display. You can now adjust the temperature with the ▲▼ button. Press the Timer button again to ☆ display the time, which can now also be adjusted If the Timer button is pressed again, the data is stored and the remaining time(that the air conditioner will be in operation) will appear in the display.
- Page 11 TCL Air Conditioner Service Manual this, it displays the failure and the protection is failing. You must be give the electric again to operate it. In the failure, you can operate the FAN mode. When the outdoor protects in the COOLING or DRY, the outdoor unit stops, the indoor fan operates in set speed ;...
- Page 12 TCL Air Conditioner Service Manual WIRING DISGRAM MODEL:TAC-24CF/E INDOOR UNIT: IN DOOR W IRING DIAGRAM 1130080198 DISPLAY CIRCUIT M S SW ING M OTOR ～ CAPACITOR ～ M AIN CO NTROL PCB Y LW /GRN FAN M OTOR W H ITE Y LW /GRN ～...
- Page 13 TCL Air Conditioner Service Manual MODEL: TAC-24CHF/E INDOOR UNIT: INDOOR W IRING DIAGRAM (1130080201) CONTROL BOARD SW ING M OTOR ～ ～ CAPACITOR FAN M OTOR M AIN CONTROL BOARD YLW /GRN YLW /GRN W HITE ～ AC220 50Hz TRANSFORM ER...
- Page 14 TCL Air Conditioner Service Manual EXPLOSION VIEW MODEL: TAC-24CF/E INDOOR UNIT:...
- Page 15 TCL Air Conditioner Service Manual EXPLOSION VIEW MODEL: TAC-24CHF/E INDOOR UNIT:...
- Page 16 TCL Air Conditioner Service Manual EXPLOSION VIEW: MODEL: TAC-24CF/E OUTDOOR UNIT:...
- Page 17 TCL Air Conditioner Service Manual EXPLOSION VIEW MODEL: TAC-24CHF/E OUTDOOOR:...
- Page 18 TCL Air Conditioner Service Manual Indoor Unit- TAC-24CF/E Part No. Part Name Q’ty Remark 1070740403 Operation Panel 1070520117 Temperature Display Lens 1070520118 Display lens 1090520104 Display PCB 1070520102 Top Panel 1070520103 Horizontal Vane 1070520106 Vertical Vane 1070520148 Vertical Vane Connect Rod...
- Page 19 TCL Air Conditioner Service Manual 1150520103 Water Drainage 1080520103 Middle Supporter 1080520122 Heat Insulation Board Cover 1090010071 Remote Control Not shown in Explosion view 1073030303 Remote Control Supporter 1190060022 Base Carton 1190060023 Left Right Beehive Carton 1190060024 Middle U Beehive Carton...
- Page 20 TCL Air Conditioner Service Manual Indoor Unit- TAC-24CHF/E Part No. Part Name Q’ty Remark 1070740403 Operation Panel 1070520117 Temperature Display Lens 1070520118 Display lens 1090520104 Display PCB 1070520102 Top Panel 1070520103 Horizontal Vane 1070520106 Vertical Vane 1070520148 Vertical Vane Connect Rod...
- Page 21 TCL Air Conditioner Service Manual 1080520103 Middle Supporter 1080520122 Heat Insulation Board Cover 1090010071 Remote Control Not shown in Explosion view 1073030303 Remote Control Supporter 1190060022 Base Carton 1190060023 Left Right Beehive Carton 1190060024 Middle U Beehive Carton 1190060025 Middle Cover Beehive Carton...
- Page 22 TCL Air Conditioner Service Manual Part List Outdoor Unit- TAC-24CF/E Part No. Part Name Q’ty Remark 1084530501 Grille Optional 1084530504 Top Cover 1210710303 Condenser 1084530510 Outdoor Motor Supporter 1170040063 Outdoor Motor 1070030017 Propeller Fan 1084530516 Left Plate 1074530502 Left Handle...
- Page 23 TCL Air Conditioner Service Manual Part List Outdoor Unit- TAC-24CHF/E Part No. Part Name Q’ty Remark 1084530501 Grille Optional 1084530504 Top Cover 1210710104 Condenser 1084530510 Outdoor Motor Supporter 1170040063 Outdoor Motor 1070030017 Propeller Fan 1084530516 Left Plate 1074530502 Left Handle...
