  • Page 2: Table Of Contents

    INDEX INDEX ........................1 SAFETY AND INSTRUCTIONS ................. 2 ASSEMBLY AND PARTS LIST .................. 3 1.1 Parts List ......................3 1.2 Front Panel......................3 1.3 Rear Panel ......................4 1.4 Remote Control Unit ..................... 5 1.5 Installing the batteries in the remote control............6 1.6 Connecting to Equipment ..................

  • Page 3: Safety And Instructions

    SAFETY AND INSTRUCTIONS CAUTION: TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE THE COVER. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that high voltage is present inside. It is dangerous to make contact with any part inside the case. This symbol alerts you of important information concerning operation and maintenance of this product.

  • Page 4: Assembly And Parts List

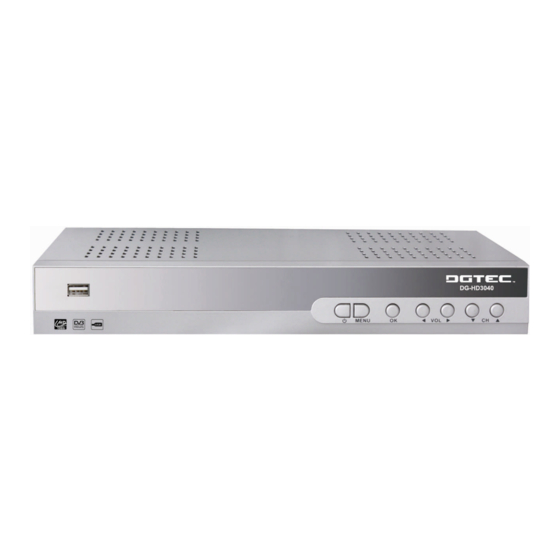

    ASSEMBLY AND PARTS LIST 1.1 Parts List Please make sure the following accessories are supplied with the STB. ① High Definition Digital Set Top Box ② Remote Control ③ RCA Video/Audio Cable ④ Batteries (AAA Size) ⑤ User Manual 1.2 Front Panel 1.

  • Page 5: Rear Panel

    ASSEMBLY AND PARTS LIST 1.3 Rear Panel 1. ANT OUT Used to loop to an extra analogue or digital device. 2. ANT IN Used to connect the antenna. 3. DIGITAL AUDIO (S/PDIF / Optical) Connects to an External Audio Amplifier with S/PDIF / Optical Digital Audio (optional).

  • Page 6: Remote Control Unit

    ASSEMBLY AND PARTS LIST 1.4 Remote Control Unit All features of the STB can be controlled with the remote control. POWER: Press to switch between operation and standby mode. MUTE: Press to mute the sound. 3. NUMERIC KEYS: Press to input Channel Numbers, Passwords or Letters.

  • Page 7: Installing The Batteries In The Remote Control

    ASSEMBLY AND PARTS LIST 1.5 Installing the batteries in the remote control 1. Press down on the retaining catch on the lid of the battery recess on the remote control and remove the lid. 2. Insert two AAA batteries into the recess. 3.

  • Page 8: Connecting To Equipment

    ASSEMBLY AND PARTS LIST 1.6 Connecting to Equipment 1. Connect your TV antenna cable to the “ ANT IN”jack on the back of the STB using coaxial RF cable. OPTION 1- YPbPr connection (High Definition connection, cable not supplied) 2. Connect the YPbPr out connectors and AUDIO L/R out connectors on the back of the STB to the COMPONENT IN on your television using RCA-type cables.
  • Page 9 ASSEMBLY AND PARTS LIST OPTION 3- VIDEO (For all Standard Televisions) 4. Connect the yellow video lead and AUDIO L/R (red and white lead) out connectors on the STB to the AV in on the back of the TV. Optional: Connect Optical S/PDIF out connector on the STB to the Audio-Amplifier using optical cable.

  • Page 10: Getting Started

    GETTING STARTED First time installation Note: Be sure to have the power cord connected to the mains. After all the connections have been established, switch on your TV. If you are using the STB for the first time or restored to factory default, a First Time Installation menu will be displayed to guide you through the scanning of channels.
  • Page 11 GETTING STARTED Change screen aspect Press ASPECT RATIO key to switch screen aspect mode (16:9/4:3). Please also change the play settings to make Ratio adjustments. Refer to page 15. Change TV/RADIO mode Press TV/RADIO key to change the program list between TV and Radio. View program info 1.

  • Page 12: Menu Tree

    GETTING STARTED Navigation in the main menu 1. Press MENU key to bring up the main menu. 2. Press ◄ /► key to move left/right to the desired sub menu. 3. Press OK key to enter into the sub menu you desire. 4.

  • Page 13: Instructions

    INSTRUCTIONS 2.1 Instructions < Starting up for the First Time > 1. Turn on your TV and STB. 2. If it is the first time using the STB, below is an explanation of the menu settings. Press the MENU button to bring up the following screen. <...

  • Page 14: System Settings

    INSTRUCTIONS Event Live play will switch to the channel specified at the requested time. Power off will turn off the unit at the time set. Channel Channel selected will be viewed at the time set. You will need to press the OK button on the remote control in order to select the channel.
  • Page 15 INSTRUCTIONS Note: Adjusting the screen size, you will need to select play settings and change the ARconversion to ex;PAN&SCAN or combined depending on TV Screen type. If not changed the picture will look elongated or in a Letter box format. <...

  • Page 16: Channel Manager

    INSTRUCTIONS 2.4 Channel Manager In this menu, you can use the Left/Right buttons to change the settings, Up/Down to select the item or press EXIT to cancel. (The default password is 0000.) Lock: lock/unlock a channel. This means a particular channel will require a password to access.
  • Page 17 INSTRUCTIONS < Lock Setting > Menu Lock Setting “ Menu Lock”will require you to input a correct PIN code to enter the main menu. Start Lock Setting “ Start Lock”will require you to input a correct PIN code to watch programs that you have locked.

  • Page 18: Week Epg

    INSTRUCTIONS 2.6 Week EPG EPG shows the event information on all channels. The event is displayed only for the channels that have EPG information. If you press EPG, the following screen will appear. By pressing the OK button on a highlighted channel will exit the EPG and preview the chosen channel.

  • Page 19: Usb Menu

    < USB File > You can see the files in a USB storage device. (Might not be compatible with all devices) < USB Upgrade > An upgrade can be performed using the USB port. (Only to be advised by DGTEC technician)

  • Page 20: Teletext

    INSTRUCTIONS < USB Format> You can format the USB storage device in this menu. (All the files stored in the USB storage device will be deleted.) < USB UMount > UMount the USB storage device from the STB. (Note: Do not remove the USB device when viewing the files in the USB storage device.

  • Page 21: Rec Quick Start Guide

    You can stop the recording at anytime by pressing on the remote control. Note: The DG-HD3040 will only playback recorded files that are 1 min and longer. 3.2 Scheduling Recordings You can create your personal recording schedules to record any programmes at any time.
  • Page 22 REC QUICK START GUIDE The DG-HD3040 will execute the recording and switch itself back to Active Stand-By* upon completing each recording. You can create recording schedules by following these steps: Press Menu > Select Timer Settings > Press OK. The following screen is displayed: Note: Use the / ...

  • Page 23: Schedule Recordings With The Electronic Program Guide (Epg)

    REC QUICK START GUIDE After creating the schedule press OK. The event number (No.) will increment by one. You are now ready to create the next schedule. If you wish to exit, press . You will be prompted to Save the schedule. Note: Please make sure Channel is NOT selected before you press OK to create the next schedule.

  • Page 24: Pause And Catch-Up Live Tv (Time Shift)

    Note: During Time Shift the storage/memory is consumed. Therefore the duration you can Pause and Catch-Up is restricted to storage device’ s capacity. A 2GB Capacity allows 1.5hours of recording and Time Shift. Note: During Active Stand-By the DG-HD3040 consumes 15%-25% less energy than in full operational mode.

  • Page 25: Record One Channel And Watch A Second Channel At The Same Time

    3.5 Record One Channel And Watch A Second Channel At The Same Time Unlike other single tuner STBs, the DG-HD3040 allows you to record a program and watch a second program on a different channel at the same time. Since this is a single tuner STB, you can only execute this function on channels provided by the same broadcaster and on the same bandwidth.

  • Page 26: Delete Recorded Programs

    REC QUICK START GUIDE The DG-HD3040 also plays music and photographs. The following file formats are supported: Mp3, bmp and Jpeg. Press to stop playing photographs and music files. You can use the buttons to Fast Forward/Skip and Rewind/Review recorded contents and music files.

  • Page 27: Ps1 Faq

    Ps1 FAQ What is a HD STB? A HDTV STB is a device that receives and decodes high definition TV signals. A HD STB is generally connected to televisions that are HD ready. Can I connect my HD STB to a CRT television? Yes this HD STB can be connected to a CRT television, as long as it supports the appropriate connections.

  • Page 28: Ps2 Trouble Shooting

    TROUBLE SHOOTING Ps2 Trouble Shooting Check the STB according to the procedures detailed below. If the STB does not work properly after conducting Problem Solving Protocols, please contact the technical department. This unit contains dangerous voltages, never remove the cover. When not in use for a long period, it is recommended that you unplug the unit from the main power socket.

  • Page 29: Ps3 Specification

    SPECIFICATION Ps3 Specification Section Detailed Section Explanation Input Frequency 49 ~ 861MHz UHF& VHF Input Impedance 75 Ohm Channel Bandwidth 6M, 7M & 8MHz Input Signal OFDM Spectrum 2K/8K-carrier hierarchical Modulation Mode QPSK, 16QAM, 64QAM Guard Interval Modes 1/4, 1/8, 1/16, 1/32 Code Modes 1/2, 2/3, 3/4, 5/6, 7/8 Algorithm...
