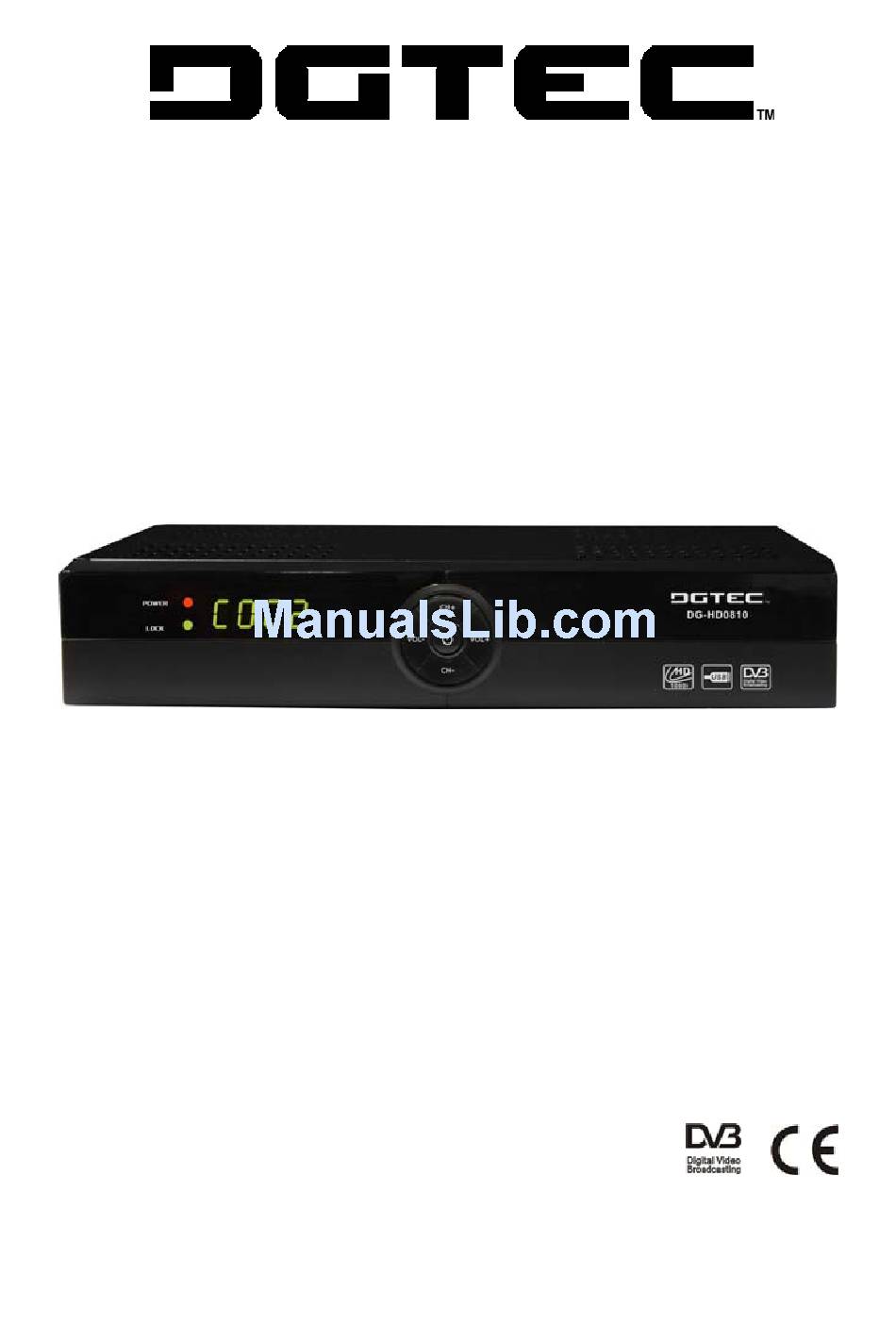

- Page 1 THE FUTURE OF HOME ENTERTAINMENT HIGH DEFINITION SET TOP BOX – PVR READY INSTRUCTION MANUAL MODEL NUMBER: DG-HD0810 BC80048 After Sales Support 1800 189 941...
-
Page 2: Warranty
WARRANTY High Definition Set Top Box – PVR Ready What your 1 year warranty means Great care has gone into the manufacture of this product and it should therefore provide you with years of good service when used properly. In the event of product failure within its intended use over the course of the first 1 year after the date of purchase, we will remedy the problem as quickly as possible once it has been brought to our attention. -
Page 3: Welcome Section
Our products are manufactured to the highest standards of performance and safety, and are backed by our comprehensive 1 Year Warranty. We hope you will enjoy using your DGTEC™ product for many years to come. After Sales Support TEL：1800 189 941... -
Page 4: Table Of Contents
INDEX WARRANTY ........................1 WELCOME SECTION ....................2 INDEX ..........................3 GENERAL INFORMATION AND SAFETY INSTRUCTIONS ........4 ASSEMBLY AND PARTS LIST ..................5 1.1 PARTS LIST ......................5 1.2 FRONT PANEL ......................6 1.3 REAR PANEL ......................7 1.4 REMOTE CONTROL UNIT ..................8 1.5 INSTALLING THE BATTERIES IN THE REMOTE CONTROL ........ -
Page 5: General Information And Safety Instructions
GENERAL INFORMATION AND SAFETY INSTRUCTIONS Never allow children to play with electrical equipment. This symbol indicates that high voltage is present inside. It is dangerous to make contact with any part inside the case. This symbol alerts you of important information concerning operation and maintenance of this product. -
Page 6: Assembly And Parts List
ASSEMBLY AND PARTS LIST 1.1 Parts List Please make sure the following accessories are supplied with the STB. ① High Definition Digital Set Top Box ② Remote Control ③ RCA Composite Video/Audio Cable ④ Batteries (AAA Size) ⑤ User Manual ⑥... -
Page 7: Front Panel
ASSEMBLY AND PARTS LIST 1.2 Front Panel 1. Front Panel Display Front panel window displays information concerning current operation such as CH number. The green LED lights up when the channel is locked in. A hidden sensor senses infrared signal from the remote control. 2. -
Page 8: Rear Panel
ASSEMBLY AND PARTS LIST 1.3 Rear Panel 1. ANT OUT Used to loop to an extra analogue or digital device. 2. ANT IN Used to connect an antenna. 3. YPbPr Connects component video to HD Monitors (YPbPr Type). 4. VIDEO (Yellow Connector) Connect to a TV with video input. -
Page 9: Remote Control Unit
ASSEMBLY AND PARTS LIST 1.4 Remote Control Unit All STB features can be operated with the remote control. POWER: Press to switch between operation and standby mode. 2. USB: Press to enter the USB menu. You can playback the recording files. 3. -
Page 10: Installing The Batteries In The Remote Control
ASSEMBLY AND PARTS LIST 1.5 Installing the batteries in the remote control 1. Press down on the retaining catch on the lid of the battery recess on the remote control and slide downward to remove the lid. 2. Insert two AAA batteries into the recess. 3. -
Page 11: Connecting To Equipment
ASSEMBLY AND PARTS LIST 1.6 Connecting to Equipment i. Connect your TV antenna cable to the “ANT IN” jack on the back of the STB using coaxial RF cable. CONNECTING TO A HIGH DEFINITION TELEVISION (HDTV) OPTION 1- HDMI connection ii. - Page 12 ASSEMBLY AND PARTS LIST CONNECTING TO A STANDARD DEFINITION TELEVISION iv. Using the provided Composite cables connect the yellow plug to the corresponding yellow socket on the STB and TV. Connect the AUDIO L/R (WHITE and RED) lead to the corresponding white and red sockets on the STB and the AV in sockets at the rear of the TV.
-
Page 13: Getting Started
GETTING STARTED First Time Installation If you are using the STB for the first time or the unit is restored to factory default, a First Time Installation Guide menu will be displayed. In the Installation Guide menu you can set the language (the default is English), and activate Auto Channel Search. - Page 14 GETTING STARTED Freezing picture (This is not Timeshift) 1. Press FREEZE key to pause current program and the pause icon will appear on screen. 2. To cancel pause and continue to play, press the FREEZE key again and the pause icon will disappear and the video will skip forward to the current time. Change screen aspect Press ASPECT RATIO key to switch screen aspect mode (16:9 Widescreen/16:9Pillar Box/16:9 Pan&...
-
Page 15: Instructions
INSTRUCTIONS 2.1 INSTRUCTIONS < Starting up for the First Time > 1. Once the STB has been correctly set up and channel scan is complete you will need to make a few selections from the menu to customise your set 2. - Page 16 INSTRUCTIONS Blue Key: You can delete selected channels. Be aware that this function can completely delete the saved channel. When you delete a channel in the menu, the channel is also deleted from the Favorite List. Use the ▲/▼ keys on the remote control to highlight the channel to be deleted then press the BLUE key.
-
Page 17: Picture
INSTRUCTIONS Press ◄/► keys or numerical keys to change settings. Press OK to confirm your settings. In the EPG menu, press INFO key to enter the book list menu. In this menu you can view and edit all booking events. Press the RED key to add a new booking, the Green key to edit the highlighted booking and the BLUE key... -
Page 18: Channel Search
INSTRUCTIONS Aspect Ratio: Press the▲/▼ keys on the remote control to highlight the Aspect Ratio selection. Use the ◄/► keys to select the aspect ratio setting to suit your screen (16:9 Widescreen/16:9Pillar Box/16:9 Pan& Scan/AUTO/4:3 Full/4:3 Pan&Scan/4:3 Letterbox). Resolution: Press the▲/▼ keys on the remote control to highlight the Resolution selection. -
Page 19: Time
INSTRUCTIONS < Manual Search > Press the▲/▼ keys on the remote control to highlight the Manual Search then press OK to activate the manual search sub menu. Use the ◄/► keys to navigate through the Frequency channels, the Frequency in the row below will change accordingly. Repeat the process to manually scan all channels in your region. -
Page 20: System
INSTRUCTIONS Schedule: Enter the book list (Schedule) menu. In this menu you can add a timer event booking or edit a booked event. 2.6 Option Press the ► key on the remote control to select Option from the Main Menu options to display the option sub menu. - Page 21 INSTRUCTIONS < Parental Guidance > In this menu, you can use the ◄/► keys to change the settings, or press EXIT to cancel. (The default password is 000000.) Parental Guidance ratings are transmitted by the broadcaster in accordance with the Australian Standard.
-
Page 22: Usb
In this submenu item detailed information of the system, such as model, SW version, HW version is displayed. Press EXIT to return the last menu. < Software Update > An upgrade can be performed using the USB port. (Only to be advised by DGTEC technician) 2.8 USB For this function to work you will need to insert a USB drive into the USB Port on the rear panel of the unit. - Page 23 INSTRUCTIONS Photo: The photos stored in the mobile storage device will appear in this menu. Use the ▲/▼ keys to highlight a file then press OK to play it. Press RECALL to return the last menu. In this environment only JPG and BMP format files can be displayed. Movie: The movie files stored in the mobile storage device will appear in this menu.
-
Page 24: Rec Quick Start Guide
INSTRUCTIONS < Movie Configure > In this menu you can set the parameters for playing movies, such as Subtitle, Subtitle Back Ground and Subtitle Font Color. < PVR Configure > You can view the PVR configure parameters, or format the USB device. Record Device: You can see detailed information of the USB device, such as Media Type, Total Space and Free Space. - Page 25 INSTRUCTIONS The system will display the schedule menu, you can add or edit the bookings. If you set the Mode to record a record symbol will appear next to the booked program title. You can schedule multiple recordings by repeating the above steps. You can schedule recordings for future dates by changing the start date in Schedule menu.
-
Page 26: Faq
What is a HD Receiver? A HDTV receiver is a device that receives and decodes high definition TV signals. A HD receiver is generally connected to televisions that are HD ready. Can I connect my HD receiver to a CRT television? Yes this HD receiver can be connected to a CRT television, as long as it supports the appropriate connections. -
Page 27: Trouble Shooting
TROUBLE SHOOTING Problem Potential Reasons What to do Power isn’t connected Connect the power No Power The power switch is not on Switch on the power Screen shows “No Antenna not connected Plug in the antenna cable Signal” Incorrect setting Reset setting No or incorrect connection Connect the audio cable... -
Page 28: Specification
SPECIFICATION Section Detailed Section Explanation Input Frequency 49 ~ 861MHz UHF& VHF Input Impedance 75 Ohm Channel Bandwidth 6M, 7M & 8MHz Input Signal OFDM Spectrum 2K/8K-carrier hierarchical Modulation Mode QPSK, 16QAM, 64QAM Guard Interval Modes 1/4, 1/8, 1/16, 1/32 Code Modes 1/2, 2/3, 3/4, 5/6, 7/8 Algorithm... -
Page 29: Memo
Memo After Sales Support TEL：1800 189 941...
