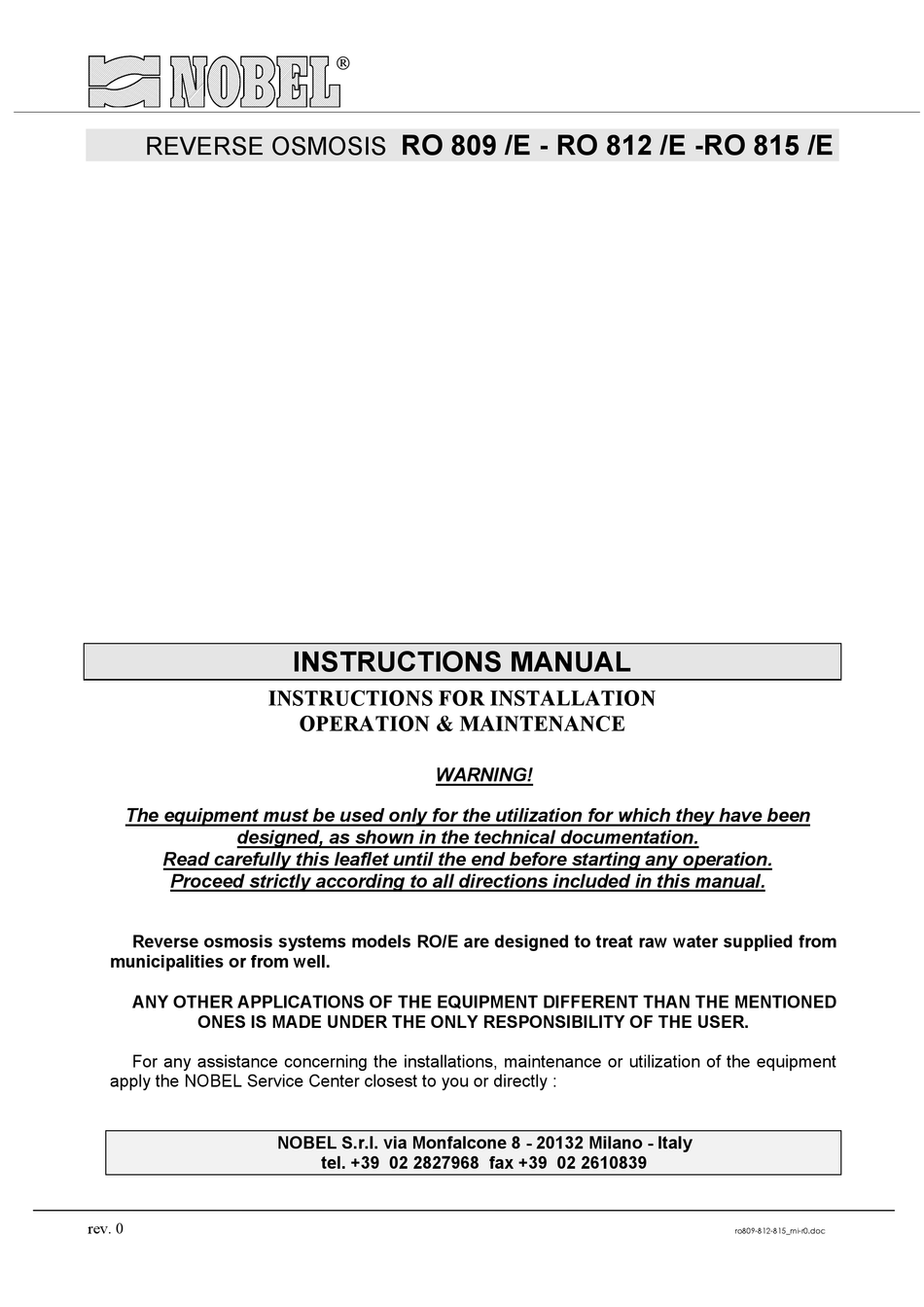

REVERSE OSMOSIS
The equipment must be used only for the utilization for which they have been
designed, as shown in the technical documentation.
Read carefully this leaflet until the end before starting any operation.
Proceed strictly according to all directions included in this manual.
Reverse osmosis systems models RO/E are designed to treat raw water supplied from
municipalities or from well.
ANY OTHER APPLICATIONS OF THE EQUIPMENT DIFFERENT THAN THE MENTIONED
ONES IS MADE UNDER THE ONLY RESPONSIBILITY OF THE USER.
For any assistance concerning the installations, maintenance or utilization of the equipment
apply the NOBEL Service Center closest to you or directly :
rev. 0
RO 809 /E - RO 812 /E -RO 815 /E
INSTRUCTIONS MANUAL
INSTRUCTIONS FOR INSTALLATION
OPERATION & MAINTENANCE
WARNING!
NOBEL S.r.l. via Monfalcone 8 - 20132 Milano - Italy
tel. +39 02 2827968 fax +39 02 2610839
ro809-812-815_mi-r0.doc
Advertisement
Table of Contents
Related Manuals for Nobel RO 809 /E
Summary of Contents for Nobel RO 809 /E
- Page 1 RO 809 /E - RO 812 /E -RO 815 /E REVERSE OSMOSIS INSTRUCTIONS MANUAL INSTRUCTIONS FOR INSTALLATION OPERATION & MAINTENANCE WARNING! The equipment must be used only for the utilization for which they have been designed, as shown in the technical documentation.
-
Page 2: Table Of Contents
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL INDEX 1. Safety............................4 1.1. General ..........................4 1.2. How to displace the unit ......................4 1.3. Hydraulics ...........................4 1.4. Electrical..........................4 1.5. Directions for storage, delivery, installation.................4 2. Principles of working.........................5 3. Technical characteristics ......................6 3.1. - Page 3 • diagram FRONT OF CONTROL PANEL • special instructions 3-ways valves • wiring diagrams (4 pages) • special instructions high-pressure pump • NOBEL running-test certificate • special instructions conductimeter • components list • special instruction flow meters • fitting-out table ...
-
Page 4: Safety
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL Safety 1.1. General The equipment has been designed and constructed according to D.P.R. n° 459 of 24th July 1996 (regulation for accomplishment of Norms 89/392/CEE, 91/368/CEE, 93/44/CEE and 93/68/CEE regarding the unification of States members laws in so far as machines are concerned). -
Page 5: Principles Of Working
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL Principles of working Osmosis is a natural phenomenon : it is the spontaneous passage of a liquid from a dilute to a more concentrated solution across a semi-permeable membrane. The driving force of the solution through the membrane is its osmotic pressure. -
Page 6: Technical Characteristics
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL Technical characteristics 3.1. Assumed raw water characteristics • silt density index (SDI) ≤ 3 • TDS of raw water ≤ 5000 * • raw water temperature min÷max ºC (°F) 10÷40 (50÷104) • raw water pressure min÷max bar (kPa) 1.0÷6.0 (100÷600) •... -
Page 7: Installation
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL Installation 4.1. Room conditions These units do not include visible moving or specially noising parts (see also the "noise monitor chart" attached to the special instructions of high-pressure pump). There are not any points which reaches high temperature. -
Page 8: Hydraulics Connections
According to the characteristics of raw water, the pre-treatment could be required; apply Nobel technical staff for proper suggestion. • Run the line from the product water outlet fitting (U) to the storage tank, using pipes made in PVC or other suitable materials, with size (Ø) equal or larger than the size of outlet... - Page 9 REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL RL o power supply 400V, 50 Hz (upon request 440 V, 60 Hz) SL o " " " " " " " " TL o " " " " " " " "...
-
Page 10: Control Panel
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL Control panel The control panel QE, handled by a logical programmer, controls the automatic and/or manual working of the whole system. For safety sake, when the high pressure pump P is on working, the inlet valve VI is open (except during the flushing with RO processed water, during which the valve VIF is open), both automatic and manual working as well. -
Page 11: Logical Programmer
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL The visualizations available on the front of control panel QE are : This visualization is always available; the total time of working of "SERVICE PUMP" the system (hours) is also visualized. When this visualization appears, it indicates that the external "NO EXTERNAL signal is enabling the working of the system is missing (clamps 9- ENABLING SIGNAL"... - Page 12 REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL The used functions are the following : MARK DESCRIPTION Input for manual flushing Input of manual start (activated = start) input of minimum pressure switch PC (open without pressure) input of the enabling external signal (activated = start) input for medium level of water tank (open without water) input for maximum level of water tank (open without water) input high conductivity alarm (activated = alarm)
-
Page 13: Reports On The Display Of The Programmer
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL 5.2.1. Reports on the display of the programmer The report messages enabled by the programmer are visualized on the display one at a time, with a determinate priority. The buttons are used to scroll the messages. The button is used to turn back to service visualizations. -
Page 14: How To Use The Function Buttons Of The Programmer
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL 5.2.4. How to use the function buttons of the programmer The 4 buttons can have special functions if enabled by the programmer for these purposes. Proceed as follows to use them: • push several times the button until the notice ESC+C…is visualized on the display. -
Page 15: External Enabling Signals
RO system. The contacts of the microswitch of programmers of Nobel filters and softeners is closed only during the service; hence only during the service of filters and softeners the RO system can work and supply water. -
Page 16: Working Of The Pump
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL 5.3.7. Working of the pump The control system should receive the feed-back from the contactor of pump P that the pump is ON, when it should be ON (automatic command). Otherwise, the alarm acts, 3 seconds delayed, and it also switches the block of the whole system. - Page 17 REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL Besides the functions listed at related paragraph (5.2), the following funtions of the programmer are used : Input to enable the intermittent flushing during stand-by Input threshold level of the sensor of the concentrate flow rate (F2) Output related to the pilot solenoid valve EIF of the inlet of flushing standard settings...
-
Page 18: Starting-Up And Adjustments
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL Starting-up and adjustments At the starting-up of the system, when the system is re-started after a long non-working period, and after a cleaning operation, the membranes are filled with preservative or detergent chemical. - Page 19 REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL CAUTION: The treated water (permeate) supplied during the first hour of working of the system must not be used, since it can still contain residual of preservative chemical. When this solution will be completely flushed away, the valve V3 can be turned on normal working position (the permeate flow is diverted to the storage tank).
-
Page 20: Maintenance
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL Maintenance Refer to special manuals of each components for maintenance operations. 7.1. Periodical monitoring The system requires, as periodical maintenance, the cleaning or replacing of the cartridge of filters . Special instructions : •... -
Page 21: How To Insert Or Replace Membranes
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL 7.3. How to insert or replace membranes (see DIAGRAM OF THE SYSTEM) the housing caps and their own fixing rings can have shape different than the one NB : shown, according to the type of housing used. In these cases, also the end membrane adapters will have a shape different than the one shown above. -
Page 22: Cleaning Of The Membranes
(see "Table of chemicals for cleaning" in the next page). In these cases, it is suggested to apply the Nobel Service Center closest to you or our Technical Dept. -
Page 23: How To Adjust The Min Pressure Switch Pc
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL 7.5. How to adjust the min pressure switch PC The factory set point of the pressure switch PC is approx. 0.8 bar (80kPa). Whether further adjustment should be required, proceed as follows : •... -
Page 24: Table Of Chemicals For Membranes Cleaning
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL 7.7. Table of chemicals for membranes cleaning DETERGENTE / DETERGENT / CLEANER TIPO DI SPORCO / SALETE’ / FOULANT Sali Inorganici / Sels Inorganiques BEST Inorganic Salts (per esempio / par exemple / for example: CaCO - CaSO - BaSO... -
Page 25: Trouble Shooting Guide
REVERSE OSMOSIS SYSTEMS RO 809-812-815/E - INSTRUCTIONS MANUAL Trouble shooting guide PROBLEM CAUSE HOW TO SOLVE High conductivity of treated water Too low pressure on membranes. Increase the pressure by adjusting the valve(s) VS, VR, VRP. (permeate) Leakage of untreated water through O-ring Withdraw the membranes and check the integrity and the correct seals of membranes.
