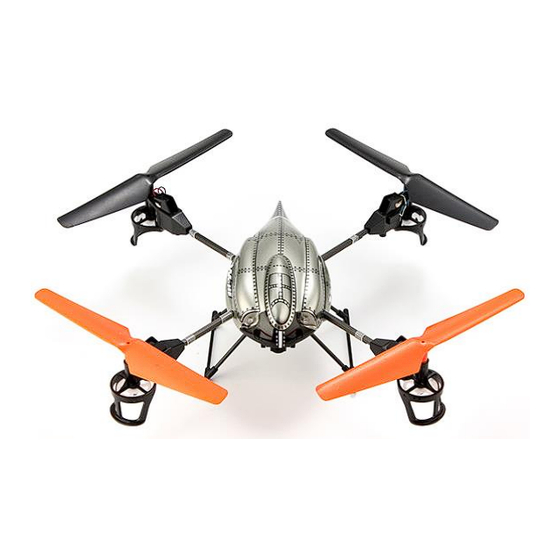

V222 TRANSMITTER 360 STUNT DRONE
Specifications
CONTENTS OF THE BOX:
• 1 x Quadcopter drone
• 1 x 2.4GHz remote control with LCD display (6x AA batteries
not included)
• 1 x 3.7V 500mAh Li-po battery
• 1 x Charger
• 1 x 4 Sprare propellers
• 1 x User manual
• 1 x HD camera 720P if included in your model
• 1 x Module if included in your model (V969-V979-V989-V999)
• (1 x card Mirco SD 2GB if module Camera included)
Security precautions
• Read the manual carefully and completely
• This model is not suitable for children under 14 years and contains small parts
• Children should only use this model under the supervision of an adult
• Keep hands, face, hair and clothes away from blades.
• Stand out of reach of moving parts of the copter
• After using the copter ALWAYS disconnect the battery and remove it from the device
• The model and the transmitter must be switched off after use
• Always fly in an open and safe environment where you will not cause any danger to others
• For the remote control, we recommend AA batteries with a voltage of 1.5 to 1.2 volts
• For people without experience, we recommend that you learn to fly with an experienced user during your first flights
• Before each flight, test the distance limit of the transmitter
• Keep these instructions safe
• Always follow local laws and regulations! Contact your reseller when in doubt.
Copyright WLtoys.eu | DroneX BV
INSTRUCTION MANUAL
SPECIFICATIONS:
• 2.4GHz Assembled quadcopter drone Ready-to-fly
• 6-axis Gyroscope
• 4 main engines
• 1S Li-po Battery 3.7V 500mAh
• Height: 80mm
• Length: 160 mm (axis to axis)
• Width: 160 mm (axis to axis)
• Weight: 76 grams without battery
• Battery weight: 15.8 grams
Advertisement
Table of Contents
Related Manuals for WLtoys V222
Summary of Contents for WLtoys V222
- Page 1 INSTRUCTION MANUAL V222 TRANSMITTER 360 STUNT DRONE Specifications CONTENTS OF THE BOX: SPECIFICATIONS: • 2.4GHz Assembled quadcopter drone Ready-to-fly • 1 x Quadcopter drone • 6-axis Gyroscope • 1 x 2.4GHz remote control with LCD display (6x AA batteries • 4 main engines •...
-
Page 2: Battery Charging
- This model is equipped with a rechargeable Li-po Battery. Li-po batteries require special attention, follow the manual - The batteries must be charged with the charger supplied by WLtoys - When charging the battery, always ensure that you do so on a non-combustible surface... -
Page 3: Remote Control Transmitter
Module 1 : Water jet; bubble jet; video; basket up; lead single missile Lighting control Module 2 : Taking photos, running missiles, basket down Mode 1 or 3 / Mode 2 or 4 switch (software) Copyright WLtoys.eu | DroneX BV... - Page 4 How to fly Flying is really simple, but you need a little practice at first. Connect to www.wltoys.eu to watch educational films. SIDEWARD The directional lever serves to move the drone to the left or the right.
-
Page 5: The First Flight
Never go full speed for the first 3 flights. After 3 flights, blow out engines with air when possible. Spare engines can be bought on www.wltoys.eu or with your reseller. The first flight 1. For your first flight make sure to be with a person experienced in flying copters. We advise you to make your first flights on a relatively soft surface to protect the copter. -
Page 6: Troubleshooting
The copter is not sensitive to crashes, but in case of extreme drops it is possible that some parts may break. All parts can be ordered and easily assembled. Please contact your dealer or visit www.wltoys.eu for more information. Copyright WLtoys.eu | DroneX BV... - Page 7 Main shaft Canopy Blade Light Colour light Additional modules (accessories) This model can be equipped with different modules. This is available from your retailer or on www.wltoys.eu. A module may be included in some models. Camera Bubble Fountain Bullet Rescue...
-
Page 8: Warranty
Congratulations on your purchase of this product from wltoys.eu! Wltoys.eu offers its customers a high quality product. All our products are carefully tested before shipment. If unfortunately a problem persists, contact your dealer or visit www.wltoys.eu. Your dealer can also assist you in getting spare parts in case you need them. - Page 9 • The costs of transportation, shipping or insurance • The damage caused by the humidity • The damage caused by the loss of the product • After three flights the warranty of brushed engines is void Copyright WLtoys.eu | DroneX BV...
