Draytek Vigor2120 series User Manual page 145

Advanced
Inter-LAN Routing

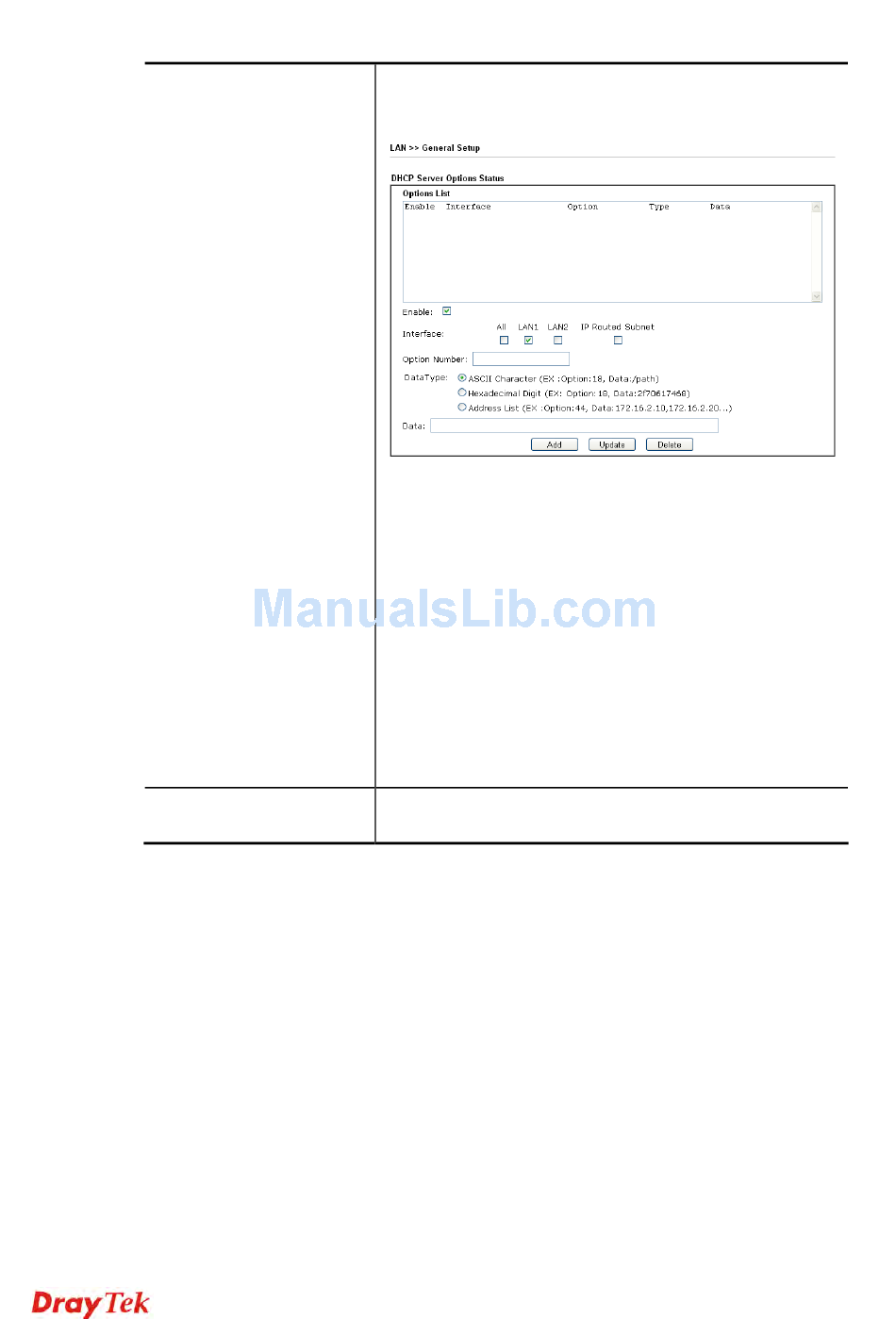

When the router receives the DHCP request from LAN
client, the router will assign an IP with the DHCP packets
adding option number and data information.
Enable – Check the box to enable the function of DHCP
Option. Each DHCP option is composed by an option
number with data. For example,
Option number:100
Data: abcd
When such function is enabled, the specified values for
DHCP option will be seen in DHCP reply packets.
Interface – Choose the interface for applying such option.
Option Number – Type a number for such function.
DataType – Choose the type (ASCII or Hex or Address)
for the data to be stored.
Data – Type the content of the data to be processed by the
function of DHCP option.
Check the box to link two or more different subnets (LAN
and LAN).
135
Vigor2120 Series User's Guide
