ADSL Connection

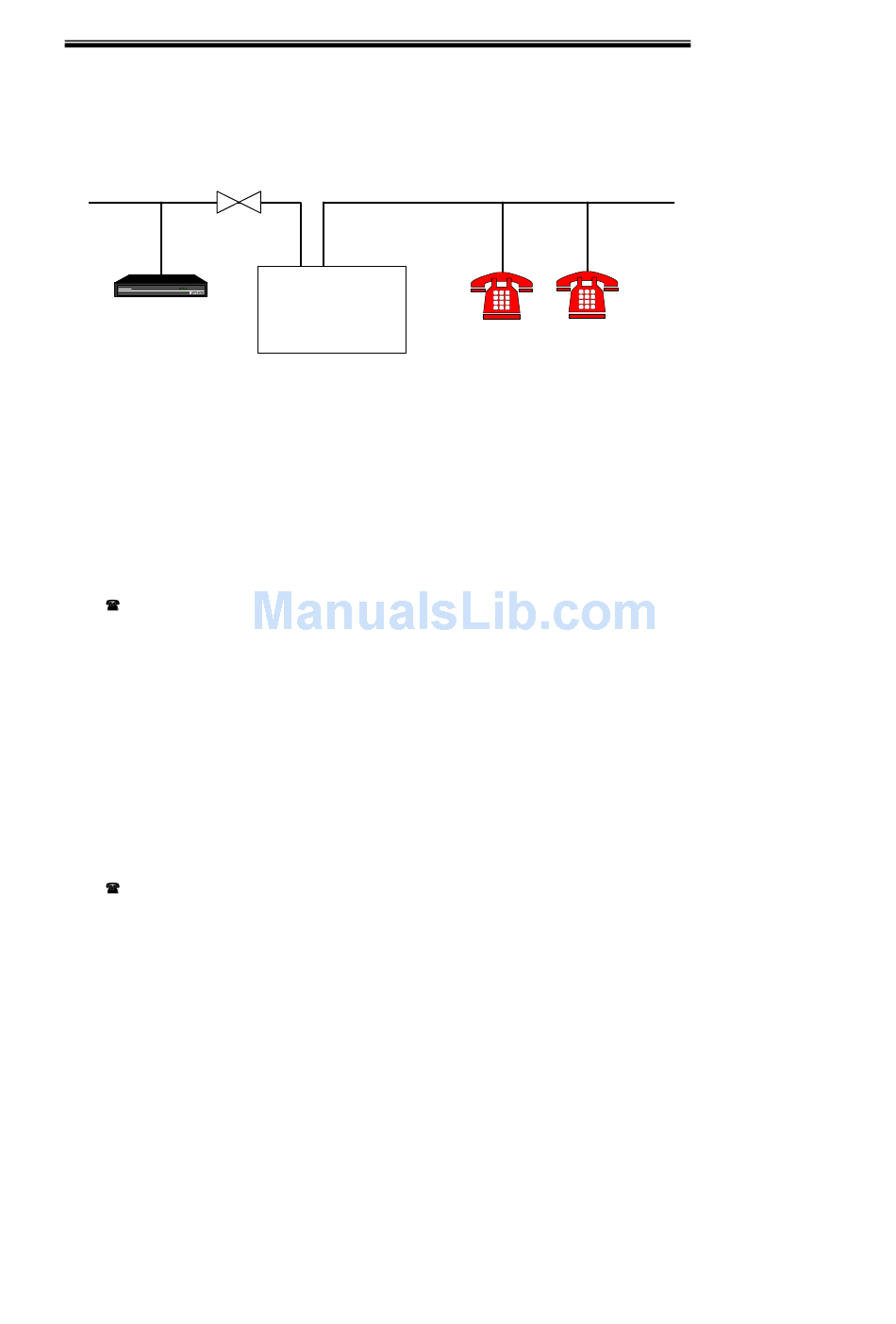

An ADSL modem on the same telephone line as Comfort should be
connected before Comfort on the TEL IN connection as shown in the
diagram below;
Microfilter
Telephone Line
ADSL Modem
A microfilter must be connected between the ADSL modem and Comfort.
Comfort is connected to the "Telephone" end of the microfilter. It will not
necessary to use microfilters for the other telephones in the house. The
telephones should be connected to Comfort TEL OUT, and NOT to the
ADSL modem. This will ensure that Comfort can still dial to the
programmed telephones in case of an alarm.
Parallel Phone Connections
If it is not possible to run the incoming telephone line directly to the TEL
IN terminals, it is possible to connect TEL In parallel with other phones
with IGNORE LINE CUT setting. See Worksheet Table 35 under "Ignore
Line Cut" setting
This method of connection is not for UL installations or Central
Station monitored systems, and is only applicable to Home
Automation-only installations
Connection to Keyphone and PABX systems
A key telephone system may be to the TEL OUT socket. To access the
system with a key telephone, press the button which selects the
incoming line to which the system is connected, and press *, sign-in code
and # in the usual way. The system cannot be connected as an extension
of a key telephone system. Remote telephone access can be achieved by
dialing into the exchange line to which the system is connected.
A PABX may be connected to the TEL OUT socket. A telephone may be
connected in parallel to the PABX, to be used for local system access.
Remote telephone access can be achieved by dialing into the exchange
line to which the system is connected. See Figure 2.8 for connection
With this method of connection, the extension phone will not be
able to access the system if the CO line for Comfort is in use.
Also, for remote access, the user must dial the actual number
and not the hunting line to ensure that Comfort can receive the
call.
To phones
TEL IN TEL OUT
COMFORT
30
Telephones
