Summary of Contents for Midea MB-FC3020

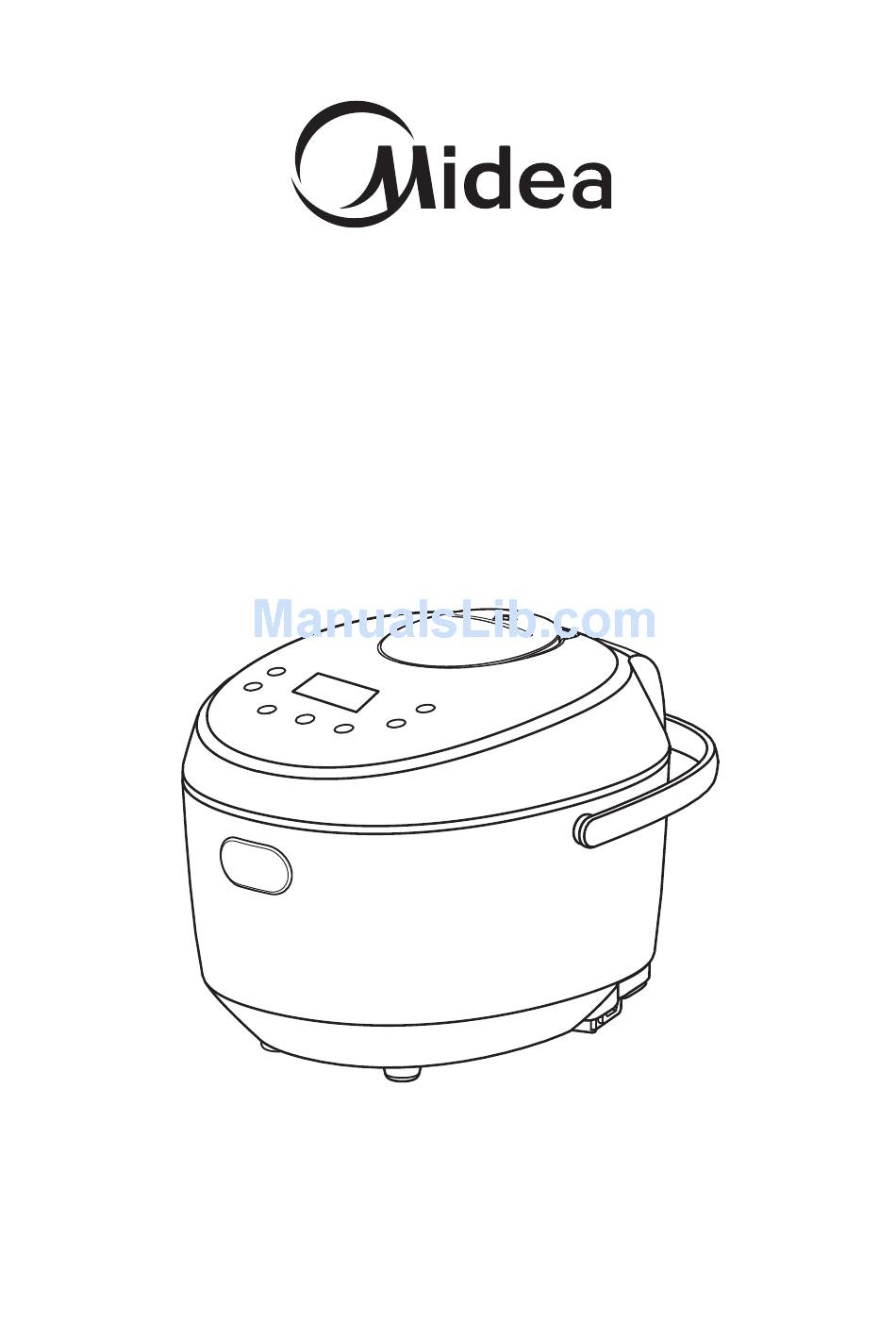

- Page 1 MB-FC4020 MB-FC5020 Thank you for purchasing the Midea electric rice cooker. Please read this User’s Manual carefully before using and keep it in a good place for future reference. The product is subject to the physical, picture is for reference only.
-
Page 2: Table Of Contents
Content Safety Instruction Product Instructions Usage Instructions Cleaning and Maintenance Troubleshooting Circuit diagram IMPORTANT NOTICES IN NO EVENT SHALL OUR COMPANY OR THE SUPPLIER BE LIABLE TO YOU OR ANY OTHER PARTY FOR ANY DIRECT, INDIRECT, GENERAL, SPECIAL, INCIDENTAL, CONS -EQUENTIAL, EXEMPLARY OR OTHER DAMAGES ARISING OUT OF THE USE OR INABI -LITY TO USE THE PRODUCT (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR INJURY, LOSS OF PROPERTY, BUSINESS PROFITS, BUSINESS INTERRUPTION) OR FROM ANY... -
Page 3: Safety Instruction
Safety instruction 1. To reduce electric shock, risk of fire or injury, please read the operating instructions carefully before using the appliance for the first time and keep them for future reference. 2. Never immerse the appliance in water or other liquids. 3. - Page 4 Safety insturction Warm Tips If there is any inconsistency between the picture and the real product, the real product will be taken as final standard. Before using the rice cooker , please check the inner pot and steam valve are installed in-place to avoid any malfunction.
-
Page 5: Product Instructions
Product Instructions Spare parts Instructions Spill proof moisture steam valve Dismounting method: Buckle type disassembly Note: spill-proof moisture-keeping steam valve, fore -ign body should be removed in time, to avoid eff -ect on the quality of cooking The removable cover Turbine Cover Inner pot... -
Page 6: Usage Instructions
Product Instructions Product specification Rated Rated Power Rated Rice Cooking Model L x W x H (mm) Volage Capacity(L) Amount (Cup) MB-FC3020 353X229X237 1 ~ 5.5 220V~ MB-FC4020 353X275X237 2 ~ 8 50Hz MB-FC5020 373X275X267 2 ~10 Usage Instructions Refined... - Page 7 Usage Instructions Use of the function button MENU key START key Shine Refined Porridge Cooking Quick Reheat Cooking Congee Soup START START MENU Features Baby Food Brown Rice Keep Warm Series Press the "Function" button, select the Press "Start" button, the indicator appropriate function, the corresponding changes from flashing to steady, which function displays a prompt.
- Page 8 Usage Instructions Usage Method Take rice (one cup of rice is about 150g) with measuring cup. one cup of rice is about 150g Please do not directly wash rice in the inner pot for avoiding scratching the inner pot. If using a dry cereals for grains function, it needs to use hot water soak 2-3 hours in advance.
-
Page 9: Cleaning And Maintenance
Cleaning and Maintenance Clean the body Use a damp cloth to wipe the insulation The water in the water storage tank should be wiped dry with a semi-dry rag. seat board position，but never wash it with water directly. Rice grains should be removed with Any water on the heating plate should be wiped a toothpick or rag. - Page 10 Cleaning and Maintenance Turbine disassembly, cleaning, oiling, installation Note: We recommend regular cleaning, coating of vegetable oil (such as peanut oil, vegetable oil, etc.), to ensure smooth operation, please wash after cooling to prevent burns. After removing the cover, Cleaning Turbine remove the Turbine out Anointment After cleaning, the turbine shaft holes...
- Page 11 Cleaning and Maintenance Removal of steam valve，Cleaning and Installation Note: The moveable cover plate must be cleaned after every use, to ensure the steam vent to be smooth. After cooling down, clean it and avoid scald. with a hand, hold the rear side, As shown, suppress the steam valve and lift it up.
-
Page 12: Troubleshooting
Troubleshooting When you found the cooking is in any abnormal conditions, please refer to below table. Issue Checklist Not yet cleaned the inner... - Page 13 Troubleshooting When you think something is wrong with the product, when to repair outlets before repairs, check the following circumstances, for confirmation. Unusual circumstances Please confirm Corresponding method Plug the power cord loose Plug the power cord securely Button does not respond to the Press the "Cancel"...
-
Page 14: Circuit Diagram
Circuit diagram Control board The motor Connection flat cable Temperature fuse Power circuit board Heating plate Temperature fuse Cover thermistor Master thermostat FC30/40/5020 series circuit diagram...
