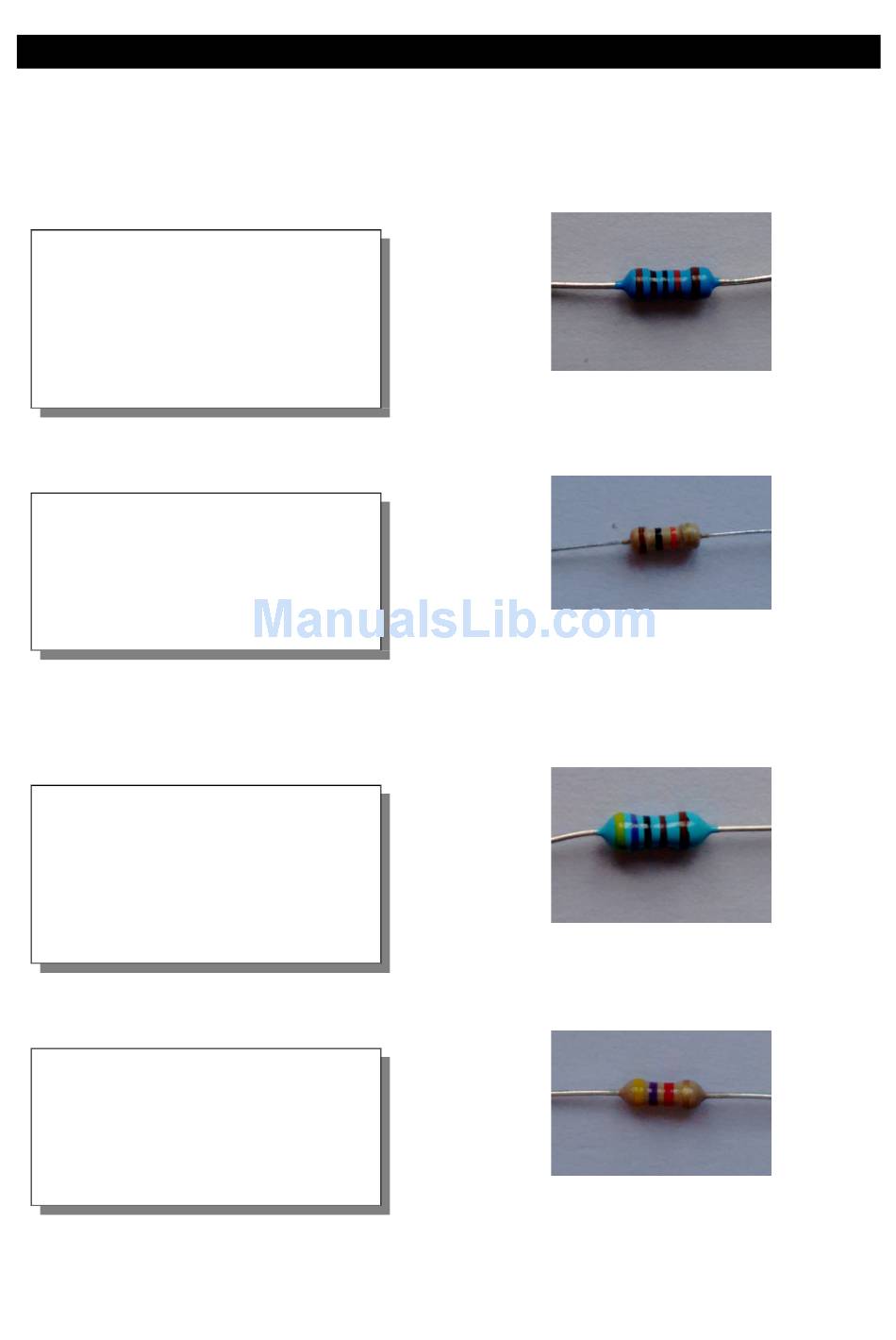

Component Identification

We can't always guarantee to get exactly the the same components. Where we have alternatives, they are
listed separately under the same heading.
10k resistor
Alternative 1
The color code for the 10k resistor is:
BROWN = 1
BLACK = 0
BLACK = 0
RED = 2 (2 zeros in this case)
BROWN = 1 (1% Tolerance)
= 1 0 0 0 0 with 1% tolerance
Alternative 2
The color code for the 10k resistor is:
BROWN = 1
BLACK = 0
ORANGE = 3 (3 zeros in this case)
GOLD = 5% Tolerance
= 1 0 0 0 0 with 5% tolerance
4.7k resistor
Alternative 1
The color code for the 4.7k resistor is:
YELLOW = 4
VIOLET = 7
BLACK = 0
BROWN = 1 (1 zero in this case)
BROWN = 1 (1% Tolerance)
= 4 7 0 0 with 1% tolerance
Alternative 2
The color code for the 4.7k resistor is:
YELLOW = 4
VIOLET = 7
RED = 2 (2 zeros in this case)
GOLD = 5% Tolerance
= 4 7 0 0 with 5% tolerance
10k resistor
10k resistor
4.7k resistor
4.7k resistor
